Sayfa 1-50B - Isuzu EPC

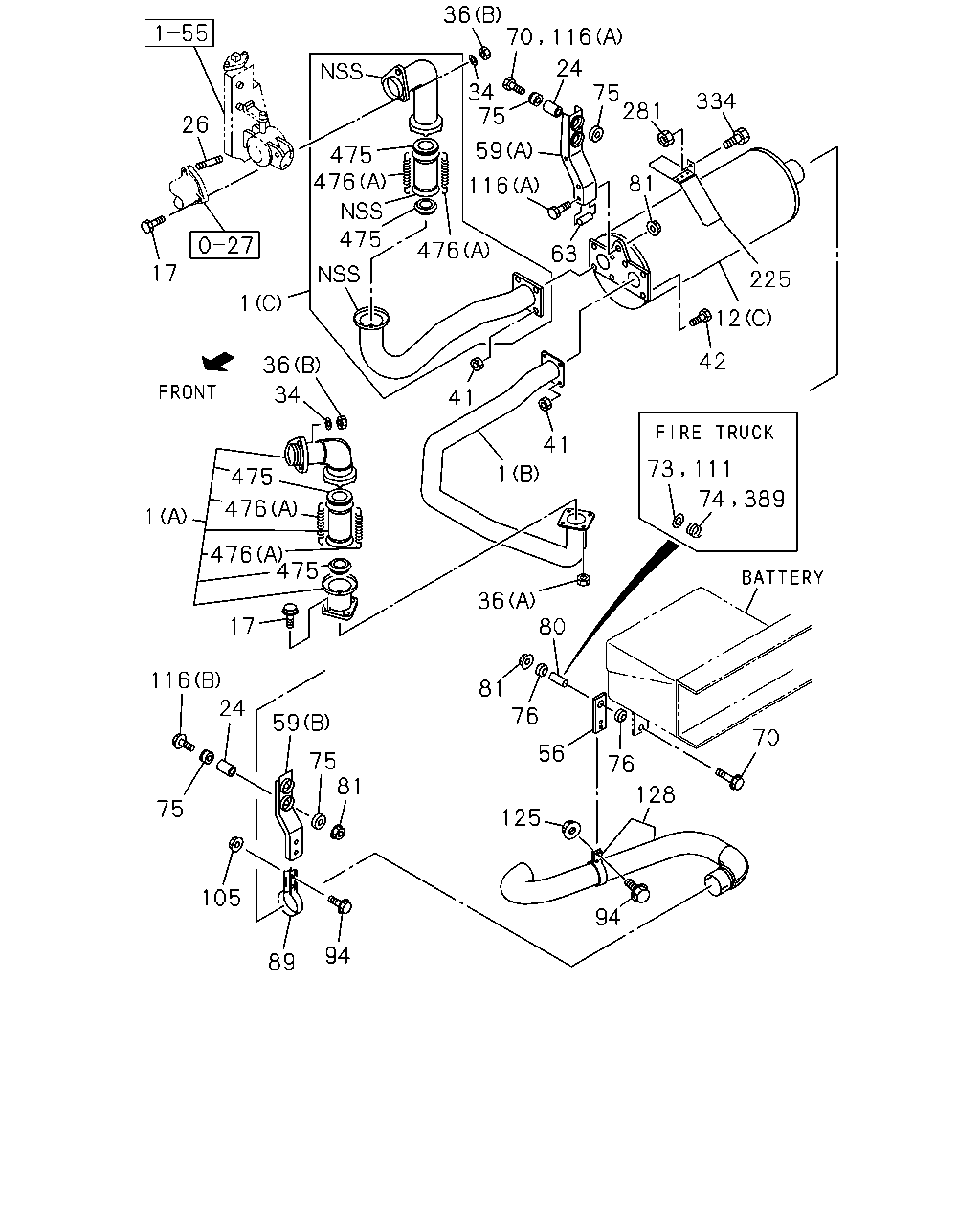

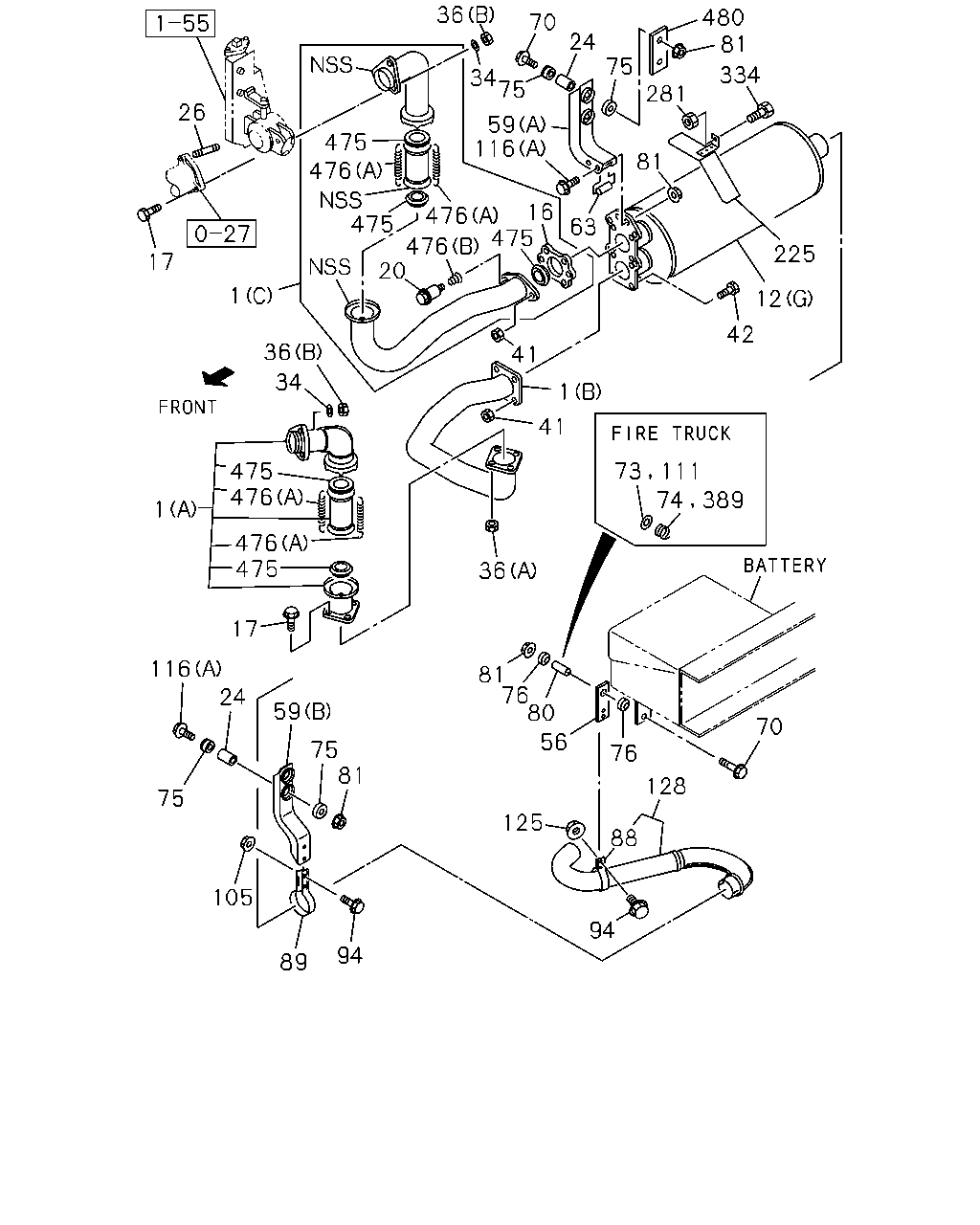

1-50B — EXHAUST PIPE AND SILENCER (#5326) — 408 parça

36 480 81 70 24 75 334 34 75 81 26 59 116 475 476 81 475 16 475 476 63 476 20 225 17 1 12 42 36 41 34 1 41 73 111 475 476 1 476 475 36 17 116 24 81 76 80 59 70 56 75 81 76 128 75 125 88 105 94 94 89 74 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A) LH BANK SIDE	1-22122-300-1	01	1	9603-	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-301-1	01	1	9603-9904	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-301-1	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-503-0	01	1	9603-9904	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-503-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA EQUIPMENT(YT2) (C) RH BANK SIDE	1-22122-737-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) RH BANK SIDE	1-22122-737-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) RH BANK SIDE	1-22122-737-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA EQUIPMENT(YT2) (B) LH BANK SIDE	1-22122-738-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) LH BANK SIDE	1-22122-738-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) LH BANK SIDE	1-22122-738-0	01	1	9905-	●	●	●	●
1	PIPE; EXH CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-754-0	01	1	9603-9604	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-754-0	01	1	9605-9710	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22123-079-0	01	1	9711-9904	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22123-079-1	01	1	9905-	●	●	●	●
1	PIPE; EXH CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-755-0	01	1	9603-9603	●	●
1	PIPE; EXH CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-852-0	01	1	9604-9604	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-852-0	01	1	9605-9710	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22123-080-0	01	1	9711-9904	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22123-080-1	01	1	9905-	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (G)	1-22140-738-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (G)	1-22140-738-1	01	1	9905-0002	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (G)	1-22140-941-2	01	1	0003-	●	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22140-596-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22140-596-1	01	1	9905-0003	●	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22140-931-0	01	1	0004-	●	●	●	●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22115-148-1	01	1	9603-9904	●	●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22115-148-1	01	1	9905-9908	●	●	●	●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22115-148-1	01	1	9909-	●	●	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	9604-9901	●	●
17	BOLT; EXH PIPE M12X120	1-09000-603-0	02	1	9603-9606	●	●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	9607-9904	●	●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	9905-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M10X51.4	8-94436-943-0	02	1	9603-9904	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M10X51.4	8-94436-943-0	02	1	9905-9908	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M10X51.4	8-94436-943-0	02	1	9909-	●	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9901	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9902-9904	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●	●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9902-9904	●	●
26	STUD; EXH MANIF M12 L=110	1-09302-161-0	04	1	9603-9606	●	●
26	STUD; EXH MANIF M12 L=110	1-09302-165-0	04	1	9607-9904	●	●
26	STUD; EXH MANIF M12 L=110	1-09302-165-0	04	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9902-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9604-9606	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9607-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9902-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9606	●	●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9710-9901	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9902-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9905-	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9603-9807	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9808-9904	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9902-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9603-9805	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9806-9901	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9902-9904	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22131-769-0	01	1	9905-9909	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22131-769-0	01	1	9910-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-539-1	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-539-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-716-0	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-716-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-715-1	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-715-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-395-0	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) REAR L=292	1-22151-395-0	01	1	9905-	●	●	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9606-9901	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9902-9904	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9905-	●	●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	03	1	9603-9603	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10X50 FLANGE	0-28081-050-0	02	1	9604-9901	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10X50 FLANGE	0-28081-050-0	02	1	9902-9904	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9604-9805	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9604-9701	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9702-9805	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9806-9901	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9902-9904	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
73	WASHER; PL CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9603-9908	●	●
73	WASHER; PL CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9909-		●
74	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	06	1	9603-9908	●	●
74	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	06	1	9909-		●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9603-9901	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9902-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
76	SUPPORT; BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9603-9901	●	●
76	SUPPORT; BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9902-9904	●	●
76	SUPPORT; BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9905-	●	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9603-9603	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9604-9805	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9806-9901	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9902-9904	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-9909	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9905-9909	●	●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9910-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9910-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9805	●	●
88	CLAMP; EXH PIPE ANTI NOISE EQUIPMENT<SV9> D=101.4	1-22133-170-1	01	1	9603-9904	●	●
88	CLAMP; EXH PIPE ANTI NOISE EQUIPMENT<SV9> D=101.4	1-22133-170-1	01	1	9905-	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9603-9805	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9806-9904	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-218-0	01	1	9603-9605	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9606-9904	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9905-9910	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-276-0	01	1	9911-	●	●	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9805	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9805	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9806-9901	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9806-9901	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9902-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9902-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9603	●	●
105	NUT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-508-0	02	1	9603-9603	●	●
105	NUT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9603-9603	●	●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
111	WASHER; PL,BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9909-		●
111	WASHER; PL,BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9603-9901	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9901	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9902-9904	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9901	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	04	1	9603-9904	●	●
125	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9805	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9806-9901	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
125	NUT; CLAMP M8	9-09110-508-0	02	1	9603-9603	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-057-0	01	1	9603-9904	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-057-0	01	1	9905-	●	●	●	●
128	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9603-9904	●	●
128	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9905-	●	●	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9603-9811	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9812-9904	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9905-9909	●	●	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9910-9910	●	●	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9911-	●	●	●	●
225	PROTECTOR; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-351-0	01	1	9603-9904	●	●
225	PROTECTOR; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-351-0	01	1	9905-	●	●	●	●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9603-9901	●	●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9902-9904	●	●
334	BOLT; HEAT PROTECTOR WHEEL BASE 5300MM(53W) M8X70 FLANGE	0-28080-870-0	01	1	9905-		●	●	●
389	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	04	1	9603-9908	●	●
389	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	04	1	9909-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9603-9904	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9603-9604	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9605-9704	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9705-9901	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) OD=112	1-22119-294-0	02	1	9705-9901	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9905-9908	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) OD=112	1-22119-294-0	02	1	9905-9908	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	08	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-09583-248-0	02	1	9705-9705	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-09583-248-0	04	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9603-9904	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9909-	●	●	●	●
480	SPACER; BRKT,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22131-688-0	02	1	9603-9904	●	●
480	SPACER; BRKT,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22131-688-0	02	1	9905-	●	●	●	●

36 70 116 24 75 281 34 75 334 26 59 475 476 81 116 475 63 476 17 225 1 12 42 36 34 41 41 73 111 1 475 476 1 476 475 36 80 17 116 24 81 76 59 70 56 75 81 76 128 75 125 105 94 94 89 74 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A) LH BANK SIDE	1-22122-300-1	01	1	9603-	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-301-1	01	1	9603-9904	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-301-1	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-503-0	01	1	9603-9904	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-503-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA EQUIPMENT(YT2) (C) RH BANK SIDE	1-22122-737-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) RH BANK SIDE	1-22122-737-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) RH BANK SIDE	1-22122-737-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA EQUIPMENT(YT2) (B) LH BANK SIDE	1-22122-738-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) LH BANK SIDE	1-22122-738-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) LH BANK SIDE	1-22122-738-0	01	1	9905-	●	●	●	●
1	PIPE; EXH CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-754-0	01	1	9603-9604	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22122-754-0	01	1	9605-9710	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22123-079-0	01	1	9711-9904	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (C) RH BANK SIDE	1-22123-079-1	01	1	9905-	●	●	●	●
1	PIPE; EXH CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-755-0	01	1	9603-9603	●	●
1	PIPE; EXH CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-852-0	01	1	9604-9604	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22122-852-0	01	1	9605-9710	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22123-080-0	01	1	9711-9904	●	●
1	PIPE; EXH CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. ANTI NOISE EQUIPMENT<SV9> (B) LH BANK SIDE	1-22123-080-1	01	1	9905-	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (G)	1-22140-738-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (G)	1-22140-738-1	01	1	9905-0002	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (G)	1-22140-941-2	01	1	0003-	●	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22140-596-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22140-596-1	01	1	9905-0003	●	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22140-931-0	01	1	0004-	●	●	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	9604-9901	●	●
17	BOLT; EXH PIPE M12X120	1-09000-603-0	02	1	9603-9606	●	●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	9607-9904	●	●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	9905-	●	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9901	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9902-9904	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●	●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9902-9904	●	●
26	STUD; EXH MANIF M12 L=110	1-09302-161-0	04	1	9603-9606	●	●
26	STUD; EXH MANIF M12 L=110	1-09302-165-0	04	1	9607-9904	●	●
26	STUD; EXH MANIF M12 L=110	1-09302-165-0	04	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9902-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9604-9606	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9607-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9902-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9606	●	●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9710-9901	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9902-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9905-	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9603-9807	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9808-9904	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9902-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9603-9805	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9806-9901	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9902-9904	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22131-769-0	01	1	9905-9909	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22131-769-0	01	1	9910-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-539-1	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-539-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-716-0	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-716-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-715-1	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-715-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-395-0	01	1	9603-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) REAR L=292	1-22151-395-0	01	1	9905-	●	●	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9606-9901	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9902-9904	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9905-	●	●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	03	1	9603-9603	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10X50 FLANGE	0-28081-050-0	02	1	9604-9901	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10X50 FLANGE	0-28081-050-0	02	1	9902-9904	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9604-9805	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9604-9701	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9702-9805	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9806-9901	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9902-9904	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
73	WASHER; PL CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9603-9908	●	●
73	WASHER; PL CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9909-		●
74	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	06	1	9603-9908	●	●
74	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	06	1	9909-		●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9603-9901	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9902-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
76	SUPPORT; BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9603-9901	●	●
76	SUPPORT; BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9902-9904	●	●
76	SUPPORT; BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9905-	●	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9603-9603	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9604-9805	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9806-9901	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9902-9904	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-9909	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9905-9909	●	●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9910-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	02	1	9910-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9805	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9603-9805	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9806-9904	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-218-0	01	1	9603-9605	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9606-9904	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9905-9910	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-276-0	01	1	9911-	●	●	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9805	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9805	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9806-9901	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9806-9901	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9902-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9902-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9603	●	●
105	NUT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-508-0	02	1	9603-9603	●	●
105	NUT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9603-9603	●	●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
111	WASHER; PL,BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9909-		●
111	WASHER; PL,BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9603-9901	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9901	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9902-9904	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9901	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	04	1	9603-9904	●	●
125	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9805	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9806-9901	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
125	NUT; CLAMP M8	9-09110-508-0	02	1	9603-9603	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-057-0	01	1	9603-9904	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-057-0	01	1	9905-	●	●	●	●
128	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9603-9904	●	●
128	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9905-	●	●	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9603-9811	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9812-9904	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9905-9909	●	●	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9910-9910	●	●	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9911-	●	●	●	●
225	PROTECTOR; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-351-0	01	1	9603-9904	●	●
225	PROTECTOR; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-351-0	01	1	9905-	●	●	●	●
281	NUT; HEAT PROTECTOR M8	9-09110-408-0	01	1	9603-9606	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
281	NUT; HEAT PROTECTOR WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9603-9901	●	●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9902-9904	●	●
334	BOLT; HEAT PROTECTOR WHEEL BASE 5300MM(53W) M8X70 FLANGE	0-28080-870-0	01	1	9905-		●	●	●
389	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	04	1	9603-9908	●	●
389	SPRING; BRKT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-22159-005-0	04	1	9909-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9603-9904	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9603-9604	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9605-9704	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9705-9901	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) OD=112	1-22119-294-0	02	1	9705-9901	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9905-9908	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) OD=112	1-22119-294-0	02	1	9905-9908	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	08	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-09583-248-0	02	1	9705-9705	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-09583-248-0	04	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9603-9904	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9909-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
