◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51159 - NPR(BUS CHAS)RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#53255) — 18 parça

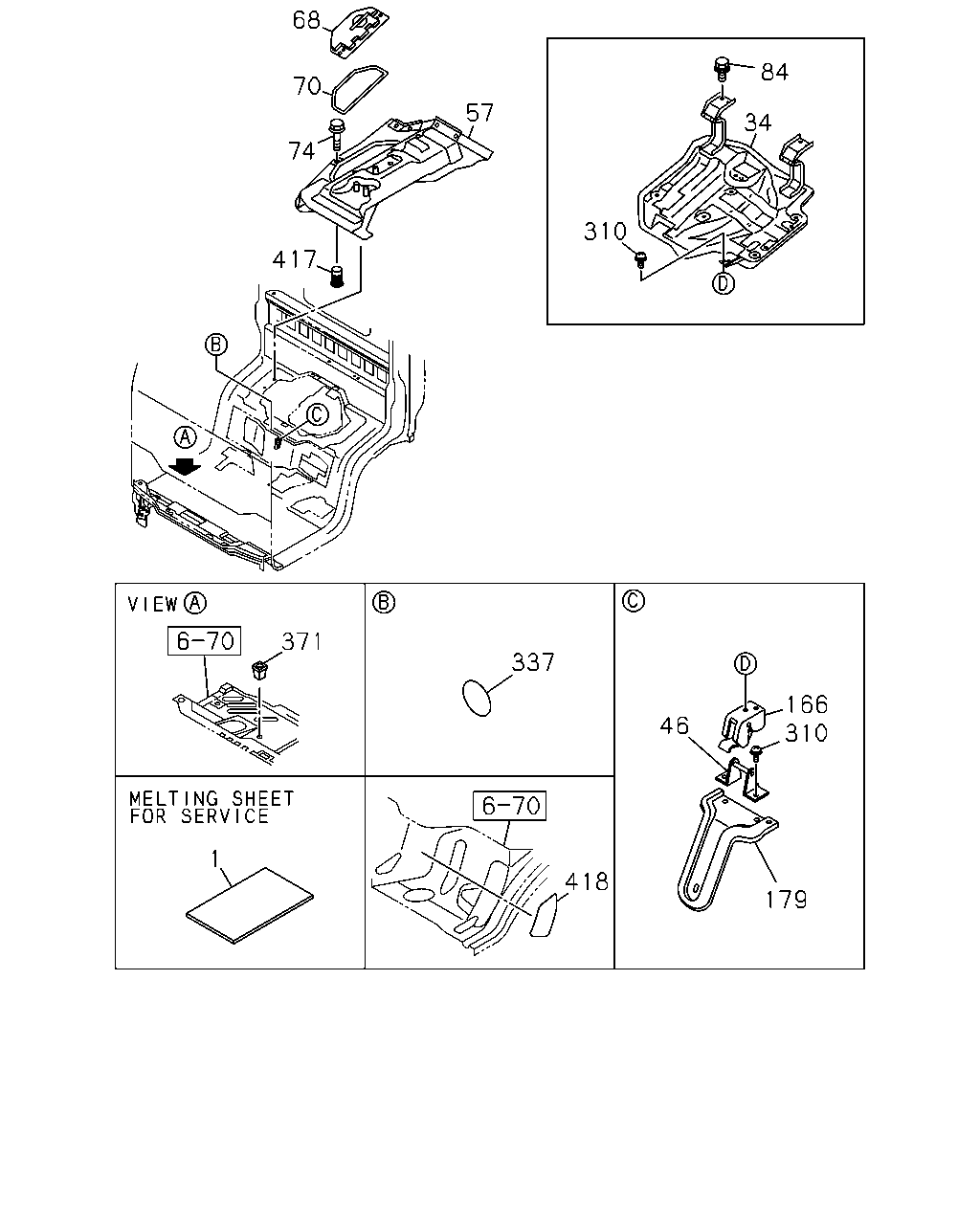

çizim 157061
68 84 70 57 34 74 310 417 371 337 166 310 46 1 418 179
BalonParca AdiParca NoAdetTipApplied Date
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0804-
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97587-395-3 01 1 0804-
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 0804-
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97587-400-3 01 1 0804-
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0804-
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0804-
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 0804-
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0804-
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 0804-
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 0804-
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811-
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 09 1 0804-0810
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 0811-
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 04 1 0804-
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0804-
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 0804-
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 0804-
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 0804-
