◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51159 - NPR(BUS CHAS)RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#53248) — 43 parça

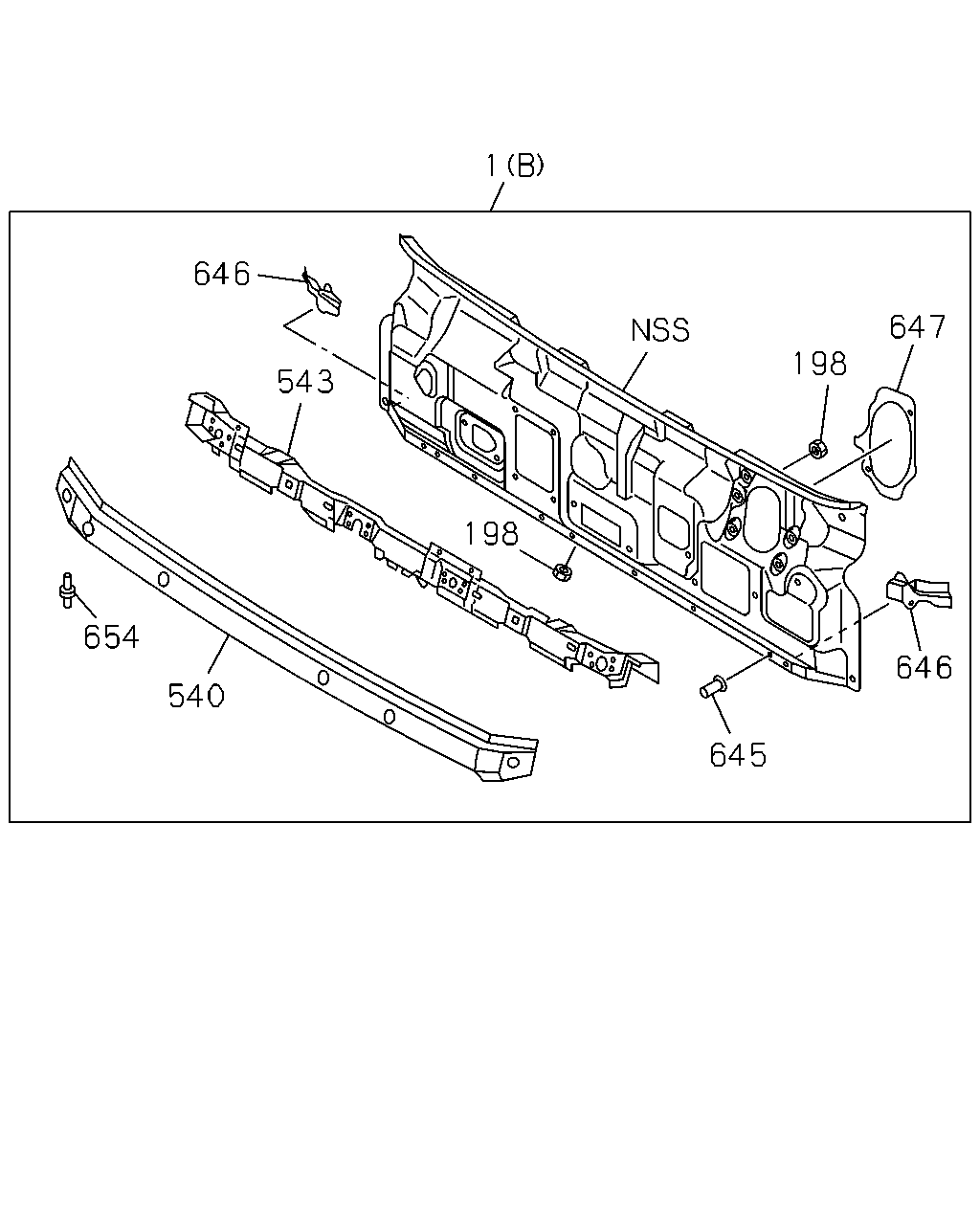

çizim 156856
1 646 647 198 543 198 654 646 540 645
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(B) 		8-97585-324-9 01 1 0804-1102
1 16.550 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1103-
1 16.550 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0804-0807
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808-
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 04 1 0804-
540 16.588 PANEL; FRONT,OUTER 8-97585-325-3 01 1 0804-
543 16.570 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 0804-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0804-
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 0804-
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 0804-
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0804-
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 0804-

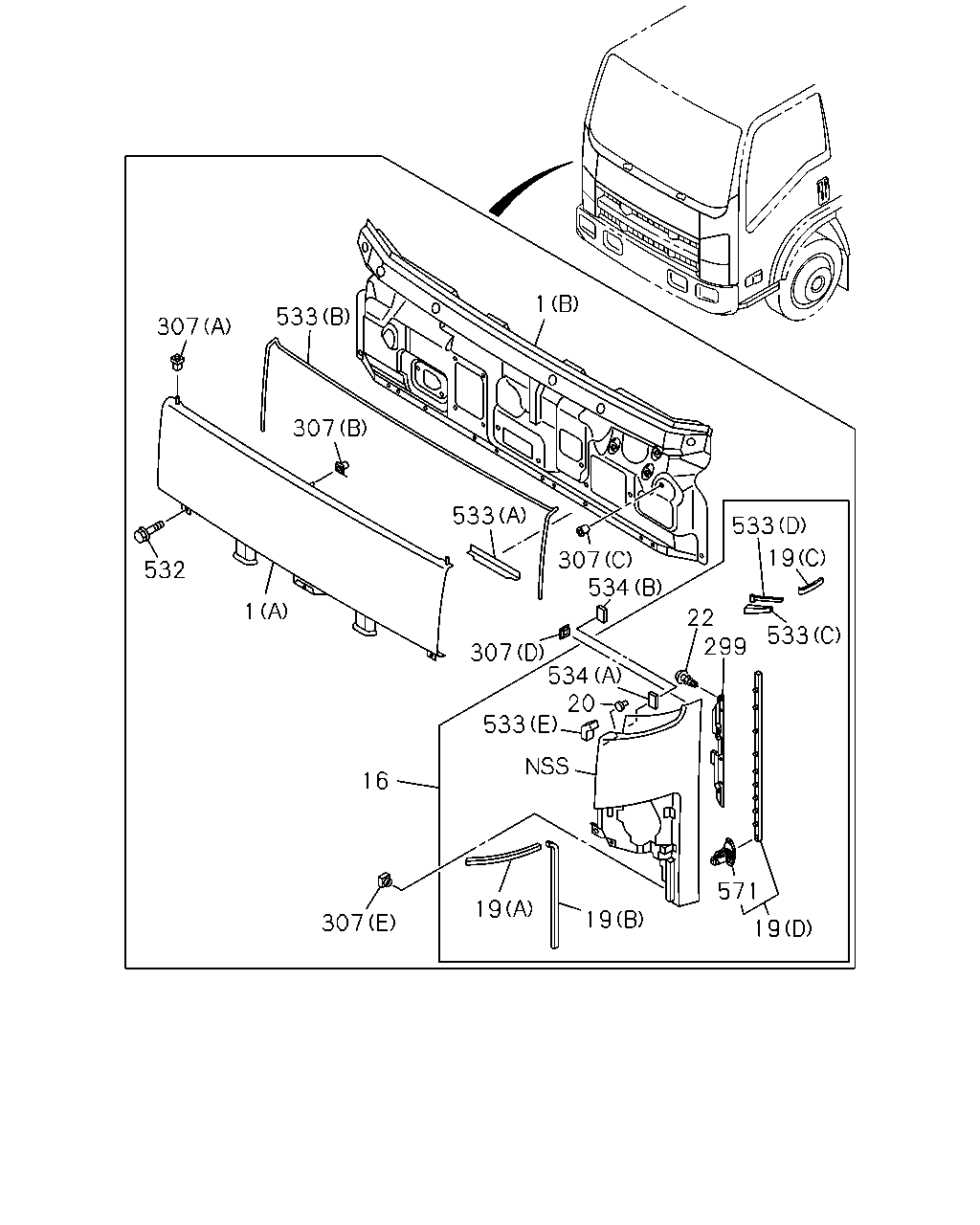

çizim 156871
1 533 307 307 533 533 307 534 19 532 1 22 299 533 307 534 20 533 16 571 19 19 307 19
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(B) 		8-97585-324-9 01 1 0804-1102
1 16.550 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1103-
1 16.550 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0804-0807
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808-
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97406-040-9 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97406-039-9 01 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0804-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 0804-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0804-
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0804-
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0804-
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0804-
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0804-
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0804-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0804-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0804-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0804-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 0804-
533 08.143 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 0804-
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 0804-
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0804-
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0804-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0804-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0804-
534 16.550 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0804-
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0804-
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 0804-
