5-01 — FRAME AND OTHER PARTS
(#53242) — 52 parça
◀
[501A] RIVET,BOLT,NUT (17 parça)

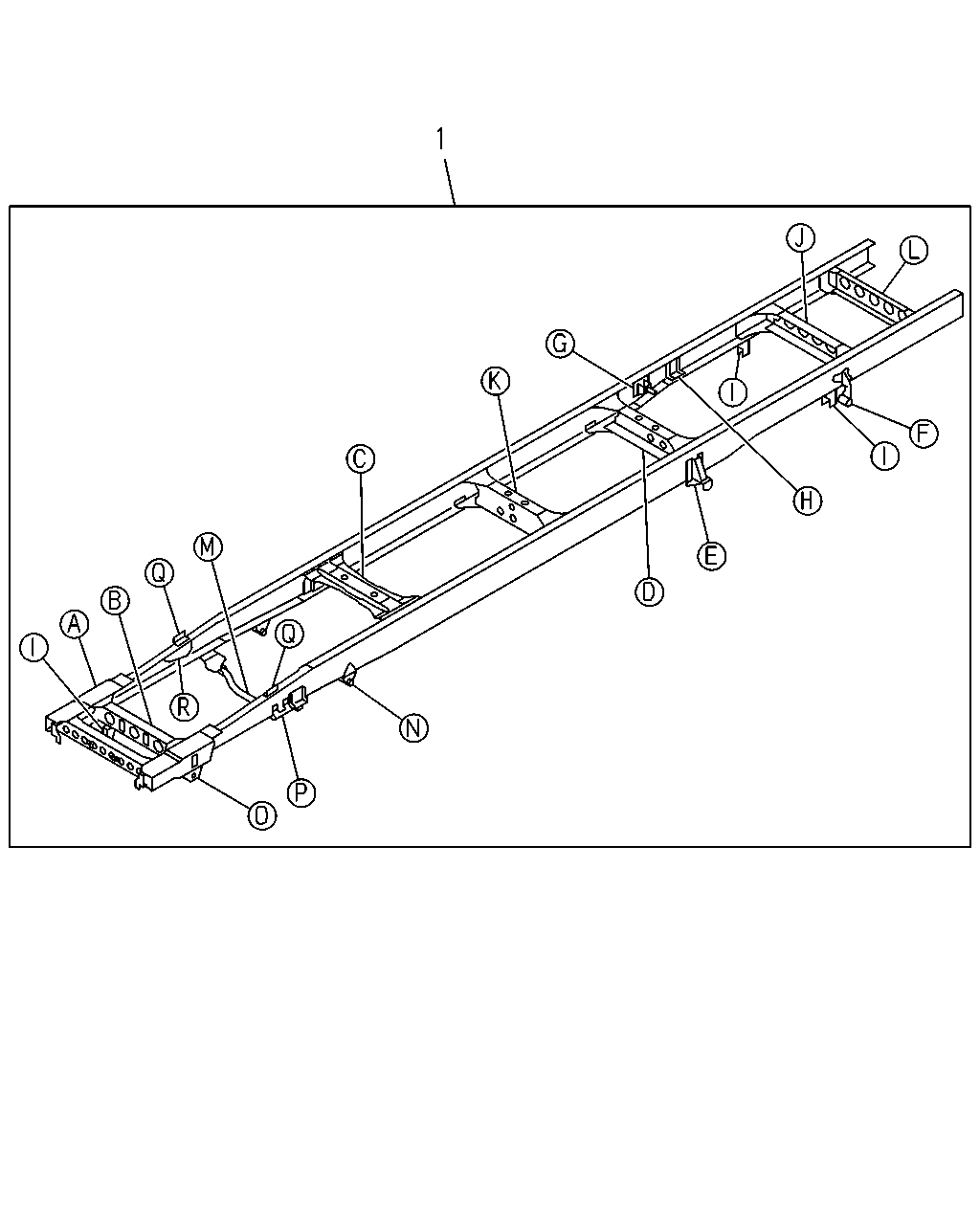

[501A] FRAME ASM (1 parça)

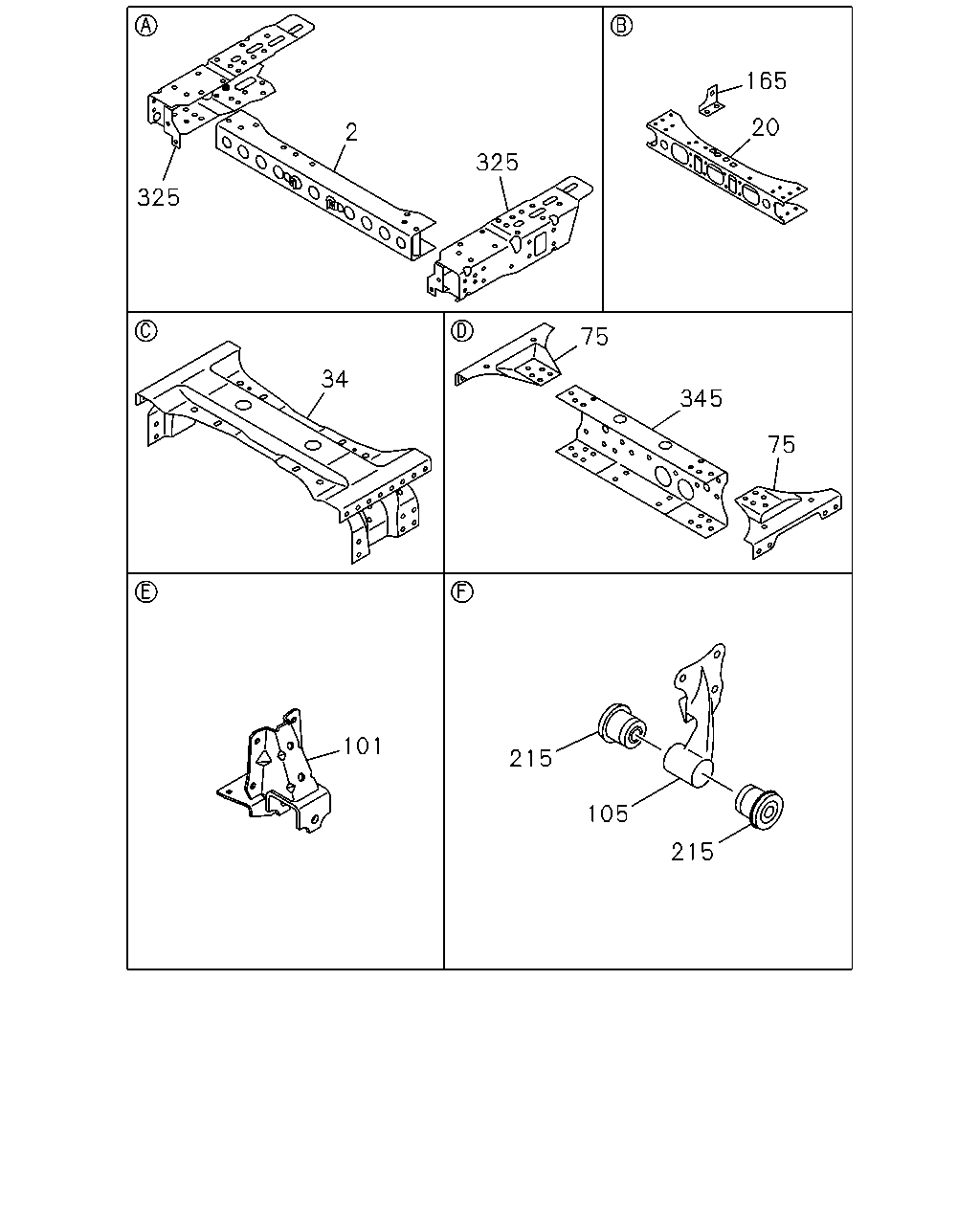

[501A] CROSS MEMBER AND BRACKET(NO.1) (13 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (11 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (10 parça)
▶
376
376
376
376
376
376
376
376
376
376
376
221
176
176
296
67
222
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
07.011 NUT; C/MBR
04.085 M10 FLANGE
0-91180-210-0
18
1
0804-
176
04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE
0-28051-030-0
04
1
0804-
176
04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
0804-
221
01.270 BOLT; RAD MTG BRKT,FRAME
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0804-
222
07.039 NUT; RAD MTG BRKT,FRAME
01.540 M8 FLANGE
0-91180-208-0
02
1
0804-
296
07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE
0-28651-030-0
16
1
0804-
376
07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END
9-06750-824-0
AR
1
0804-
376
07.039 RIVET; FRAME
(B) D10X24 TAPER END
9-06751-024-0
AR
1
0804-
376
07.039 RIVET; FRAME
(C) D10X26 TAPER END
9-06751-026-0
AR
1
0804-
376
07.039 RIVET; FRAME
(D) D10X28 TAPER END
9-06751-028-0
AR
1
0804-
376
07.039 RIVET; FRAME
(E) D10X32 TAPER END
9-06751-032-0
AR
1
0804-
376
07.039 RIVET; FRAME
(F) D10X36 TAPER END
9-06751-036-0
AR
1
0804-
376
07.039 RIVET; FRAME
(G) D11X26 TAPER END
9-06751-126-0
AR
1
0804-
376
07.039 RIVET; FRAME
(H) D11X30 TAPER END
9-06751-130-0
AR
1
0804-
376
07.039 RIVET; FRAME
07.105 (I) D12X30 TAPER END
9-06751-230-0
AR
1
0804-
376
07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END
9-06751-236-0
AR
1
0804-
376
07.039 RIVET; FRAME
07.112 (K) D12X40 TAPER END
9-06751-240-0
AR
1
0804-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
8-98099-798-1
01
1
0804-
165
20
2
325
325
75
34
345
75
101
215
105
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.010 MEMBER; CROSS,1ST
8-97387-866-5
01
1
0804-
20
07.012 MEMBER; CROSS,2ND
8-98014-074-7
01
1
0804-
34
07.012 MEMBER; CROSS,3RD
8-98074-639-4
01
1
0804-
75
07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER
8-98000-583-0
02
1
0804-
75
07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER
8-98000-584-0
02
1
0804-
101
07.112 BRACKET; RR SPR,FRT
8-97042-245-1
02
1
0804-
105
07.112 BRACKET; RR SPR,RR
8-98032-488-0
01
1
0804-
105
07.112 BRACKET; RR SPR,RR
8-98032-489-0
01
1
0804-
165
01.270 BRACKET; RAD STAY
8-98000-886-0
01
1
0804-
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
0804-
325
07.039 EXTENSION; FRAME
8-98073-344-1
01
1
0804-
325
07.039 EXTENSION; FRAME
8-98073-345-0
01
1
0804-
345
07.012 MEMBER; CROSS,5TH
8-97175-993-3
01
1
0804-
140
217
196
139
198
198
74
344
74
201
130
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER
8-98000-583-0
02
1
0804-
74
07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER
8-98000-584-0
02
1
0804-
130
07.014 MEMBER; CROSS,END
8-97080-872-0
01
1
0804-
139
07.012 MEMBER; CROSS,6TH
8-97107-384-0
01
1
0804-
140
07.112 BRACKET; S/ABS,RR
07.395 (B)
8-97302-511-0
02
1
0804-
140
07.112 BRACKET; S/ABS,RR
(A)
8-97080-884-1
02
1
0804-
196
07.242 BRACKET; STAB TO FRAME
8-98033-523-0
04
1
0804-
198
07.039 GUSSET; 6TH C/MBR
8-98014-079-1
02
1
0804-
201
07.039 GUSSET; C/MBR
8-97096-871-0
02
1
0804-
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-97202-417-0
02
1
0804-
344
07.012 MEMBER; CROSS,4TH
8-97175-993-3
01
1
0804-
141
141
140
103
31
39
31
51
51
42
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
07.105 BRACKET; FRT SPR,FRT
8-98015-274-0
02
1
0804-
31
07.428 BUSHING; FRT SPR,RR
07.524
8-97184-699-1
04
1
0804-
39
07.112 BRACKET; FRT SPR,RR
8-98014-125-0
02
1
0804-
42
07.011 MEMBER; CROSS,ENG MTG
8-98032-389-0
01
1
0804-
51
07.011 BRACKET; ENG SUPPORT,OUTER
8-98034-961-0
02
1
0804-
103
07.420 STOPPER; SUB SPR
07.524
8-97079-659-1
02
1
0804-
140
07.112 BRACKET; S/ABS,RR
07.395 (B)
8-97302-511-0
02
1
0804-
140
07.112 BRACKET; S/ABS,RR
(A)
8-97080-884-1
02
1
0804-
141
07.112 STIFFENER
8-98064-354-2
01
1
0804-
141
07.112 STIFFENER
8-98064-355-2
01
1
0804-
