4-80 — ROAD WHEEL (#53241) — 28 parça

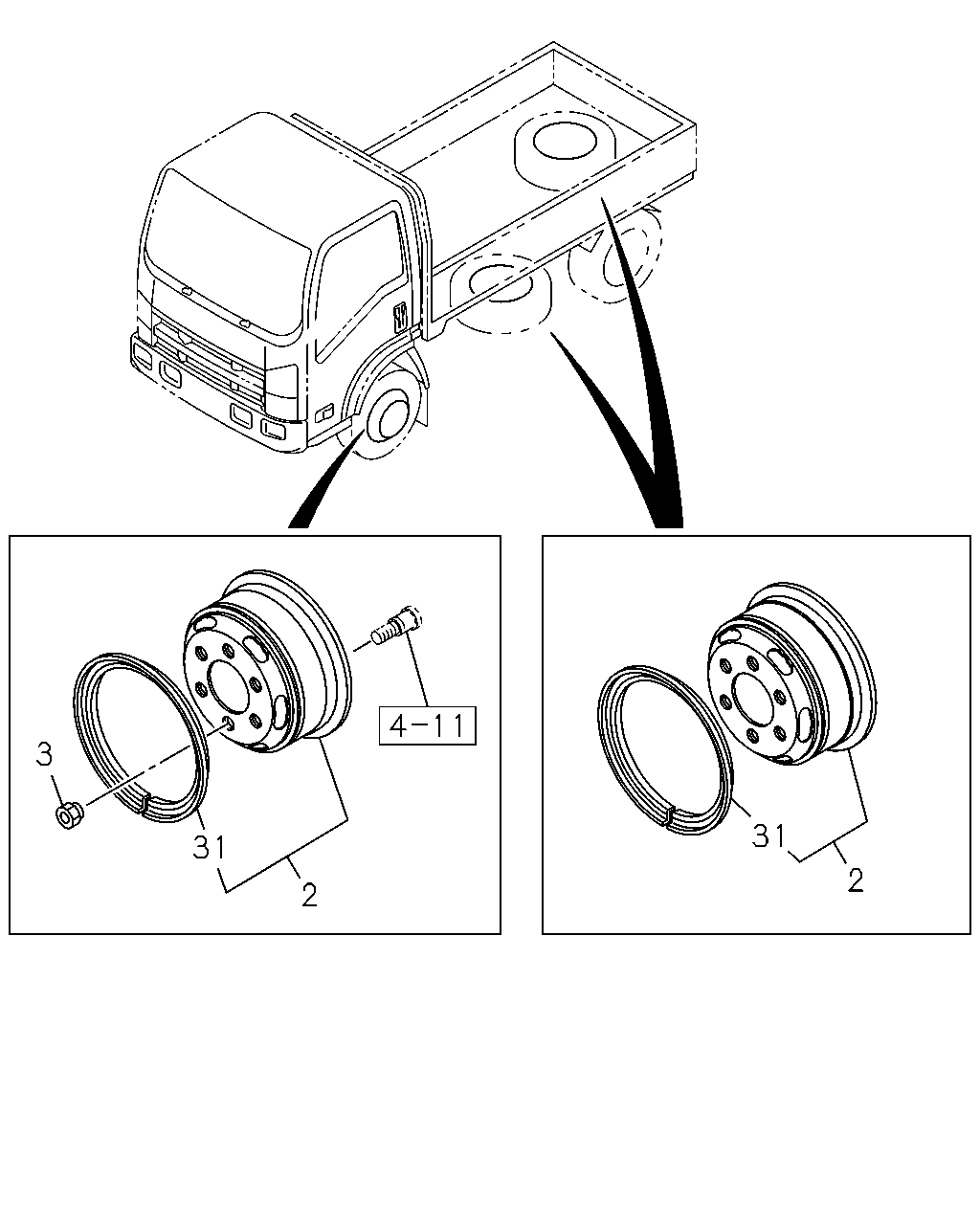

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0810-
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) M20 LH THREAD	8-97359-808-0	06	1	0804-0809
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) M20 LH THREAD	8-97359-808-0	06	1	0810-
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) M20 RH THREAD	8-97359-807-0	06	1	0804-0809
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) M20 RH THREAD	8-97359-807-0	06	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0810-

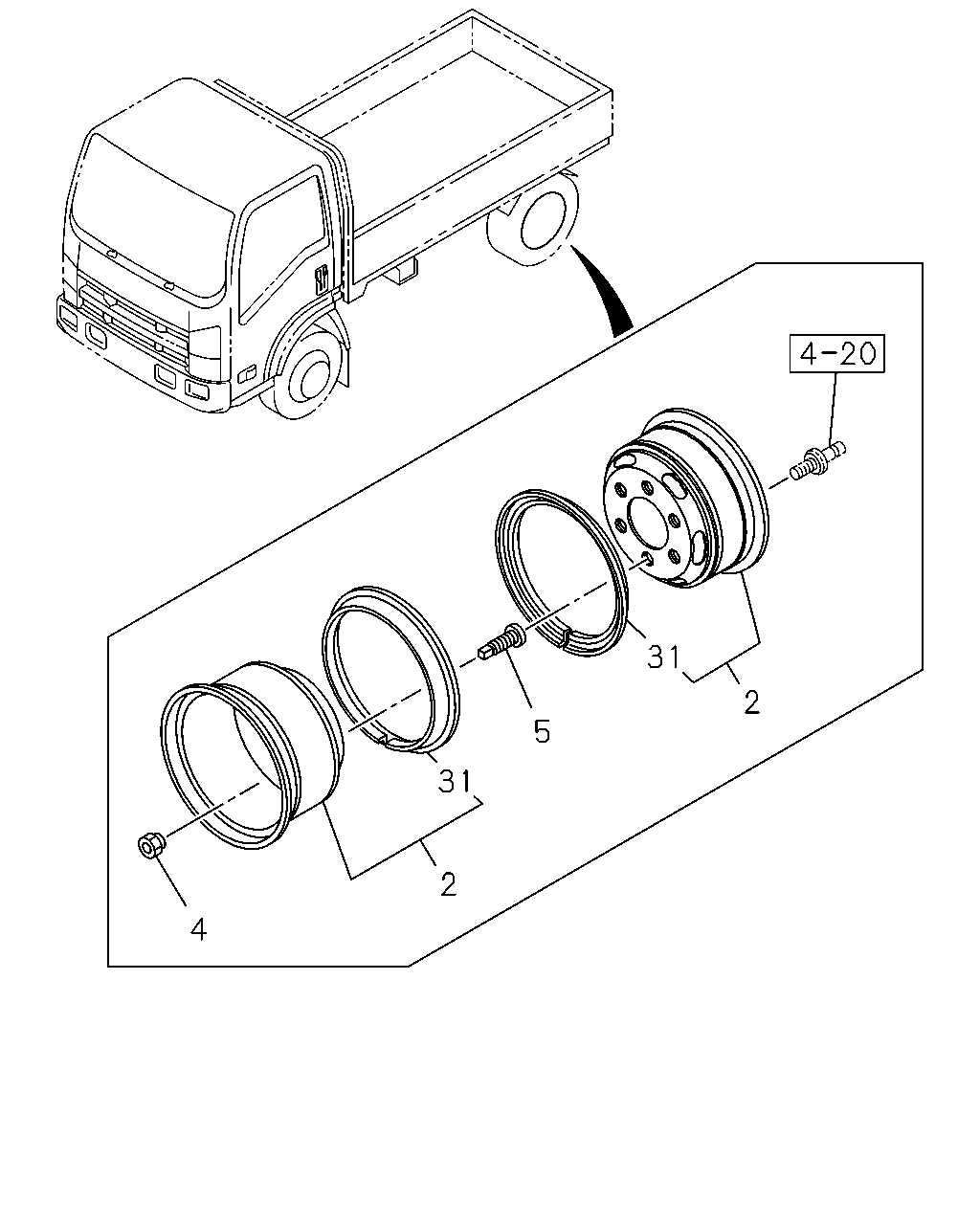

31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0810-
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) M30 LH THREAD	8-97359-810-0	06	1	0804-0809
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) M30 LH THREAD	8-97359-810-0	06	1	0810-
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) M30 RH THREAD	8-97359-809-0	06	1	0804-0809
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) M30 RH THREAD	8-97359-809-0	06	1	0810-
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0804-0809
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0810-
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0804-0809
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0810-
