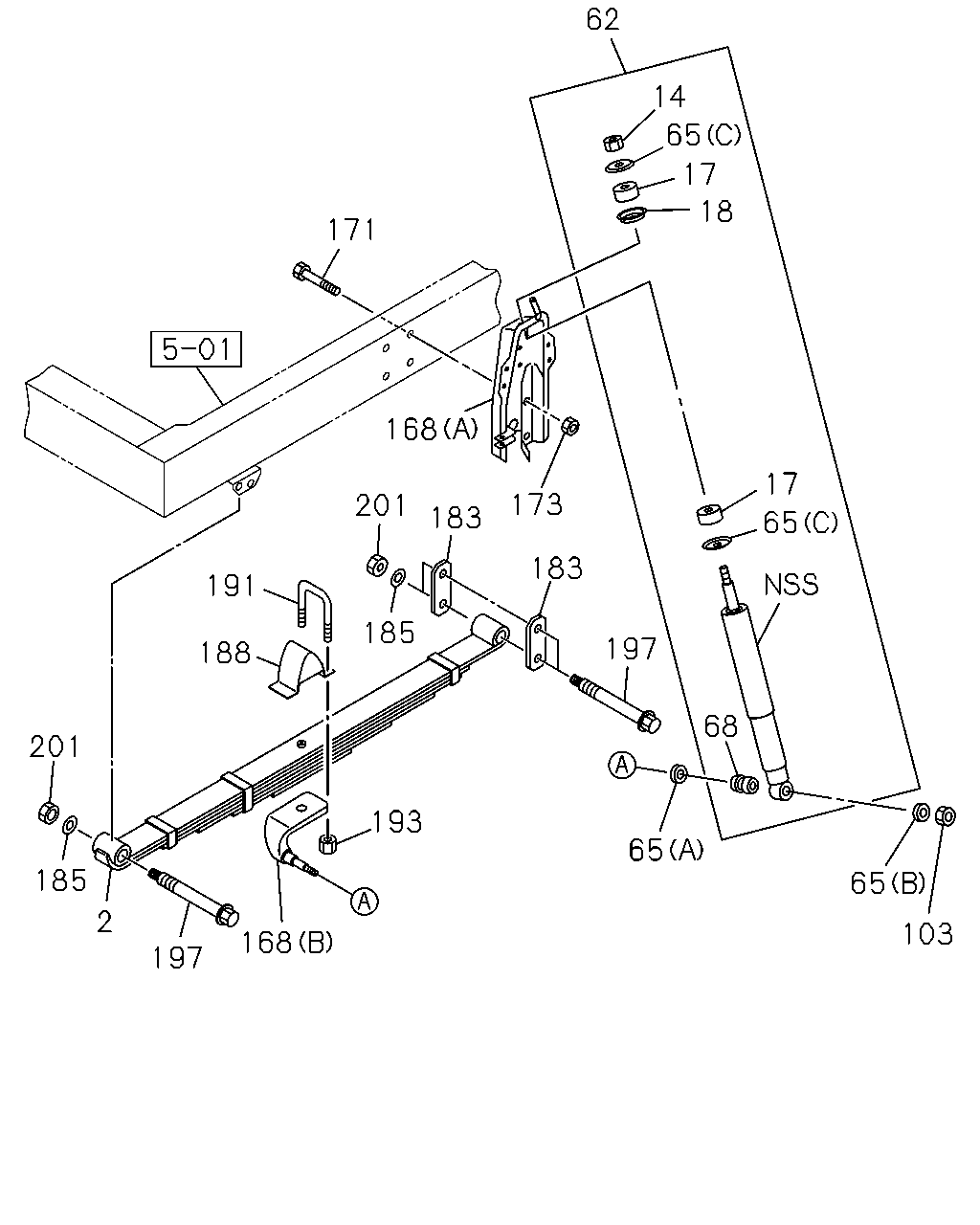

4-50 — FRONT SUSPENSION (#53234) — 113 parça

62 14 65 17 18 171 168 17 173 201 183 65 183 191 185 197 188 68 201 193 65 185 65 2 103 168 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-450-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-451-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-454-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-455-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1106-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0804-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0804-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0804-
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98079-867-0	02	1	0906-0909
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	0910-
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-0	02	1	0804-0905
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	0906-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1304-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0804-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0804-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0804-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0804-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0804-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-001-0	01	1	0804-0905
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-002-0	01	1	0804-0905
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	0906-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0804-
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0804-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0804-
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0804-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0908-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0804-0906
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0804-
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0804-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0804-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0804-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0804-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0804-

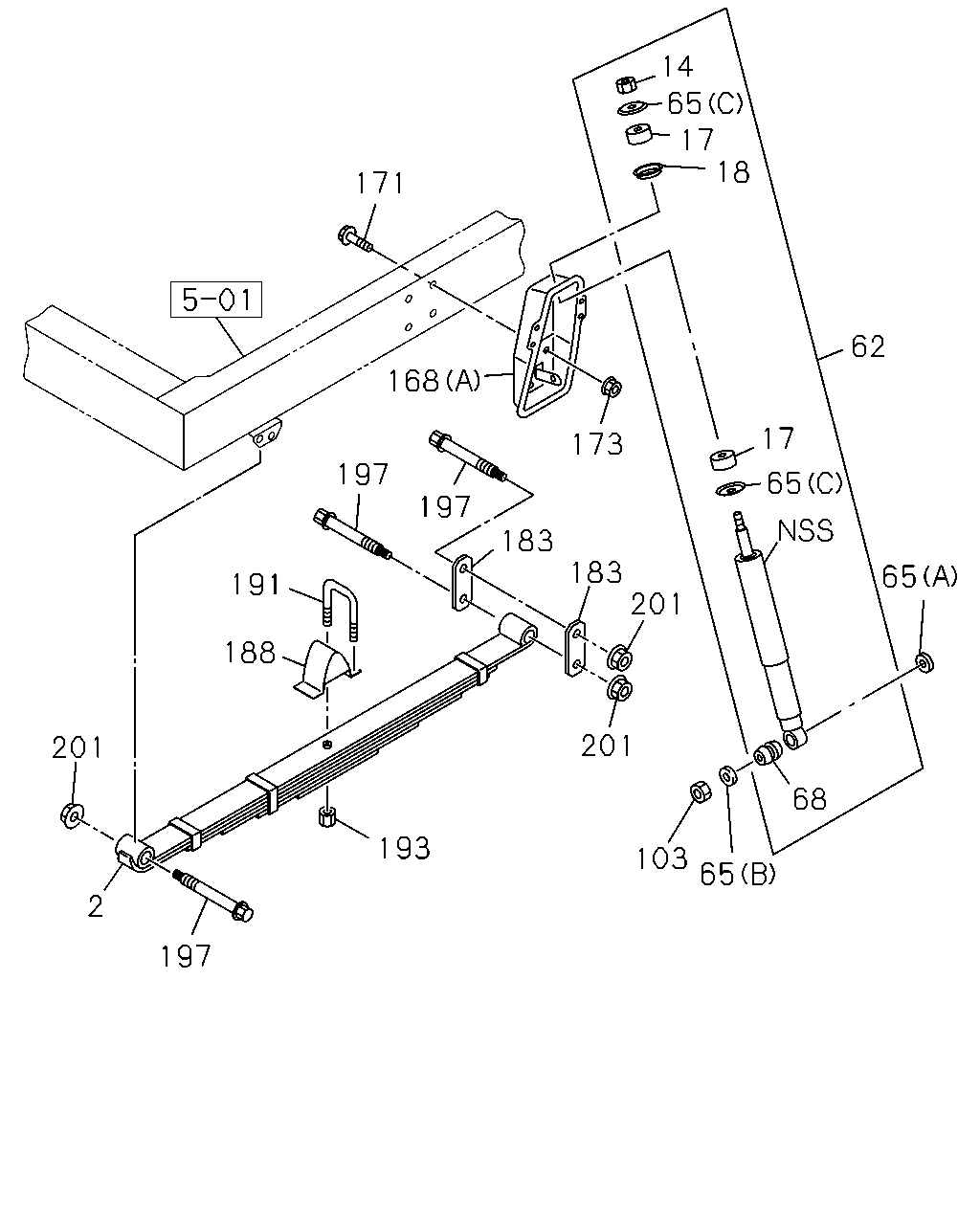

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 193 103 65 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-450-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-451-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-454-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-455-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0804-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1106-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0804-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0804-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0804-
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98079-867-0	02	1	0906-0909
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	0910-
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-0	02	1	0804-0905
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	0906-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1304-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0804-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0804-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0804-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0804-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0804-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-001-0	01	1	0804-0905
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-002-0	01	1	0804-0905
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	0906-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0804-
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0804-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0804-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0908-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0804-0906
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0804-
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0804-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0804-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0804-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0804-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0804-
