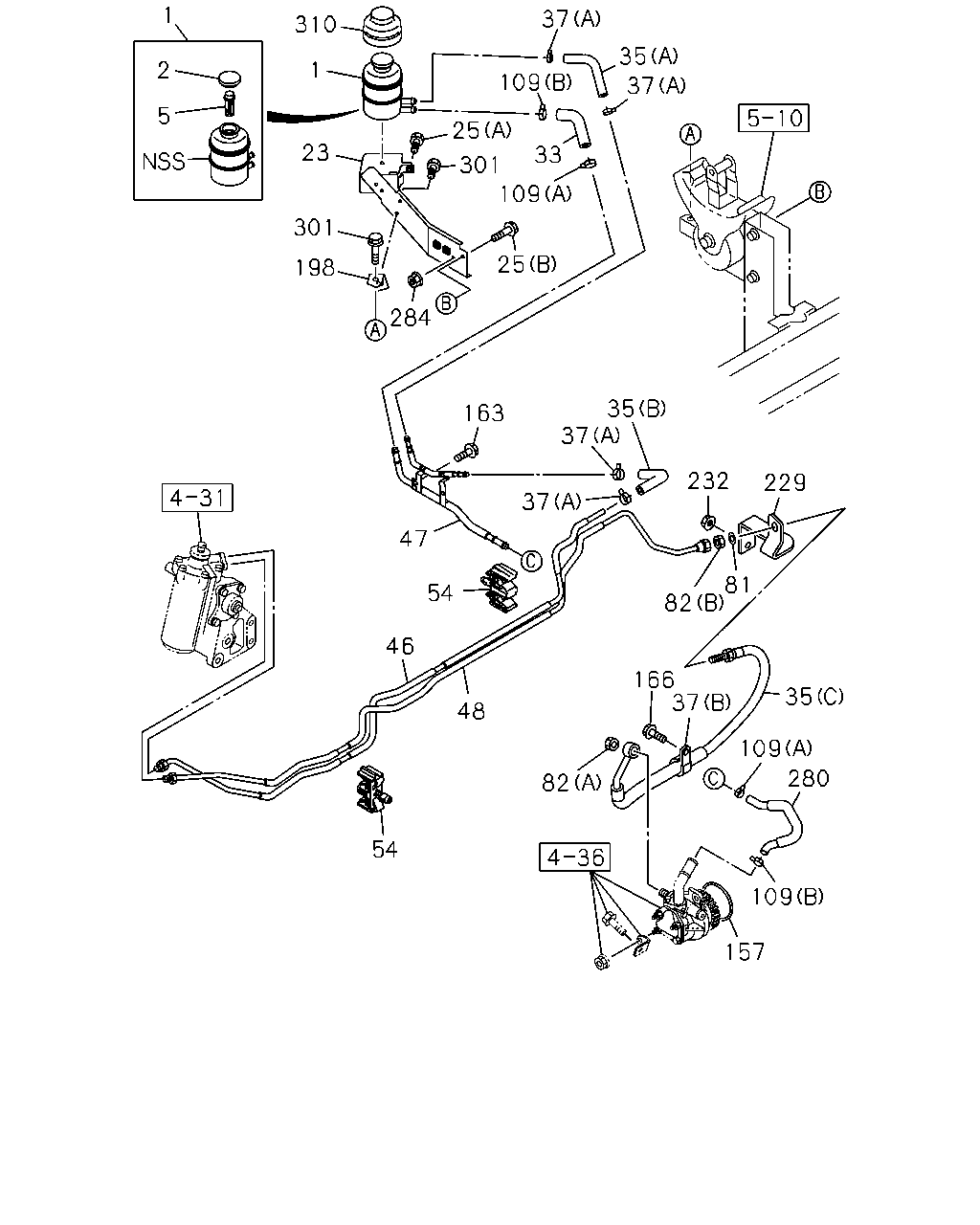

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#53230) — 40 parça

1 37 310 35 2 1 109 37 5 25 23 33 301 109 301 25 198 284 35 37 163 232 229 37 47 81 82 54 46 166 37 35 48 109 280 82 54 109 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0804-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0804-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0804-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0804-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0804-
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	0804-
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	0906-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0804-0905
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	0906-
47	06.671 PIPE; RETURN	8-98083-166-1	01	1	0804-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=1646	8-98138-267-0	01	1	0906-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0804-0905
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	0906-
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	0804-
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0804-
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0804-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0804-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	0912-
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-1003
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0804-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0804-
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	0804-
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-
280	06.672 HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	0804-
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0804-
