1-45A — WATER SEDIMENTER; FUEL (#5323) — 38 parça

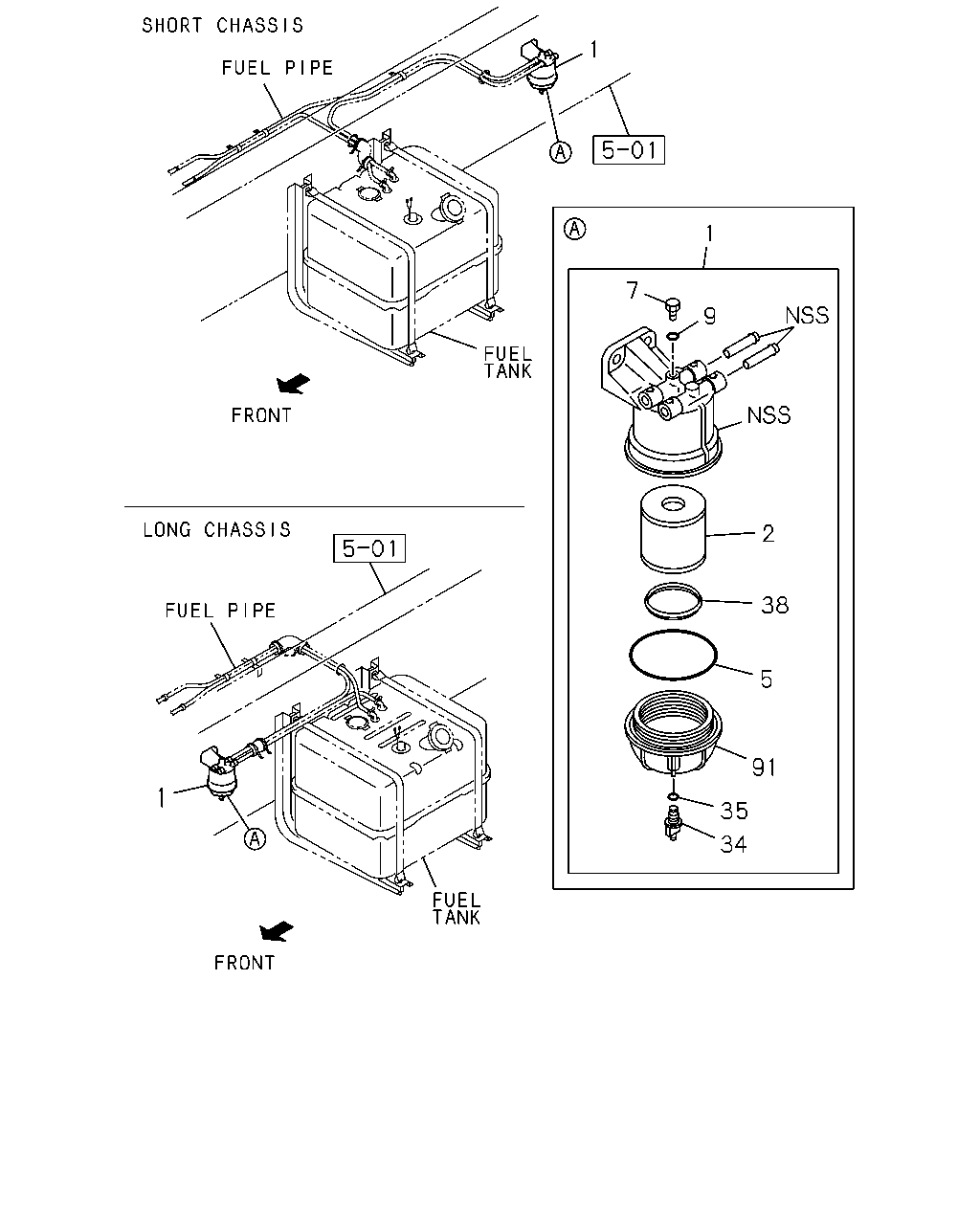

çizim 43216
1 1 7 9 2 38 5 91 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SEDIMENTER; FUEL
SHORT CHASSIS(CX***C) 		1-13200-964-0 01 1 9603-9901 ●
1 SEDIMENTER; FUEL
SHORT CHASSIS(CX***C) 		1-13200-964-1 01 1 9902-9908 ● ●
1 SEDIMENTER; FUEL
CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> 		1-13200-964-1 01 1 9902-9908 ● ●
1 SEDIMENTER; FUEL
SHORT CHASSIS(CX***C) 		1-13200-964-1 01 1 9909-0006 ● ● ● ● ●
1 SEDIMENTER; FUEL
SHORT CHASSIS(CX***C) 		1-13201-017-0 01 1 0007- ● ● ● ● ●
1 SEDIMENTER; FUEL
LONG CHASSIS(CX***F) 		1-13200-953-1 01 1 9603-9901 ●
1 SEDIMENTER; FUEL
CXZ&LONG CHASSIS(CXZ6MF) 		1-13200-953-2 01 1 9902-9908 ●
1 SEDIMENTER; FUEL
CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28> 		1-13200-953-2 01 1 9902-9908 ● ●
1 SEDIMENTER; FUEL
LONG CHASSIS(CX***F) 		1-13200-953-2 01 1 9902-9908 ●
1 SEDIMENTER; FUEL
CXZ&LONG CHASSIS(CXZ6MF) 		1-13200-953-2 01 1 9909-0006 ● ● ● ●
1 SEDIMENTER; FUEL
LONG CHASSIS(CX***F) 		1-13200-953-2 01 1 9909-0006 ●
1 SEDIMENTER; FUEL
CXZ&LONG CHASSIS(CXZ6MF) 		1-13201-015-0 01 1 0007- ● ● ● ●
1 SEDIMENTER; FUEL
LONG CHASSIS(CX***F) 		1-13201-015-0 01 1 0007- ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9603-9901 ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9902-9904 ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9905- ● ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9603-9603 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-9901 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9902-9904 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9905- ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9603-9901 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9902-9904 ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9905- ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9603-9901 ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9902-9904 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9905- ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9603-9901 ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9902-9904 ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9905- ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9603-9901 ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9902-9904 ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9905- ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9603-9901 ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9902-9904 ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9905- ● ● ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 9603-9901 ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 9902-9904 ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 9905- ● ● ● ● ●
