Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

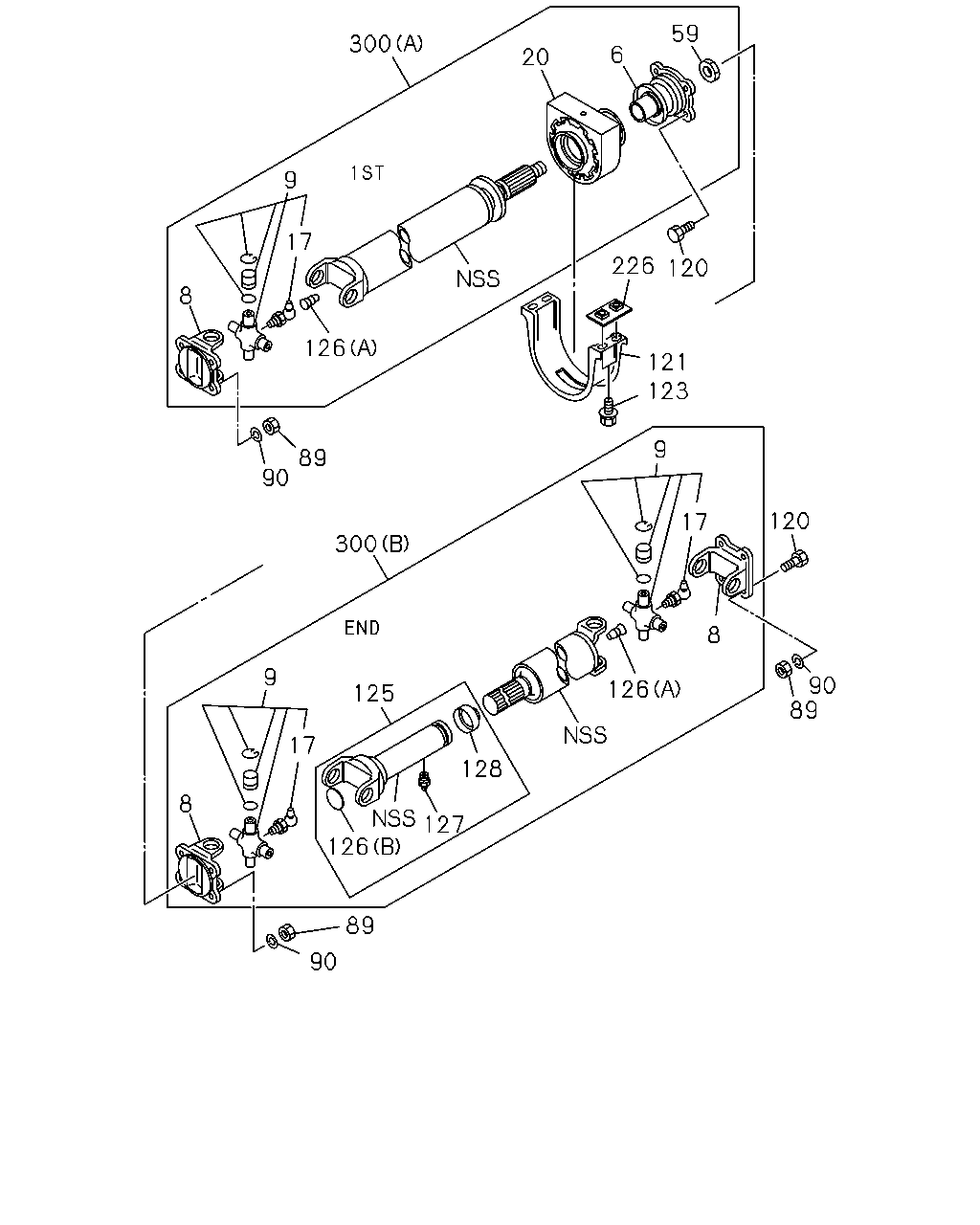

4-01 — PROPELLER SHAFT
(#53222) — 23 parça
59
300
6
20
9
17
226
120
8
126
121
123
9
89
90
120
17
300
8
9
90
89
126
125
17
128
127
126
8
89
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
05.600 COUPLING ASM; DRIVER,PROP SHAFT
8-98020-796-0
01
1
0804-
8
05.544 YOKE; FLANGE,PROP SHAFT
D=80
1-37211-037-4
01
1
0804-
8
05.544 YOKE; FLANGE,PROP SHAFT
D=80
1-37211-037-4
02
1
0804-
9
05.548 JOURNAL ASM; PROP SHAFT
8-98020-789-1
01
1
0804-
9
05.548 JOURNAL ASM; PROP SHAFT
8-98020-789-1
02
1
0804-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 PT1/8 ELBOW
0-90301-610-0
01
1
0804-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 PT1/8 ELBOW
0-90301-610-0
02
1
0804-
20
05.600 BEARING ASM; CTR,PROP SHAFT
8-98020-880-0
01
1
0804-
59
05.586 NUT; RET TO SUPPORT
M30
8-97160-857-0
01
1
0804-
89
05.586 NUT; YOKE TO RR AXLE
M12
8-97365-450-1
12
1
0804-
90
05.586 WASHER; LK,YOKE TO RR AXLE
07.347 ID=12.2
0-91510-812-0
12
1
0804-
120
05.586 BOLT; YOKE TO RR AXLE
M12X35
8-97365-451-1
08
1
0804-
121
05.598 RETAINER; CUSHION RUBBER
8-97035-623-1
01
1
0804-
123
05.601 BOLT; RET
M10X25 W/LK&PL WASHER
0-50641-025-0
04
1
0804-
125
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=224
8-98044-229-0
01
1
0804-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
01
1
0804-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
01
1
0804-
126
05.556 PLUG; SPLINED YOKE
(B)
8-94366-900-0
01
1
0804-
127
05.586 NIPPLE; GREASE,SPLINED YOKE
05.601 M6 STRAIGHT
0-90301-406-0
01
1
0804-
128
05.586 SEAL; SLEEVE
8-97145-746-0
01
1
0804-
226
05.586 PLATE; LK,CENTER BRG
8-97371-572-0
02
1
0804-
300
05.544 SHAFT ASM; PROP,RR
(B) L=1011
8-98040-477-1
01
1
0804-
300
05.544 SHAFT ASM; PROP,RR
(A) L=1127
8-98040-793-1
01
1
0804-
