1-41B — FUEL PIPING; CHASSIS (#5322) — 399 parça

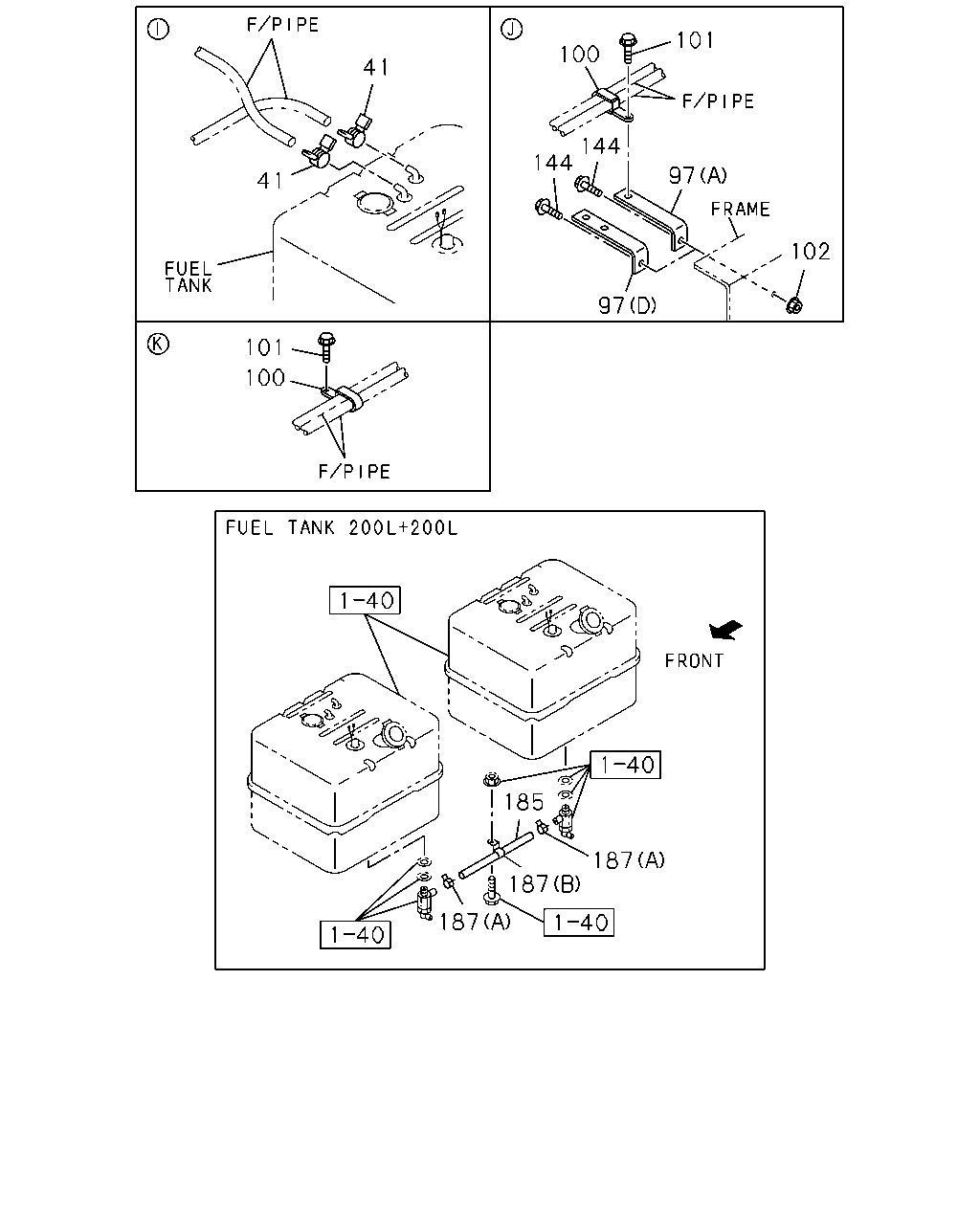

101 100 41 144 144 97 41 102 97 101 100 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9901	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9902-9904	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9806-9810	●	●
97	BRACKET; CLIP EXC. ZF M/T<X9E> (A) L=115	1-47475-305-0	01	1	9603-9605	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9606-9805	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9811-9901	●	●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	9909-0008		●	●	●
97	BRACKET; CLIP (B)	1-47478-442-0	01	1	0009-		●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9909-0008	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	0009-	●	●	●	●
97	BRACKET; CLIP ZF M/T<X9E> (A) L=115	1-47475-305-0	02	1	9603-9605	●	●
97	BRACKET; CLIP ZF M/T<X9E> (D) L=120	1-82699-465-0	01	1	9909-0008		●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ID=16X2 L=20	9-09535-536-0	04	1	9603-9604	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ID=16X2 L=20	9-09535-536-0	03	1	9605-9608	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9609-9805	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9609-9805		●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	04	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	02	1	9909-0008		●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	01	1	0009-0009	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	0010-	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	03	1	9603-9604	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	04	1	9605-9608	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	9609-9805		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9806-9901	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH>,ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	04	1	9909-0008	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9909-0008		●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	0009-	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ID=16X2 L=50	9-09535-586-0	01	1	9603-9901	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> ID=16X2 L=50	9-09535-586-0	01	1	9905-	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	0009-0009	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	0010-	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9609-9805	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9806-9806	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	04	1	9806-9901	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9909-0008	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	0009-0009	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X20 FLANGE	0-28080-820-0	03	1	9605-9606	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X25 FLANGE	0-28680-825-0	03	1	9607-9608	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9609-9805	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9609-9805		●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9909-0008		●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0009-0009	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0010-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X20 FLANGE	0-28080-820-0	03	1	9603-9604	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	9609-9805		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9806-9901	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X25 FLANGE	0-28680-825-0	04	1	9909-0008	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9909-0008		●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	0009-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	03	1	0009-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9609-9805	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X25 FLANGE	0-28680-825-0	04	1	9806-9901	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9909-0008	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	04	1	0009-	●	●	●	●
102	NUT; CLIP,FUEL PIPE M8	9-09110-508-0	01	1	9603-9605	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8	9-09110-508-0	01	1	9603-9605	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8	9-09110-508-0	02	1	9606-9606		●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9607-9805		●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9806-9901		●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0009-		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0009-		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. SILENCER SINGLE VERTICAL<N28>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9806-9810	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9806-9810	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9806-9810		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9811-9901	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8	9-09110-508-0	02	1	9603-9605	●	●
102	NUT; CLIP,FUEL PIPE M8	9-09110-508-0	01	1	9606-9606	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-9805	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9805	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9805		●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8 FLANGE	0-91150-108-0	02	1	9806-9901	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9806-9901		●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0009-0009	●	●	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0009-0009	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0009-0009		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0009-0009		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0010-	●	●	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0010-	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0010-		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0010-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR EXC. ZF M/T<X9E> M8X30 FLANGE	0-28080-830-0	01	1	9603-9605	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X30 FLANGE	0-28080-830-0	01	1	9606-9606	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9607-9810	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9811-9901	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9905-9908	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	9909-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	0009-	●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	0009-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0009-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	03	1	9909-0008		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	0009-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	9909-0008		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X30 FLANGE	0-28080-830-0	02	1	9604-9605	●	●
185	PIPE; FUEL TANK TO TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9603-9901	●
185	PIPE; FUEL TANK TO TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9902-	●	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	9603-9901	●
187	CLIP; FUEL PIPE TANK TO TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	9902-	●	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9603-9901	●
187	CLIP; FUEL PIPE TANK TO TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9902-	●	●	●	●

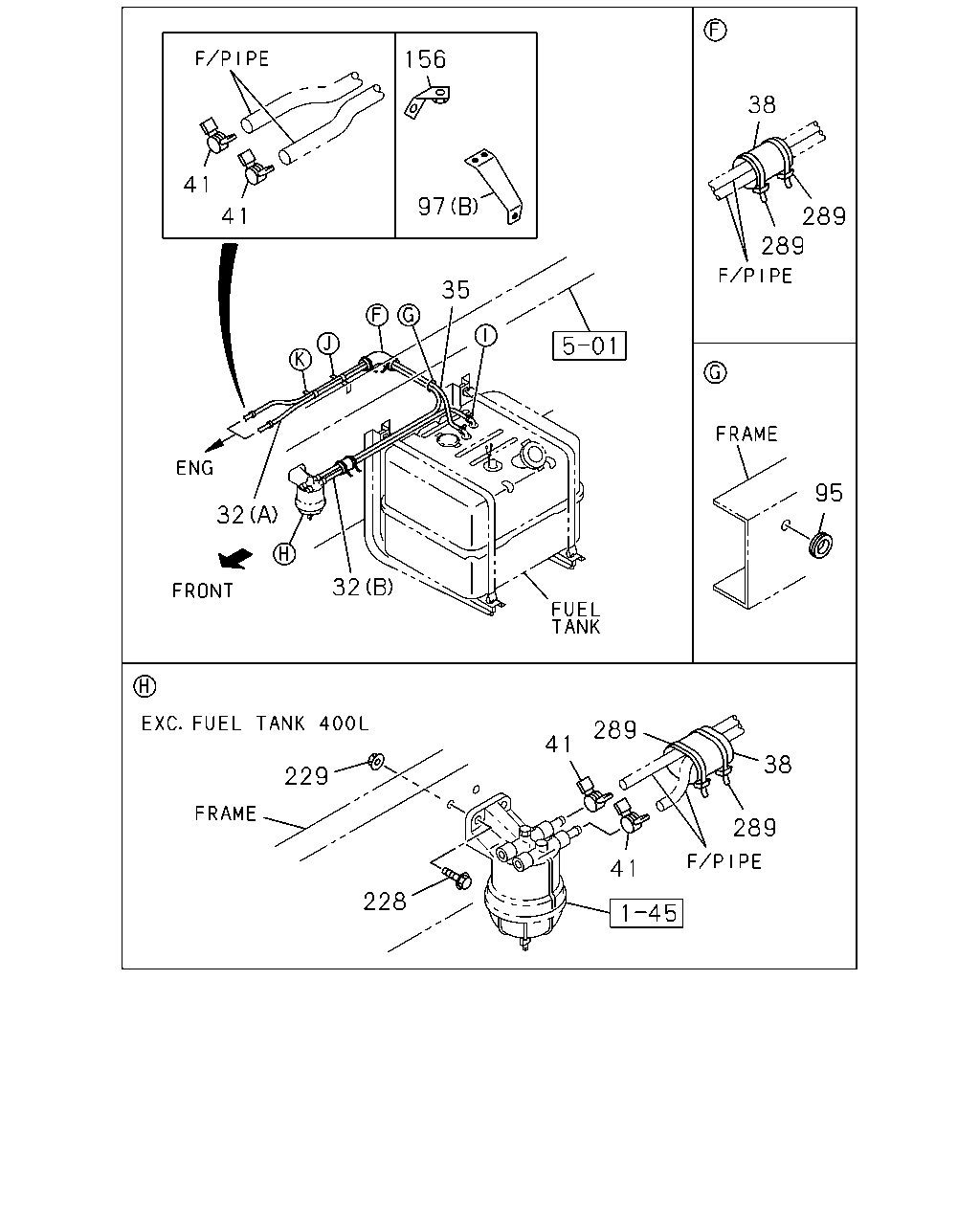

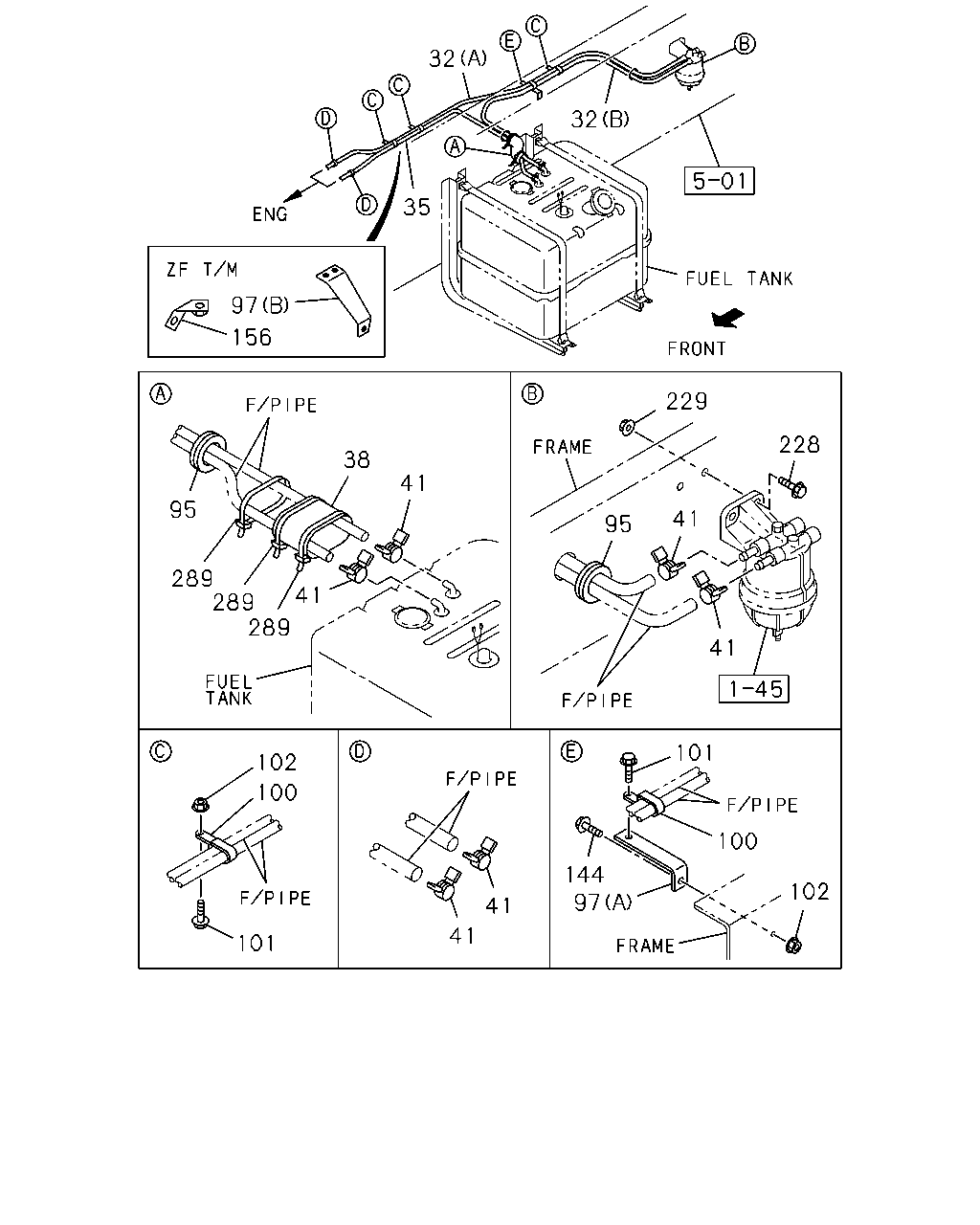

32 32 35 156 229 228 38 41 95 95 41 289 289 289 41 41 101 102 100 100 144 97 102 41 41 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (B) TANK-FILTER L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FILTER-ENG L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9909-			●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (A) FILTER-ENG,(B) TANK-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9604-9605	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (B) TANT-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9805	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) EXC. SILENCER SINGLE VERTICAL<N28> (B) TANT-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9901	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (B) TANT-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) (B) TANT-FILTER L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9605	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9805	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28> (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9901	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 400L<SDH> (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (B) TANT-FILTER L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	9909-			●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (A) FILTER-ENG L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603	●	●
32	PIPE; DELIVERY,FUEL TANK (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9604-9901	●	●
32	PIPE; DELIVERY,FUEL TANK (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
35	PIPE; FUEL TANK,RETURN L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9901	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CX***C) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
35	PIPE; FUEL TANK,RETURN CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
35	PIPE; FUEL TANK,RETURN L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9603-9605	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9606-9805	●	●
38	SLEEVE; RUBBER,RUBBER HOSE ZF M/T<X9E> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9606-9805		●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) SILENCER SINGLE VERTICAL<N28> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9806-9901	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9806-9901	●	●
38	SLEEVE; RUBBER,RUBBER HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9806-9901		●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) ZF M/T<X9E> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9905-9908	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9905-9908	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9905-9908	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9909-0008	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9909-0008	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9909-0008	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0009-0009		●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0010-0104	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0102-0104	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-			●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9901	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9902-9904	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9603-9805	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9806-9901	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> ID=28 OD=35 T=25	1-09332-011-1	02	1	9806-9901	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9905-9908	●	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9909-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	01	1	9909-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) ID=28 OD=35 T=25	1-09332-011-1	01	1	9603-9805	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28> ID=28 OD=35 T=25	1-09332-011-1	01	1	9806-9901	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 400L<SDH> ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9806-9810	●	●
97	BRACKET; CLIP EXC. ZF M/T<X9E> (A) L=115	1-47475-305-0	01	1	9603-9605	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9606-9805	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9811-9901	●	●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	9909-0008		●	●	●
97	BRACKET; CLIP (B)	1-47478-442-0	01	1	0009-		●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9909-0008	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	0009-	●	●	●	●
97	BRACKET; CLIP ZF M/T<X9E> (A) L=115	1-47475-305-0	02	1	9603-9605	●	●
97	BRACKET; CLIP ZF M/T<X9E> (D) L=120	1-82699-465-0	01	1	9909-0008		●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ID=16X2 L=20	9-09535-536-0	04	1	9603-9604	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ID=16X2 L=20	9-09535-536-0	03	1	9605-9608	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9609-9805	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9609-9805		●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	04	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	02	1	9909-0008		●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	01	1	0009-0009	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	0010-	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	03	1	9603-9604	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	04	1	9605-9608	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	9609-9805		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9806-9901	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH>,ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	04	1	9909-0008	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9909-0008		●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	0009-	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ID=16X2 L=50	9-09535-586-0	01	1	9603-9901	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> ID=16X2 L=50	9-09535-586-0	01	1	9905-	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	9905-9908	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	0009-0009	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	0010-	●	●	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9609-9805	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9806-9806	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ID=16X2 L=20	9-09535-536-0	04	1	9806-9901	●	●
100	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9909-0008	●	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	0009-0009	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X20 FLANGE	0-28080-820-0	03	1	9605-9606	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X25 FLANGE	0-28680-825-0	03	1	9607-9608	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9609-9805	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9609-9805		●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9909-0008		●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0009-0009	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0010-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X20 FLANGE	0-28080-820-0	03	1	9603-9604	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	9609-9805		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9806-9901	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X25 FLANGE	0-28680-825-0	04	1	9909-0008	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9909-0008		●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	0009-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	03	1	0009-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	9905-9908	●	●	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9609-9805	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8X25 FLANGE	0-28680-825-0	04	1	9806-9901	●	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9909-0008	●	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	04	1	0009-	●	●	●	●
102	NUT; CLIP,FUEL PIPE M8	9-09110-508-0	01	1	9603-9605	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8	9-09110-508-0	01	1	9603-9605	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8	9-09110-508-0	02	1	9606-9606		●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9607-9805		●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9806-9901		●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0009-		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0009-		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. SILENCER SINGLE VERTICAL<N28>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9806-9810	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9806-9810	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9806-9810		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9811-9901	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9909-0008		●	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8	9-09110-508-0	02	1	9603-9605	●	●
102	NUT; CLIP,FUEL PIPE M8	9-09110-508-0	01	1	9606-9606	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-9805	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) EXC. ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9805	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9805		●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) M8 FLANGE	0-91150-108-0	02	1	9806-9901	●	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9806-9901		●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0009-0009	●	●	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0009-0009	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0009-0009		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0009-0009		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0010-	●	●	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0010-	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0010-		●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0010-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR EXC. ZF M/T<X9E> M8X30 FLANGE	0-28080-830-0	01	1	9603-9605	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X30 FLANGE	0-28080-830-0	01	1	9606-9606	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9607-9810	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9811-9901	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9905-9908	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	9909-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	0009-	●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CX***C) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	0009-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR CXZ&LONG CHASSIS(CXZ6MF) ISUZU M/T<X9A>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0009-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	03	1	9909-0008		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CX***C) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	0009-		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	9909-0008		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X30 FLANGE	0-28080-830-0	02	1	9604-9605	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	01	1	9603-9608		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	02	1	9609-9805		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=80 H=20	1-82699-304-0	01	1	9806-9901		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-47478-306-0	02	1	9905-9909		●	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-47478-306-0	02	1	9910-		●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9603-9901	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9905-	●	●	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-0	02	1	9603-9605	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-0	02	1	9606-9901	●	●
289	CLIP; BAND,HOSE ZF M/T<X9E> L=250	5-09707-030-0	02	1	9606-9901		●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-1	02	1	9905-9908	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9909-0008	●	●	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CX***C) L=250	5-09707-030-1	02	1	9909-0008	●	●	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	9909-0008	●	●	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	0009-0009		●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-1	04	1	0010-0104	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	04	1	0105-	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0105-	●	●	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	02	1	0102-0104	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	02	1	0105-			●

156 38 41 97 289 289 41 35 95 32 32 289 41 38 229 289 41 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (B) TANK-FILTER L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FILTER-ENG L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9909-			●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (A) FILTER-ENG,(B) TANK-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9604-9605	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (B) TANT-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9805	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) EXC. SILENCER SINGLE VERTICAL<N28> (B) TANT-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9901	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (B) TANT-FILTER L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) (B) TANT-FILTER L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9605	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9805	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28> (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9901	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 400L<SDH> (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) TANT-FILTER L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (B) TANT-FILTER L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	9909-			●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CX***C) (A) FILTER-ENG L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603	●	●
32	PIPE; DELIVERY,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603	●	●
32	PIPE; DELIVERY,FUEL TANK (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9604-9901	●	●
32	PIPE; DELIVERY,FUEL TANK (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK (A) FILTER-ENG L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
35	PIPE; FUEL TANK,RETURN L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9901	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CX***C) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
35	PIPE; FUEL TANK,RETURN CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●	●
35	PIPE; FUEL TANK,RETURN L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9603-9605	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9606-9805	●	●
38	SLEEVE; RUBBER,RUBBER HOSE ZF M/T<X9E> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9606-9805		●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) SILENCER SINGLE VERTICAL<N28> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9806-9901	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9806-9901	●	●
38	SLEEVE; RUBBER,RUBBER HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9806-9901		●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) ZF M/T<X9E> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9905-9908	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9905-9908	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9905-9908	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9909-0008	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9909-0008	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9909-0008	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0009-0009		●	●
38	SLEEVE; RUBBER,RUBBER HOSE CXZ&LONG CHASSIS(CXZ6MF) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0010-0104	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0102-0104	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-			●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9901	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9902-9904	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9603-9805	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9806-9901	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> ID=28 OD=35 T=25	1-09332-011-1	02	1	9806-9901	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9905-9908	●	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9909-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) ID=28 OD=35 T=25	1-09332-011-1	01	1	9909-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) ID=28 OD=35 T=25	1-09332-011-1	01	1	9603-9805	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28> ID=28 OD=35 T=25	1-09332-011-1	01	1	9806-9901	●	●
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 400L<SDH> ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9806-9810	●	●
97	BRACKET; CLIP EXC. ZF M/T<X9E> (A) L=115	1-47475-305-0	01	1	9603-9605	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9606-9805	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9811-9901	●	●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	9909-0008		●	●	●
97	BRACKET; CLIP (B)	1-47478-442-0	01	1	0009-		●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9909-0008	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	0009-	●	●	●	●
97	BRACKET; CLIP ZF M/T<X9E> (A) L=115	1-47475-305-0	02	1	9603-9605	●	●
97	BRACKET; CLIP ZF M/T<X9E> (D) L=120	1-82699-465-0	01	1	9909-0008		●	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	01	1	9603-9608		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	02	1	9609-9805		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=80 H=20	1-82699-304-0	01	1	9806-9901		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-47478-306-0	02	1	9905-9909		●	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-47478-306-0	02	1	9910-		●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9603-9901	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9905-	●	●	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-0	02	1	9603-9605	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-0	02	1	9606-9901	●	●
289	CLIP; BAND,HOSE ZF M/T<X9E> L=250	5-09707-030-0	02	1	9606-9901		●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-1	02	1	9905-9908	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9909-0008	●	●	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CX***C) L=250	5-09707-030-1	02	1	9909-0008	●	●	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	9909-0008	●	●	●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	0009-0009		●	●
289	CLIP; BAND,HOSE CXZ&LONG CHASSIS(CXZ6MF) L=250	5-09707-030-1	04	1	0010-0104	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	04	1	0105-	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0105-	●	●	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	02	1	0102-0104	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	02	1	0105-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
