Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#53217) — 18 parça
◀

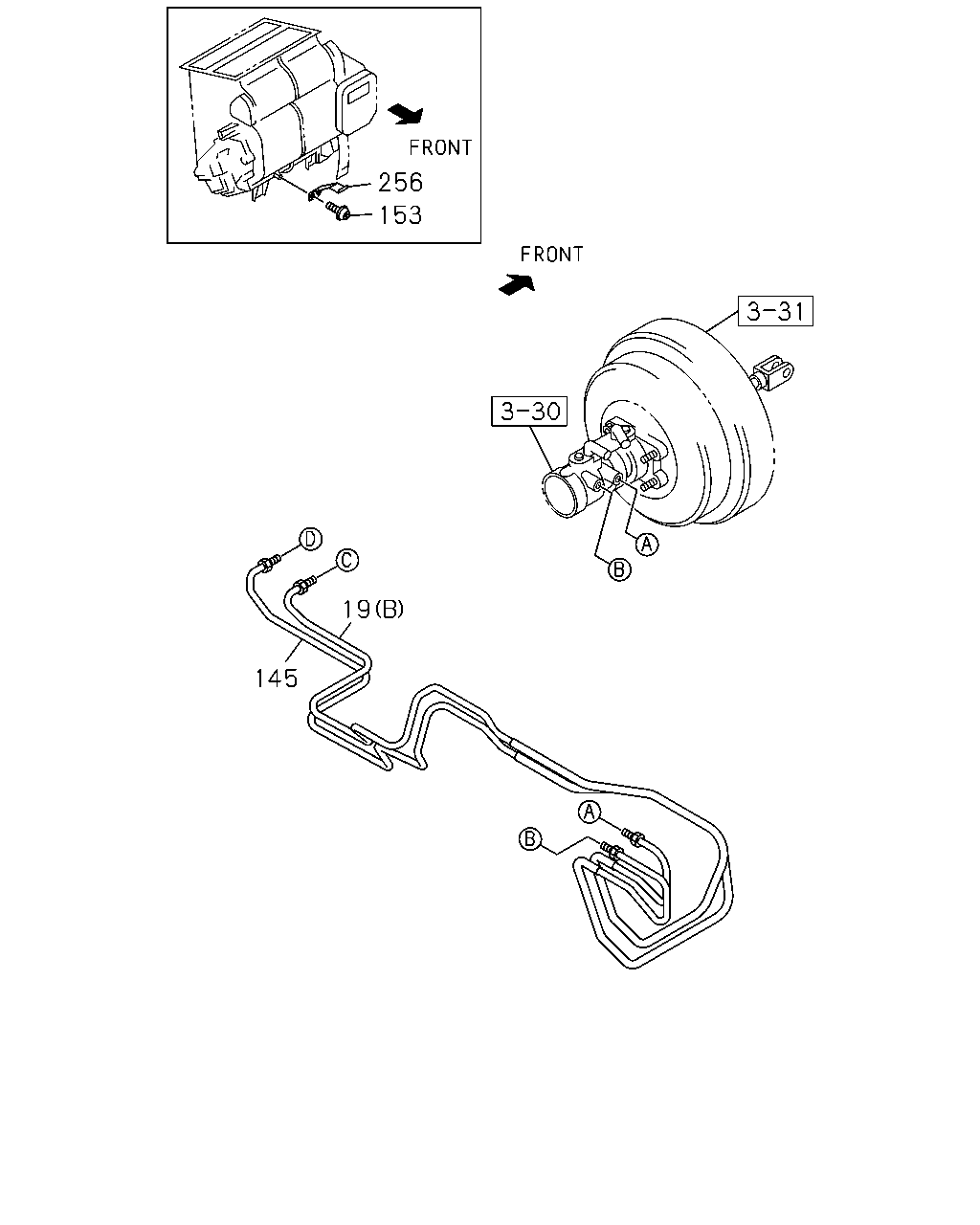

[350A] NO.1 (5 parça)

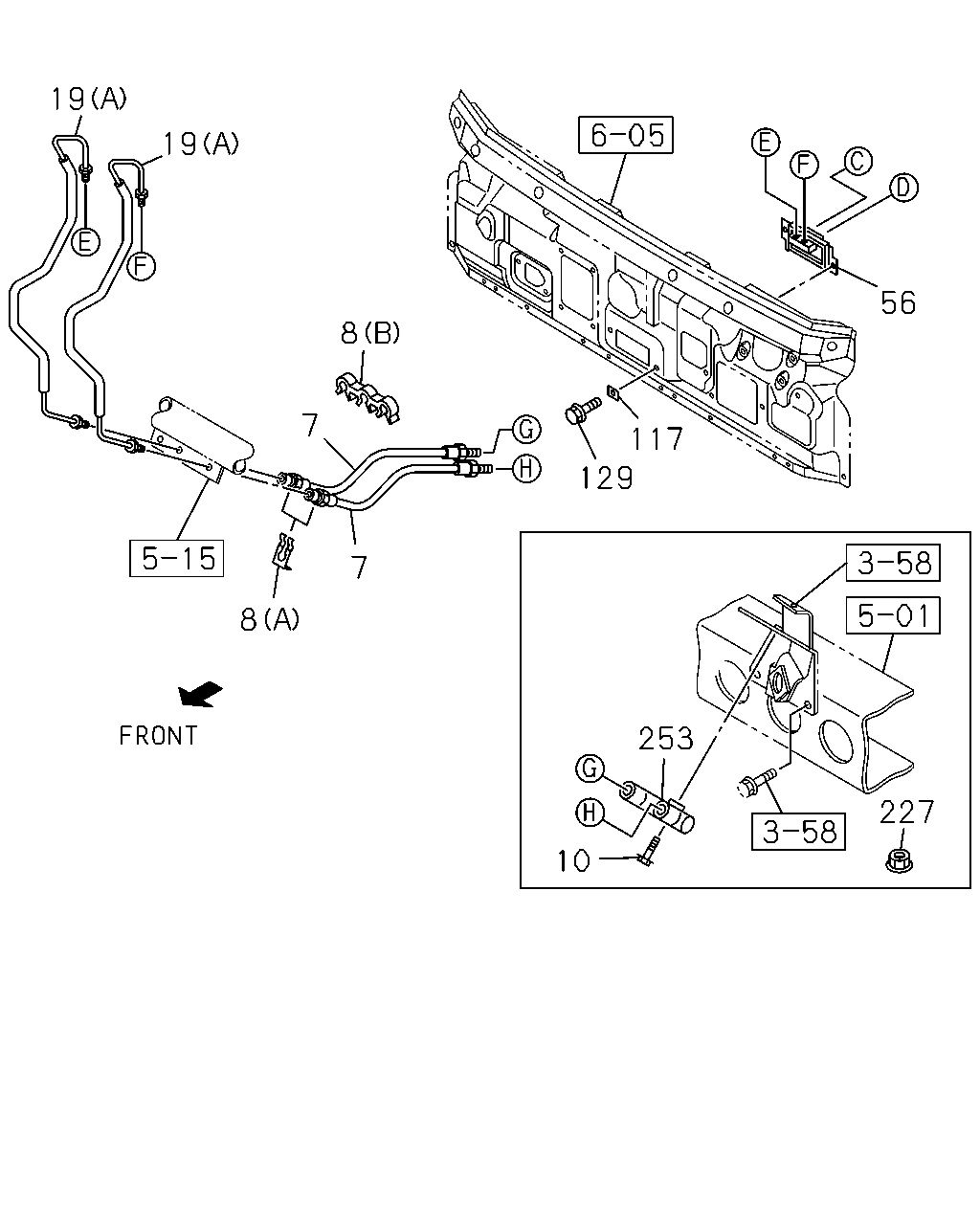

[350A] NO.2 (13 parça)
▶
256
153
19
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-97389-337-3
01
1
0804-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-97389-366-1
02
1
0804-
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-97389-295-3
01
1
0804-
153
04.730 SCREW; BRKT FIX
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
0804-0808
256
04.840 BRACKET; BRK PIPE
8-98034-784-1
01
1
0804-0808
19
19
56
8
7
117
129
7
8
253
227
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98029-865-0
02
1
0804-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
0804-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0804-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0804-
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-97389-337-3
01
1
0804-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-97389-366-1
02
1
0804-
56
04.686 BRACKET; UNION,BRK
8-97389-281-1
01
1
0804-1005
56
04.686 BRACKET; UNION,BRK
8-98154-264-1
01
1
1006-
117
04.686 SEAL; UNION,BRK PIPE JOINT
08.845
8-97856-616-0
02
1
0804-
129
04.710 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
01
1
0804-0809
129
04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
0804-
227
04.685 NUT; JOINT
01.062 M8 FLANGE
0-91180-108-0
02
1
0804-
253
04.840 JOINT
04.686
5-47456-009-1
01
1
0804-
