2-26 — MANUAL TRANSMISSION GEAR (#53205) — 89 parça
çizim 157004
118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132
BalonParca AdiParca NoAdetTipApplied Date
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0804-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0804-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0804-
108 04.428 SHAFT; COUNTER
Z=47-39-33-20 		8-97380-627-1 01 1 0804-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0804-
118 04.421 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 0804-
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0804-
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0804-
268 04.537 PLATE; ANTI LASH,COUNTER 8-97252-684-1 01 1 0804-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 0804-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.384 ID=30.7 T=1.8 		8-97254-728-0 01 1 0804-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 0804-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 0804-
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0804-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0804-
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0804-
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0804-
423 04.384 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 0804-
480 04.419 WASHER; THRUST,6TH 8-97253-123-1 01 1 0804-
506 04.419 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 0804-
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0804-
508 04.383 RING; BLOCK,6TH
04.395 Z=45 		8-97309-532-0 01 1 0804-
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 0804-
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0804-
527 04.384 INSERT; 6TH 8-94448-202-2 03 1 0804-
528 04.384 SLEEVE; 6TH
04.535 Z=45 		8-94421-871-1 01 1 0804-
529 04.384 PLATE; STOPPER,6TH 8-97248-952-0 01 1 0804-

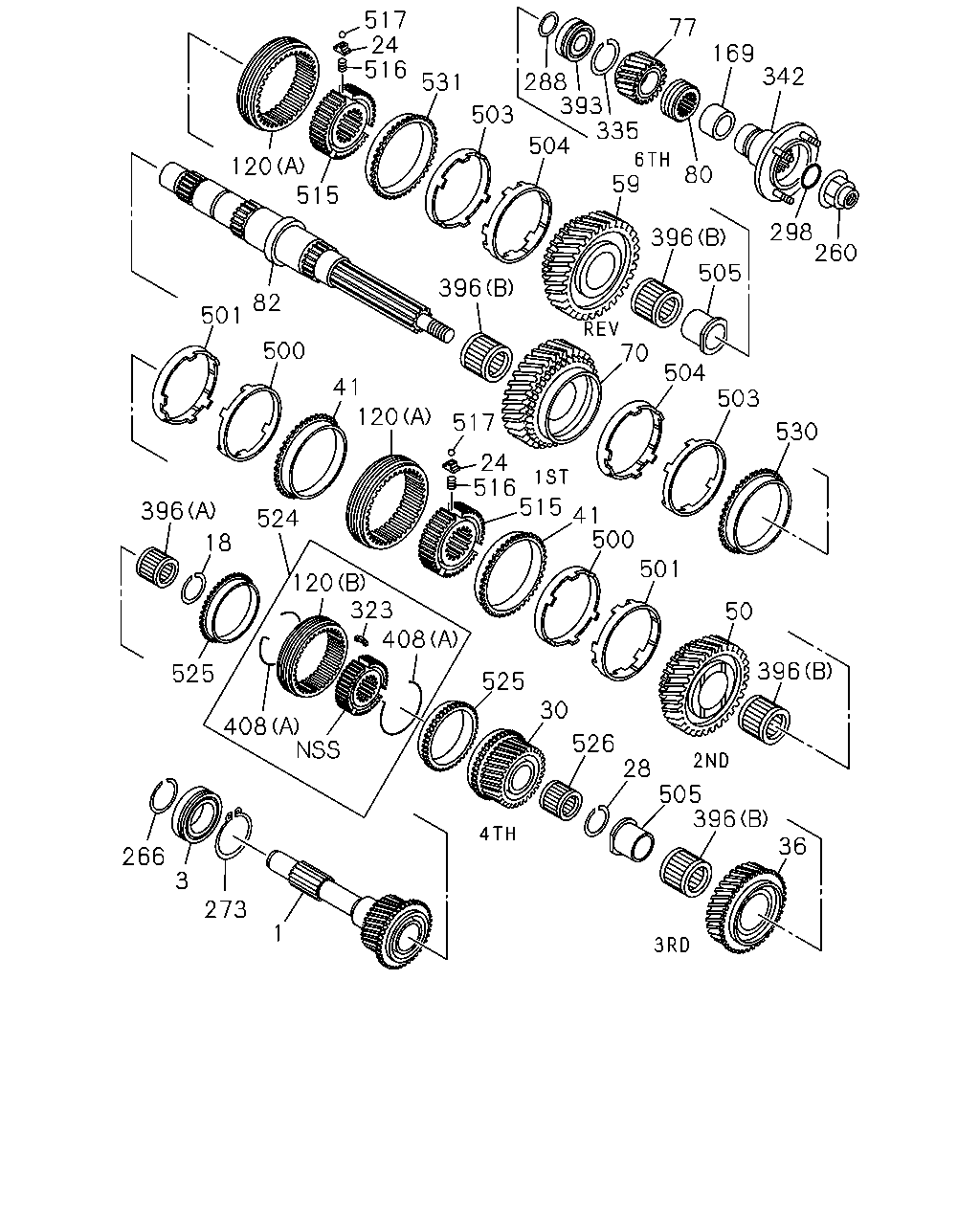

çizim 157013
517 24 516 77 169 342 288 393 335 531 503 504 59 120 515 80 298 260 396 505 396 82 501 70 500 504 41 503 120 517 530 24 516 515 396 41 500 524 18 501 120 323 408 50 396 525 525 30 408 526 28 505 396 36 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
Z=26 		8-98021-266-0 01 1 0804-
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0804-
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0804-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0804-
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0804-
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 0804-
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0804-
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0804-
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0804-
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97350-011-0 01 1 0804-1006
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1007-
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0804-
77 04.421 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 0804-
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0804-
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0804-
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0804-
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0804-1311
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
169 04.419 COLLAR; MAINSHAFT 8-97252-937-1 01 1 0804-
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0804-
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0804-
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0804-
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0804-
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0804-
323 04.384 INSERT 8-94448-202-2 03 1 0804-
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0804-
342 05.545 FLANGE; OUTPUT 8-98031-862-0 01 1 0804-
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0804-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0804-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0804-
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0804-
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0804-
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0804-
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0804-
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 02 1 0804-1006
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1007-
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 02 1 0804-1006
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1007-
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0804-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0804-
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0804-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0804-
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0804-
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0804-
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0804-
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0804-
531 04.383 RING; BLOCK,REV
Z=45 		8-97241-306-1 01 1 0804-1006
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1007-
