2-08 — CLUTCH MASTER CYLINDER (#53201) — 22 parça
çizim 156995
1 8 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-639-0 01 1 0804-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) (A) 		8-98062-277-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0804-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0804-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0804-
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0804-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0804-
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0804-

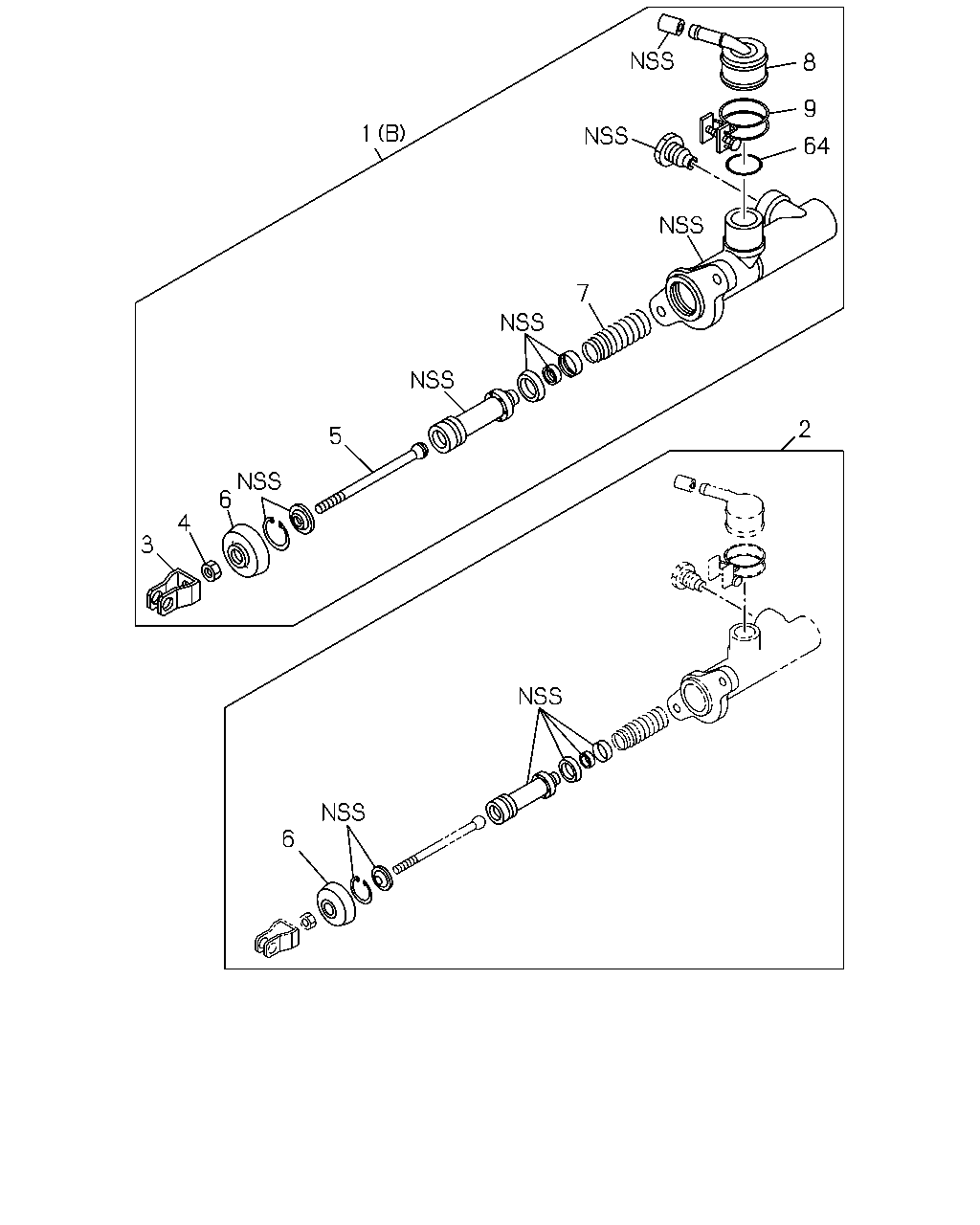

çizim 156996
8 9 1 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-639-0 01 1 0804-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) (A) 		8-98062-277-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0804-
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0804-
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0804-
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0804-
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0804-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0804-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0804-
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0804-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0804-
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0804-
