Sayfa 1-40B - Isuzu EPC

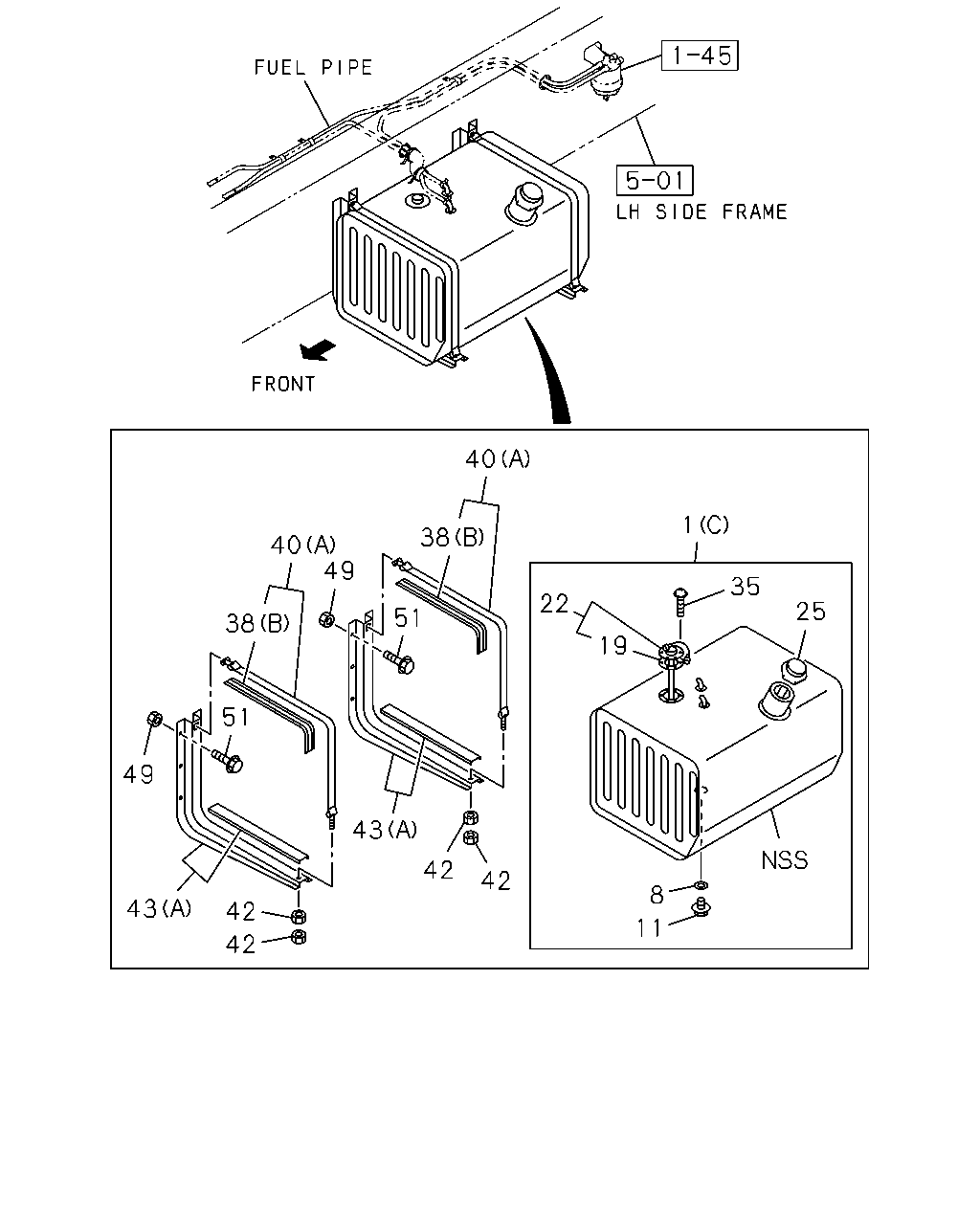

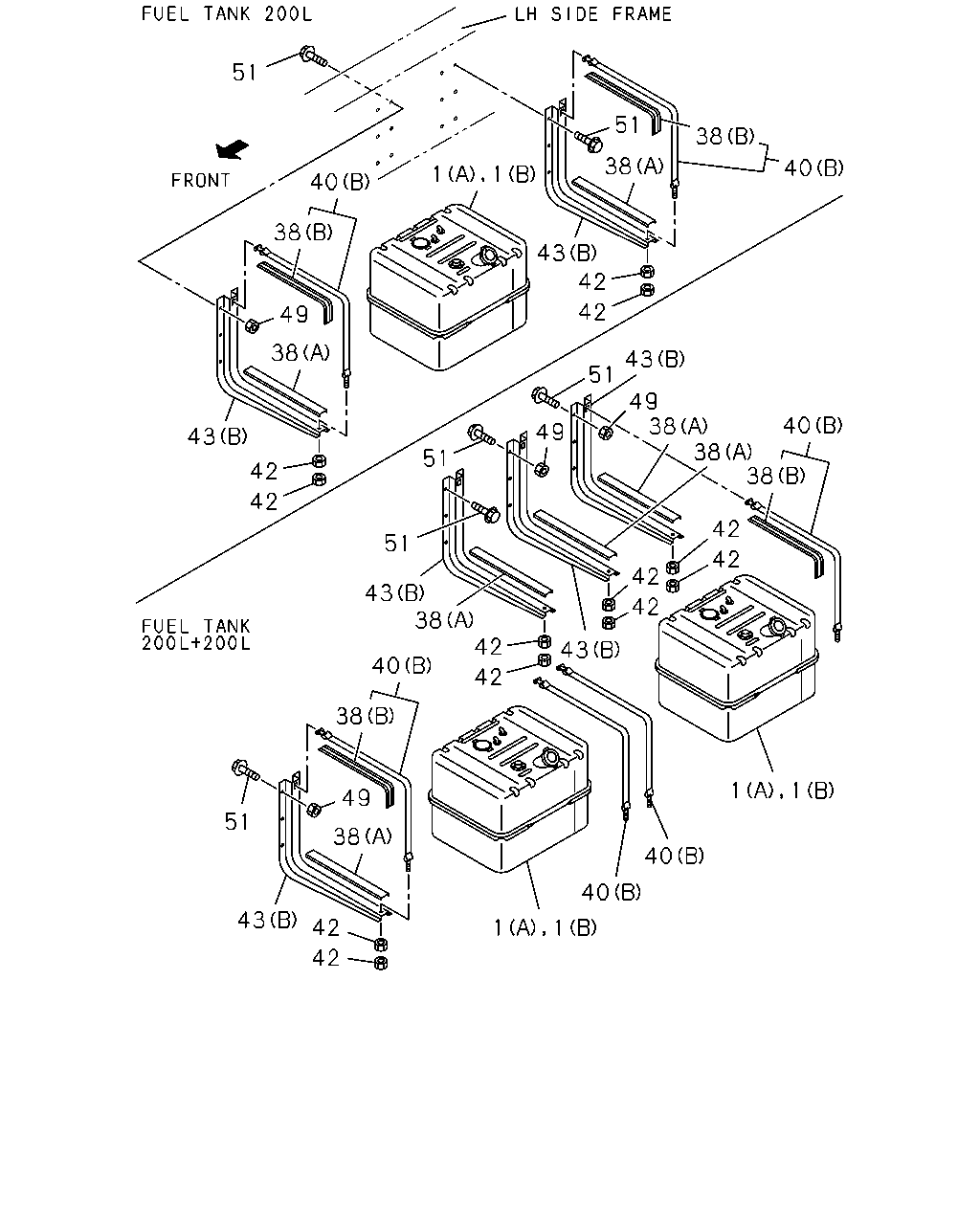

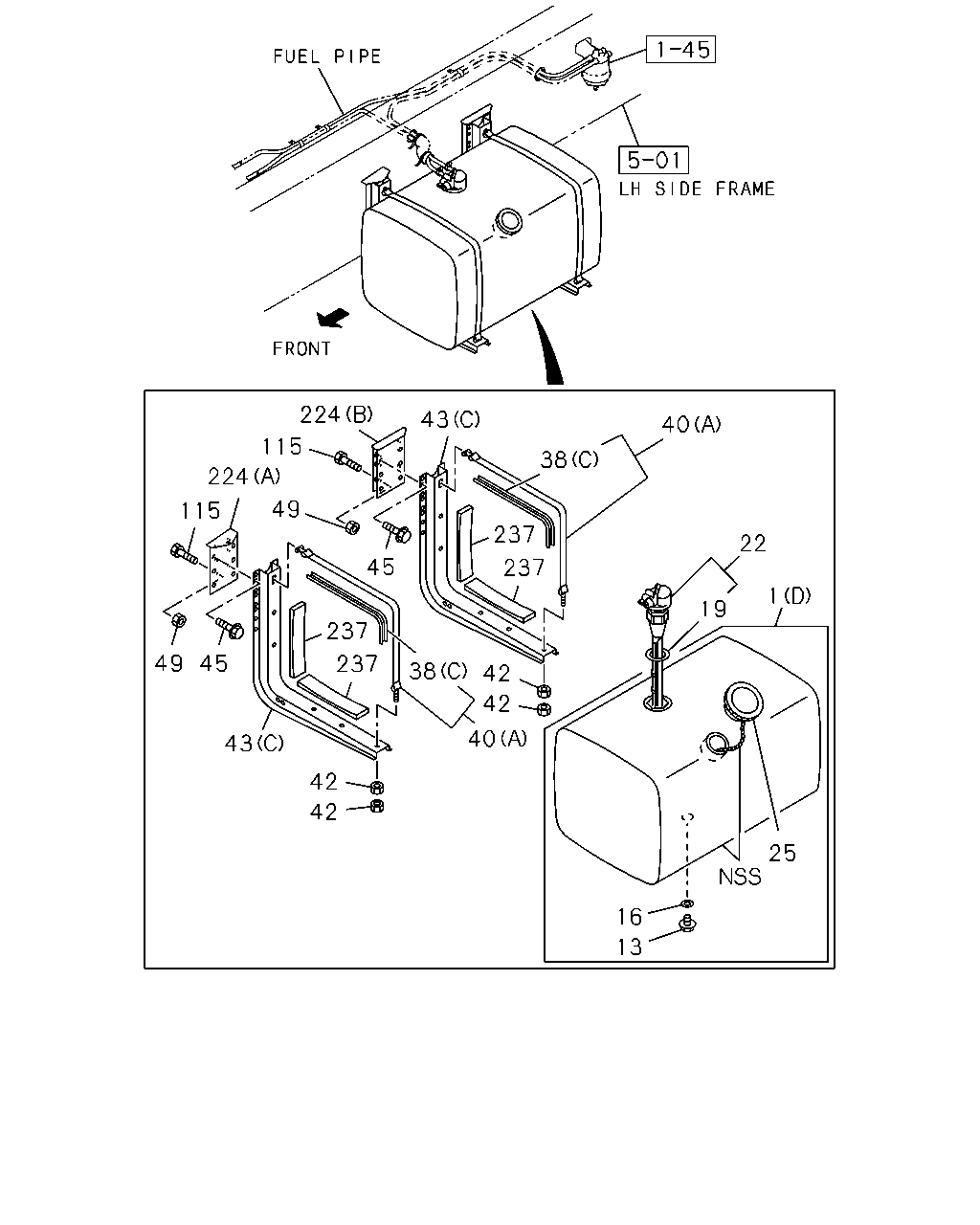

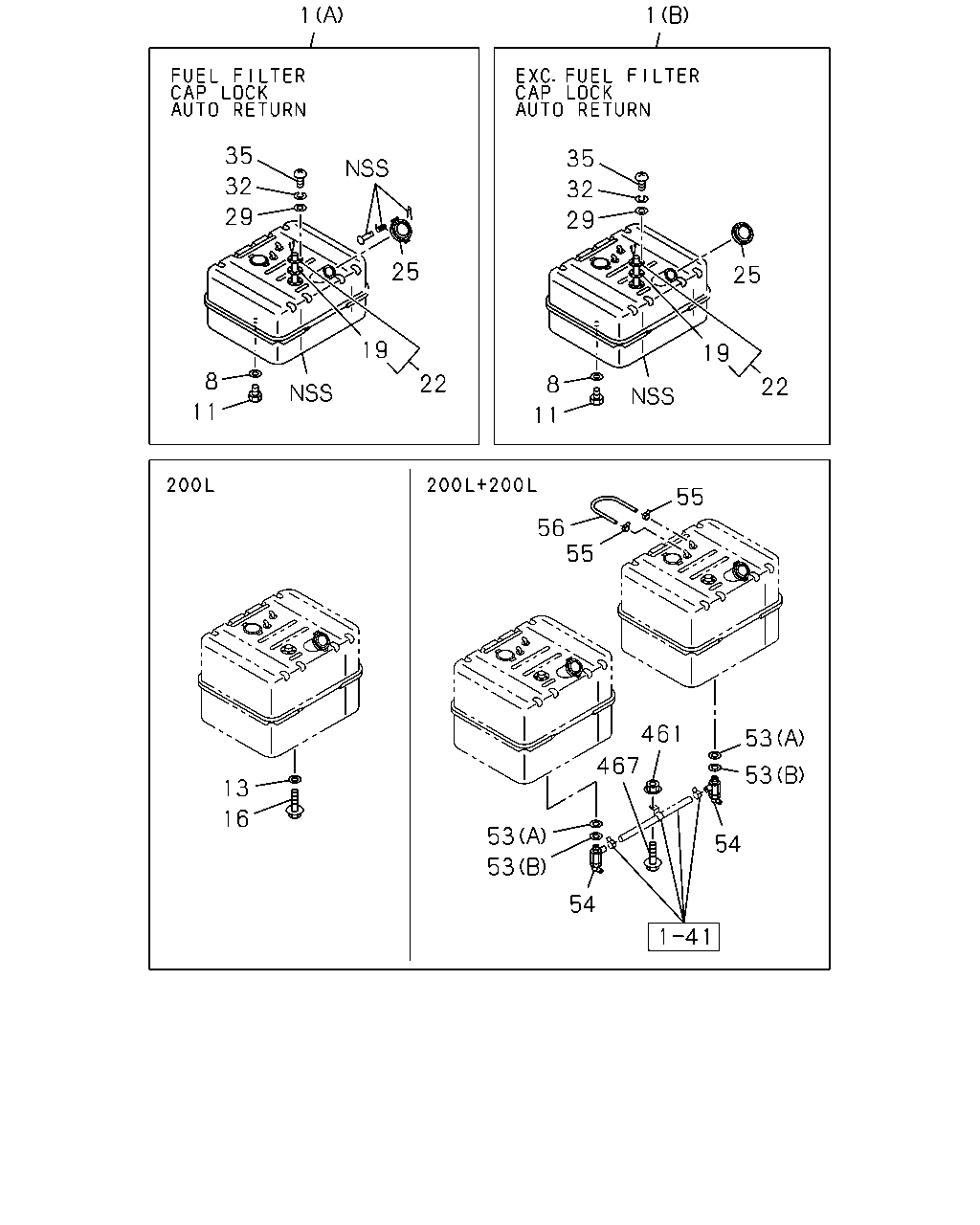

1-40B — FUEL TANK (#5320) — 551 parça

51 51 38 40 38 40 1 1 38 43 42 42 49 38 43 51 49 38 38 49 40 43 38 51 42 42 42 42 42 51 42 43 38 43 42 40 42 38 1 1 49 51 38 40 40 43 42 1 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	9905-			●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-1	02	1	9603-9901	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-2	02	1	9902-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-2	04	1	9902-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-1	02	1	9603-9901	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9905-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=1030	1-22550-204-2	02	1	9905-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A) L=1205	1-22550-227-2	02	1	9905-			●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9603-9901	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9902-9904	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9902-9904	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9905-	●	●	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9905-	●	●	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT W/PAD	1-53461-435-1	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> SILENCER SINGLE VERTICAL<N28> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9902-9903	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	01	1	9904-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR W/PAD	1-53461-436-4	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9902-9903	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9904-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9603-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9603-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> (B) REAR	1-53461-279-4	01	1	9902-9904	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) REAR	1-53461-279-4	01	1	9905-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9906-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9603-9805	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9902-9905	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9906-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-525-1	02	1	0101-			●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9603-9901	●	●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9902-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9603-9805	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	18	1	9806-9901	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9603-9805	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9806-9901	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9902-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9906-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	06	1	9806-9901	●	●
49	NUT; BRKT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M12	9-99110-512-0	06	1	9902-9904	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	9905-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0001-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	03	1	9905-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9906-9912	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0001-			●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9603-9901	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9902-	●	●	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	08	1	9603-9606	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9607-9901	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9902-	●	●	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9902-	●	●	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	12	1	9603-9606	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9607-9901	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9905-	●	●	●	●

40 1 38 40 49 35 22 25 51 38 19 51 49 43 42 42 8 43 42 11 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-			●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9603-9901	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9603-9901	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9902-9904	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9902-9904	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9905-	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9905-	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9603-9901	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	02	1	9902-	●	●	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9603-9901	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	9603-9901	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9905-0003	●	●	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	9905-0003	●	●	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9603-9901	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	0004-	●	●	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	0004-	●	●	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9902-9904	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9902-9904	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9902-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9902-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9902-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9902-	●	●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9902-9904	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9902-9904	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9902-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9902-0003	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-			●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9603-9901	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9902-	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9603-9901	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9902-	●	●	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9603-9901	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9902-9904	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9902-9904	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9905-	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	9905-			●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-1	02	1	9603-9901	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-2	02	1	9902-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-2	04	1	9902-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-1	02	1	9603-9901	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9905-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=1030	1-22550-204-2	02	1	9905-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A) L=1205	1-22550-227-2	02	1	9905-			●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9603-9901	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9902-9904	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9902-9904	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9905-	●	●	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9905-	●	●	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT W/PAD	1-53461-435-1	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> SILENCER SINGLE VERTICAL<N28> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9902-9903	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	01	1	9904-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR W/PAD	1-53461-436-4	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9902-9903	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9904-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9603-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9603-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> (B) REAR	1-53461-279-4	01	1	9902-9904	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) REAR	1-53461-279-4	01	1	9905-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9906-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9603-9805	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9902-9905	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9906-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-525-1	02	1	0101-			●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9603-9901	●	●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9902-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9603-9805	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	18	1	9806-9901	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9603-9805	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9806-9901	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9902-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9906-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	06	1	9806-9901	●	●
49	NUT; BRKT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M12	9-99110-512-0	06	1	9902-9904	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	9905-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0001-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	03	1	9905-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9906-9912	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0001-			●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9603-9901	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9902-	●	●	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	08	1	9603-9606	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9607-9901	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9902-	●	●	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9902-	●	●	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	12	1	9603-9606	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9607-9901	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9905-	●	●	●	●

224 43 40 115 38 224 49 115 237 22 45 237 1 19 237 49 45 237 38 42 42 40 43 42 42 25 16 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-			●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9603-9901	●	●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9902-9904	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9902-9904	●	●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9905-	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9905-	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	9905-			●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9603-9901	●	●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9902-9904	●	●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	9902-9904	●	●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9905-	●	●	●	●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9902-9904	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9902-9904	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9902-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9902-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9902-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9902-	●	●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9902-9904	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9902-9904	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9902-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9902-0003	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9902-	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9603-9901	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	02	1	9905-	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	9905-			●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-1	02	1	9603-9901	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-2	02	1	9902-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-2	04	1	9902-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-1	02	1	9603-9901	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9905-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=1030	1-22550-204-2	02	1	9905-	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A) L=1205	1-22550-227-2	02	1	9905-			●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9603-9901	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9902-9904	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9902-9904	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9905-	●	●	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9905-	●	●	●	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT W/PAD	1-53461-435-1	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> SILENCER SINGLE VERTICAL<N28> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9902-9903	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	01	1	9904-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR W/PAD	1-53461-436-4	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9902-9903	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9904-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9603-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9603-9901	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9902-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> (B) REAR	1-53461-279-4	01	1	9902-9904	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) REAR	1-53461-279-4	01	1	9905-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9603-9805	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9906-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9603-9805	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9902-9905	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9906-	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-525-1	02	1	0101-			●
45	BOLT; BRKT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X35 FLANGE	0-28081-235-0	12	1	9905-9905			●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9603-9901	●	●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9902-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9603-9805	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	18	1	9806-9901	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9603-9805	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9806-9901	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9902-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9906-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	06	1	9806-9901	●	●
49	NUT; BRKT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M12	9-99110-512-0	06	1	9902-9904	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	9905-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0001-	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	03	1	9905-9905	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9906-9912	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0001-			●
115	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X30 FLANGE	0-28681-230-0	08	1	9905-			●
115	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X35 FLANGE	0-28681-235-0	04	1	9905-			●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A)	1-53461-498-0	01	1	9905-			●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (B)	1-53461-499-0	01	1	9905-			●
237	GASKET; BRKT TO FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> L=450	1-22553-037-0	04	1	9905-			●

1 1 35 35 32 32 29 29 25 25 19 19 8 22 8 22 11 11 55 56 55 461 53 467 53 13 16 53 54 53 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-			●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9603-9901	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9603-9901	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9902-9904	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9902-9904	●	●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9905-	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9905-	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9603-9901	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	02	1	9902-	●	●	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9603-9901	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	9603-9901	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9905-0003	●	●	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	9905-0003	●	●	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9603-9901	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	0004-	●	●	●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	0004-	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9603-9901	●	●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9902-9904	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9902-9904	●	●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9905-	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9905-	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	9905-			●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9603-9901	●	●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9902-9904	●	●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	9902-9904	●	●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9905-	●	●	●	●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9902-9904	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9902-9904	●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9905-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9603-9901	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9902-	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9902-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9902-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9902-	●	●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9902-9904	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9902-9904	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9603-9901	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9902-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9902-0003	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-			●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9603-9901	●	●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9902-	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9603-9901	●	●
29	WASHER; PL,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9902-9904	●	●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	01	1	9902-9904	●	●
29	WASHER; PL,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9905-	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	01	1	9905-	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9603-9901	●	●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9902-	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9603-9901	●	●
32	WASHER; LK,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9902-9904	●	●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	05	1	9902-9904	●	●
32	WASHER; LK,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9905-	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	05	1	9905-	●	●	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9603-9901	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9902-	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9603-9901	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9902-	●	●	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9603-9901	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9902-9904	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9902-9904	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9905-	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9905-	●	●	●	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	9603-9901	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	9902-	●	●	●	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	9603-9901	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	9902-	●	●	●	●
54	COCK ASM; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9603-9901	●
54	COCK ASM; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9902-	●	●	●	●
55	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	9603-9901	●
55	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	9902-	●	●	●	●
56	PIPE; FUEL SHUTTER CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9901	●
56	PIPE; FUEL SHUTTER CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9902-	●	●	●	●
461	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8	9-09110-508-0	02	1	9603-9606	●
461	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●
461	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	9902-	●	●	●	●
467	BOLT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
467	BOLT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●	●
467	BOLT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	9902-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
