1-50 — EXHAUST PIPE AND SILENCER (#53193) — 90 parça

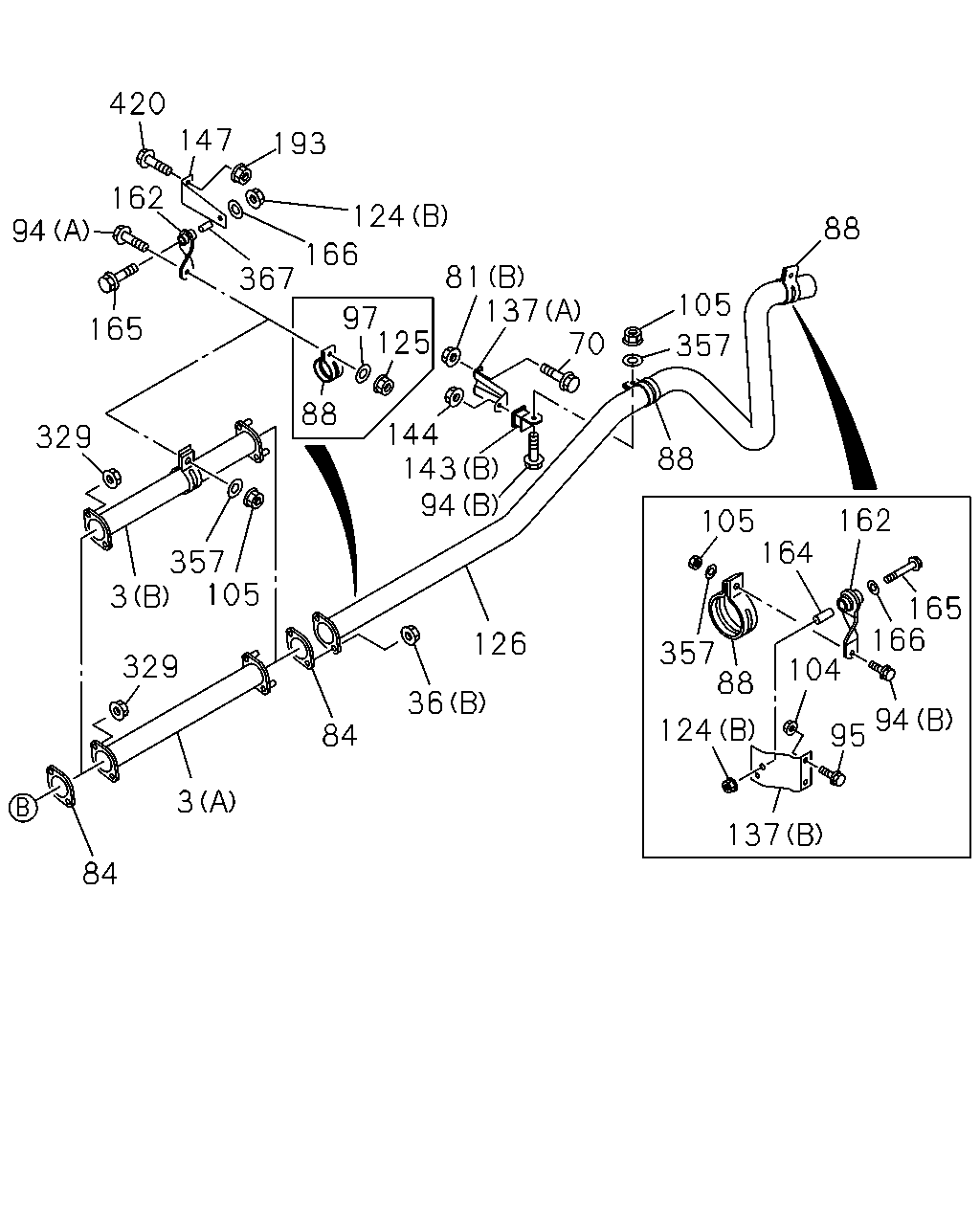

137 95 166 94 165 104 162 164 88 124 357 105 88 357 105 88 70 137 81 124 166 97 193 147 420 162 367 94 165 88 125 144 94 143 357 329 3 105 329 3 84 84 126 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER (A)	8-97089-322-0	01	1	0804-0811
3	03.609 PIPE; EXH,CENTER (B)	8-98134-199-0	01	1	0812-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0804-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0804-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0804-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-0811
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0812-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0804-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0804-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0804-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0804-
126	03.705 PIPE; EXH,RR	8-98090-128-1	01	1	0804-0811
126	03.705 PIPE; EXH,RR	8-98134-798-0	01	1	0812-
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0804-
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0804-
143	03.704 RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0804-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0804-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-
147	03.704 BRACKET; VERTICAL PIPE	8-98090-125-1	01	1	0804-0811
147	03.704 BRACKET; VERTICAL PIPE	8-98117-604-0	01	1	0812-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0804-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0804-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0804-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0804-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0804-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-
193	03.704 NUT; BRKT,VERTICAL PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-
367	03.704 COLLAR; DIST,SUPPORT RUBBER 03.706 L=37.5	9-22151-217-0	01	1	0804-
420	03.704 BOLT; BRKT,VERTICAL PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-

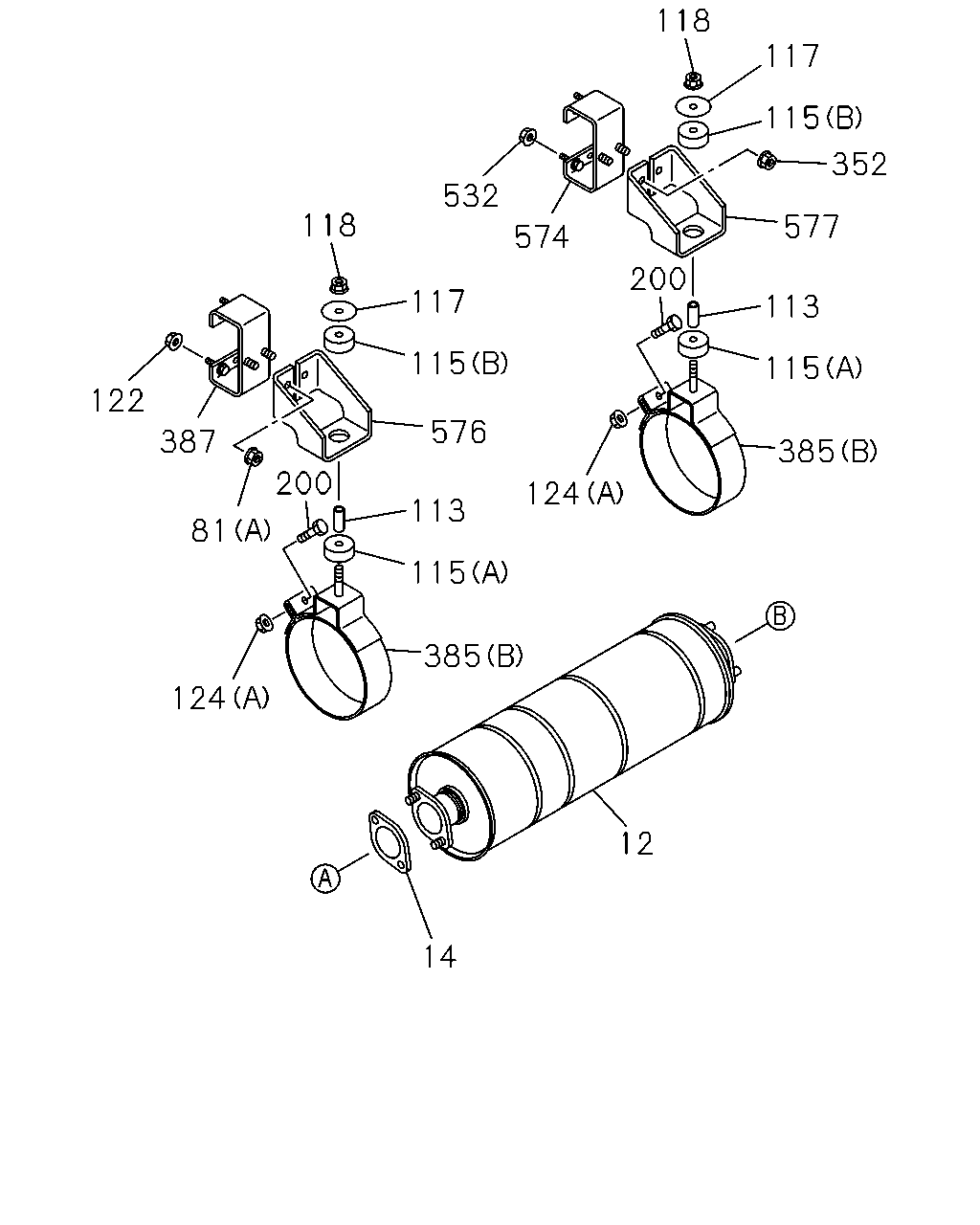

118 117 115 352 532 118 577 574 200 117 113 115 115 122 576 387 385 200 124 113 81 115 385 124 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98090-839-0	01	1	0804-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0804-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0804-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0804-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0804-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0804-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0804-
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0804-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
200	03.704 BOLT; SUPPORT RUBBER 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0804-0909
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
385	03.704 BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0804-
385	03.704 BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0804-
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	0804-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
574	03.706 SPACER; DPD	8-98044-774-0	01	1	0804-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	0804-
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	0804-

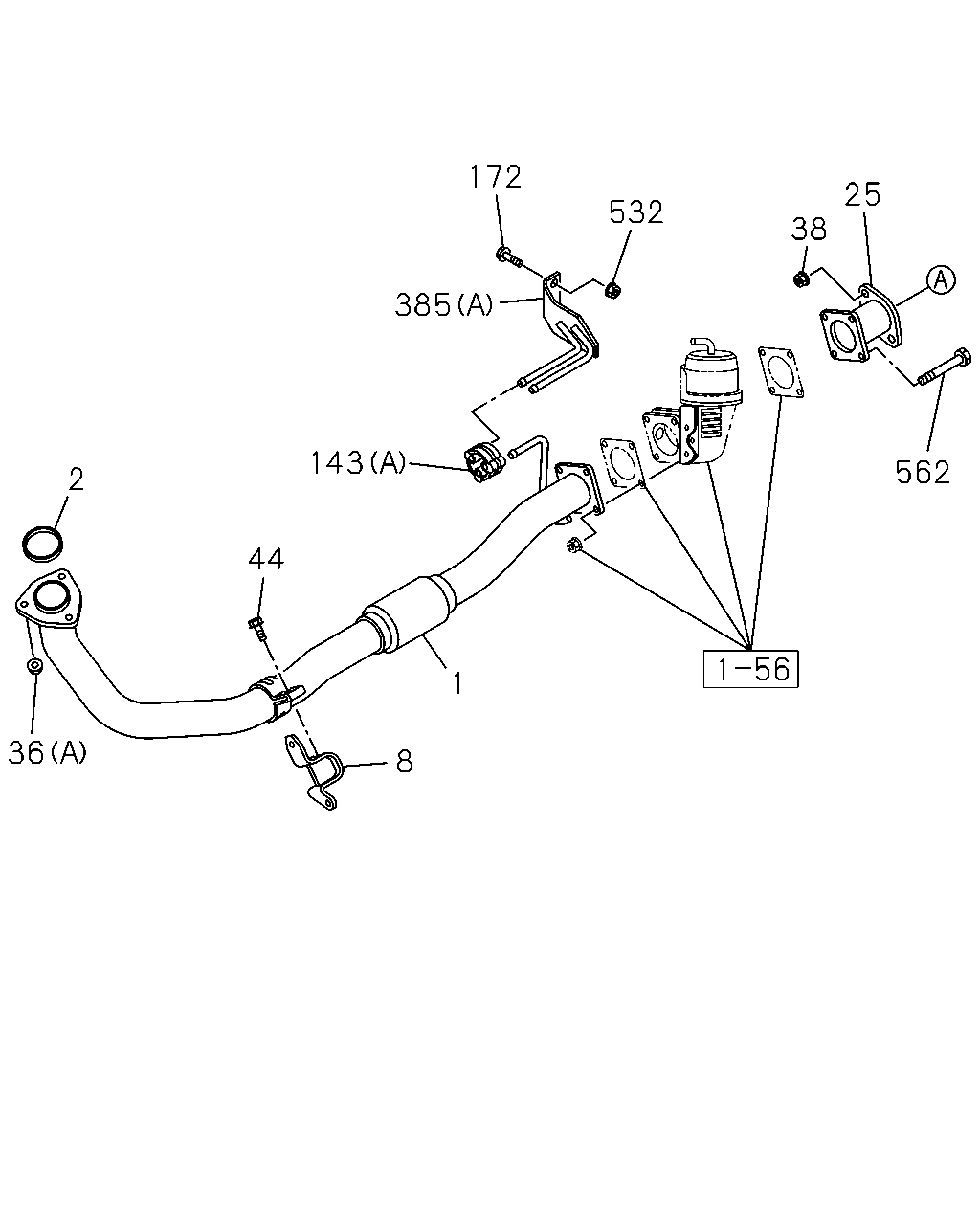

172 25 532 38 385 143 562 2 44 1 36 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-98074-108-1	01	1	0804-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0804-
8	03.704 BRACKET; EXH PIPE 03.613	8-97365-228-0	01	1	0804-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98074-109-0	01	1	0804-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0804-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
44	03.613 BOLT; BRKT 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0804-
143	03.704 RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0804-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0804-
172	03.708 BOLT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0804-
385	03.704 BRACKET; SILENCER MTG (B)	8-97207-224-0	02	1	0804-
385	03.704 BRACKET; SILENCER MTG (A)	8-98074-495-1	01	1	0804-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	0804-
