Sayfa 1-40A - Isuzu EPC

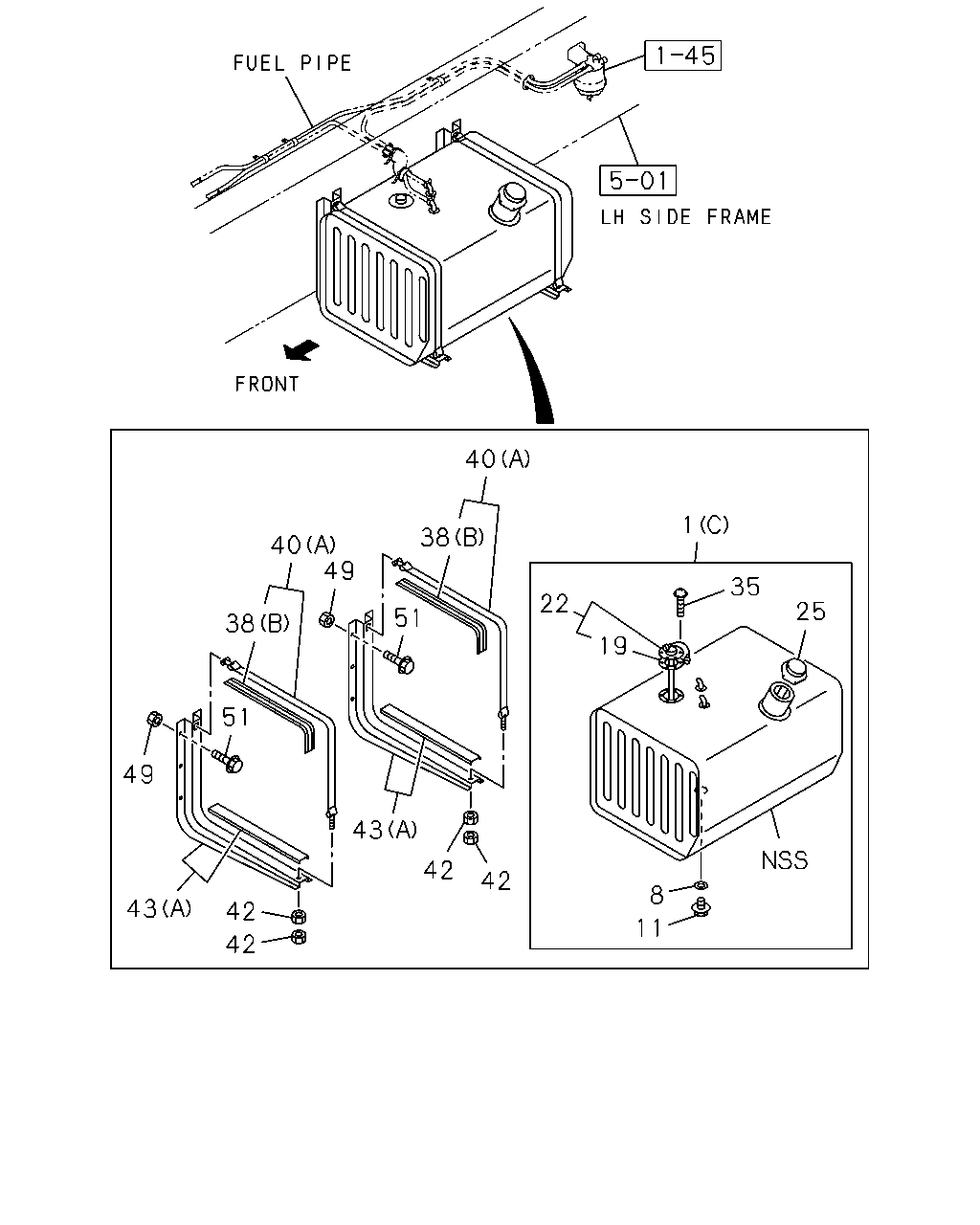

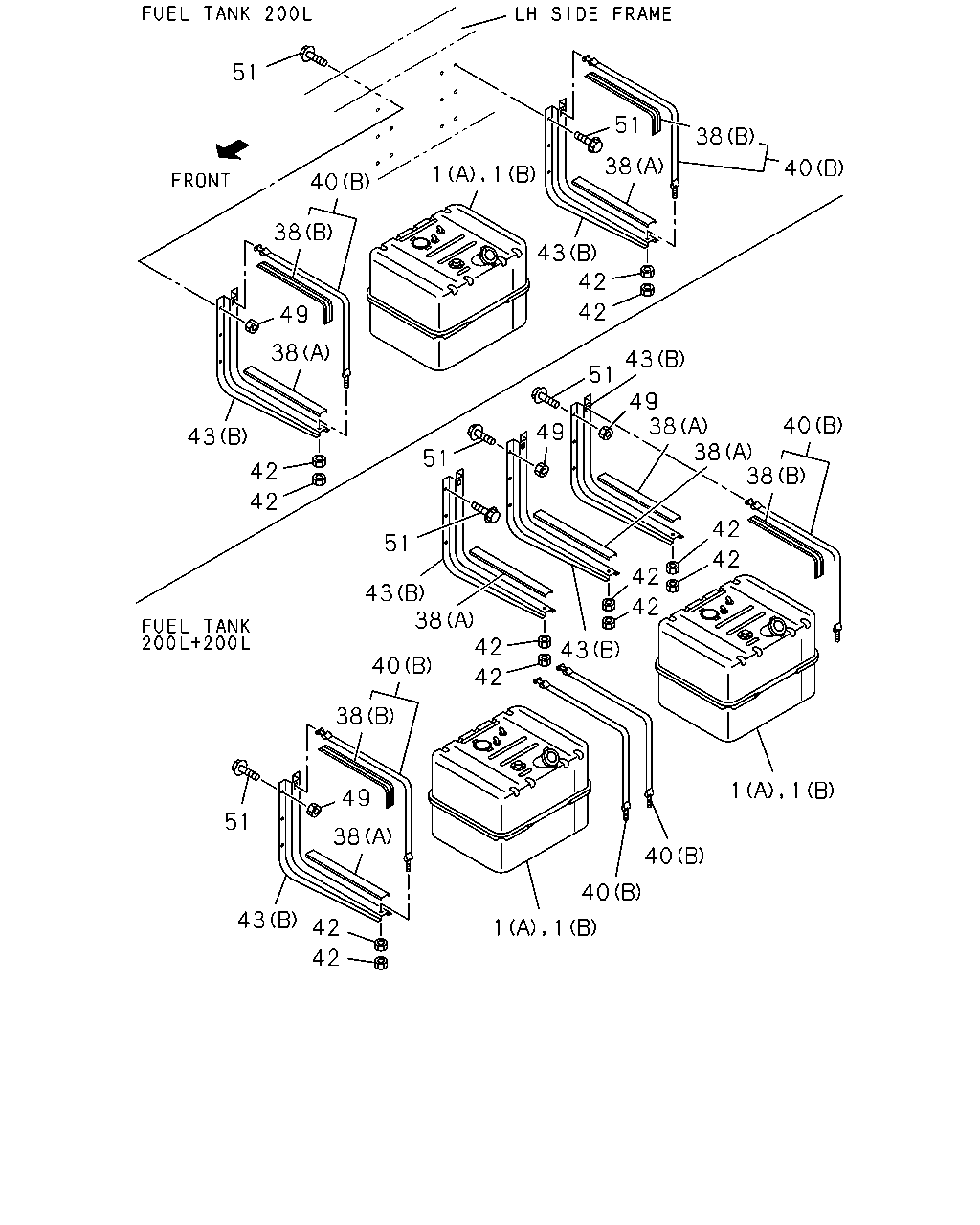

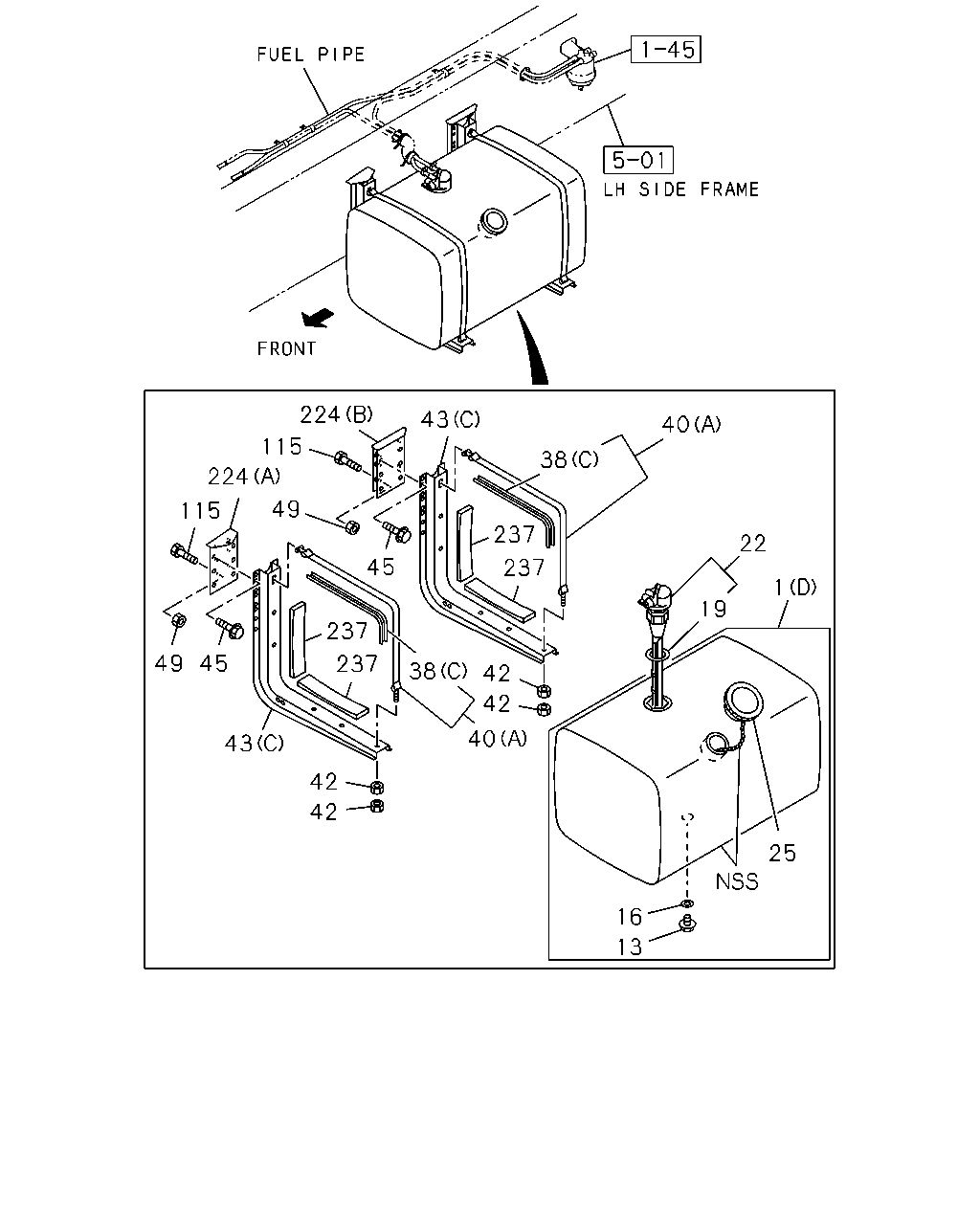

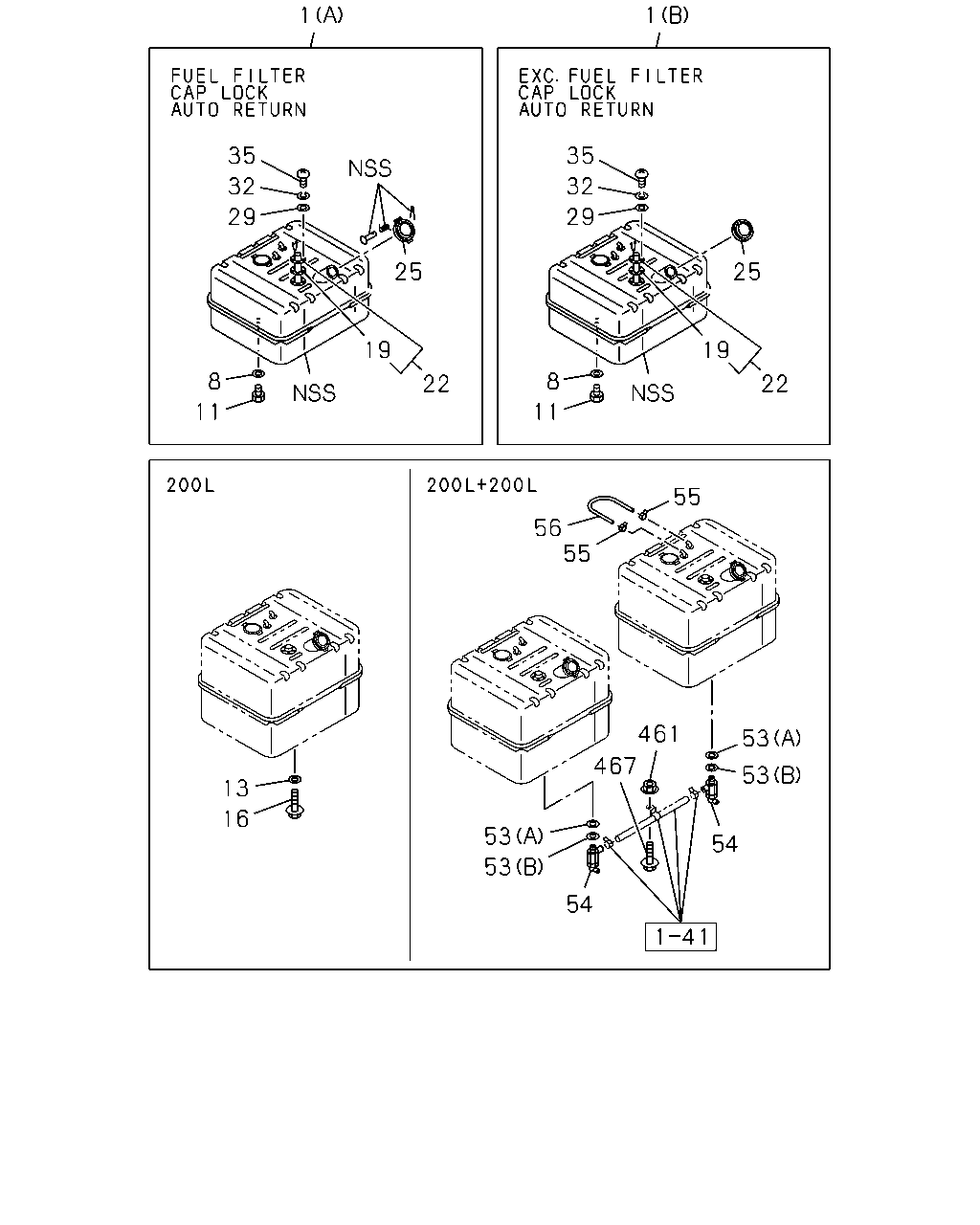

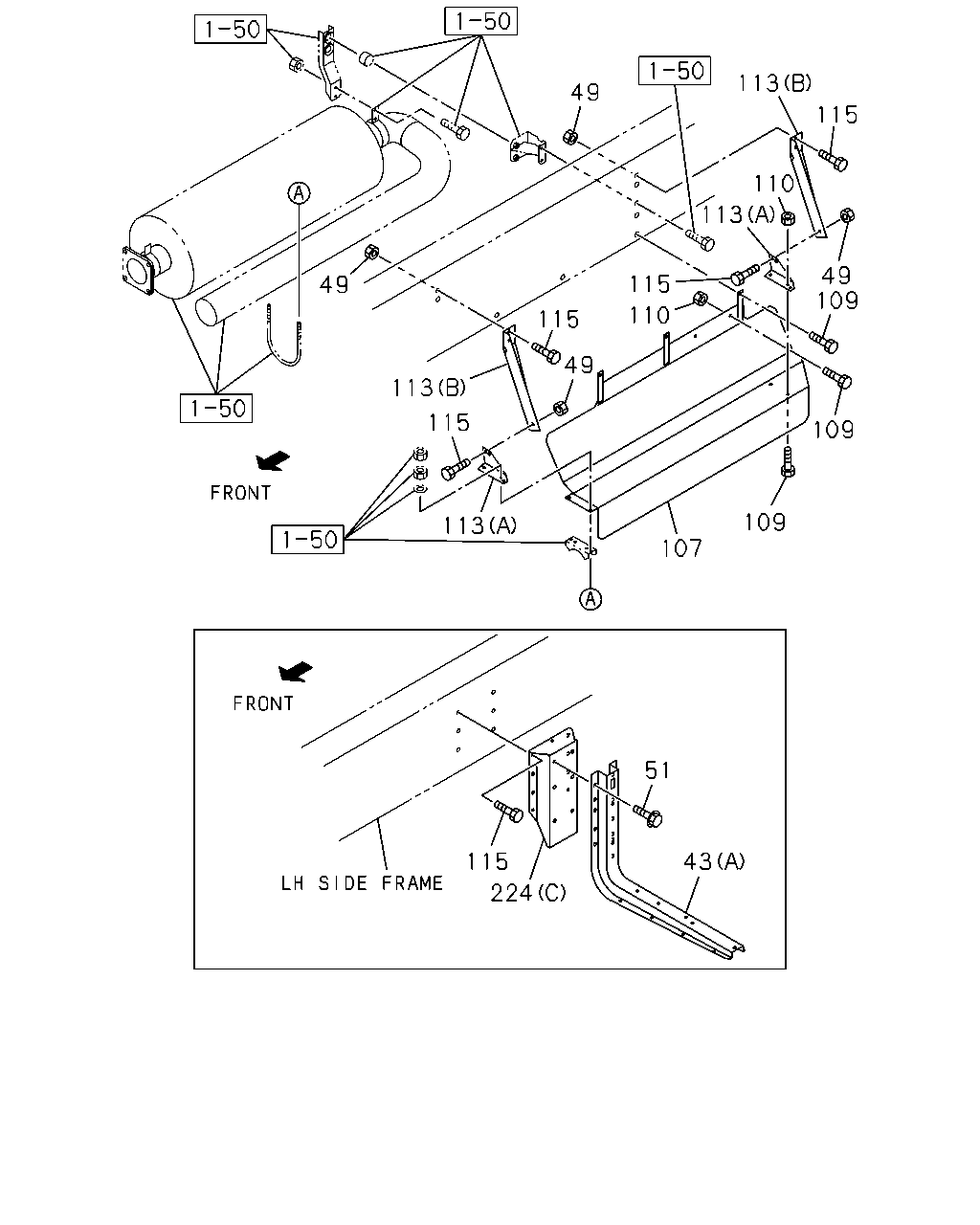

1-40A — FUEL TANK (#5319) — 811 parça

51 51 38 40 38 40 1 1 38 43 42 42 49 38 43 51 49 38 38 49 40 43 38 51 42 42 42 42 42 51 42 43 38 43 42 40 42 38 1 1 49 51 38 40 40 43 42 1 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-		●	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9902-0003			●			●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9902-9904			●			●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9902-9904			●			●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9902-9904			●			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9902-9904			●			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (C) L=1156	1-22553-039-1	02	1	9905-					●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	9905-					●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-1	02	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-2	02	1	9902-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXM(CXM***) (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-2	04	1	9902-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-1	02	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9902-9904			●			●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9905-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=1030	1-22550-204-2	02	1	9905-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXM(CXM***) (A) L=1205	1-22550-227-2	02	1	9905-					●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A) L=1205	1-22550-227-2	02	1	9905-					●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9603-9901	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9902-9904			●			●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9902-9904			●			●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9905-		●	●	●	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9905-		●	●	●		●
42	NUT; SUPPORT BELT CXM&LONG CHASSIS(CXM6MF) CXZ&SHORT CHASSIS(CXZ6MC) M10	9-09110-510-0	04	1	9905-					●
42	NUT; SUPPORT BELT CXM(CXM***) M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT W/PAD	1-53461-435-1	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> SILENCER SINGLE VERTICAL<N28> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR W/PAD	1-53461-436-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> (B) REAR	1-53461-279-4	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) REAR	1-53461-279-4	01	1	9905-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905		●	●			●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9603-9805	●	●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9902-9905		●	●		●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9603-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9902-		●	●	●	●	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9902-9905		●	●		●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9906-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	06	1	9806-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M12	9-99110-512-0	06	1	9902-9904		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	9905-9905		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0001-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	03	1	9905-9905		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	03	1	9905-9905					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9906-9912		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	06	1	9906-9912					●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	12	1	0001-					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0001-					●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9603-9901	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	08	1	9603-9606	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9607-9901	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	12	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	12	1	9902-9904			●			●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9905-		●	●	●		●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X40 FLANGE	0-28681-240-0	12	1	9905-					●

224 43 40 115 38 224 49 115 237 22 45 237 1 19 237 49 45 237 38 42 42 40 43 42 42 25 16 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-		●	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9902-0003			●			●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9902-9904			●			●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9902-9904			●			●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
13	PLUG; SCREW,SUB TANK JOINT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9603-9901	●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9902-9904			●			●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9902-9904			●			●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9905-		●	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9905-		●	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXM(CXM***) M18X12	9-99202-318-0	01	1	9905-					●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	9905-					●
16	GASKET; PLUG CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9603-9901	●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9902-9904			●			●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	9902-9904			●			●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9905-		●	●	●	●	●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	9905-		●	●	●	●	●
16	GASKET; PLUG CXM(CXM***) T=1.60	1-22416-001-0	01	1	9905-					●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9603-9901	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9902-9904			●			●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9902-9904			●			●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9905-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9905-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXM(CXM***)	9-83135-003-0	02	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9902-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXM(CXM***) ID=58	1-83149-005-0	01	1	9905-					●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-					●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9902-9904			●			●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9902-9904			●			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904			●			●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904			●			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***)	1-83141-132-0	01	1	9905-					●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-					●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003		●	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9902-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9902-0003			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***)	1-22440-056-0	01	1	9905-					●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-					●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9902-9904			●			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9902-9904			●			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (C) L=1156	1-22553-039-1	02	1	9905-					●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	9905-					●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-1	02	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-2	02	1	9902-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXM(CXM***) (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-2	04	1	9902-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-1	02	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9902-9904			●			●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9905-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=1030	1-22550-204-2	02	1	9905-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXM(CXM***) (A) L=1205	1-22550-227-2	02	1	9905-					●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A) L=1205	1-22550-227-2	02	1	9905-					●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9603-9901	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9902-9904			●			●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9902-9904			●			●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9905-		●	●	●	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9905-		●	●	●		●
42	NUT; SUPPORT BELT CXM&LONG CHASSIS(CXM6MF) CXZ&SHORT CHASSIS(CXZ6MC) M10	9-09110-510-0	04	1	9905-					●
42	NUT; SUPPORT BELT CXM(CXM***) M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT W/PAD	1-53461-435-1	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> SILENCER SINGLE VERTICAL<N28> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR W/PAD	1-53461-436-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> (B) REAR	1-53461-279-4	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) REAR	1-53461-279-4	01	1	9905-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905		●	●			●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9603-9805	●	●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9902-9905		●	●		●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
45	BOLT; BRKT,FUEL TANK CXM(CXM***) M12X35 FLANGE	0-28081-235-0	12	1	9905-9905					●
45	BOLT; BRKT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X35 FLANGE	0-28081-235-0	12	1	9905-9905					●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9603-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9902-		●	●	●	●	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9902-9905		●	●		●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9906-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	06	1	9806-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M12	9-99110-512-0	06	1	9902-9904		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	9905-9905		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0001-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	03	1	9905-9905		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	03	1	9905-9905					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9906-9912		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	06	1	9906-9912					●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	12	1	0001-					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0001-					●
115	BOLT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	06	1	9806-9901	●
115	BOLT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	12	1	9806-9901	●
115	BOLT; BRKT CXM(CXM***) M12X30 FLANGE	0-28681-230-0	08	1	9905-					●
115	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X30 FLANGE	0-28681-230-0	08	1	9905-					●
115	BOLT; BRKT CXM(CXM***) M12X35 FLANGE	0-28681-235-0	04	1	9905-					●
115	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X35 FLANGE	0-28681-235-0	04	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (C)	1-53461-465-0	02	1	9806-9901	●
224	BRACKET; FUEL TANK BRKT TO FRAME CXM(CXM***) (A)	1-53461-498-0	01	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A)	1-53461-498-0	01	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXM(CXM***) (B)	1-53461-499-0	01	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (B)	1-53461-499-0	01	1	9905-					●
237	GASKET; BRKT TO FUEL TANK CXM(CXM***) L=450	1-22553-037-0	04	1	9905-					●
237	GASKET; BRKT TO FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> L=450	1-22553-037-0	04	1	9905-					●

1 1 35 35 32 32 29 29 25 25 19 19 8 8 22 22 11 11 55 56 55 461 53 467 53 13 16 53 54 53 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-		●	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9902-0003			●			●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9902-9904			●			●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9902-9904			●			●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9902-9904			●			●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9902-9904			●			●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9905-		●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9905-		●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXM(CXM***) T=2.0	9-09923-030-0	02	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	02	1	9902-		●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9902-9904			●			●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	9902-9904			●			●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9905-0003		●	●		●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	9905-0003		●	●		●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M36	1-09604-052-0	01	1	0004-0005			●			●
11	PLUG; DRAIN,FUEL TANK CXM(CXM***) M36	1-09604-052-0	02	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9902-0003			●			●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	0004-			●			●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	0004-		●	●		●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	0004-		●	●		●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9603-9901	●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9902-9904			●			●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9902-9904			●			●
13	PLUG; SCREW,SUB TANK JOINT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9905-		●	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	9905-		●	●	●	●	●
13	PLUG; SCREW,SUB TANK JOINT CXM(CXM***) M18X12	9-99202-318-0	01	1	9905-					●
13	PLUG; SCREW,SUB TANK JOINT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	9905-					●
16	GASKET; PLUG CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9603-9901	●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9902-9904			●			●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	9902-9904			●			●
16	GASKET; PLUG SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9905-		●	●	●	●	●
16	GASKET; PLUG CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	9905-		●	●	●	●	●
16	GASKET; PLUG CXM(CXM***) T=1.60	1-22416-001-0	01	1	9905-					●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9603-9901	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9902-9904			●			●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9902-9904			●			●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9905-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9905-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXM(CXM***)	9-83135-003-0	02	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9902-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXM(CXM***) ID=58	1-83149-005-0	01	1	9905-					●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-					●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9902-9904			●			●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9902-9904			●			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904			●			●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904			●			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***)	1-83141-132-0	01	1	9905-					●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-					●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003		●	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9902-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9902-0003			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***)	1-22440-056-0	01	1	9905-					●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-					●
29	WASHER; PL,FUEL TANK UNIT CXM(CXM***) ID=5.3	9-09160-505-0	02	1	9603-9901	●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9603-9901	●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9902-		●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9603-9901	●
29	WASHER; PL,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9902-9904			●			●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	01	1	9902-9904			●			●
29	WASHER; PL,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9905-		●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	01	1	9905-		●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT CXM(CXM***) ID=5.1	9-09150-505-0	10	1	9603-9901	●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9603-9901	●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9902-		●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9603-9901	●
32	WASHER; LK,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9902-9904			●			●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	05	1	9902-9904			●			●
32	WASHER; LK,FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9905-		●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	05	1	9905-		●	●	●	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9603-9901	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9902-		●	●	●	●	●
35	SCREW; FUEL TANK UNIT CXM(CXM***) M5X10	9-93497-510-0	10	1	9603-9901	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9603-9901	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9902-		●	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9603-9901	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9902-9904			●			●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9902-9904			●			●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9905-		●	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9905-		●	●	●	●	●
53	GASKET; COCK,FUEL TANK CXM(CXM***) (B) T=1.60	1-22416-001-0	02	1	9603-9901	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	9603-9901	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	9902-		●	●	●	●	●
53	GASKET; COCK,FUEL TANK CXM(CXM***) (A) T=0.80	1-22416-004-0	02	1	9603-9901	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	9603-9901	●
53	GASKET; COCK,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	9902-		●	●	●	●	●
54	COCK ASM; FUEL TANK CXM(CXM***)	9-09904-176-0	02	1	9603-9901	●
54	COCK ASM; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9603-9901	●
54	COCK ASM; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9902-		●	●	●	●	●
55	CLIP; FUEL PIPE CXM(CXM***) ID=14	1-09704-102-0	02	1	9603-9901	●
55	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	9603-9901	●
55	CLIP; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	9902-		●	●	●	●	●
56	PIPE; FUEL SHUTTER CXM(CXM***) L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9901	●
56	PIPE; FUEL SHUTTER CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9901	●
56	PIPE; FUEL SHUTTER CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9902-		●	●	●	●	●
461	NUT; CLIP,FUEL PIPE CXM(CXM***) M8	9-09110-508-0	02	1	9603-9606	●
461	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8	9-09110-508-0	02	1	9603-9606	●
461	NUT; CLIP,FUEL PIPE CXM(CXM***) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
461	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
461	NUT; CLIP,FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	9902-		●	●	●	●	●
467	BOLT CXM(CXM***) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
467	BOLT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
467	BOLT CXM(CXM***) M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●
467	BOLT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●
467	BOLT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	9902-		●	●	●	●	●

40 1 38 40 49 35 22 25 51 38 19 51 49 43 42 42 8 43 42 11 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	9902-		●	●	●	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9603-9901	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-027-0	01	1	9902-0003			●			●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X649X549 300L	1-22401-108-2	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9901	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9902-0003			●			●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9603-9901	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	01	1	9902-9904			●			●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22401-121-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9603-9901	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9902-9904			●			●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003		●	●			●
1	TANK; FUEL CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	01	1	9905-0003					●
1	TANK; FUEL SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	01	1	0004-		●	●	●	●	●
1	TANK; FUEL CXM(CXM***) (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
1	TANK; FUEL CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	9905-					●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9902-9904			●			●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9902-9904			●			●
8	GASKET; DRAIN PLUG,FUEL TANK SHORT CHASSIS(CX***C) T=2.0	9-09923-030-0	01	1	9905-		●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	9905-		●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK CXM(CXM***) T=2.0	9-09923-030-0	02	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9603-9901	●
8	GASKET; DRAIN PLUG,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	02	1	9902-		●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9902-9904			●			●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	9902-9904			●			●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	9905-0003		●	●		●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	9905-0003		●	●		●	●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M36	1-09604-052-0	01	1	0004-0005			●			●
11	PLUG; DRAIN,FUEL TANK CXM(CXM***) M36	1-09604-052-0	02	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9603-9901	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9902-0003			●			●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	0004-			●			●
11	PLUG; DRAIN,FUEL TANK SHORT CHASSIS(CX***C) M36	1-09604-052-0	01	1	0004-		●	●		●	●
11	PLUG; DRAIN,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	0004-		●	●		●	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9603-9901	●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9902-9904			●			●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9902-9904			●			●
19	GASKET; FUEL TANK UNIT SHORT CHASSIS(CX***C)	9-83135-003-0	01	1	9905-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	9905-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXM(CXM***)	9-83135-003-0	02	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9603-9901	●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9902-		●	●	●	●	●
19	GASKET; FUEL TANK UNIT CXM(CXM***) ID=58	1-83149-005-0	01	1	9905-					●
19	GASKET; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-					●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9901	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9902-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ(CXZ***) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9902-9904			●			●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9902-9904			●			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9603-9901	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904			●			●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9902-9904			●			●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9905-		●	●	●	●	●
22	UNIT; FUEL TANK CXM(CXM***)	1-83141-132-0	01	1	9905-					●
22	UNIT; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-					●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> W/VALVE WO/CHAIN	1-22440-034-1	01	1	9905-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9603-9901	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9902-9904			●			●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	01	1	9905-0003		●	●	●	●	●
25	CAP; FILLER,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***) FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> W/VALVE WO/CHAIN	1-22440-034-1	02	1	9902-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9603-9901	●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> WO/VALVE W/CHAIN	1-22440-033-2	02	1	9902-0003			●			●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK CXM(CXM***)	1-22440-056-0	01	1	9905-					●
25	CAP; FILLER,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-					●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9603-9901	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9902-		●	●	●	●	●
35	SCREW; FUEL TANK UNIT CXM(CXM***) M5X10	9-93497-510-0	10	1	9603-9901	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9603-9901	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9902-		●	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9603-9901	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9902-9904			●			●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9902-9904			●			●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9905-		●	●	●	●	●
35	SCREW; FUEL TANK UNIT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (B) L=1000	1-22553-028-1	02	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=650	1-22553-022-1	04	1	9902-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9902-9904			●			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9603-9901	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9902-9904			●			●
38	INSULATION; SUPPORT BELT SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	02	1	9905-		●	●	●	●	●
38	INSULATION; SUPPORT BELT CXM(CXM***) (C) L=1156	1-22553-039-1	02	1	9905-					●
38	INSULATION; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	9905-					●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-1	02	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) W/INSULATOR L=1125	1-22550-225-2	02	1	9902-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXM(CXM***) (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-1	04	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) L=1030	1-22550-204-2	04	1	9902-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-1	02	1	9603-9901	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9902-9904			●			●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) L=1030	1-22550-204-2	02	1	9905-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=1030	1-22550-204-2	02	1	9905-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK CXM(CXM***) (A) L=1205	1-22550-227-2	02	1	9905-					●
40	BELT; SUPPORT,FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A) L=1205	1-22550-227-2	02	1	9905-					●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9603-9901	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9902-9904			●			●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9902-9904			●			●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9905-		●	●	●	●	●
42	NUT; SUPPORT BELT SHORT CHASSIS(CX***C) M10	9-09110-510-0	04	1	9905-		●	●	●		●
42	NUT; SUPPORT BELT CXM&LONG CHASSIS(CXM6MF) CXZ&SHORT CHASSIS(CXZ6MC) M10	9-09110-510-0	04	1	9905-					●
42	NUT; SUPPORT BELT CXM(CXM***) M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9603-9901	●
42	NUT; SUPPORT BELT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT W/PAD	1-53461-435-1	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> SILENCER SINGLE VERTICAL<N28> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR W/PAD	1-53461-436-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> (B) REAR	1-53461-279-4	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) REAR	1-53461-279-4	01	1	9905-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905		●	●			●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9603-9805	●	●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9902-9905		●	●		●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9603-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9902-		●	●	●	●	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9902-9905		●	●		●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9906-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	06	1	9806-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M12	9-99110-512-0	06	1	9902-9904		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	9905-9905		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0001-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	03	1	9905-9905		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	03	1	9905-9905					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9906-9912		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	06	1	9906-9912					●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	12	1	0001-					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0001-					●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9603-9901	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	08	1	9603-9606	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9607-9901	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	12	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	12	1	9902-9904			●			●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9905-		●	●	●		●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X40 FLANGE	0-28681-240-0	12	1	9905-					●

113 49 115 110 113 49 109 115 49 110 115 49 113 115 109 109 113 107 51 115 43 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT W/PAD	1-53461-435-1	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> SILENCER SINGLE VERTICAL<N28> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	02	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) FRONT & REAR W/PAD	1-53461-435-1	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR W/PAD	1-53461-436-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> (A) REAR W/PAD	1-53461-436-4	01	1	9904-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9806-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> EXC. SILENCER SINGLE VERTICAL<N28> (A) FRONT W/PAD	1-53461-435-1	01	1	9902-9903			●			●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-408-3	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9603-9901	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-409-1	01	1	9902-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) REAR	1-53461-279-4	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> (B) REAR	1-53461-279-4	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) REAR	1-53461-279-4	01	1	9905-		●	●	●	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9603-9805	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. SILENCER SINGLE VERTICAL<N28>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) FRONT	1-53461-375-0	01	1	9902-9904			●			●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905		●	●			●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9905-9905					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 400L<SDH> (B) FRONT	1-53461-375-0	01	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9603-9805	●	●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (B) FRONT & REAR	1-53461-279-4	02	1	9806-9901	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9902-9905		●	●		●	●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> (B) FRONT & REAR	1-53461-279-4	04	1	9906-		●	●	●	●	●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-458-2	02	1	9905-0012					●
43	BRACKET; FUEL TANK CXM(CXM***) (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
43	BRACKET; FUEL TANK CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (C) FRONT & REAR	1-53461-525-1	02	1	0101-					●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9603-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) M12	9-99110-512-0	08	1	9902-		●	●	●	●	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9603-9805	●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	18	1	9806-9901	●
49	NUT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9603-9805	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9806-9901	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9902-9905		●	●		●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9906-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	06	1	9806-9901	●
49	NUT; BRKT SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> M12	9-99110-512-0	06	1	9902-9904		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	9905-9905		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0001-		●	●	●	●	●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	03	1	9905-9905		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	03	1	9905-9905					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	9906-9912		●	●			●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	06	1	9906-9912					●
49	NUT; BRKT CXM(CXM***) M12	9-99110-512-0	12	1	0001-					●
49	NUT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0001-					●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9603-9901	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	08	1	9603-9606	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9607-9901	●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	9902-		●	●	●	●	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	12	1	9603-9606	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9607-9901	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	12	1	9902-9904			●			●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	9905-		●	●	●		●
51	BOLT; BRKT TO FRAME CXM(CXM***) M12X40 FLANGE	0-28681-240-0	12	1	9905-					●
107	PROTECTOR; HEAT,FUEL TANK CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28>	1-22159-326-0	01	1	9806-9901	●
109	BOLT; HEAT PROTECTOR CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	07	1	9806-9901	●
110	NUT; PROTECTOR CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	04	1	9806-9901	●
113	BRACKET; PROTECTOR,FUEL TANK CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> (A) SILENCER BOTH SIDE	1-22119-416-0	02	1	9806-9901	●
113	BRACKET; PROTECTOR,FUEL TANK CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> (B) SILENCER BOTH SIDE	1-22131-805-0	02	1	9806-9901	●
115	BOLT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	06	1	9806-9901	●
115	BOLT; BRKT CXZ(CXZ***) SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	12	1	9806-9901	●
115	BOLT; BRKT CXM(CXM***) M12X30 FLANGE	0-28681-230-0	08	1	9905-					●
115	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X30 FLANGE	0-28681-230-0	08	1	9905-					●
115	BOLT; BRKT CXM(CXM***) M12X35 FLANGE	0-28681-235-0	04	1	9905-					●
115	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> M12X35 FLANGE	0-28681-235-0	04	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) SILENCER SINGLE VERTICAL<N28> (C)	1-53461-465-0	02	1	9806-9901	●
224	BRACKET; FUEL TANK BRKT TO FRAME CXM(CXM***) (A)	1-53461-498-0	01	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (A)	1-53461-498-0	01	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXM(CXM***) (B)	1-53461-499-0	01	1	9905-					●
224	BRACKET; FUEL TANK BRKT TO FRAME CXZ&LONG CHASSIS(CXZ6MF) FUEL TANK 400L<SDH> (B)	1-53461-499-0	01	1	9905-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
