Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#53186) — 42 parça
◀

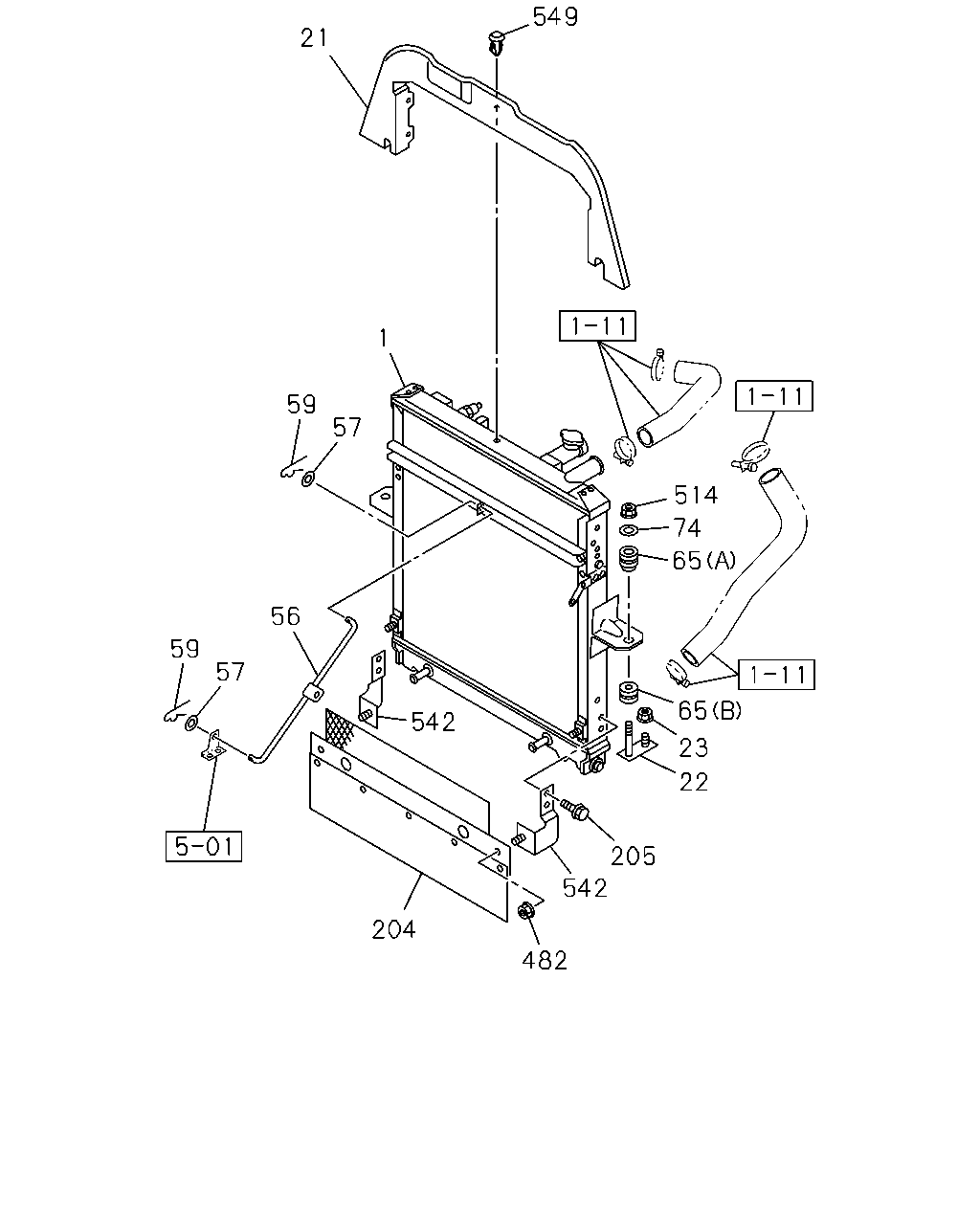

[110A] NO.1 (18 parça)
[110A] NO.2 (24 parça)
▶
549
21
1
59
57
514
74
65
56
59
57
65
542
23
22
205
542
204
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98046-661-0
01
1
0804-1410
1
01.219 RADIATOR ASM
8-98259-944-0
01
1
1411-
21
01.276 SEAL; RAD
8-98006-486-3
01
1
0804-1002
22
01.270 BRACKET; RAD MTG
01.277
8-97330-527-1
02
1
0804-
23
01.271 NUT; RAD MTG
01.062 M8 FLANGE
0-91180-108-0
02
1
0804-
56
01.270 STAY; RAD
8-98006-490-2
01
1
0804-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
0804-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0804-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
0804-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
0804-
74
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0804-
204
01.267 GUIDE ASM; AIR
8-98025-413-0
01
1
0804-1002
205
01.267 BOLT; AIR GUIDE
03.671 M6X10 FLANGE
0-28050-610-0
04
1
0804-1002
482
01.277 NUT; AIR GUIDE
01.062 M8 FLANGE
0-91180-108-0
02
1
0804-1002
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
0804-
542
01.277 BRACKET; AIR GUIDE
8-98025-414-0
01
1
0804-1002
542
01.277 BRACKET; AIR GUIDE
8-98025-415-0
01
1
0804-1002
549
03.438 CLIP; SEAL,RAD
01.276
8-97228-568-0
07
1
0804-1002

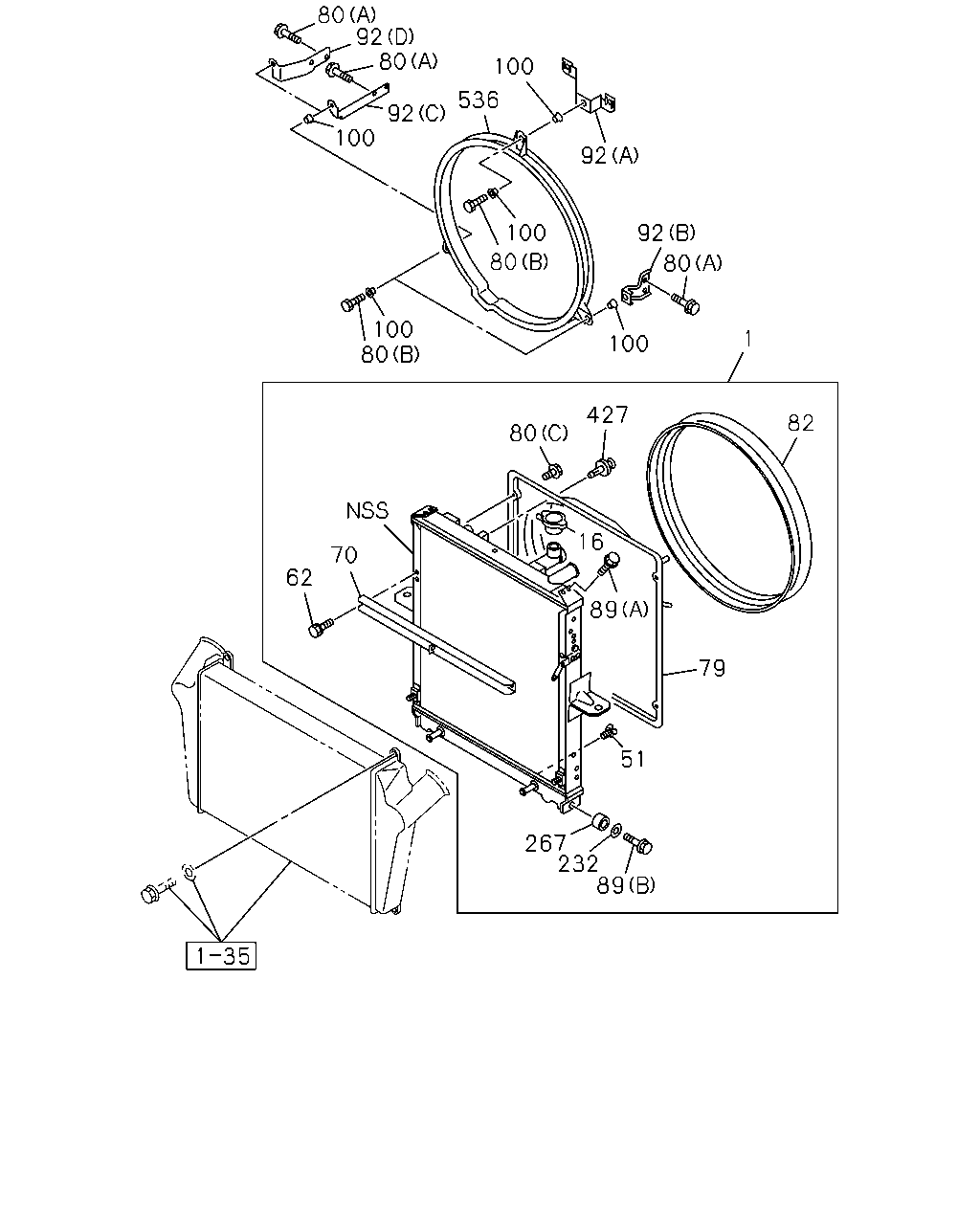

80
92
80
100
536
92
100
92
100
92
80
80
100
80
1
100
427
82
80
16
70
62
89
79
51
267
232
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98046-661-0
01
1
0804-1410
1
01.219 RADIATOR ASM
8-98259-944-0
01
1
1411-
16
01.203 CAP; RAD
8-97239-187-0
01
1
0804-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0804-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
0804-
70
01.271 STAY; RAD
8-98018-941-0
01
1
0804-
79
01.277 GUIDE; FAN,RAD
8-98006-477-0
01
1
0804-
80
01.277 BOLT; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE
0-28151-020-0
02
1
0807-
80
01.277 BOLT; FAN GUIDE
03.417 (A) M10X20 FLANGE
0-28151-020-0
02
1
0804-0806
80
01.277 BOLT; FAN GUIDE
GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE
0-28151-020-0
04
1
0807-
80
01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE
0-28650-830-0
03
1
0804-
80
01.277 BOLT; FAN GUIDE
(C) M6X16
1-21559-481-0
04
1
0804-
82
01.277 COVER; FAN,RAD
8-98006-478-0
01
1
0804-
89
01.277 BOLT
02.343 (A) M8X12 FLANGE
0-28050-812-0
02
1
0804-
89
01.277 BOLT
01.271 (B) M8X25 W/PL WASHER
1-21469-153-0
02
1
0804-
92
01.277 BRACKET; FAN GUIDE
(A)
8-97382-827-2
01
1
0804-
92
01.277 BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
0804-
92
01.277 BRACKET; FAN GUIDE
GENERATOR 24V80A(7YN) (D)
8-98032-526-0
01
1
0804-
92
01.277 BRACKET; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) (C)
8-97350-997-0
01
1
0804-
100
01.277 RUBBER; MTG
1-09337-027-0
06
1
0804-
232
01.540 COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
0804-
267
01.277 RUBBER; CUSHION
1-21467-023-0
02
1
0804-
427
01.240 CLIP; FAN GUIDE
01.277
1-09470-009-0
01
1
0804-
536
01.020 SHROUD; FAN
01.277
8-97350-995-0
01
1
0804-
