1-01 — ACCELERATOR PEDAL AND CONTROL (#53185) — 20 parça

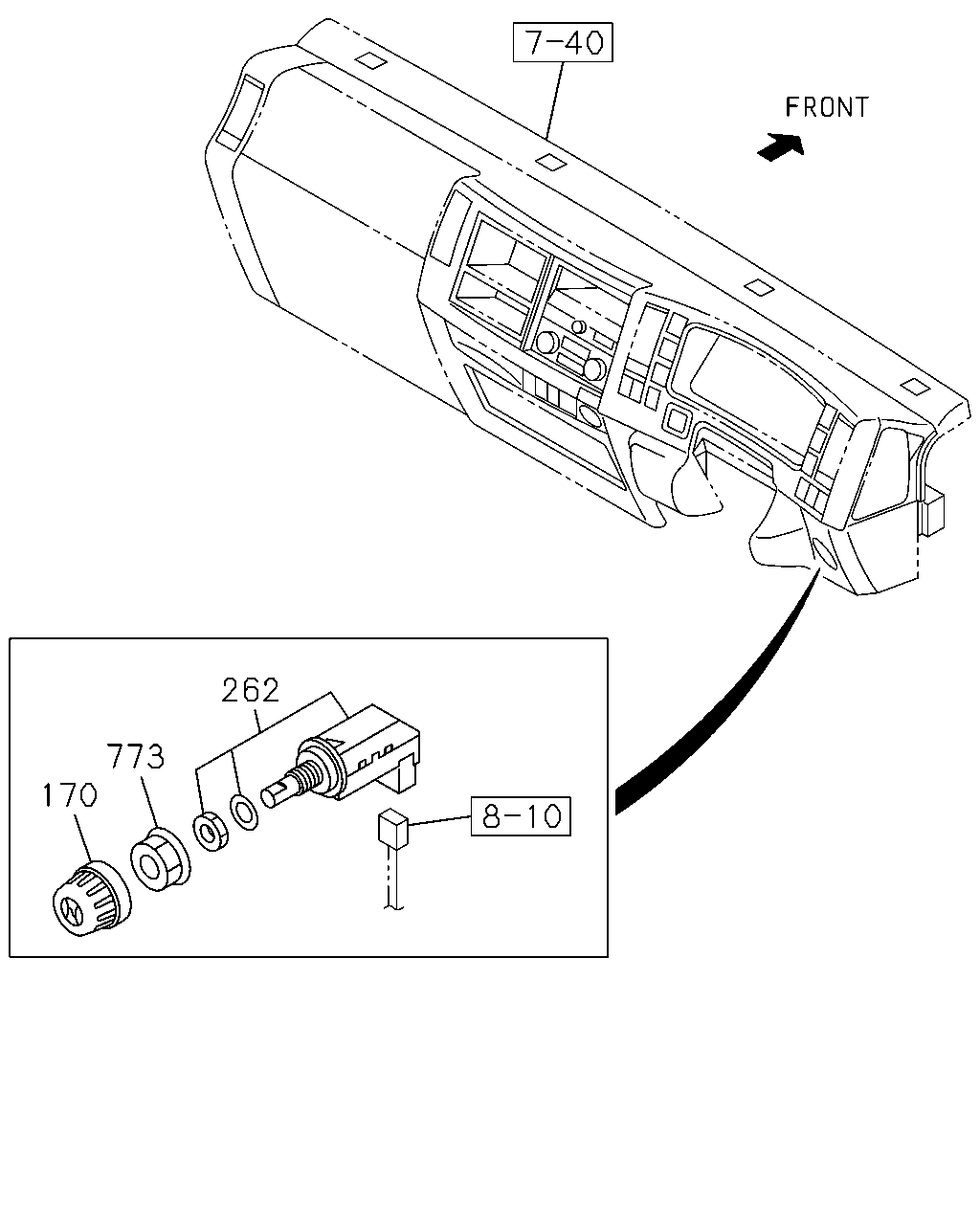

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	03.480 KNOB	8-98013-420-0	01	1	0804-
262	03.452 SWITCH; ACCEL,IDLE	8-98013-418-0	01	1	0804-
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0804-

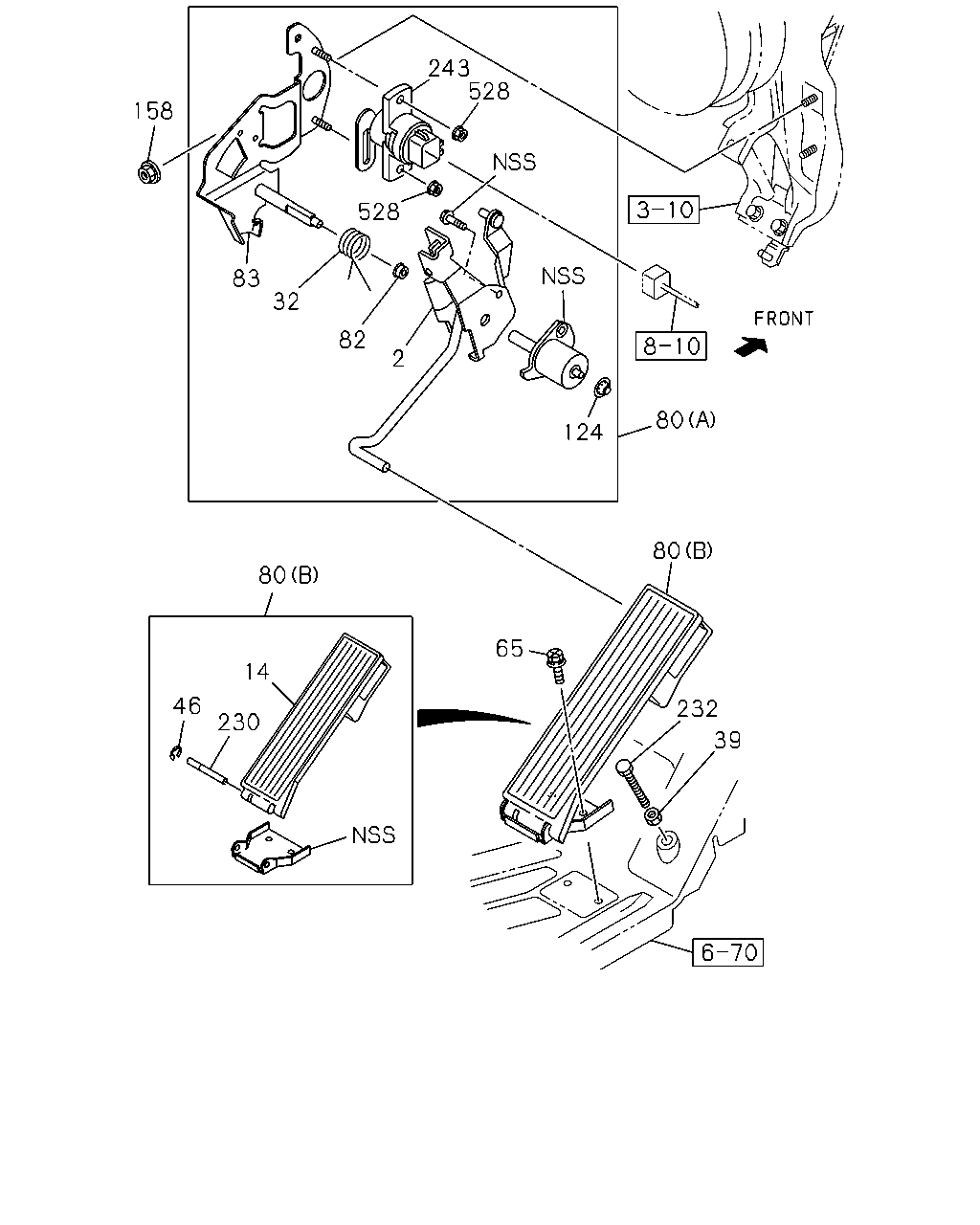

243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	0804-
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0804-
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	0804-
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0804-
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0804-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0804-
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	0804-
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0804-
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	0804-
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	0804-
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0804-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0804-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0804-
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0804-
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0804-0910
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	0911-
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0804-
