1-35A — CHARGE AIR COOLER (#5318) — 96 parça

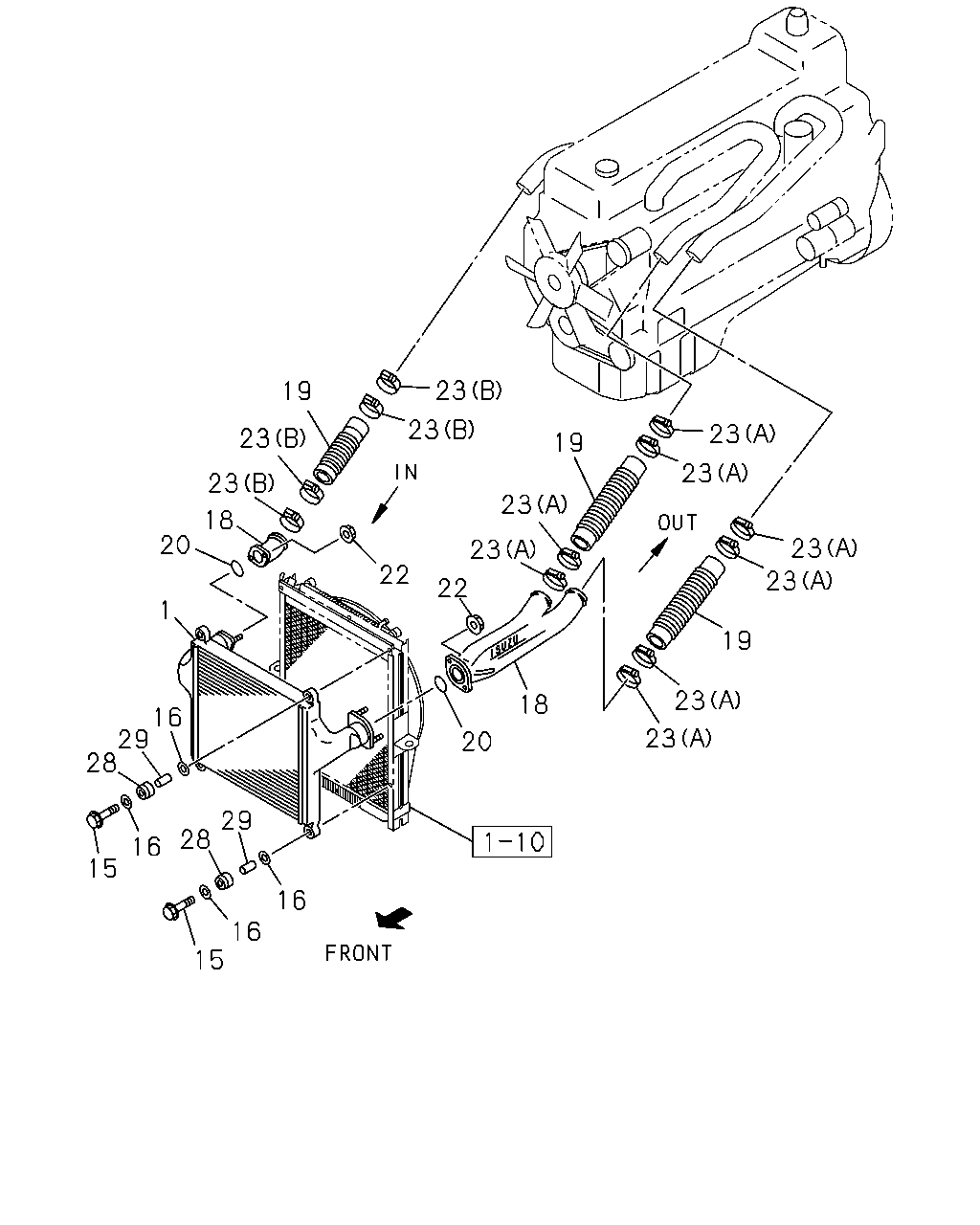

çizim 43497
23 19 23 23 23 19 23 23 23 18 20 23 23 22 23 22 1 19 23 18 16 29 28 23 20 29 28 16 15 16 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9603-9901 ●
1 COOLER; CHARGE AIR
ELECTRONIC GOV RED3(KG5) 		1-14431-039-0 01 1 9902-9904 ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9902-9904 ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9905-9912 ● ●
1 COOLER; CHARGE AIR
ELECTRONIC GOV RED3(KG5) 		1-14431-039-0 01 1 9905-9912 ●
1 COOLER; CHARGE AIR
EXC. CAB UP +110MM<TGG> 		1-14431-039-0 01 1 0001- ● ●
1 COOLER; CHARGE AIR
EXC. RADIATOR HEAVY DUTY<V05> 		1-14431-039-0 01 1 0001- ●
1 COOLER; CHARGE AIR 1-14431-047-0 01 1 9905-9909 ●
1 COOLER; CHARGE AIR 1-14431-047-0 01 1 9910- ● ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9603-9901 ●
15 BOLT; CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) M8X35 FLANGE 		0-28080-835-0 04 1 9902-9904 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9902-9904 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9905-9912 ● ●
15 BOLT; CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) M8X35 FLANGE 		0-28080-835-0 04 1 9905-9912 ●
15 BOLT; CHARGE AIR COOLER
EXC. CAB UP +110MM<TGG> M8X35 FLANGE 		0-28080-835-0 04 1 0001- ● ●
15 BOLT; CHARGE AIR COOLER
EXC. RADIATOR HEAVY DUTY<V05> M8X35 FLANGE 		0-28080-835-0 04 1 0001- ●
15 BOLT; CHARGE AIR COOLER
LOWER M8X35 FLANGE 		0-28080-835-0 02 1 9905-9909 ●
15 BOLT; CHARGE AIR COOLER
LOWER M8X35 FLANGE 		0-28080-835-0 02 1 9910- ● ●
15 BOLT; CHARGE AIR COOLER
UPPER M8X50 FLANGE 		0-28080-850-0 02 1 9905-9909 ●
15 BOLT; CHARGE AIR COOLER
UPPER M8X50 FLANGE 		0-28080-850-0 02 1 9910- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9603-9901 ●
16 WASHER; PL,CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) ID=10.5 OD=32 		9-09164-810-0 04 1 9902-9904 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9902-9904 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9905-9912 ● ●
16 WASHER; PL,CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) ID=10.5 OD=32 		9-09164-810-0 04 1 9905-9912 ●
16 WASHER; PL,CHARGE AIR COOLER
EXC. CAB UP +110MM<TGG> ID=10.5 OD=32 		9-09164-810-0 04 1 0001- ● ●
16 WASHER; PL,CHARGE AIR COOLER
EXC. RADIATOR HEAVY DUTY<V05> ID=10.5 OD=32 		9-09164-810-0 04 1 0001- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 9905-9909 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 9910- ● ●
18 ADAPTER 1-14112-491-1 01 1 9603-9901 ●
18 ADAPTER 1-14112-491-1 01 1 9902-9904 ● ●
18 ADAPTER 1-14112-491-1 01 1 9905-9909 ● ● ● ●
18 ADAPTER 1-14112-491-1 01 1 9910- ● ● ● ● ●
18 ADAPTER 1-14112-567-0 01 1 9603-9901 ●
18 ADAPTER 1-14112-567-0 01 1 9902-9904 ● ●
18 ADAPTER 1-14112-567-0 01 1 9905-9909 ● ● ● ●
18 ADAPTER
EXC. TUNISIA EQUIPMENT(NGT) 		1-14112-567-0 01 1 9910- ● ● ● ● ●
18 ADAPTER
TUNISIA EQUIPMENT(NGT) 		1-14112-719-0 01 1 9910- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
OUT L=270 		1-09360-914-2 02 1 9603-9901 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
OUT L=270 		1-09360-914-2 02 1 9902-9904 ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
OUT L=270 		1-09360-914-2 02 1 9905-9909 ● ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. TUNISIA EQUIPMENT(NGT) OUT L=270 		1-09360-914-2 02 1 9910- ● ● ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
TUNISIA EQUIPMENT(NGT) OUT 		1-09361-010-1 02 1 9910- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
IN L=280 		1-09360-757-2 01 1 9603-9901 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
IN L=280 		1-09360-757-3 01 1 9902-9904 ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
IN L=280 		1-09360-757-3 01 1 9905-9909 ● ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
IN L=280 		1-09360-757-3 01 1 9910- ● ● ● ● ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9603-9901 ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9902-9904 ● ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9905-9909 ● ● ● ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9910- ● ● ● ● ●
22 NUT
M10 FLANGE 		0-91150-110-0 04 1 9603-9608 ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9609-9901 ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9902-9904 ● ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9905-9909 ● ● ● ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9910- ● ● ● ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9603-9901 ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9902-9904 ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9905-9909 ● ● ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9910- ● ● ● ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9603-9901 ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9902-9904 ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9905-9909 ● ● ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9910- ● ● ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9603-9901 ●
28 RUBBER; MTG,CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) 		1-21467-015-1 04 1 9902-9904 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9902-9904 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9905-9909 ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) 		1-21467-015-1 04 1 9905-9909 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9910-9910 ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) 		1-21467-015-1 04 1 9910-9910 ●
28 RUBBER; MTG,CHARGE AIR COOLER
EXC. FIRE TRUCK<RA9> 		1-21467-015-1 04 1 9910-9910 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9910-9912 ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
ELECTRONIC GOV RED3(KG5) 		1-21467-015-1 04 1 9910-9912 ●
28 RUBBER; MTG,CHARGE AIR COOLER
EXC. TUNISIA EQUIPMENT(NGT) 		1-21467-015-1 04 1 9910-9912 ●
28 RUBBER; MTG,CHARGE AIR COOLER
EXC. FIRE TRUCK<RA9> 		1-21467-015-1 04 1 9910-9912 ●
28 RUBBER; MTG,CHARGE AIR COOLER
EXC. CAB UP +110MM<TGG> 		1-21467-015-1 04 1 0001- ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
EXC. RADIATOR HEAVY DUTY<V05> 		1-21467-015-1 04 1 0001- ●
28 RUBBER; MTG,CHARGE AIR COOLER
EXC. TUNISIA EQUIPMENT(NGT) 		1-21467-015-1 04 1 0001- ●
28 RUBBER; MTG,CHARGE AIR COOLER
EXC. FIRE TRUCK<RA9> 		1-21467-015-1 04 1 0001- ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9603-9901 ●
29 COLLAR; MTG RUBBER,CAC BRKT
ELECTRONIC GOV RED3(KG5) 		1-21469-100-0 04 1 9902-9904 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9902-9904 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9905-9909 ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
ELECTRONIC GOV RED3(KG5) 		1-21469-100-0 04 1 9905-9909 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9910-9910 ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
ELECTRONIC GOV RED3(KG5) 		1-21469-100-0 04 1 9910-9910 ●
29 COLLAR; MTG RUBBER,CAC BRKT
EXC. FIRE TRUCK<RA9> 		1-21469-100-0 04 1 9910-9910 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9910-9912 ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
ELECTRONIC GOV RED3(KG5) 		1-21469-100-0 04 1 9910-9912 ●
29 COLLAR; MTG RUBBER,CAC BRKT
EXC. TUNISIA EQUIPMENT(NGT) 		1-21469-100-0 04 1 9910-9912 ●
29 COLLAR; MTG RUBBER,CAC BRKT
EXC. FIRE TRUCK<RA9> 		1-21469-100-0 04 1 9910-9912 ●
29 COLLAR; MTG RUBBER,CAC BRKT
EXC. CAB UP +110MM<TGG> 		1-21469-100-0 04 1 0001- ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
EXC. RADIATOR HEAVY DUTY<V05> 		1-21469-100-0 04 1 0001- ●
29 COLLAR; MTG RUBBER,CAC BRKT
EXC. TUNISIA EQUIPMENT(NGT) 		1-21469-100-0 04 1 0001- ●
29 COLLAR; MTG RUBBER,CAC BRKT
EXC. FIRE TRUCK<RA9> 		1-21469-100-0 04 1 0001- ●
