Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶
0-41 — FUEL FILTER AND BRACKET
(#53172) — 29 parça
◀

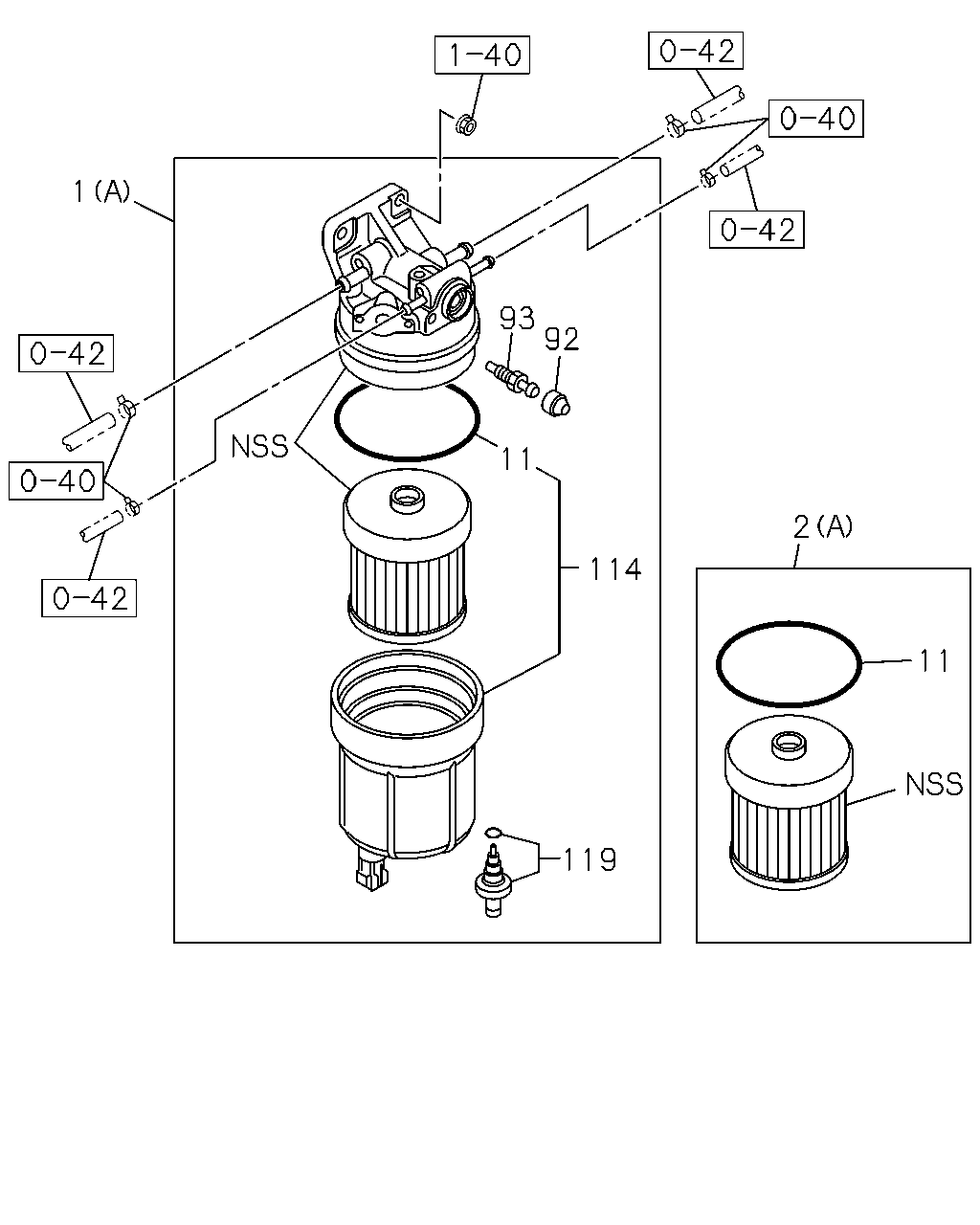

[041A] NO.1 (14 parça)
[041A] NO.2 (15 parça)
▶
1
93
11
114
119
2
11
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
(A)
8-98060-050-1
01
1
0804-0912
1
03.890 FILTER ASM; FUEL
(A)
8-98162-903-3
01
1
1001-
1
03.890 FILTER ASM; FUEL
(B)
8-98095-980-1
01
1
0804-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98037-011-0
01
1
0804-0912
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98162-897-0
01
1
1001-1112
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98203-599-0
01
1
1201-
2
03.890 ELEMENT KIT; FUEL FILTER
(B)
8-98095-983-0
01
1
0804-
2
03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS
1-87610-093-0
01
1
1201-
11
03.890 GASKET; CASE TO BODY,FUEL FILTER
8-98037-015-0
01
1
0804-1112
11
03.890 GASKET; CASE TO BODY,FUEL FILTER
8-98203-600-0
01
1
1201-
92
03.417 CAP; FUEL FILTER
8-98034-314-0
01
1
0804-
93
03.890 CONNECTOR; FUEL FILTER
M8X10
8-98034-312-0
01
1
0804-
114
03.890 CASE ASM; FUEL FILTER
8-98039-987-1
01
1
0804-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98037-095-0
01
1
0804-
131
131
2
1
136
1
88
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
(A)
8-98060-050-1
01
1
0804-0912
1
03.890 FILTER ASM; FUEL
(A)
8-98162-903-3
01
1
1001-
1
03.890 FILTER ASM; FUEL
(B)
8-98095-980-1
01
1
0804-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98037-011-0
01
1
0804-0912
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98162-897-0
01
1
1001-1112
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98203-599-0
01
1
1201-
2
03.890 ELEMENT KIT; FUEL FILTER
(B)
8-98095-983-0
01
1
0804-
2
03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS
1-87610-093-0
01
1
1201-
40
03.890 BRACKET; FUEL FILTER
8-98107-354-3
01
1
0804-
88
03.895 BOLT; BRKT,FUEL FILTER
00.029 M10X30 FLANGE
0-28651-030-0
01
1
0804-1009
88
03.895 BOLT; BRKT,FUEL FILTER
00.029 M10X30 FLANGE
0-28651-030-0
02
1
1010-
131
03.890 PIPE; FILTER
01.153
8-97358-699-0
02
1
0804-0908
131
03.890 PIPE; FILTER
NPTF3/8-18 OD=10
8-98122-953-0
02
1
0909-
136
03.890 CAP KIT; FUEL FILTER
8-98096-004-0
01
1
0804-1408
136
03.890 CAP KIT; FUEL FILTER
8-98279-324-0
01
1
1409-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
