1-31B — AIR DUCT (#5317) — 270 parça

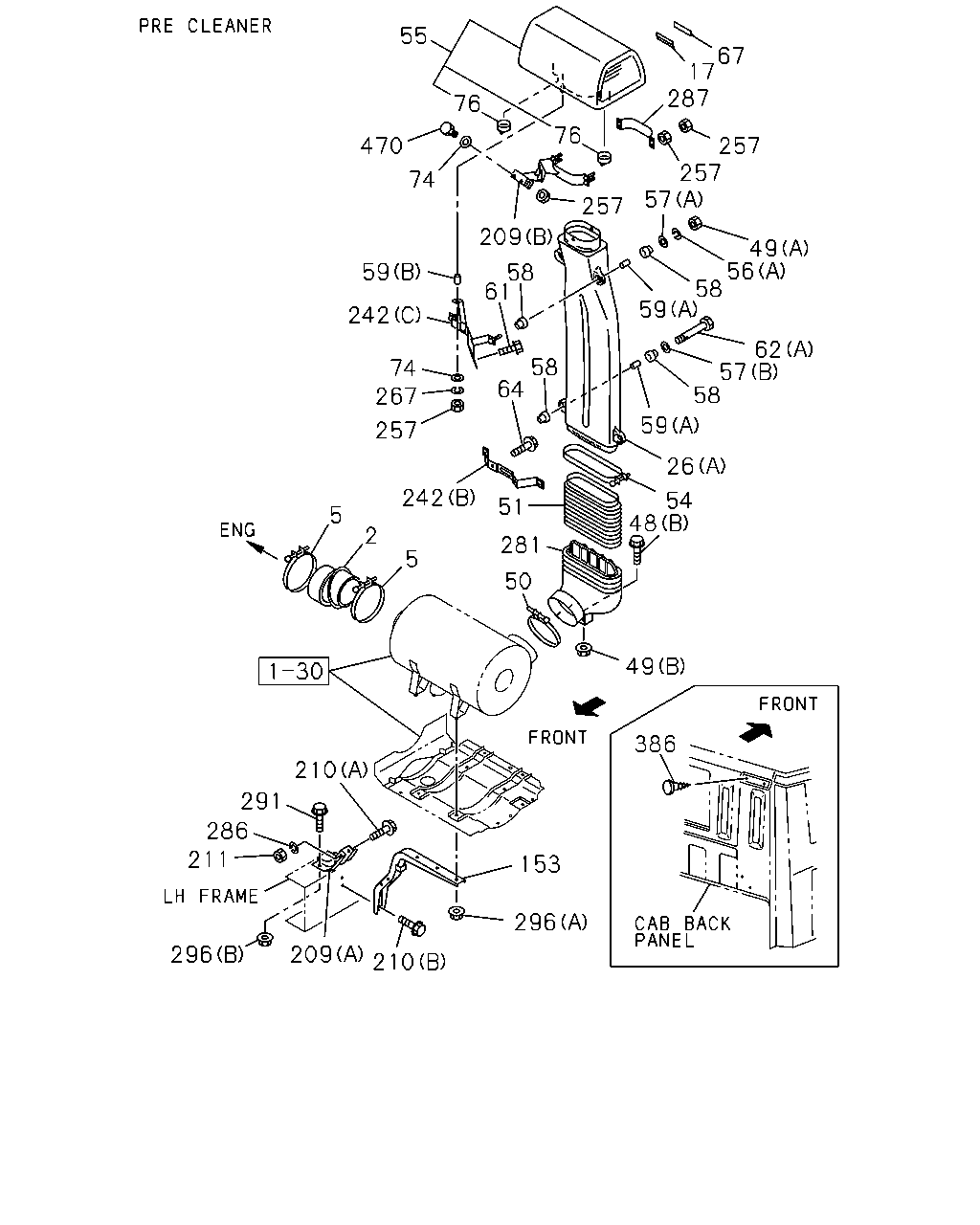

çizim 5664
55 67 17 287 76 76 470 257 257 57 74 257 209 49 56 58 59 58 61 59 242 62 57 58 58 64 74 267 59 257 26 242 54 48 51 5 2 281 5 50 49 386 210 291 286 211 153 296 209 296 210
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL 1-14231-937-0 01 1 9603-9904 ● ●
2 HOSE; ACL 1-14231-937-0 01 1 9905- ● ● ● ●
5 CLIP; AIR DUCT
ID=104-142 		1-09707-155-0 02 1 9603-9901 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9902-9904 ● ●
5 CLIP; AIR DUCT
ID=104-142 		1-09707-155-0 02 1 9905- ● ● ● ●
17 GASKET; AIR DUCT
PRE CLEANER<W17> 80X20 		1-14239-170-0 01 1 9603-9901 ● ●
17 GASKET; AIR DUCT
PRE CLEANER<W17> 80X20 		1-14239-170-0 01 1 9905- ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9901 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-133-1 01 1 9603- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-134-1 01 1 9603-9904 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-134-1 01 1 9905- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9901 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9902-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9901 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9901 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9902-9904 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9901 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905- ● ● ● ●
50 CLIP; JOINT HOSE
ID=158 		1-09707-097-1 01 1 9603-9901 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9902-9904 ● ●
50 CLIP; JOINT HOSE
ID=158 		1-09707-097-1 01 1 9905- ● ● ● ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9603-9901 ● ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9902-9904 ● ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9905- ● ● ● ●
54 CLIP; GASKET,AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9603-9901 ● ●
54 CLIP; GASKET,AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9902-9904 ● ●
54 CLIP; GASKET,AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9905- ● ● ● ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9603-9901 ● ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9902-9904 ● ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9905- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9901 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9901 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905- ● ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9901 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9901 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9901 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9901 ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9901 ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9901 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9901 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9901 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9901 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9901 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-9901 ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9905- ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9603-9901 ● ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9902-9904 ● ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9905- ● ● ● ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9603-9901 ● ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9902-9904 ● ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9905- ● ● ● ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9603-9901 ● ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9902-9904 ● ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9905- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9603-9904 ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905-9909 ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9910- ● ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-266-0 01 1 9603-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-266-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-246-0 01 1 9603-9904 ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-258-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-246-0 01 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9901 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9901 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-327-1 01 1 9603-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-327-1 01 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-120-0 01 1 9603-9612 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-120-0 01 1 9701-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-120-0 01 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-362-0 01 1 9701-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-362-0 01 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-323-1 01 1 9603-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-323-1 01 1 9905- ● ● ● ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9603-9901 ● ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9902-9904 ● ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9905- ● ● ● ●
267 WASHER; LK,ACL
PRE CLEANER<W17> 		1-09500-033-0 01 1 9603-9901 ● ●
267 WASHER; LK,ACL
PRE CLEANER<W17> ID=10 		1-09985-180-0 01 1 9902-9904 ● ●
267 WASHER; LK,ACL
PRE CLEANER<W17> ID=10 		1-09985-180-0 01 1 9905- ● ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-136-1 01 1 9603-9904 ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-136-1 01 1 9905- ● ● ● ●
286 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 02 1 9603-9606 ● ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9603-9901 ● ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9902-9904 ● ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9905- ● ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9901 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9902-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9901 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9901 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9902-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9603-9901 ● ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9902-9904 ● ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9905- ● ● ● ●

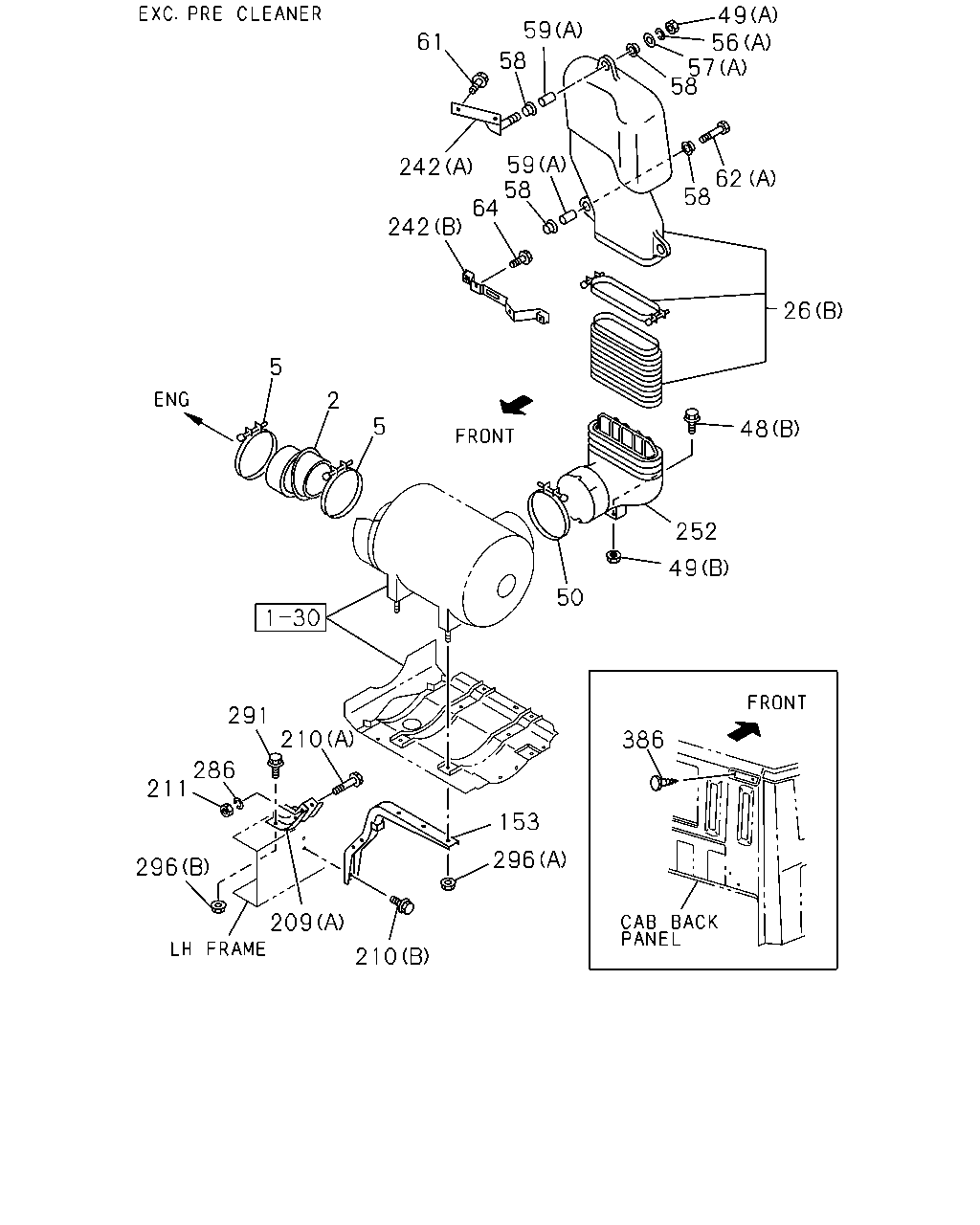

çizim 39924
49 56 57 58 59 61 58 59 58 64 242 62 58 242 26 5 2 5 48 252 49 50 291 210 386 286 211 153 296 296 209 210
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL 1-14231-937-0 01 1 9603-9904 ● ●
2 HOSE; ACL 1-14231-937-0 01 1 9905- ● ● ● ●
5 CLIP; AIR DUCT
ID=104-142 		1-09707-155-0 02 1 9603-9901 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9902-9904 ● ●
5 CLIP; AIR DUCT
ID=104-142 		1-09707-155-0 02 1 9905- ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9901 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-133-1 01 1 9603- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-134-1 01 1 9603-9904 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-134-1 01 1 9905- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9901 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9902-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9901 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9901 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9902-9904 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9901 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905- ● ● ● ●
50 CLIP; JOINT HOSE
ID=158 		1-09707-097-1 01 1 9603-9901 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9902-9904 ● ●
50 CLIP; JOINT HOSE
ID=158 		1-09707-097-1 01 1 9905- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9901 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9901 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905- ● ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9901 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9901 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9901 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9901 ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9901 ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9901 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9901 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9901 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9901 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9901 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-9901 ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9905- ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9603-9904 ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905-9909 ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9910- ● ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-266-0 01 1 9603-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-266-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-246-0 01 1 9603-9904 ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-258-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-246-0 01 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9901 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9901 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-327-1 01 1 9603-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-327-1 01 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-120-0 01 1 9603-9612 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-120-0 01 1 9701-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-120-0 01 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-362-0 01 1 9701-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-362-0 01 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-323-1 01 1 9603-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-323-1 01 1 9905- ● ● ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-136-1 01 1 9603-9904 ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-136-1 01 1 9905- ● ● ● ●
286 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 02 1 9603-9606 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9901 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9902-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9901 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9901 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9902-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
