◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#53161) — 168 parça

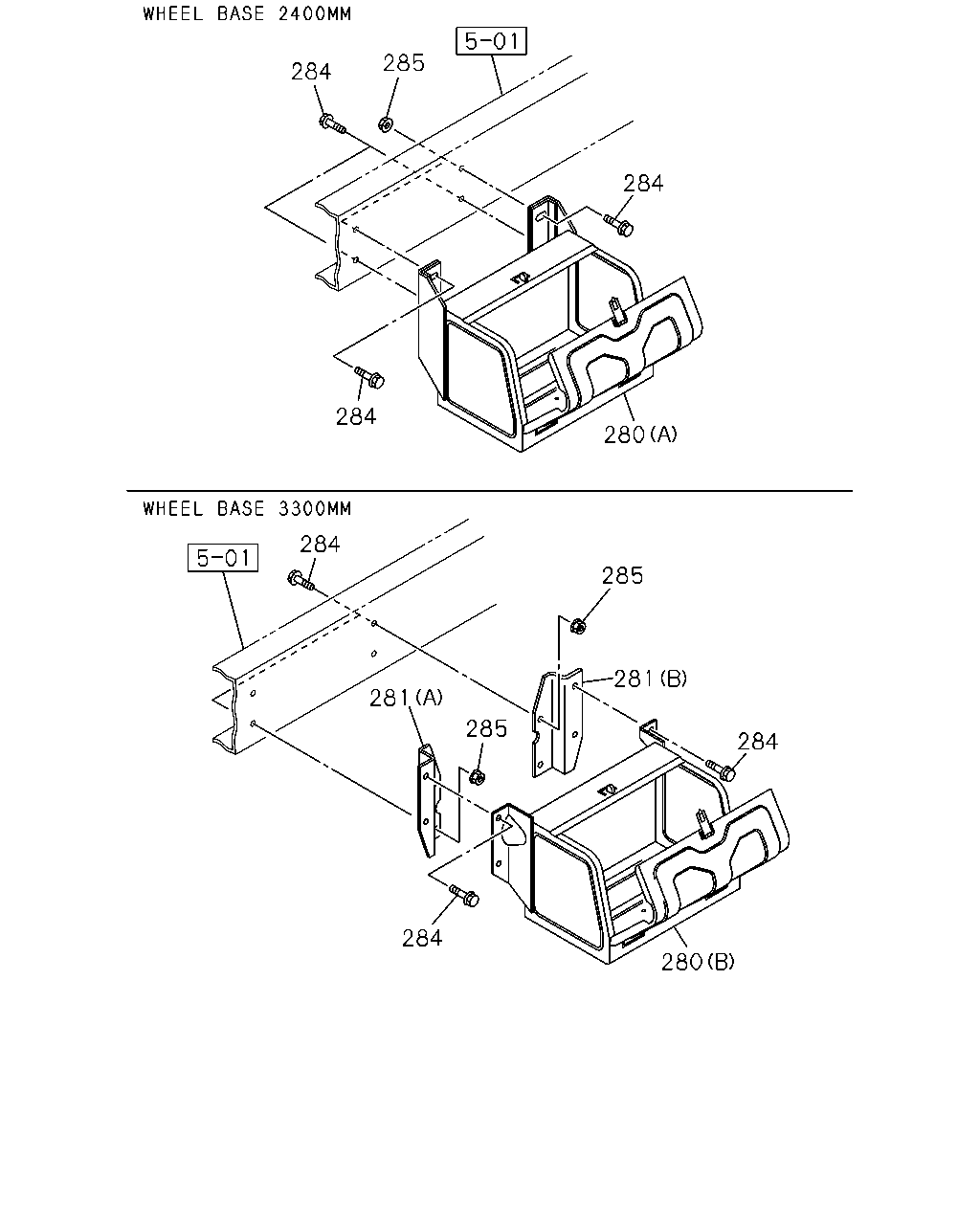

çizim 154208
285 284 284 284 280 284 285 281 281 285 284 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C D
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (A) 		8-98054-885-0 01 1 0803- ● ●
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 0803- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0803- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98046-374-1 01 1 0803-0901 ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0902- ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0803- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0803- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0803- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803- ● ●

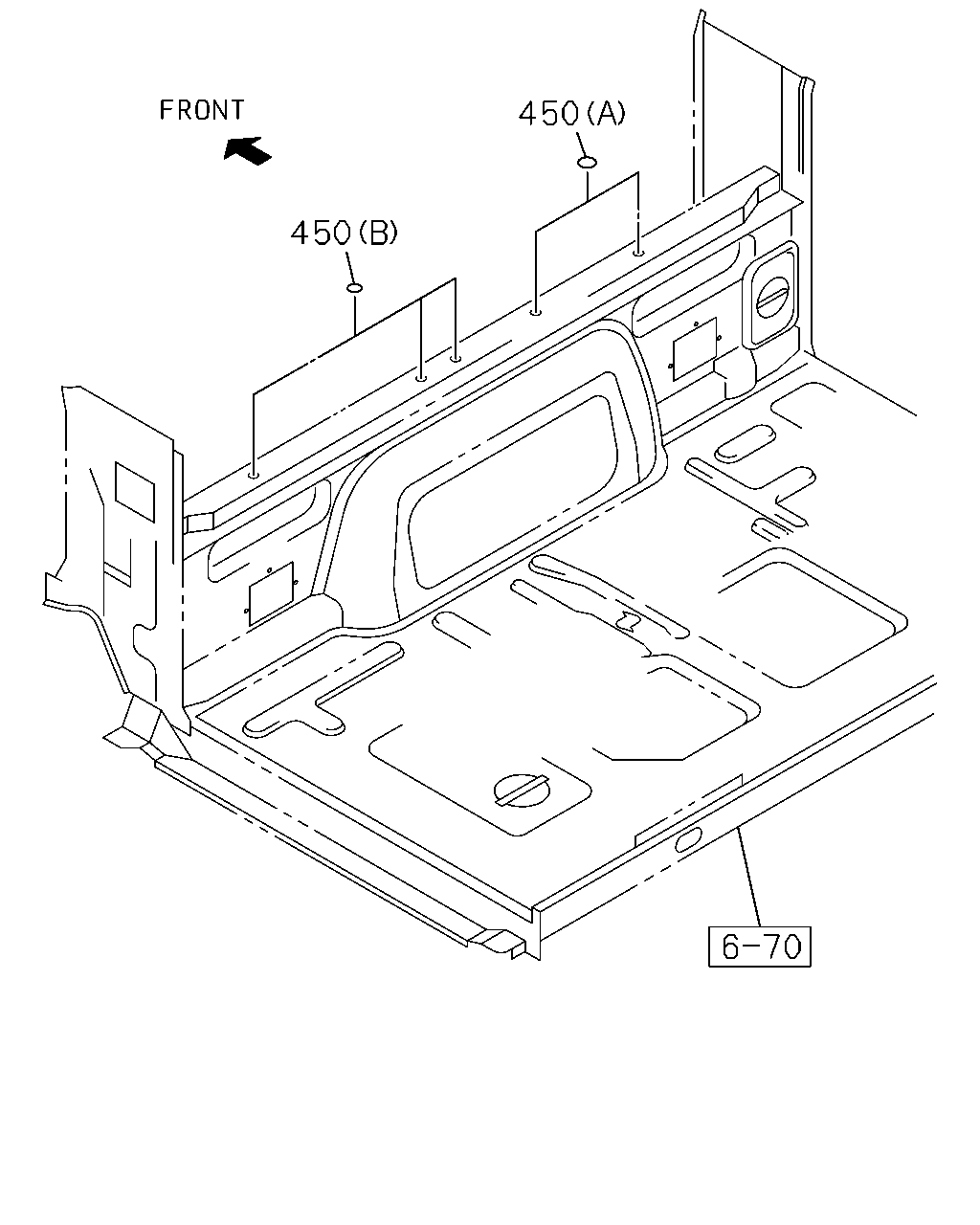

çizim 154218
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0804- ● ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0804- ● ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0804- ● ●

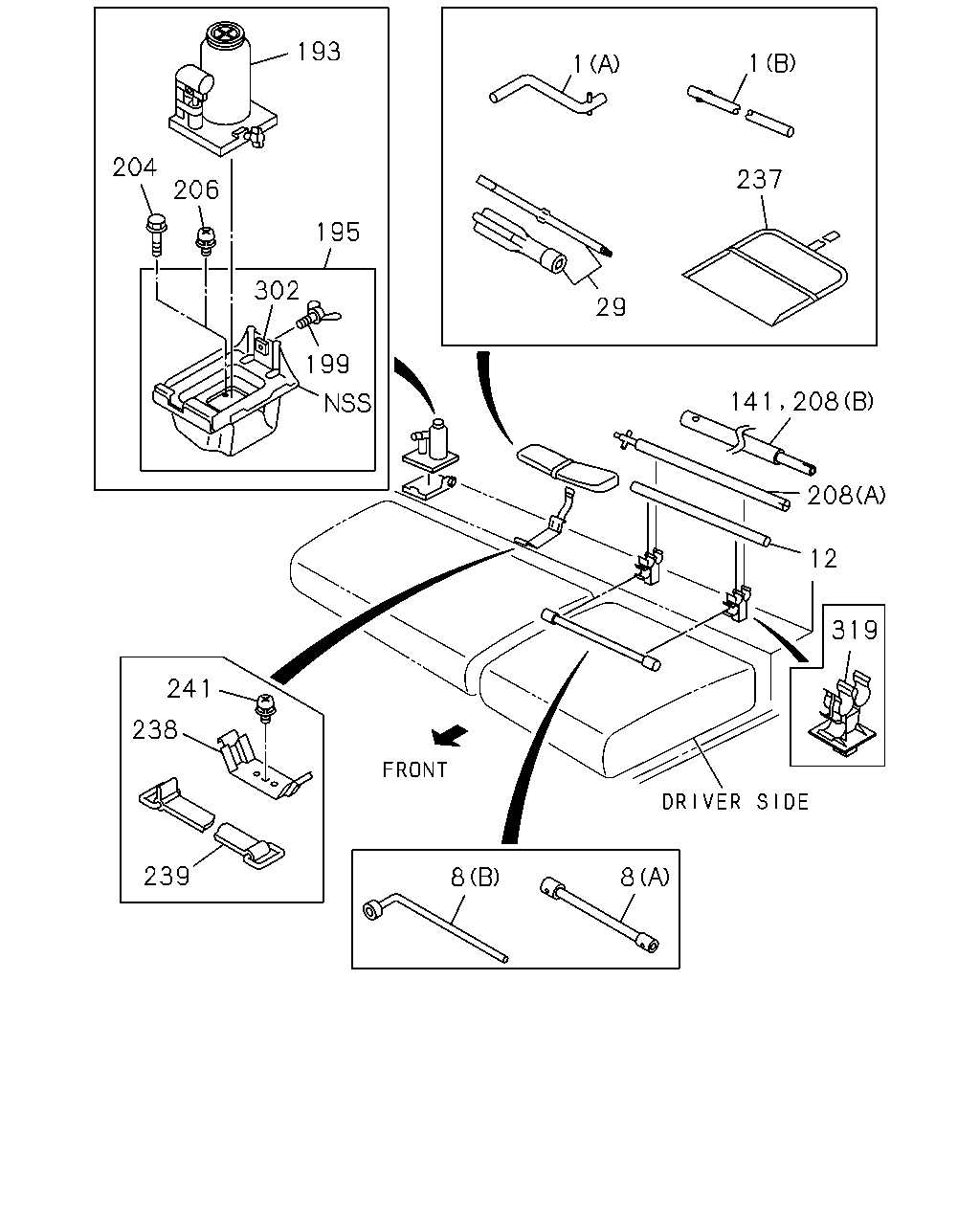

çizim 154237
193 1 1 204 237 206 195 302 29 199 208 12 319 241 238 239 8 8 141 208
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (A) 		8-97218-985-0 01 1 0803-0803 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-97218-985-0 01 1 0803-0803 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (A) 		8-97218-985-0 01 1 0804-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-97218-985-0 01 1 0804-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0804-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-97218-985-0 01 1 0901- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (A) 		8-97218-985-0 01 1 0901- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0901- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0803 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0803 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 0804-0812 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0804-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0804-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280 		1-85515-007-0 01 1 0901-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. TAIWAN EQUIPMENT(B04) 08.821 (B) L=280 		1-85515-007-0 01 1 0901-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) 08.821 (B) L=280 		1-85515-007-0 01 1 0901-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0901-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. TAIWAN EQUIPMENT(B04) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/8 5R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT& RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5. 5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) B=41X19 L=330 		8-94386-490-1 01 1 0803-0803 ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/8 5R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT& RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5. 5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) B=41X19 L=330 		8-94386-490-1 01 1 0804-0809 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/8 5R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5 .50FX16-115(CUW),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX 15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) B=41X19 L=330 		8-94386-490-1 01 1 0810-0812 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/8 5R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5 .50FX16-115(CUW),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX 15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) EXC. TAIWAN EQUIPMENT(B04) (A) B=41X19 L=330 		8-94386-490-1 01 1 0901-0907 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/8 5R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5 .50FX16-115(CUW),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5(CVG),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR),FRT&RR 7R-16-10 16X5.5F-115(07H),FR T&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) EXC. TAIWAN EQUIPMENT(B04) (A) B=41X19 L=330 		8-94386-490-1 01 1 0908- ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 7-15-8 5.5FX25-17 0(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL), FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-105.5FX16-25(89C) (B) B=23 L=300 		9-85113-935-0 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 7-15-8 5.5FX25-17 0(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL), FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-1 5-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5.5FX16-25(89C) (B) B=23 L=300 		9-85113-935-0 01 1 0804-0809 ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0804-0809 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 6.5R-15-10 DISC 5 .5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R15 5R-13-8 F5.5FX15-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15- 25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50F X16-25(CUU) (B) B=23 L=300 		9-85113-935-0 01 1 0810-0812 ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0810-0812 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 6.5R-15-10 DISC 5 .5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R15 5R-13-8 F5.5FX15-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15- 25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50F X16-25(CUU) EXC. TAIWAN EQUIPMENT(B04) (B) B=23 L=300 		9-85113-935-0 01 1 0901-0901 ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0901-0901 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 6.5R-15-10 DISC 5 .5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R15 5R-13-8 F5.5FX15-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15- 25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50F X16-25(CUU),FRT&RR TIRE 205/75R16C DISC16X5.5J-85(CVK) EXC. TAIWAN EQUIPMENT(B04) (B) B=23 L=300 		9-85113-935-0 01 1 0902- ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0902- ●
8 08.821 WRENCH; WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) B=35X17 L=300 		8-94341-283-1 01 1 0804-0812 ●
8 08.821 WRENCH; WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) EXC. TAIWAN EQUIPMENT(B04) (A) B=35X17 L=300 		8-94341-283-1 01 1 0901- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) OD=25 L=590 		8-97332-988-0 01 1 0803-0812 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=590 		8-97332-988-0 01 1 0803-0812 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) OD=25 L=590 		8-97332-988-0 01 1 0901-1001 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD) OD=25 L=590 		8-97332-988-0 01 1 0901-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04),SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=590 		8-97332-988-0 01 1 0901-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1002 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1002 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04),SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1002 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1003-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1003-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) SPARE WHEEL CARRIER<P10> IDENTIFICATION LABEL FOR KD<6UT> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1003-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1003-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) SPARE WHEEL CARRIER<P10> IDENTIFICATION LABEL FOR KD<6UT> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0803-0803 ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0804-0812 ● ● ● ●
29 08.821 DRIVER; SCREW
EXC. TAIWAN EQUIPMENT(B04) <+>,<-> L=160 		8-94242-798-1 01 1 0901- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0901- ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 0804-1108 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-97371-124-0 01 1 0803-0803 ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-97371-124-0 01 1 0804-0805 ●
193 08.820 JACK ASM
5TON 		8-97371-124-0 01 1 0804-0805 ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 0806- ●
193 08.820 JACK ASM
5TON 		8-98114-047-0 01 1 0806- ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 4TON 		8-98090-823-0 01 1 0803-0909 ●
193 08.820 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> 4TON 		8-98090-823-0 01 1 0803-0909 ●
193 08.820 JACK ASM
TAIWAN EQUIPMENT(B04) SUSPENSION - RR UNDER SLUNG<V4U> IDENTIFICATION LABEL FOR KD<6UT> 4TON 		8-98090-823-0 01 1 0910-1311 ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 4TON 		8-98090-823-0 01 1 0910-1311 ●
193 08.820 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> EXC. TAIWAN EQUIPMENT(B04) 4TON 		8-98090-823-0 01 1 0910-1311 ●
193 08.820 JACK ASM
TAIWAN EQUIPMENT(B04) SUSPENSION - RR UNDER SLUNG<V4U> IDENTIFICATION LABEL FOR KD<6UT> 4TON 		8-98239-828-0 01 1 1312- ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 4TON 		8-98239-828-0 01 1 1312- ●
193 08.820 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> EXC. TAIWAN EQUIPMENT(B04) 4TON 		8-98239-828-0 01 1 1312- ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(FF0), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 0803-0803 ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0803-0803 ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(FF0), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 0804-0812 ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0804-0812 ● ●
193 08.820 JACK ASM
EXC. TAIWAN EQUIPMENT(B04),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 0901-0909 ●
193 08.820 JACK ASM
TAIWAN EQUIPMENT(B04) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 4TON 		8-98012-285-0 01 1 0901-0909 ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0901-0909 ● ●
193 08.820 JACK ASM
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 4TON 		8-98012-285-0 01 1 0910- ●
193 08.820 JACK ASM
EXC. TAIWAN EQUIPMENT(B04),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 0910- ●
193 08.820 JACK ASM
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> 4TON 		8-98012-285-0 01 1 0910- ●
193 08.820 JACK ASM
EXC. TAIWAN EQUIPMENT(B04) 4TON 		8-98012-285-0 01 1 0910- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0910- ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-1 01 1 0803-0805 ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97589-376-2 01 1 0809- ●
195 08.820 BRACKET; JACK
SUSPENSION - RR UNDER SLUNG<V4U> 		8-97589-376-2 01 1 0809- ●
195 08.820 BRACKET; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-2 01 1 0809- ●
195 08.820 BRACKET; JACK 8-94273-287-7 01 1 0806- ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-737-1 01 1 0803-0805 ●
195 08.820 BRACKET; JACK 8-98033-737-1 01 1 0803-0805 ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 		8-98033-737-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK 8-98033-737-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98033-737-2 01 1 0809- ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 0809- ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0804-0805 ● ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0806- ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 0803-0805 ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> M8X30 WING 		8-98005-536-0 01 1 0809- ●
199 08.820 BOLT; JACK
SUSPENSION - RR UNDER SLUNG<V4U> M8X30 WING 		8-98005-536-0 01 1 0809- ●
199 08.820 BOLT; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 0809- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806- ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING 		8-98005-537-0 01 1 0803-0805 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0803-0805 ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) M8X50 WING 		8-98005-537-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) M8X50 WING 		8-98005-537-0 01 1 0809- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0809- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0804-0805 ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0806- ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0804- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-97217-800-0 01 1 0803-0803 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-97217-800-0 01 1 0803-0803 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-97217-800-0 01 1 0804-0812 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-97217-800-0 01 1 0804-0812 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0804-0812 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-97217-800-0 01 1 0901-0911 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) EXC. TAIWAN EQUIPMENT(B04),SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-97217-800-0 01 1 0901-0911 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) (A) L=642 		8-97217-800-0 01 1 0901-0911 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0901-0911 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (A) L=642 		8-97217-800-0 01 1 0912-1108 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) SPARE WHEEL CARRIER<P10> IDENTIFICATION LABEL FOR KD<6UT> (A) L=642 		8-97217-800-0 01 1 0912-1108 ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0912-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (A) L=642 		8-98181-477-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04) SPARE WHEEL CARRIER<P10> IDENTIFICATION LABEL FOR KD<6UT> (A) L=642 		8-98181-477-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0803-0812 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0803-0812 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580 		1-85515-005-1 01 1 0901-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. TAIWAN EQUIPMENT(B04) (B) L=580 		1-85515-005-1 01 1 0901-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (B) L=580 		1-85515-005-1 01 1 0901-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. TAIWAN EQUIPMENT(B04) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (B) L=580 		8-98181-249-0 01 1 1109- ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 0803-0803 ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 0804-0812 ● ● ● ●
237 08.821 BAG; TOOL
EXC. TAIWAN EQUIPMENT(B04) 		8-97130-903-1 01 1 0901- ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0901- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0803- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0803-0803 ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0804- ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0803- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0803-0808 ● ●
302 08.820 NUT; JACK BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98021-556-0 01 1 0809- ●
302 08.820 NUT; JACK BRKT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-556-0 01 1 0809- ●
302 08.820 NUT; JACK BRKT
SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-556-0 01 1 0809- ●
302 08.820 NUT; JACK BRKT
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-556-0 01 1 0809- ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0809- ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0804- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0803-0803 ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
