◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31A - AIR DUCT ▶
1-31A — AIR DUCT (#5316) — 793 parça

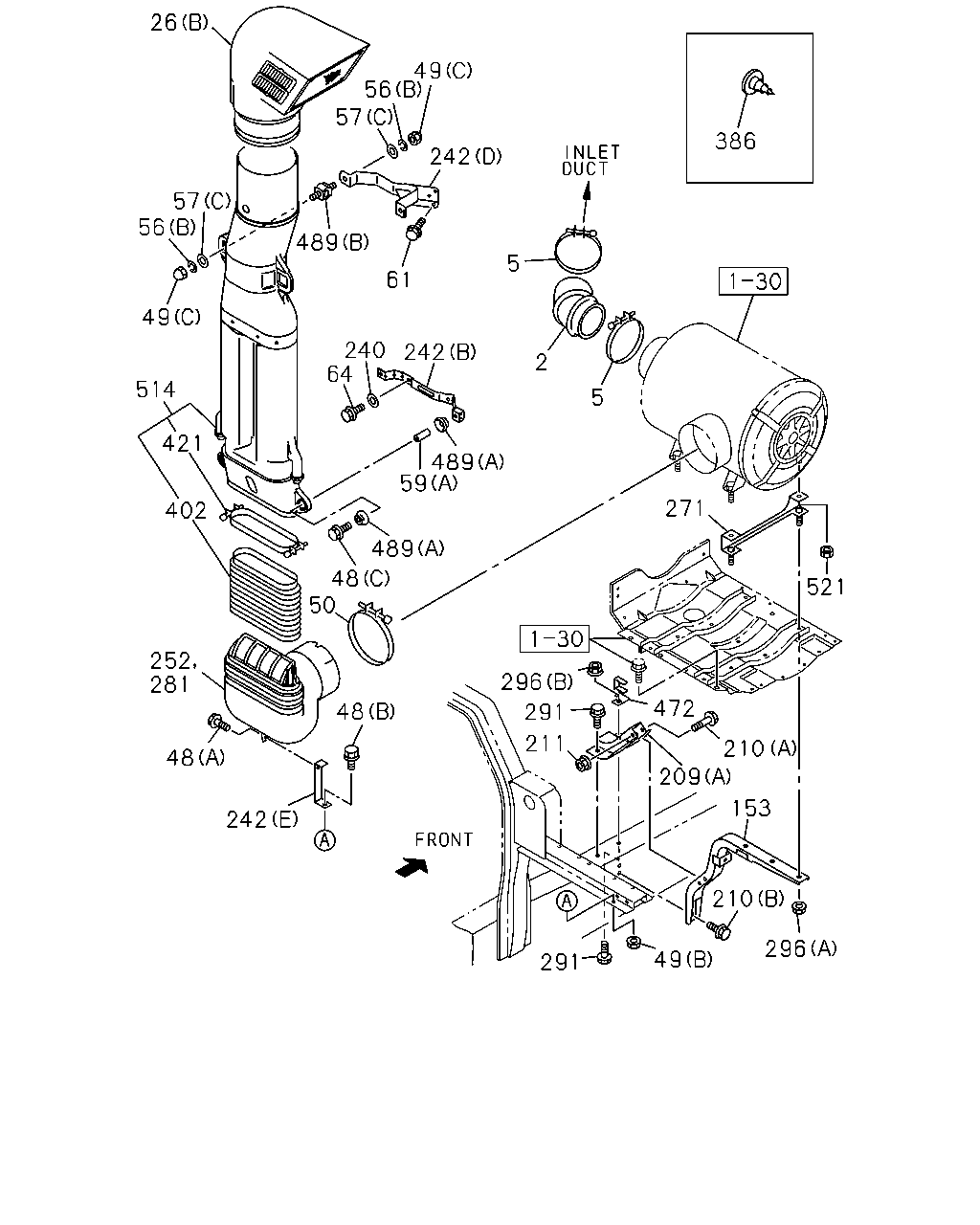

çizim 4516
26 49 56 57 386 242 57 56 489 5 61 49 240 64 242 2 514 5 421 489 59 271 402 489 48 50 521 252 281 296 472 48 291 211 210 48 209 153 242 210 296 49 291
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; ACL 1-14231-871-0 01 1 9603-9901 ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9902-9904 ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ● ● ● ● ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9902-9904 ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ● ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9901 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9902-9904 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9901 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9901 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905- ● ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-9909 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9910- ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9901 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9902-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9902-9904 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-9909 ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9910- ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-9909 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9910- ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9901 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9901 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9902-9904 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9901 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-9909 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9910- ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9901 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9902-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905- ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-9909 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9910- ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905-9909 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9910- ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9901 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905-9909 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9910- ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9902-9904 ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9901 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9901 ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9901 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9901 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 9905-9909 ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-9909 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9910- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9902-9904 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9905-9909 ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9910- ● ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9901 ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9902-9904 ● ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9905- ● ● ● ● ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9902-9904 ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9905- ● ● ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-302-4 02 1 9902-9902 ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9903-9904 ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9905- ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9901 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9902-9904 ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9905- ● ● ● ● ●
281 DUCT; AIR,VERTICAL INT
CAB UP +110MM<TGG> PRE CLEANER<W17> 		1-14230-194-0 01 1 9902-9904 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> CAB UP +110MM<TGG> 		1-14230-194-0 01 1 9905- ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9901 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9902-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9901 ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9901 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9902-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 9603-9901 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9902-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ● ●
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-1 01 1 9905-9909 ●
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-1 01 1 9910- ● ●
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9905-9909 ●
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9910- ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9901 ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9902-9904 ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ● ● ● ● ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9902-9904 ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 9905-9909 ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 9910- ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 9905-9909 ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 9910- ● ●
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-0 01 1 9905-9909 ●
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-0 01 1 9910- ● ●
521 NUT; SPACER
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 0103- ● ● ●

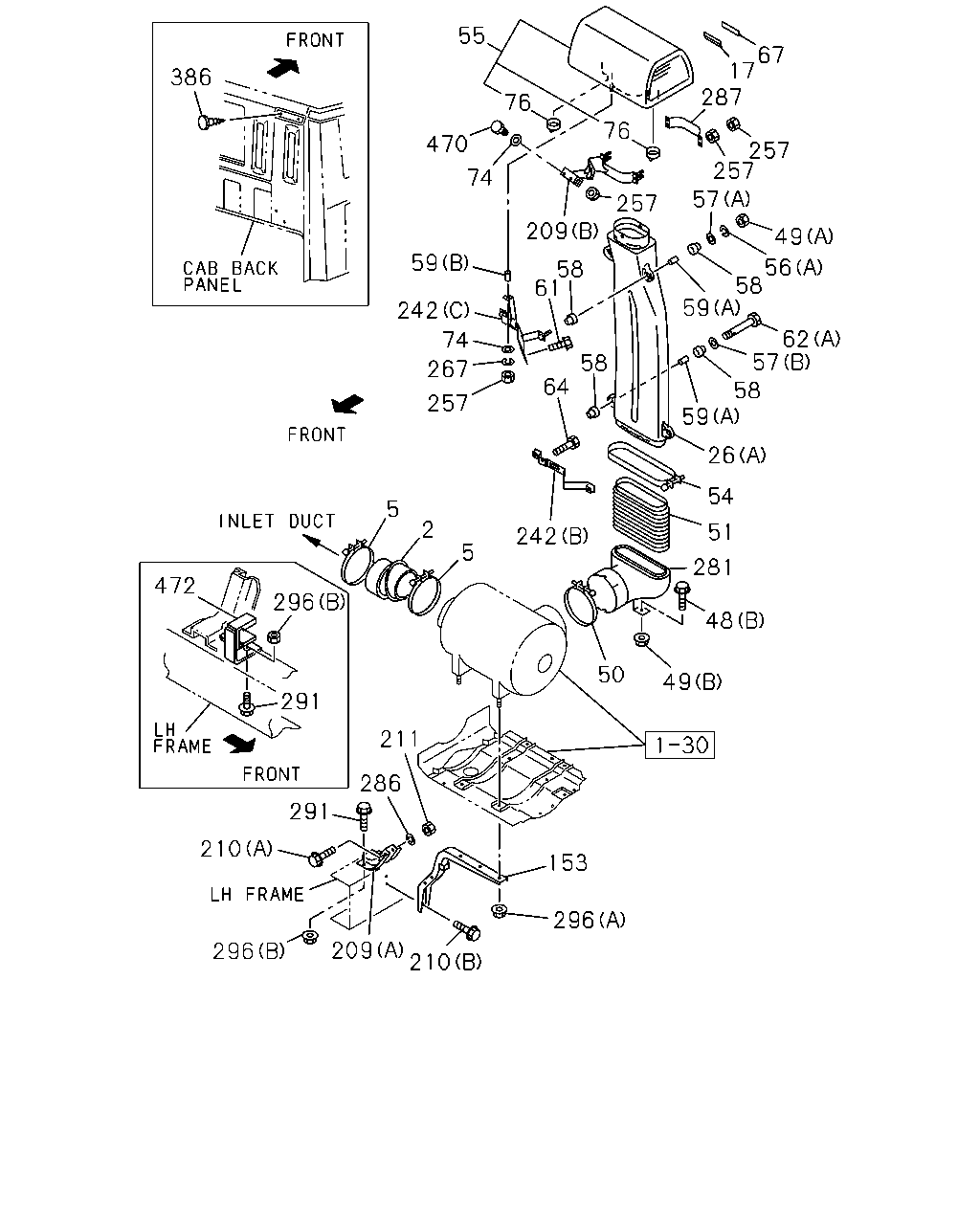

çizim 5206
55 67 17 287 386 76 76 470 257 257 74 57 257 209 49 59 56 58 58 61 59 242 62 57 58 74 58 267 64 257 59 26 54 5 2 51 242 5 281 472 296 48 291 50 49 211 286 291 210 153 296 209 210 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; ACL 1-14231-871-0 01 1 9603-9901 ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9902-9904 ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ● ● ● ● ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9902-9904 ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ● ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9901 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9902-9904 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ● ●
17 GASKET; AIR DUCT
PRE CLEANER<W17> 80X20 		1-14239-170-0 01 1 9603-9901 ●
17 GASKET; AIR DUCT
PRE CLEANER<W17> 80X20 		1-14239-170-0 01 1 9902-9904 ● ●
17 GASKET; AIR DUCT
PRE CLEANER<W17> 80X20 		1-14239-170-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9901 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9901 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905- ● ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-9909 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9910- ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9901 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9902-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9902-9904 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-9909 ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9910- ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-9909 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9910- ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9901 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9901 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9902-9904 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9901 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-9909 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9910- ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9901 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9902-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ● ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9603-9901 ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9902-9904 ● ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9905- ● ● ●
54 CLIP; GASKET,AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9603-9901 ●
54 CLIP; GASKET,AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9902-9904 ● ●
54 CLIP; GASKET,AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9905- ● ● ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9603-9901 ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9902-9904 ● ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9905- ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905- ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-9909 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9910- ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9901 ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9901 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9905-9909 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9910- ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905-9909 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9910- ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9901 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9901 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-9901 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9905- ● ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9905-9909 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9910- ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9603-9901 ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9902-9904 ● ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9905- ● ● ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9603-9901 ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9902-9904 ● ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9905- ● ● ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9603-9901 ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9902-9904 ● ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9905- ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9901 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905-9909 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9910- ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9902-9904 ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9901 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9901 ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9901 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9901 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-9909 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9910- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9902-9904 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9905-9909 ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9910- ● ● ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9603-9901 ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9902-9904 ● ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9905- ● ● ●
267 WASHER; LK,ACL
PRE CLEANER<W17> 		1-09500-033-0 01 1 9603-9901 ●
267 WASHER; LK,ACL
PRE CLEANER<W17> ID=10 		1-09985-180-0 01 1 9902-9904 ● ●
267 WASHER; LK,ACL
PRE CLEANER<W17> ID=10 		1-09985-180-0 01 1 9905- ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9901 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9902-9904 ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9905- ● ● ● ● ●
281 DUCT; AIR,VERTICAL INT
CAB UP +110MM<TGG> PRE CLEANER<W17> 		1-14230-194-0 01 1 9902-9904 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> CAB UP +110MM<TGG> 		1-14230-194-0 01 1 9905- ● ● ●
286 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 02 1 9603-9606 ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9603-9901 ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9902-9904 ● ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9905- ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9901 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9902-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9901 ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9901 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9902-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 9603-9901 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9902-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ● ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9603-9901 ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9902-9904 ● ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9905- ● ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9901 ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9902-9904 ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ● ● ● ● ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9902-9904 ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ● ● ●

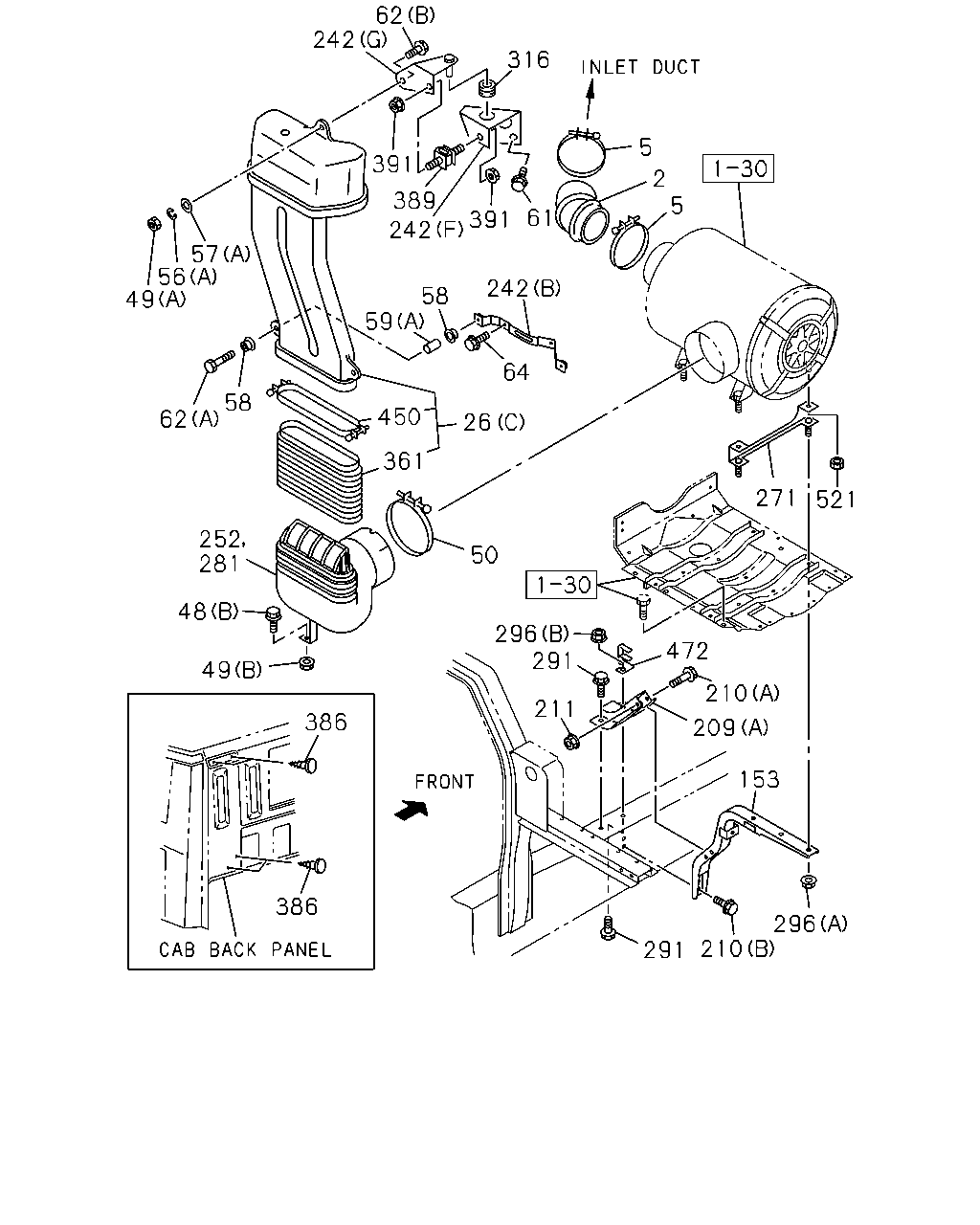

çizim 5663
62 242 316 5 391 2 5 389 61 391 242 57 56 49 242 58 59 64 58 450 62 26 361 271 521 252 281 50 48 296 291 472 49 210 211 386 209 153 386 296 210 291
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; ACL 1-14231-871-0 01 1 9603-9901 ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9902-9904 ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ● ● ● ● ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9902-9904 ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ● ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9901 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9902-9904 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9901 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9901 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905- ● ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-9909 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9910- ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9901 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9902-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9902-9904 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-9909 ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9910- ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-9909 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9910- ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●

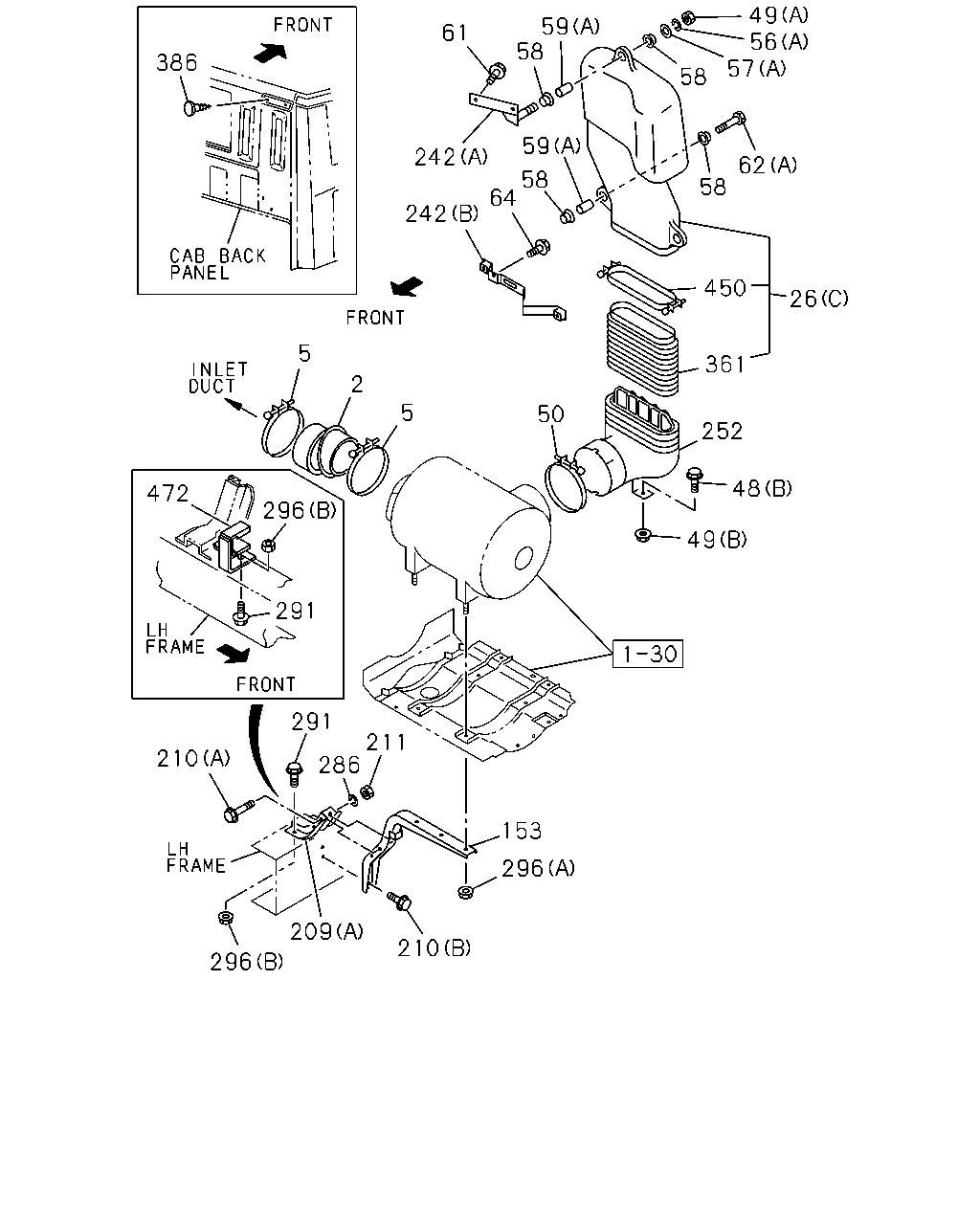

49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9901 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9901 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9902-9904 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9901 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-9909 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9910- ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9901 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9902-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905- ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-9909 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9910- ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9901 ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9901 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9905-9909 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9910- ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905-9909 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9910- ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9901 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9901 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-9901 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9905- ● ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9905-9909 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9910- ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9901 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905-9909 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9910- ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9902-9904 ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9901 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9901 ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9901 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9901 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-9909 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9910- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9902-9904 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9905-9909 ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9910- ● ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9901 ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9902-9904 ● ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9905- ● ● ● ● ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9902-9904 ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9905- ● ● ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-302-4 02 1 9902-9902 ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9903-9904 ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9905- ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9901 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9902-9904 ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9905- ● ● ● ● ●
281 DUCT; AIR,VERTICAL INT
CAB UP +110MM<TGG> PRE CLEANER<W17> 		1-14230-194-0 01 1 9902-9904 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> CAB UP +110MM<TGG> 		1-14230-194-0 01 1 9905- ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9901 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9902-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9901 ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9901 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9902-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ● ●
316 RUBBER; CUSHION,DUCT
EXC. PRE CLEANER<W17> 		9-09575-525-0 01 1 9905-9909 ●
316 RUBBER; CUSHION,DUCT
EXC. PRE CLEANER<W17> 		9-09575-525-0 01 1 9910- ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9603-9901 ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9902-9904 ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9905- ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 9603-9901 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9902-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
EXC. PRE CLEANER<W17> 		8-97080-149-0 01 1 9905-9909 ●
389 RUBBER; SUPPORT,AIR INT UPR
EXC. PRE CLEANER<W17> 		8-97080-149-0 01 1 9910- ● ●
391 NUT; SUPPORT RUBBER,UPR
EXC. PRE CLEANER<W17> M8 FLANGE 		0-91150-108-0 02 1 9905-9909 ●
391 NUT; SUPPORT RUBBER,UPR
EXC. PRE CLEANER<W17> M8 FLANGE 		0-91150-108-0 02 1 9910- ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9603-9901 ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9902-9904 ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9905- ● ● ● ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9901 ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9902-9904 ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ● ● ● ● ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9902-9904 ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ● ● ●
521 NUT; SPACER
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 0103- ● ● ●
çizim 6210
49 56 57 59 58 61 386 58 59 242 62 58 64 58 242 450 26 5 361 2 5 50 252 48 472 296 49 291 291 211 286 210 153 296 209 210 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; ACL 1-14231-871-0 01 1 9603-9901 ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9902-9904 ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ● ● ● ● ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9902-9904 ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ● ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9901 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9902-9904 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9901 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9901 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9902-9904 ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905- ● ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-9909 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9910- ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9901 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9902-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9902-9904 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-9909 ● ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9910- ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-9909 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9910- ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9901 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9901 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9902-9904 ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9901 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9902-9904 ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905- ● ● ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-9909 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9910- ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9901 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9902-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9901 ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9902-9904 ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905- ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-9909 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9901 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9902-9904 ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9910- ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-9909 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9910- ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9901 ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9901 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9902-9904 ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9905-9909 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9910- ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9901 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9902-9904 ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905-9909 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9910- ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9901 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9901 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-9901 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9902-9904 ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9905- ● ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9905-9909 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9910- ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9901 ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9902-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9901 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905-9909 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9910- ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9902-9904 ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9901 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9901 ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9902-9904 ● ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9901 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9901 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9902-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-9909 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9910- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9709-9901 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9603-9901 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9902-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (D) UPPER 		1-79990-045-1 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (F) 		1-47477-674-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9905-9909 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (G) 		1-47477-675-0 01 1 9910- ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9902-9904 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9905-9909 ● ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (E) 		1-23957-006-0 01 1 9910- ● ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9901 ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9902-9904 ● ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9905- ● ● ● ● ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9902-9904 ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9905- ● ● ●
286 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9901 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9902-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9901 ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9901 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9902-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9603-9901 ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9902-9904 ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9905- ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 9603-9901 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9902-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9603-9901 ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9902-9904 ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9905- ● ● ● ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9901 ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9902-9904 ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ● ● ● ● ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9902-9904 ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ● ● ●
çizim 40103
313 311 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
310 PROTECTOR; HEAT,ACL 1-14181-287-1 01 1 9603-9901 ●
310 PROTECTOR; HEAT,ACL
EXC. CAB UP +110MM<TGG> 		1-14181-287-1 01 1 9902-9904 ● ●
310 PROTECTOR; HEAT,ACL
EXC. CAB UP +110MM<TGG> 		1-14181-287-1 01 1 9905- ● ● ● ● ●
311 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
311 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9901 ●
311 BOLT; HEAT PROTECTOR
EXC. CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
311 BOLT; HEAT PROTECTOR
EXC. CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ● ●
313 NUT; HEAT PROTECTOR
M8 		9-09110-508-0 01 1 9603-9606 ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ●
313 NUT; HEAT PROTECTOR
EXC. CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
313 NUT; HEAT PROTECTOR
EXC. CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
