Sayfa 8-45 - Isuzu EPC

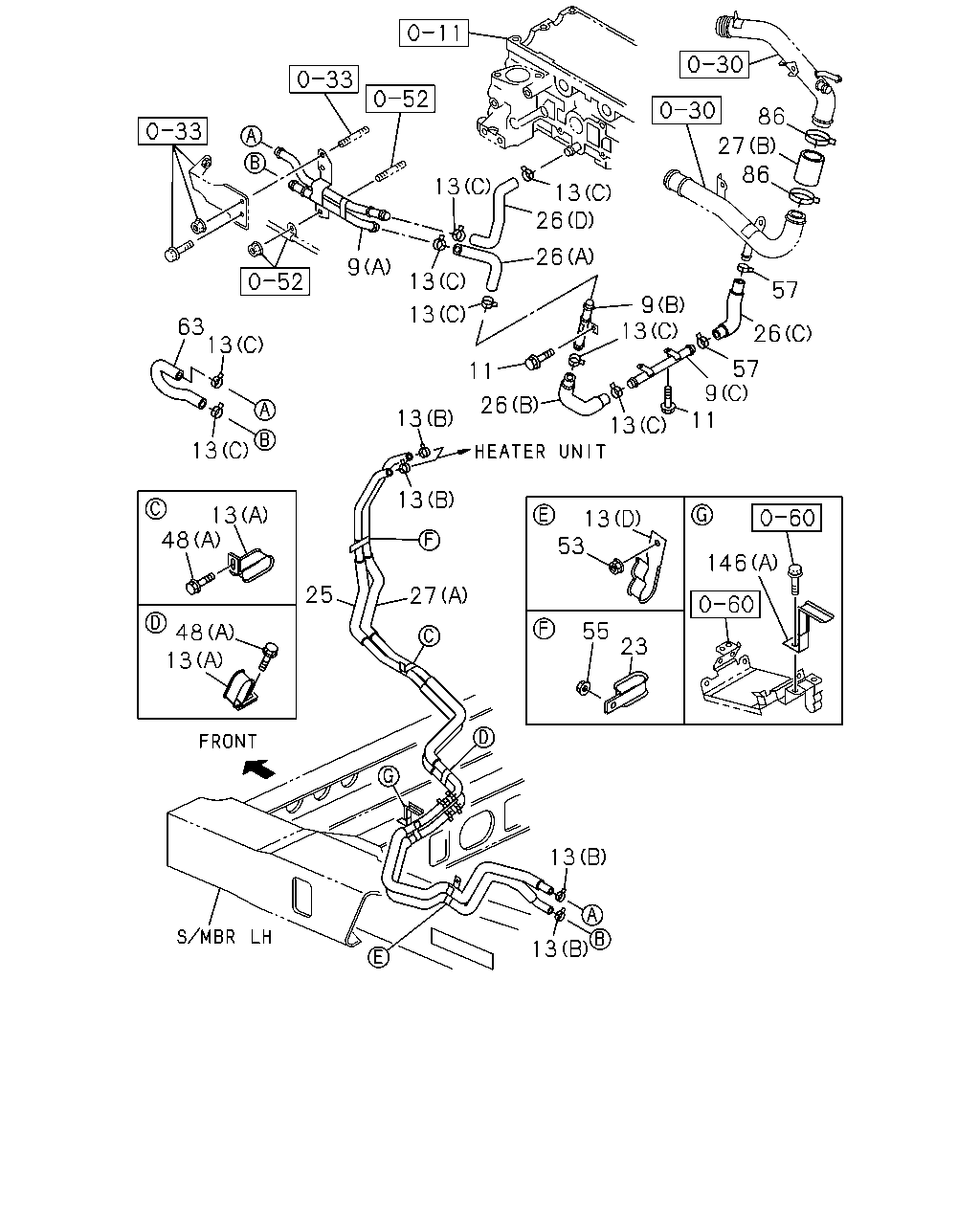

8-45 — HEATER PIPING (#53151) — 177 parça

86 27 86 13 13 26 26 9 13 57 9 13 13 63 13 26 57 9 11 11 26 13 13 13 13 13 13 53 48 146 25 27 55 48 13 23 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-97381-481-2	01	1	0803-0803	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	0804-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-97383-035-0	01	1	0803-0803	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	0804-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	0803-0803	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	0804-	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0803-0803	●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) VIETNAM EQUIPMENT(CL0) (C) ID=20.8	8-97944-127-0	06	1	1201-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98040-023-0	01	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98040-023-0	01	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	0804-0804	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	0805-0809	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	0810-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0804-1112	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. VIETNAM EQUIPMENT(CL0) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1201-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	0803-0803	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	0804-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-667-1	01	1	0803-0803	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-667-1	01	1	0804-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-399-1	01	1	0804-0804	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-399-1	01	1	0805-0809	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-399-1	01	1	0810-1206	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98178-531-0	01	1	1207-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	0-03516-240-0	01	1	0803-0803	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	0-03516-240-0	01	1	0804-0910	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	0911-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	0803-0803	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	0804-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	0803-0803	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	0804-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	0803-0803	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	0804-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-668-3	01	1	0803-0803	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-668-3	01	1	0804-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0804-0804	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	0804-0804	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	0805-0809	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	0810-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) VIETNAM EQUIPMENT(SGX) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1209-1209	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1210-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98037-396-2	01	1	0804-0804	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98037-396-2	01	1	0805-0809	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98037-396-2	01	1	0810-1206	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98178-530-0	01	1	1207-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	0803-0803	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	0804-	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-0803	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-0803	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-0804	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-0804	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-0804	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-0809	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-0809	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-0809	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-0804	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0805-0809	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-0804	●	●	●	●
53	08.845 NUT; HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-0804	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-0809	●	●	●	●
53	08.845 NUT; HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-0809	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-	●	●	●	●
53	08.845 NUT; HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) VIETNAM EQUIPMENT(CL0) ID=20.8	8-97944-127-0	02	1	1201-	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	0803-0803	●	●
57	08.846 CLIP; HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	0804-1112	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) EXC. VIETNAM EQUIPMENT(CL0) 01.166 ID=20.8	8-94125-862-1	02	1	1201-	●	●	●	●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0803-0803	●	●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0804-	●	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 ID=40.5	8-97313-472-0	02	1	0803-0803	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 ID=40.5	8-97313-472-0	02	1	0804-	●	●	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98060-001-0	01	1	0803-0803	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98060-001-0	01	1	0804-	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98106-382-0	01	1	0804-0804	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98106-382-0	01	1	0805-0809	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98106-382-0	01	1	0810-1206	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98178-391-0	01	1	1207-	●	●

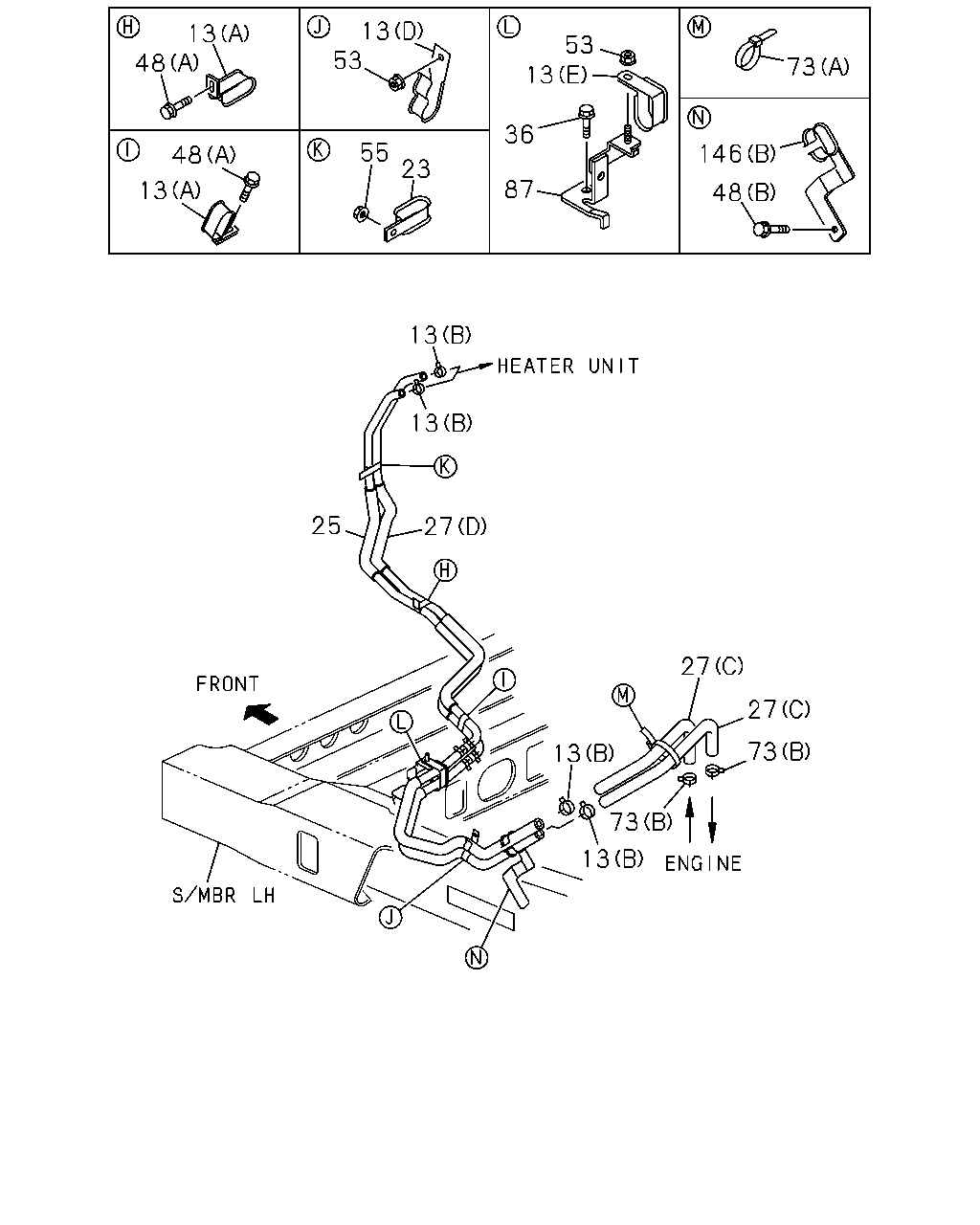

13 53 13 53 13 48 73 36 55 146 48 23 87 13 48 13 13 25 27 27 27 73 13 73 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) VIETNAM EQUIPMENT(CL0) (C) ID=20.8	8-97944-127-0	06	1	1201-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98040-023-0	01	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98040-023-0	01	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0804-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	0804-0804	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	0805-0809	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	0810-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0803-0803	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0804-1112	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. VIETNAM EQUIPMENT(CL0) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1201-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	0803-0803	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	0804-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-667-1	01	1	0803-0803	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-667-1	01	1	0804-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-399-1	01	1	0804-0804	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-399-1	01	1	0805-0809	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-399-1	01	1	0810-1206	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98178-531-0	01	1	1207-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-668-3	01	1	0803-0803	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-668-3	01	1	0804-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0804-0804	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	0804-0804	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	0805-0809	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	0810-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) VIETNAM EQUIPMENT(SGX) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1209-1209	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1210-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98037-396-2	01	1	0804-0804	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98037-396-2	01	1	0805-0809	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98037-396-2	01	1	0810-1206	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-98178-530-0	01	1	1207-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	0803-0803	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	0804-	●	●	●	●
36	08.846 BOLT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
36	08.846 BOLT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809	●
36	08.846 BOLT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-0803	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-0803	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-0804	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-0804	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-0804	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-0809	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-0809	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-0809	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-0804	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0805-0809	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-0804	●	●	●	●
53	08.845 NUT; HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-0804	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-0809	●	●	●	●
53	08.845 NUT; HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-0809	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-	●	●	●	●
53	08.845 NUT; HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0804-0804	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0805-0809	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0810-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	0804-0804	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	0804-0804	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	0805-0809	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	0810-1208	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) VIETNAM EQUIPMENT(SGX) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1210-	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	0804-0804	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	0805-0809	●
87	08.846 BRACKET; HTR HOSE CLIP 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	0810-	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98060-001-0	01	1	0803-0803	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98060-001-0	01	1	0804-	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98106-382-0	01	1	0804-0804	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98106-382-0	01	1	0805-0809	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98106-382-0	01	1	0810-1206	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98178-391-0	01	1	1207-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
