Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#53150) — 145 parça

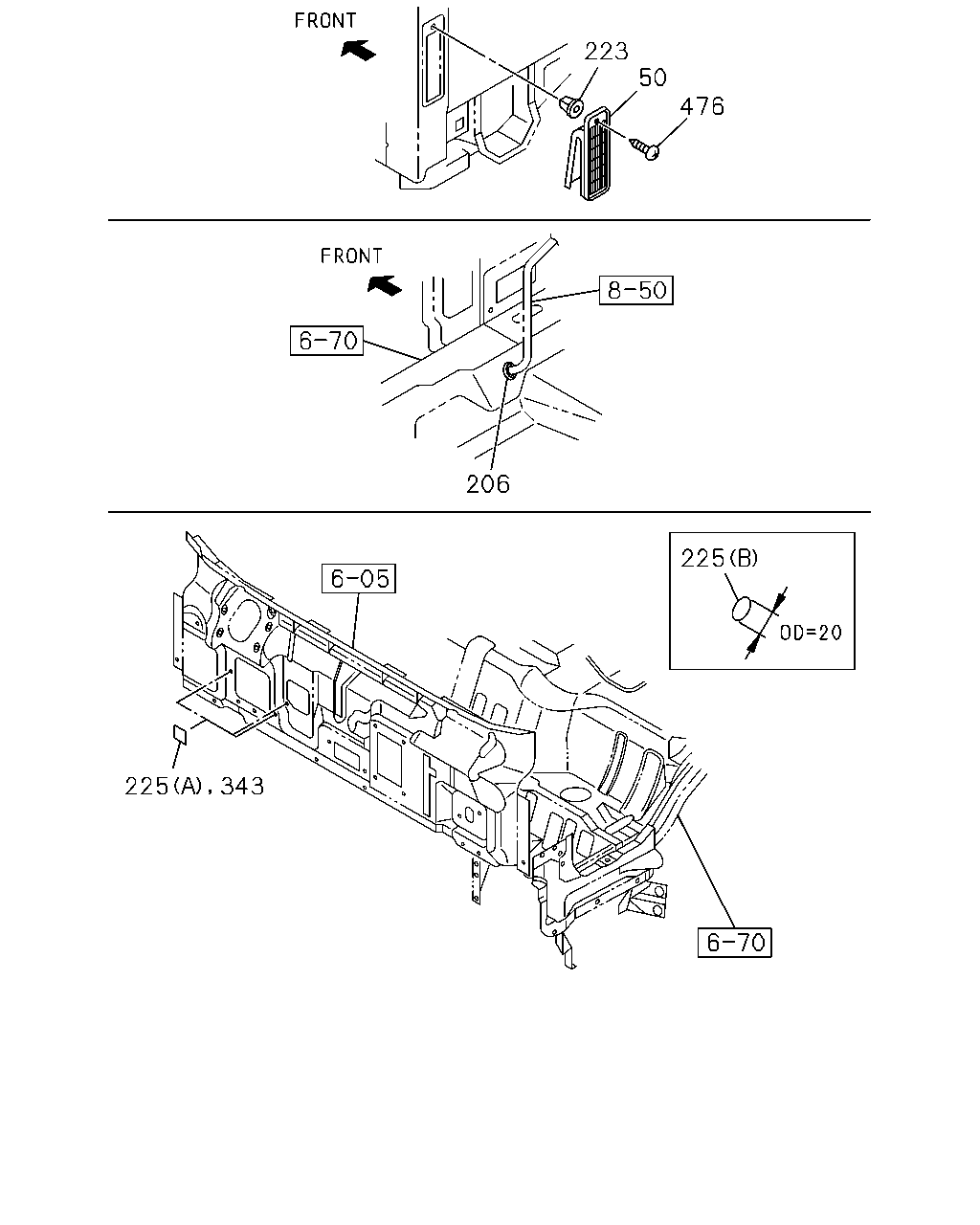

223 50 476 206 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	0803-	●	●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	0804-			●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0803-0803	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0804-	●	●	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0803-0803	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0804-	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	01	1	1303-	●	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	01	1	0803-0803	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	01	1	0804-0810	●	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	03	1	0811-1302	●	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	1303-	●	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	0803-0803	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	0804-0810	●	●	●	●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0803-0803	●	●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0804-1301	●	●	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-	●	●	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-97856-616-0	02	1	0803-0803	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-97856-616-0	02	1	0804-	●	●	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0803-0803	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0804-	●	●	●	●

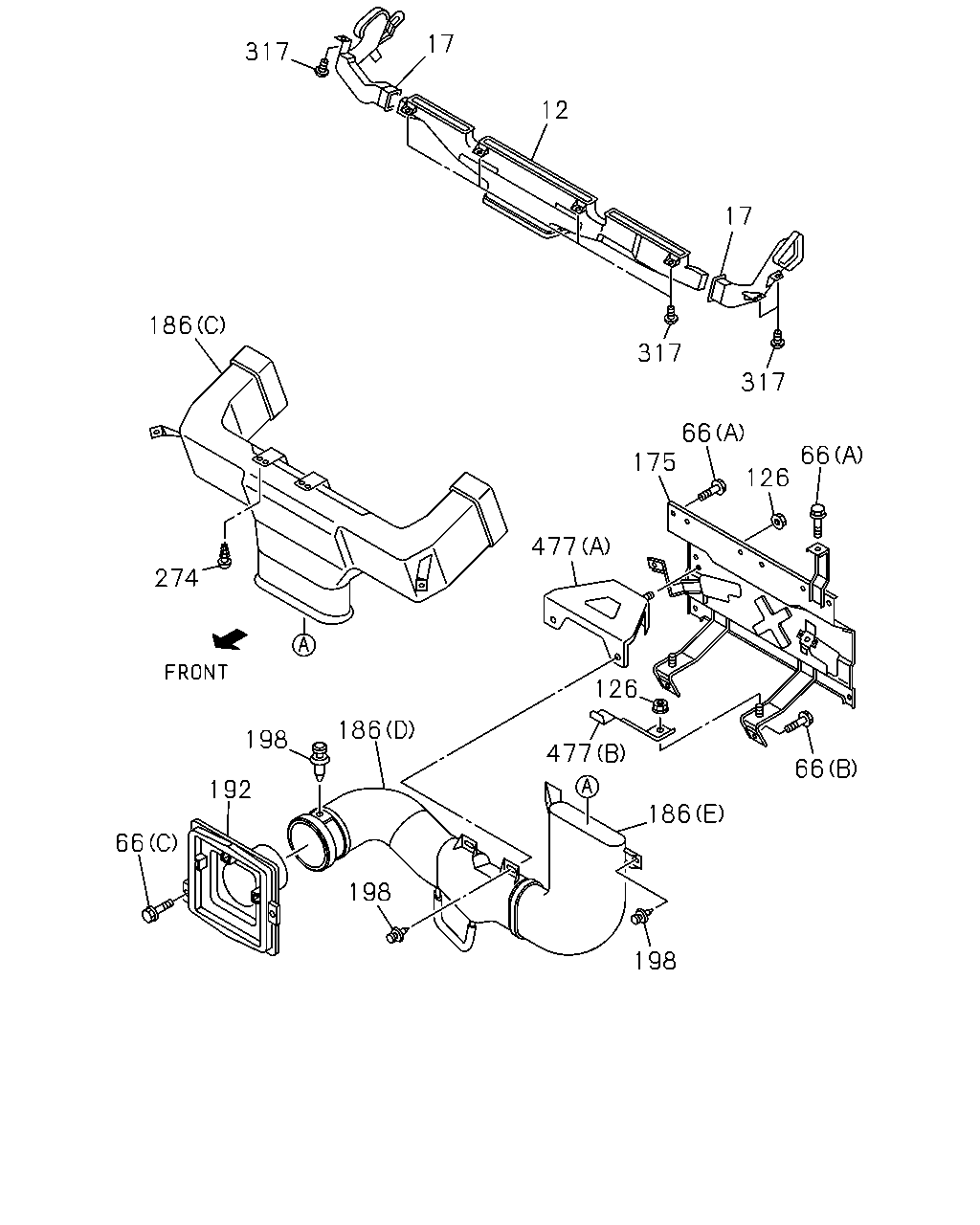

17 317 12 17 186 317 317 66 175 66 126 477 274 126 186 198 477 66 192 186 66 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	09.779 NOZZLE; DEFROSTER	8-97585-479-0	01	1	0803-0803	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-479-0	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-0	01	1	0803-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	0803-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	0804-	●	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0803-0803	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0804-	●	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0803-0803	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0804-	●	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0803-0803	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-	●	●	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-0803	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-1001	●	●	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-98091-541-1	01	1	0803-0803	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-98091-541-5	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-5	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-0	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C)	8-98054-360-0	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C)	8-98054-360-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (E)	8-98054-369-0	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (E)	8-98054-369-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (D)	8-98054-378-1	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (D)	8-98054-378-2	01	1	0804-	●	●	●	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-98054-385-1	01	1	0803-0803	●	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60)	8-98054-385-4	01	1	0804-	●	●	●	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.786	8-98056-059-0	05	1	0803-0803	●	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.264	1-09987-144-0	05	1	0803-0803	●	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.264	1-09987-144-0	05	1	0804-	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0803	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0803-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0803-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (A)	8-98091-304-0	01	1	0803-0803	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (A)	8-98091-304-0	01	1	0804-	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B)	8-98091-410-0	01	1	0803-0803	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B)	8-98091-410-0	01	1	0804-0808	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B)	8-98132-458-1	01	1	0809-1001	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98132-458-1	01	1	1002-1005	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-456-0	01	1	1006-	●	●	●	●

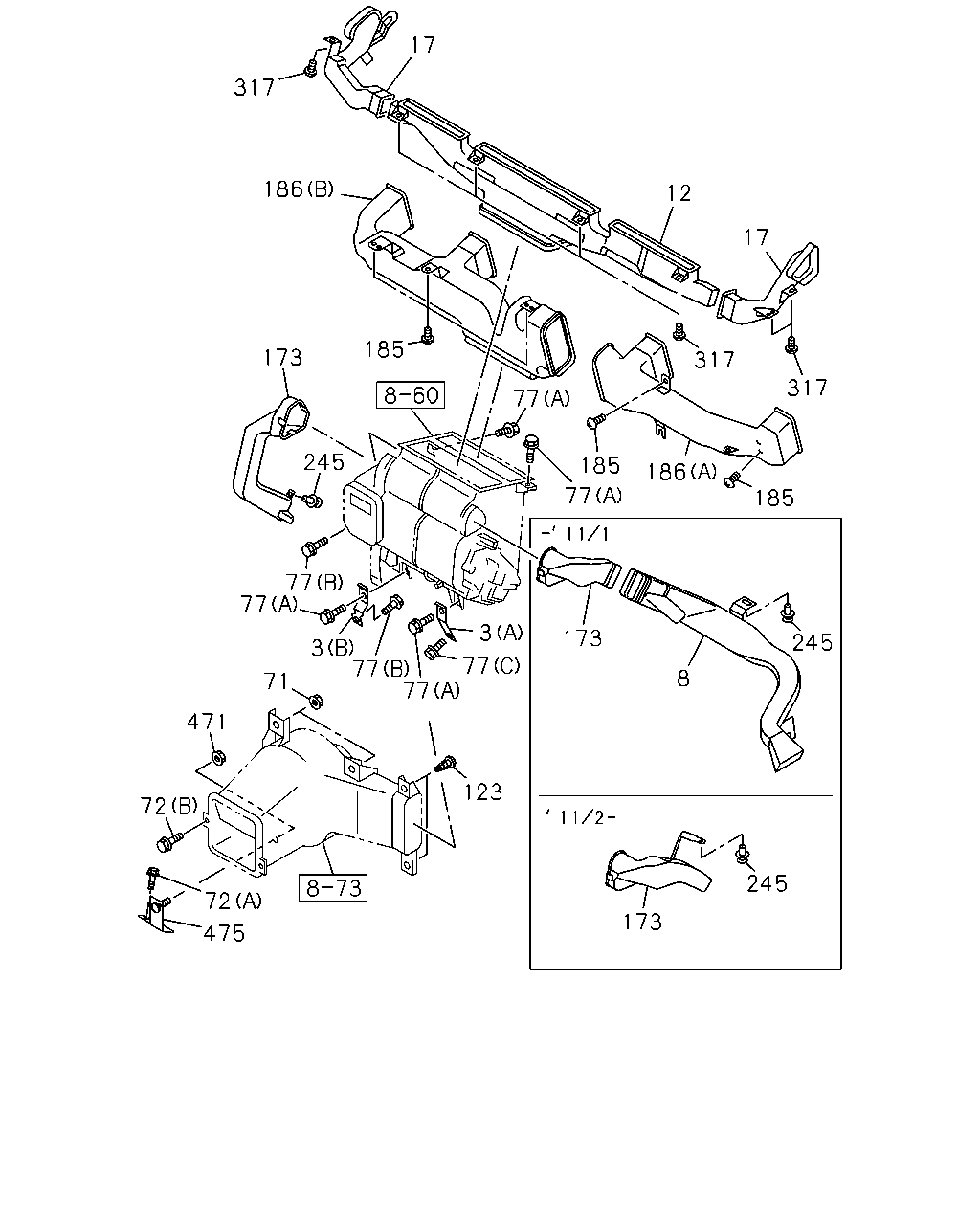

17 317 186 12 17 185 173 317 317 77 245 185 186 77 185 77 77 3 173 245 3 77 77 77 8 71 471 123 72 245 72 173 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98082-473-1	01	1	0803-0803	●	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98082-473-1	01	1	0804-	●	●	●	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98082-475-1	01	1	0803-0803	●	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98082-475-1	01	1	0804-	●	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-498-4	01	1	0803-0803	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-498-4	01	1	0804-1101	●	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-479-0	01	1	0803-0803	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-479-0	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-0	01	1	0803-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	0803-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	0804-	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-0803	●	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0803-0803	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0804-	●	●	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0803	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1302-	●	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0803-0803	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0804-	●	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0803	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-1301	●	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-	●	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0803-0803	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-	●	●	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0803	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101	●	●	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-494-3	01	1	0803-0803	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-494-3	01	1	0804-1101	●	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-183-0	01	1	1102-	●	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-505-3	01	1	0803-0803	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-505-3	01	1	0804-1101	●	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-188-0	01	1	1102-	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0803-0803	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-1003	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1101	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-5	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-0	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C)	8-98054-360-0	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C)	8-98054-360-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (E)	8-98054-369-0	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (E)	8-98054-369-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (D)	8-98054-378-1	01	1	0803-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (D)	8-98054-378-2	01	1	0804-	●	●	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98056-059-0	03	1	0803-0803	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	03	1	0803-0803	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	03	1	0804-1101	●	●	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1102-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0803-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0803-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-	●	●	●	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-703-1	01	1	0803-0803	●	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-703-1	01	1	0804-	●	●	●	●
