8-28 — CHASSIS ELECTRICAL (#53149) — 133 parça
çizim 154177
531 666 333
BalonParca AdiParca NoAdetTipApplied Date A B C D
333 09.277 RELAY; MARKER LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0803 ● ●
333 09.277 RELAY; MARKER LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-0804 ● ●
333 09.277 RELAY; MARKER LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805-0809 ●
333 09.277 RELAY; MARKER LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805-0809 ●
333 09.277 RELAY; MARKER LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0810- ● ●
531 02.769 RELAY; MAIN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0803-0803 ● ●
531 02.769 RELAY; MAIN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0804-1402 ● ●
531 02.769 RELAY; MAIN
4JJ1-TCC ENG(RDU) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0804-1402 ● ●
531 02.769 RELAY; MAIN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
531 02.769 RELAY; MAIN
4JJ1-TCC ENG(RDU) 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 02.173 RELAY; STARTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0803 ● ●
666 02.173 RELAY; STARTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-1005 ● ●
666 02.173 RELAY; STARTER
4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-1005 ● ●
666 02.173 RELAY; STARTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
666 02.173 RELAY; STARTER
4JJ1-TCC ENG(RDU) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●

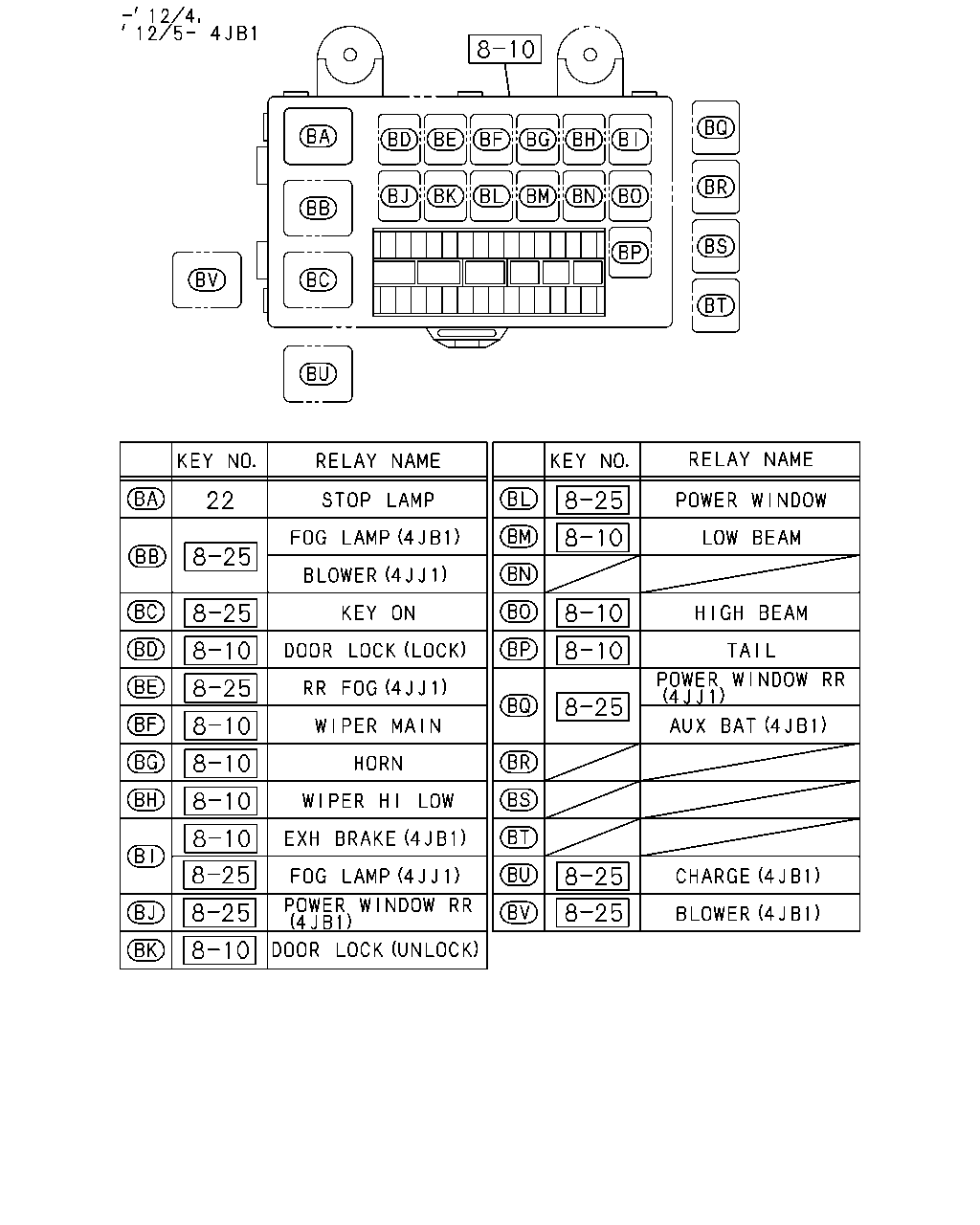

çizim 154179
22
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804-0804 ● ●
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0805-0809 ●
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0810- ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0803 ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ●

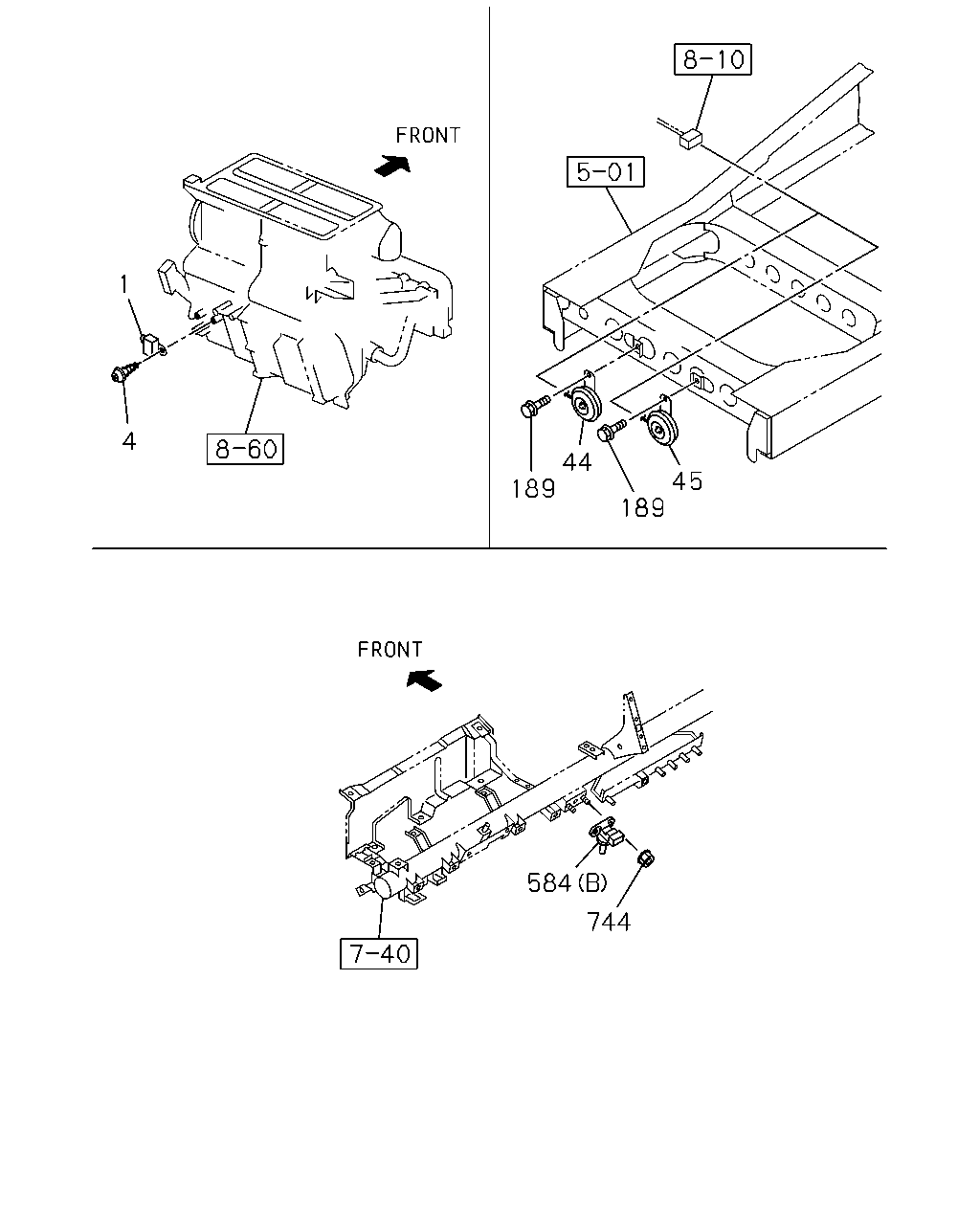

çizim 154187
1 4 44 189 45 189 584 744
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 0803-0803 ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 12V<TRQ> 		8-98025-533-1 01 1 0804-0804 ● ●
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 0804-0804 ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 12V<TRQ> 		8-98025-533-1 01 1 0805-0809 ●
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 0805-0809 ● ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 12V<TRQ> 		8-98025-533-1 01 1 0810- ● ●
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 0810- ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 12V<TRQ> 		8-98001-519-0 01 1 0804-0804 ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 12V<TRQ> 		8-98001-519-0 01 1 0805-0809 ●
1 02.575 UNIT; FLASHER
VOLTAGE 12V<TRQ> 		8-98001-519-0 01 1 0810- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0803 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 0803-0803 ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 12V<TRQ> 		8-98022-022-0 01 1 0804-0804 ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 0804-0804 ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 12V<TRQ> 		8-98022-022-0 01 1 0805-0809 ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 0805-0809 ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 12V<TRQ> 		8-98022-022-0 01 1 0810- ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 0810- ● ●
44 02.810 HORN; HIGH NOTE
VOLTAGE 12V<TRQ> DUAL HEAVY DUTY HORN(6KK) 		8-98022-024-0 01 1 0804-0804 ● ●
44 02.810 HORN; HIGH NOTE
VOLTAGE 12V<TRQ> DUAL HEAVY DUTY HORN(6KK) 		8-98022-024-0 01 1 0805-0809 ●
44 02.810 HORN; HIGH NOTE
VOLTAGE 12V<TRQ> DUAL HEAVY DUTY HORN(6KK) 		8-98022-024-0 01 1 0810- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 0803-0803 ● ●
45 02.810 HORN; LOW NOTE
EXC. VOLTAGE 12V<TRQ> 		8-98022-023-0 01 1 0804-0804 ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 0804-0804 ● ●
45 02.810 HORN; LOW NOTE
EXC. VOLTAGE 12V<TRQ> 		8-98022-023-0 01 1 0805-0809 ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 0805-0809 ● ● ●
45 02.810 HORN; LOW NOTE
EXC. VOLTAGE 12V<TRQ> 		8-98022-023-0 01 1 0810- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 0810- ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 12V<TRQ> 		8-98022-025-0 01 1 0804-0804 ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 12V<TRQ> 		8-98022-025-0 01 1 0805-0809 ●
45 02.810 HORN; LOW NOTE
VOLTAGE 12V<TRQ> 		8-98022-025-0 01 1 0810- ● ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0803-0803 ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0803-0803 ● ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0804-1004 ● ● ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0804-1004 ● ● ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 0803- ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.331 (B) 		8-98020-514-0 01 1 0803-0803 ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.331 (B) 		8-98020-514-0 01 1 0804- ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCC ENG(RDU) 03.331 (B) 		8-98020-514-0 01 1 0804- ● ●
744 09.277 NUT; SENSOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0803-0803 ● ●
744 09.277 NUT; SENSOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ●
744 09.277 NUT; SENSOR
4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ●

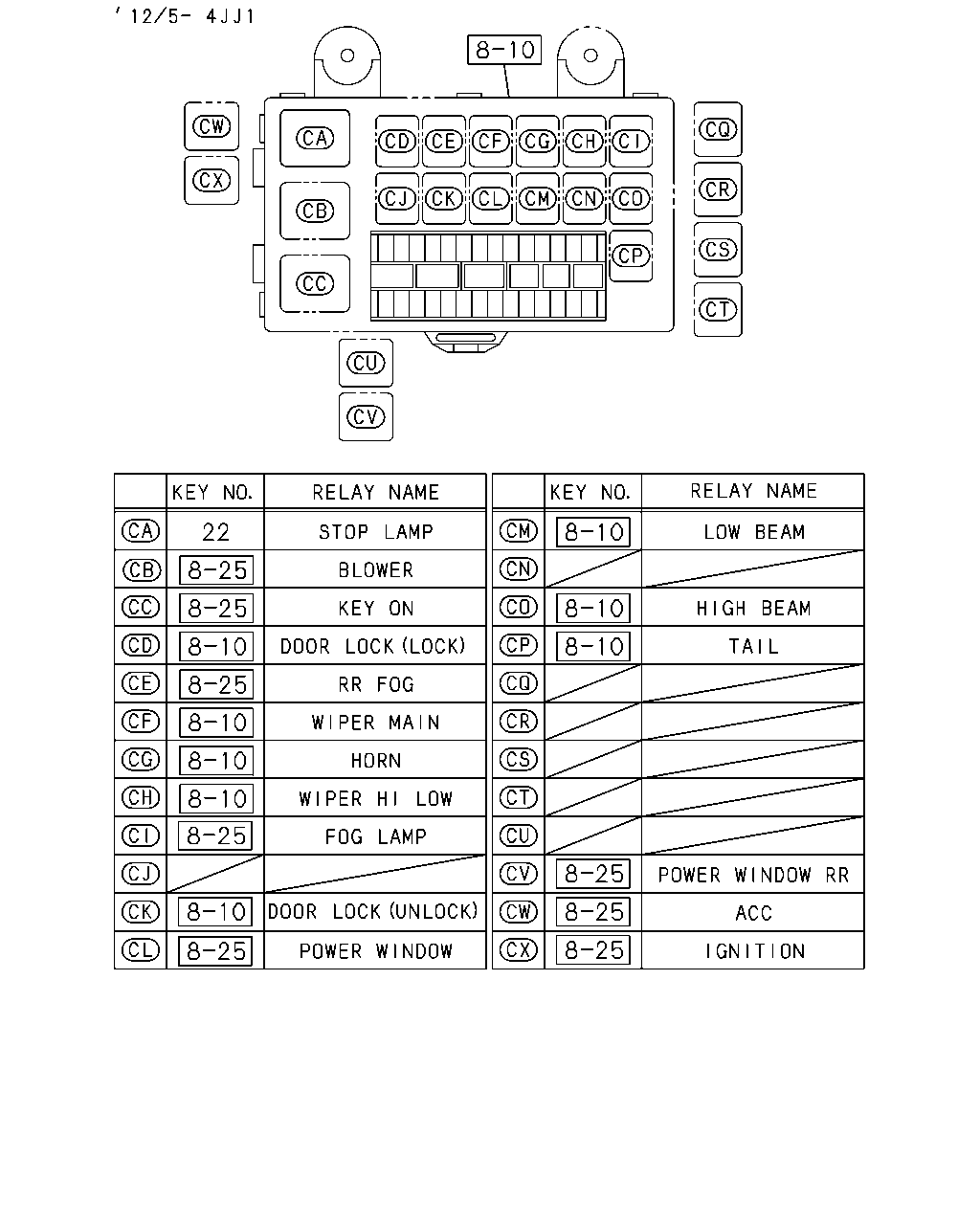

çizim 154190
22
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804-0804 ● ●
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0805-0809 ●
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0810- ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0803 ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ●

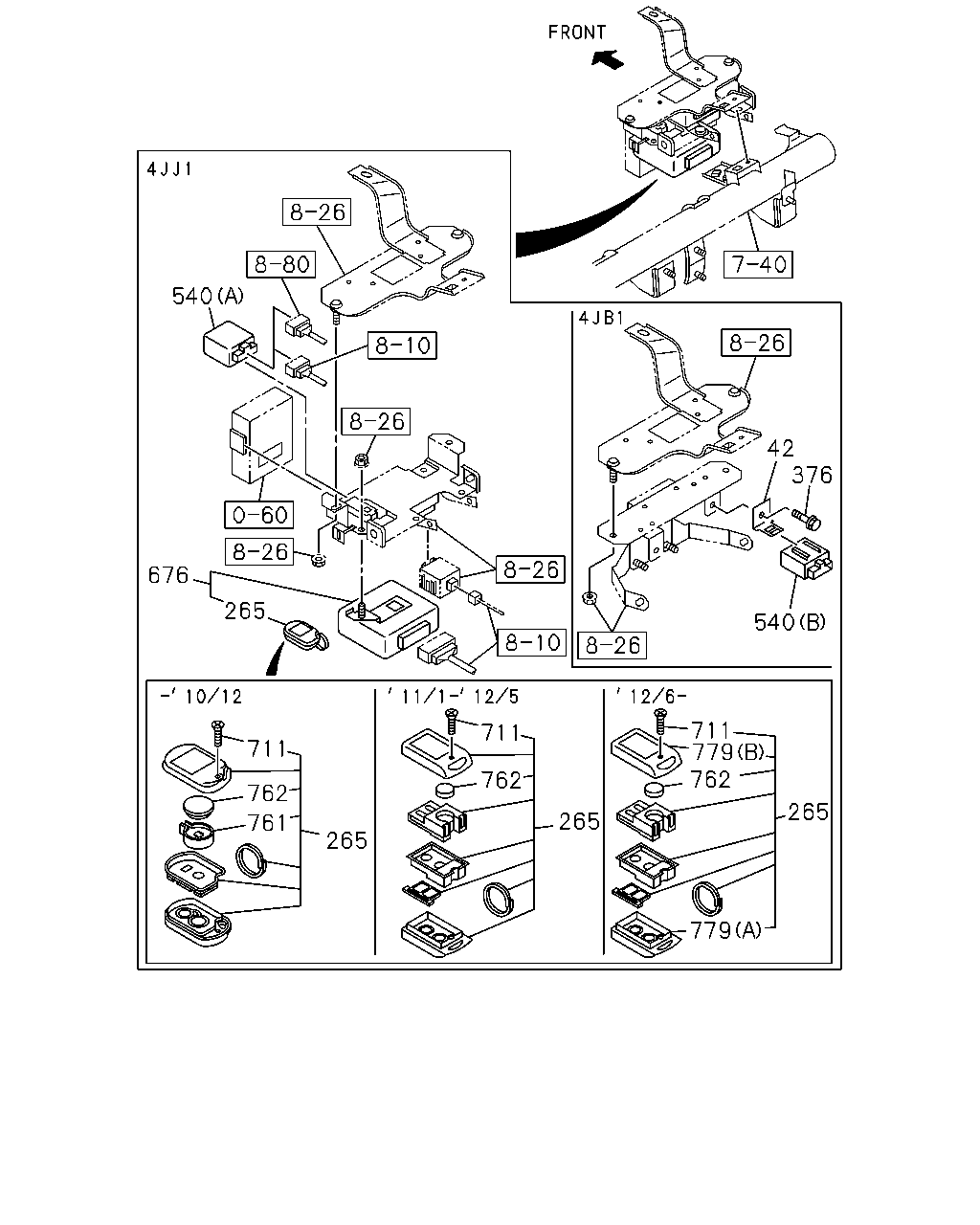

çizim 154192
540 676 265 42 540 376 711 779 762 265 779 265 762 711 762 711 761 265
BalonParca AdiParca NoAdetTipApplied Date A B C D
42 09.766 BRACKET; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 		8-98094-199-0 01 1 0804-0804 ● ●
42 09.766 BRACKET; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 		8-98094-199-0 01 1 0805-0809 ●
42 09.766 BRACKET; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 		8-98094-199-0 01 1 0810- ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98048-459-1 02 1 0803-0906 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98048-459-1 02 1 0907-1012 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98180-751-0 02 1 1101-1205 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98218-236-0 02 1 1206- ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98048-462-1 02 1 0803-1012 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98178-860-0 02 1 1101-1205 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98218-235-0 02 1 1206-1309 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-522-0 02 1 1310- ● ●
376 03.342 BOLT; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0804-0804 ● ●
376 03.342 BOLT; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0805-0809 ●
376 03.342 BOLT; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0810- ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 0803-0803 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98060-388-0 01 1 0804-0804 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 0804-0804 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98060-388-0 01 1 0805-0809 ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 0805-0809 ● ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98060-388-0 01 1 0810-0906 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 0810-0906 ● ●
540 16.067 RELAY; WIPER INTERVAL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98060-388-0 01 1 0907-1308 ● ●
540 16.067 RELAY; WIPER INTERVAL
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 0907-1308 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98233-976-0 01 1 1309- ● ●
540 16.067 RELAY; WIPER INTERVAL
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> (A) 		8-98233-976-0 01 1 1309- ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> (B) 		8-98032-320-1 01 1 0804-0804 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> (B) 		8-98032-320-1 01 1 0805-0809 ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> (B) 		8-98032-320-1 01 1 0810- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98044-504-1 01 1 0803-0906 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98044-504-1 01 1 0907-1012 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98181-810-0 01 1 1101-1205 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98218-233-0 01 1 1206- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98048-469-1 01 1 0803-1012 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98181-812-0 01 1 1101-1205 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98218-234-0 01 1 1206-1309 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-524-0 01 1 1310- ● ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 0803-0906 ● ●
711 02.510 SCREW; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 0907-1205 ● ●
711 02.510 SCREW; TRANSMITTER
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) M2X5 		8-98078-067-0 02 1 0907-1205 ● ●
711 02.510 SCREW; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1206- ● ●
711 02.510 SCREW; TRANSMITTER
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) M2X5 		8-98218-239-0 02 1 1206- ● ●
761 04.439 HOLDER; BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-063-0 02 1 0803-0906 ● ●
761 04.439 HOLDER; BATTERY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98078-063-0 02 1 0907-1012 ● ●
761 04.439 HOLDER; BATTERY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98078-063-0 02 1 0907-1012 ● ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 0803-0906 ● ●
762 02.559 BATTERY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 0907- ● ●
762 02.559 BATTERY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 		8-98078-061-0 02 1 0907- ● ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (A) 		8-98218-240-0 02 1 1206- ● ●
779 04.115 COVER; TRANSMITTER
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 02.510 (A) 		8-98218-240-0 02 1 1206- ● ●
779 04.115 COVER; TRANSMITTER
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 02.510 (B) 		8-98218-243-0 02 1 1206- ● ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98218-241-0 02 1 1206-1309 ● ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98250-559-0 02 1 1310- ● ●

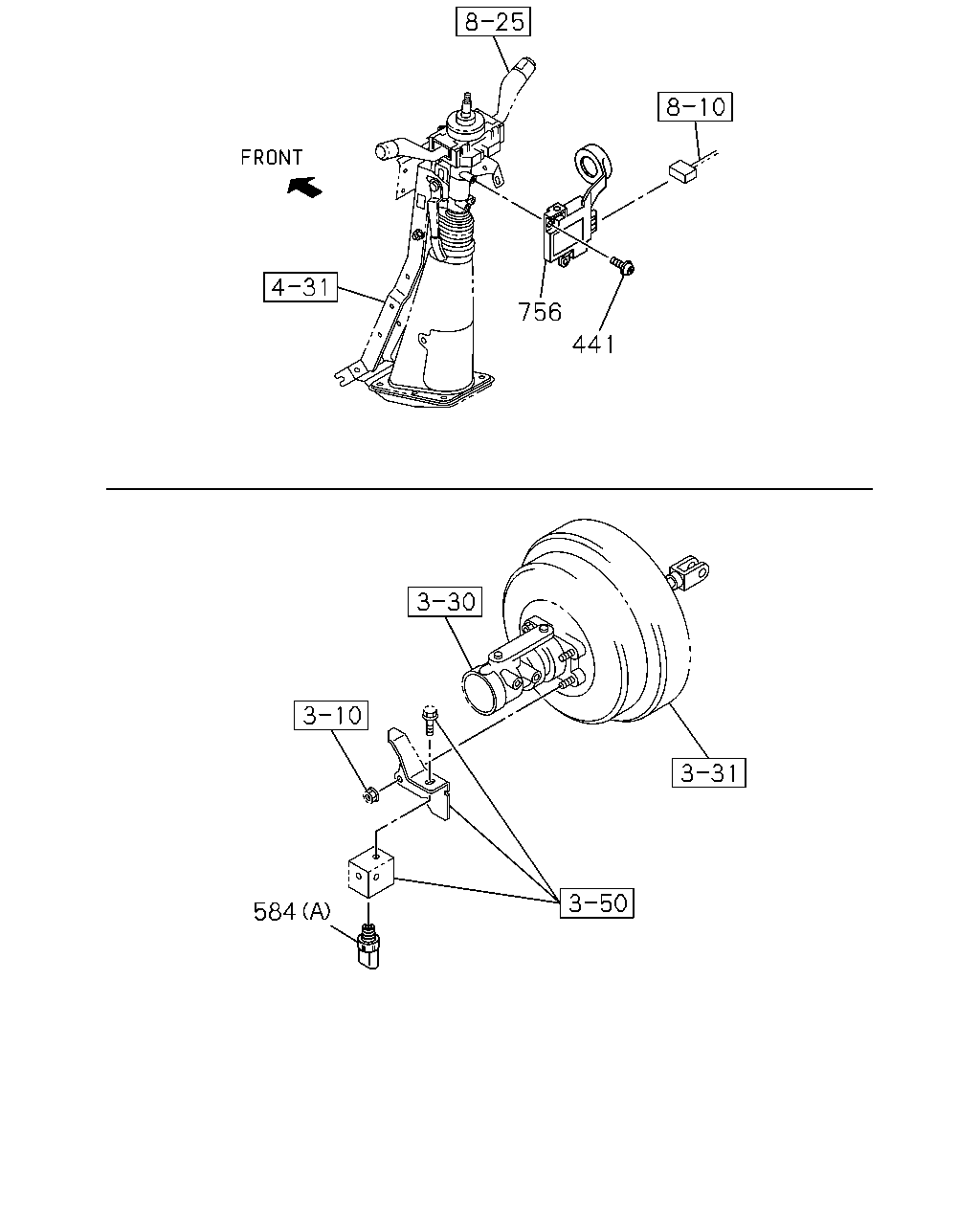

çizim 284275
756 441 584
BalonParca AdiParca NoAdetTipApplied Date A B C D
441 02.575 SCREW; CONT UNIT
IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0803- ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 0803- ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.331 (B) 		8-98020-514-0 01 1 0803-0803 ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.331 (B) 		8-98020-514-0 01 1 0804- ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCC ENG(RDU) 03.331 (B) 		8-98020-514-0 01 1 0804- ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM(7KC) 		8-98097-554-0 01 1 0803-1005 ●
756 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM(7KC) 		8-98158-127-0 01 1 1006- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
