◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#53147) — 97 parça

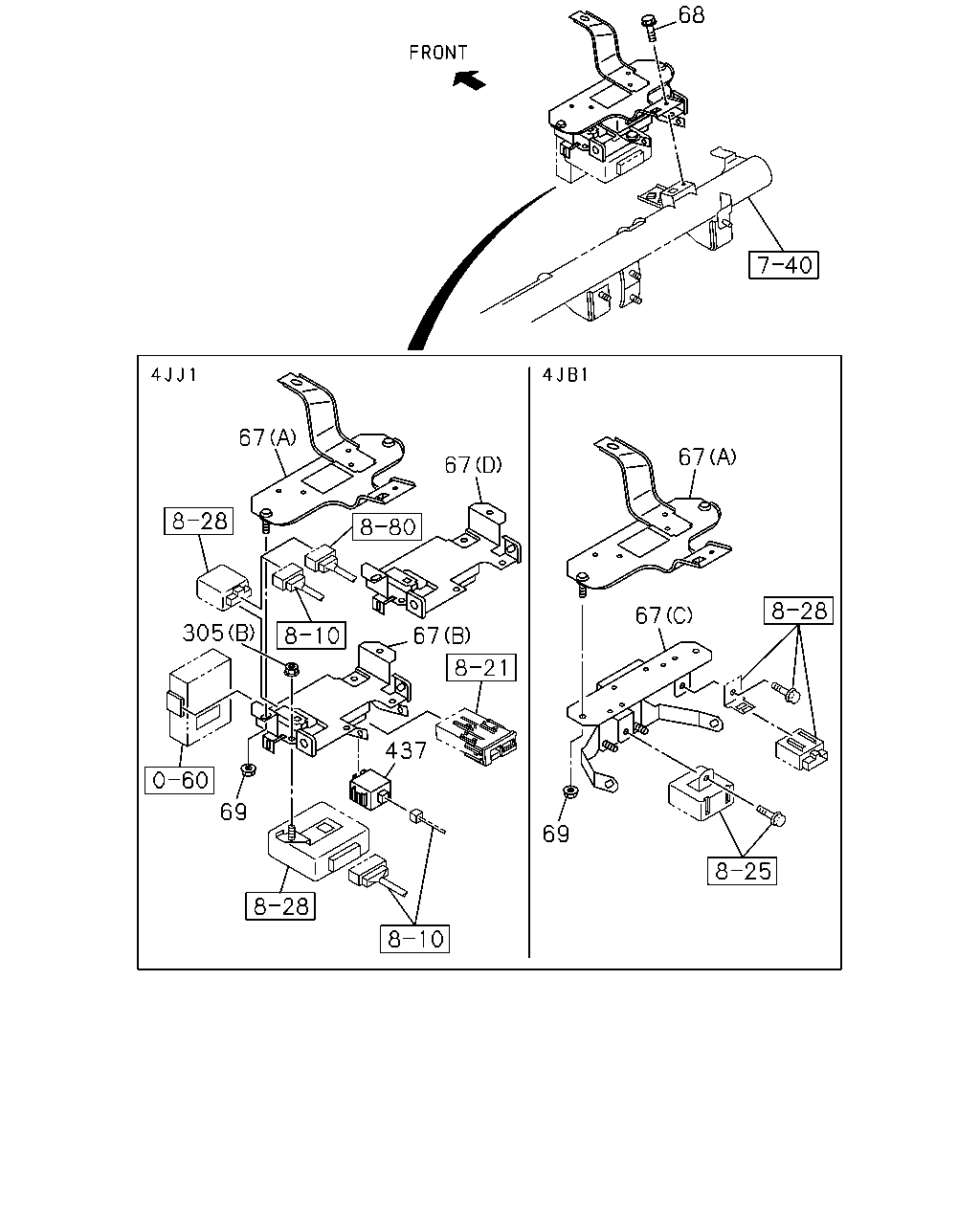

çizim 154167
69 67 67 437 67 67 67 305 69 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 0803-0803 ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 0804- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4JB1-TC ENG(RDT) (C) 		8-98072-631-4 01 1 0804-0804 ● ●
67 03.887 BRACKET; CONT UNIT
4JB1-TC ENG(RDT) (C) 		8-98072-631-4 01 1 0805-0809 ●
67 03.887 BRACKET; CONT UNIT
4JB1-TC ENG(RDT) (C) 		8-98072-631-4 01 1 0810- ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 0803-0803 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 0804-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 0804-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98022-206-2 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98237-554-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1405- ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0803-0803 ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0804- ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803-0803 ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0803-0906 ● ●
305 08.915 NUT; CONT UNIT
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0803- ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 0803-0803 ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. VOLTAGE 12V<TRQ> KOITO 		8-97359-129-0 01 1 0804-0804 ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 0804-0804 ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. VOLTAGE 12V<TRQ> KOITO 		8-97359-129-0 01 1 0805-0809 ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 0805-0809 ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. VOLTAGE 12V<TRQ> KOITO 		8-97359-129-0 01 1 0810- ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 0810- ●

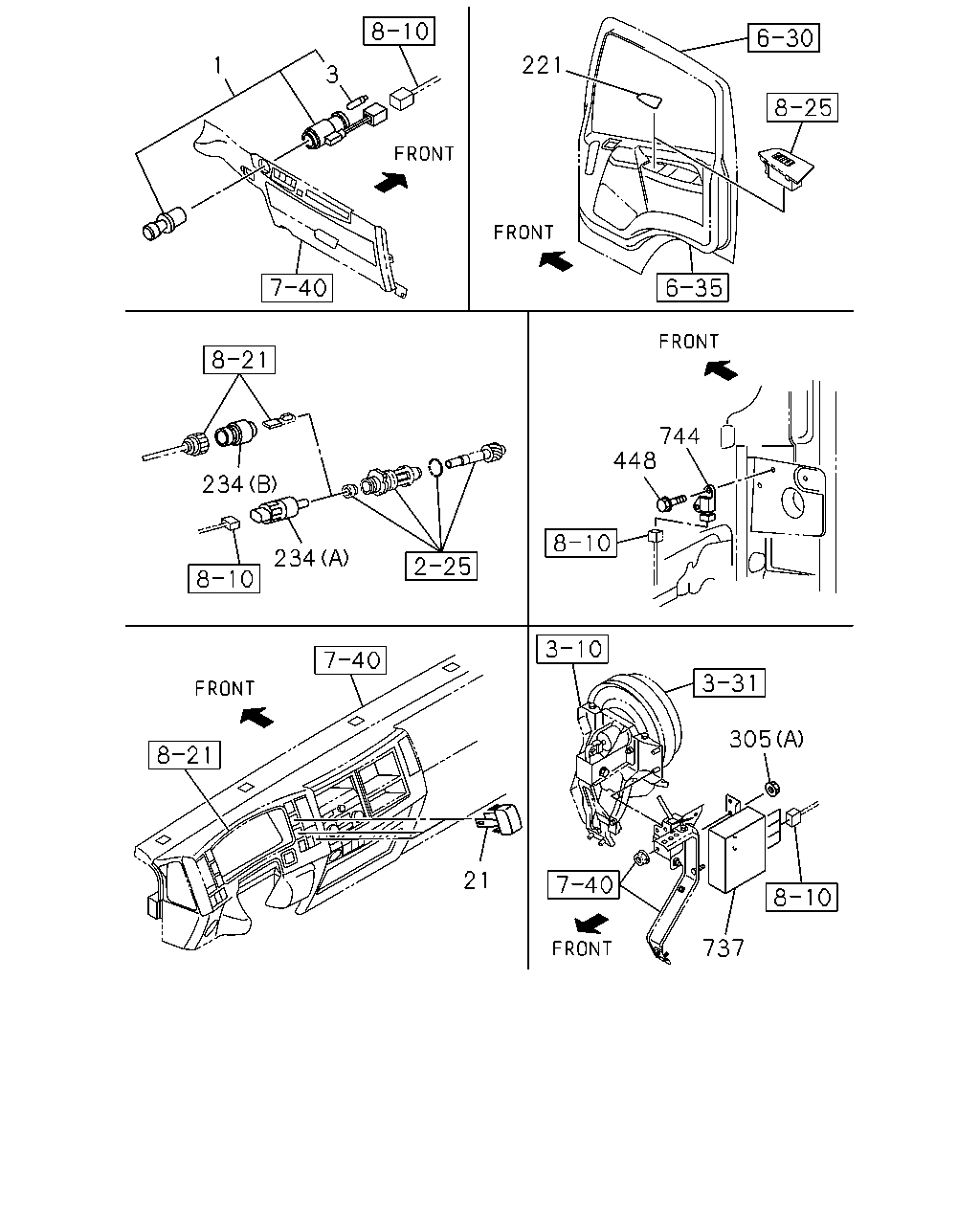

çizim 154180
221 1 3 744 448 234 234 305 21 737
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0803-0803 ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 12V<TRQ> 		8-97320-325-0 01 1 0804-0804 ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0804-0804 ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 12V<TRQ> 		8-97320-325-0 01 1 0805-0809 ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0805-0809 ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 12V<TRQ> 		8-97320-325-0 01 1 0810-0906 ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0810-0906 ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 12V<TRQ> 		8-98142-962-0 01 1 0907- ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 12V<TRQ> 		8-97320-322-0 01 1 0804-0804 ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 12V<TRQ> 		8-97320-322-0 01 1 0805-0809 ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 12V<TRQ> 		8-97320-322-0 01 1 0810-0906 ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 12V<TRQ> 		8-97314-003-0 01 1 0907- ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0803-0803 ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 12V<TRQ> 28V 1.8W 		8-97173-159-0 01 1 0804-0804 ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0804-0804 ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 12V<TRQ> 28V 1.8W 		8-97173-159-0 01 1 0805-0809 ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0805-0809 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 12V<TRQ> 28V 1.8W 		8-97173-159-0 01 1 0810-0906 ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0810-0906 ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 12V<TRQ> 14V 1.4W 		8-97173-160-0 01 1 0804-0804 ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 12V<TRQ> 14V 1.4W 		8-97173-160-0 01 1 0805-0809 ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 12V<TRQ> 14V 1.4W 		8-97173-160-0 01 1 0810-0906 ● ●
21 09.744 COVER; HOLE
EXC. CHILE EQUIPMENT(KE1) 16.081 		8-98025-954-1 01 1 0803-0803 ● ●
21 09.744 COVER; HOLE
EXC. CHILE EQUIPMENT(KE1) 16.081 		8-98025-954-1 01 1 0804-1106 ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 0804-1106 ● ●
21 09.744 COVER; HOLE
ARGENTINA COUNTRY(CX1) 16.081 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),CHILE EQUIPMENT(KE1) 16.081 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0803-0803 ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0804- ● ● ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0803-0803 ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0804- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 0804- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0803-0803 ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0804- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 0804- ● ●
234 03.682 SENSOR; VEHICLE SPD
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.750 (B) 		8-98035-238-0 01 1 0803-0803 ●
234 03.682 SENSOR; VEHICLE SPD
VOLTAGE 12V<TRQ> (A) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0804-0804 ● ●
234 03.682 SENSOR; VEHICLE SPD
VOLTAGE 12V<TRQ> (A) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0805-0809 ●
234 03.682 SENSOR; VEHICLE SPD
VOLTAGE 12V<TRQ> (A) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0810- ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803-0803 ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VOLTAGE 12V<TRQ> (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0804-0804 ● ●
234 03.682 SENSOR; VEHICLE SPD
(A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0804-0804 ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VOLTAGE 12V<TRQ> (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0805-0809 ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0805-0809 ●
234 03.682 SENSOR; VEHICLE SPD
(A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0805-0809 ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VOLTAGE 12V<TRQ> (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0810- ● ●
234 03.682 SENSOR; VEHICLE SPD
(A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0810- ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0803-0906 ● ●
305 08.915 NUT; CONT UNIT
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0803- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 0803- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-710-6 01 1 0803- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0803- ● ●
