8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#53146) — 389 parça

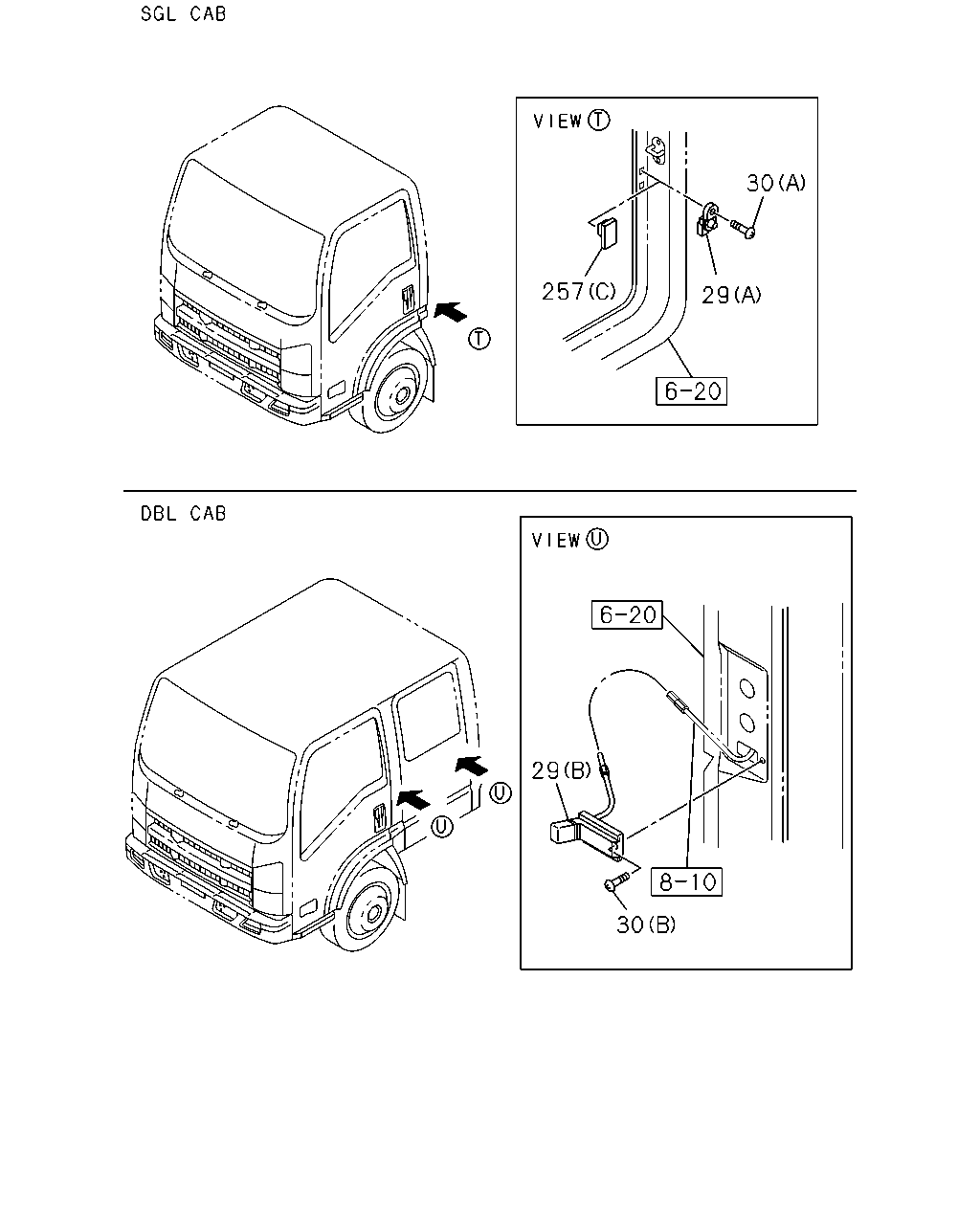

çizim 154170
30 257 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 0803- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0803- ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0803- ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0803- ● ●
29 16.263 SWITCH; DOOR
(B)FRONT 		8-97855-032-3 01 1 0804- ● ●
29 16.263 SWITCH; DOOR
(B)FRONT 		8-97855-032-3 01 1 0804- ● ●
29 16.263 SWITCH; DOOR
(B)REAR 		8-98054-195-0 01 1 0804- ● ●
29 16.263 SWITCH; DOOR
(B)REAR 		8-98054-195-0 01 1 0804- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0803- ● ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0803- ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0803- ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 01 1 0803- ● ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0804-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0907- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 0803- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0803-0803 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0803-0803 ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0804-0906 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0804-0906 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0804-0906 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ●
çizim 154171
608 674 151 154 315
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0803 ● ●
151 09.277 RELAY; HTR & A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0803 ● ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.510 12V 20A 		8-97173-037-1 01 1 0804-0804 ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.510 12V 20A 		8-97173-037-1 01 1 0805-0809 ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.510 12V 20A 		8-97173-037-1 01 1 0810- ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0803-1402 ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
674 02.510 RELAY; BATTERY
FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 08.852 (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0908- ● ●
674 02.510 RELAY; BATTERY
4JB1-TC ENG(RDT) (A) 12V 20A 		8-97173-037-1 01 1 0804-0804 ● ●
674 02.510 RELAY; BATTERY
4JB1-TC ENG(RDT) (A) 12V 20A 		8-97173-037-1 01 1 0805-0809 ●
674 02.510 RELAY; BATTERY
4JB1-TC ENG(RDT) (A) 12V 20A 		8-97173-037-1 01 1 0810- ● ●

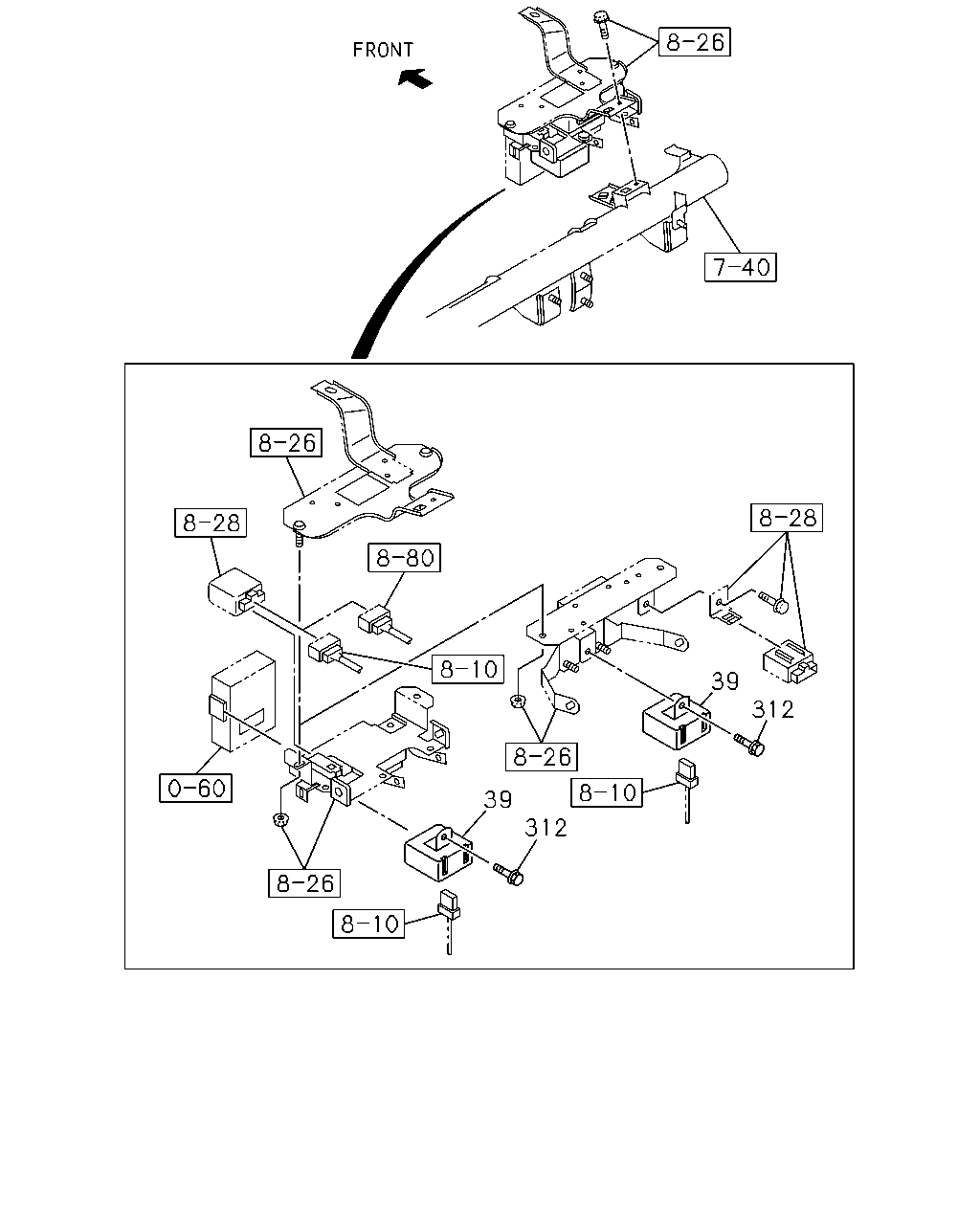

çizim 154174
39 312 312 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0803-0803 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ>,REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0804-0804 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0804-0804 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ>,REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0805-0809 ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0805-0809 ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0805-0809 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ>,REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0810-0906 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0810-0906 ● ●
39 16.341 RELAY; DOOR LK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ>,REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ●
39 16.341 RELAY; DOOR LK
4JJ1-TCC ENG(RDU) AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0907- ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 		8-97359-591-0 01 1 0804-0804 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 		8-97359-591-0 01 1 0805-0809 ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 		8-97359-591-0 01 1 0810- ● ●
312 02.483 BOLT; RELAY
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0804-0804 ● ●
312 02.483 BOLT; RELAY
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0805-0809 ●
312 02.483 BOLT; RELAY
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0810- ● ●

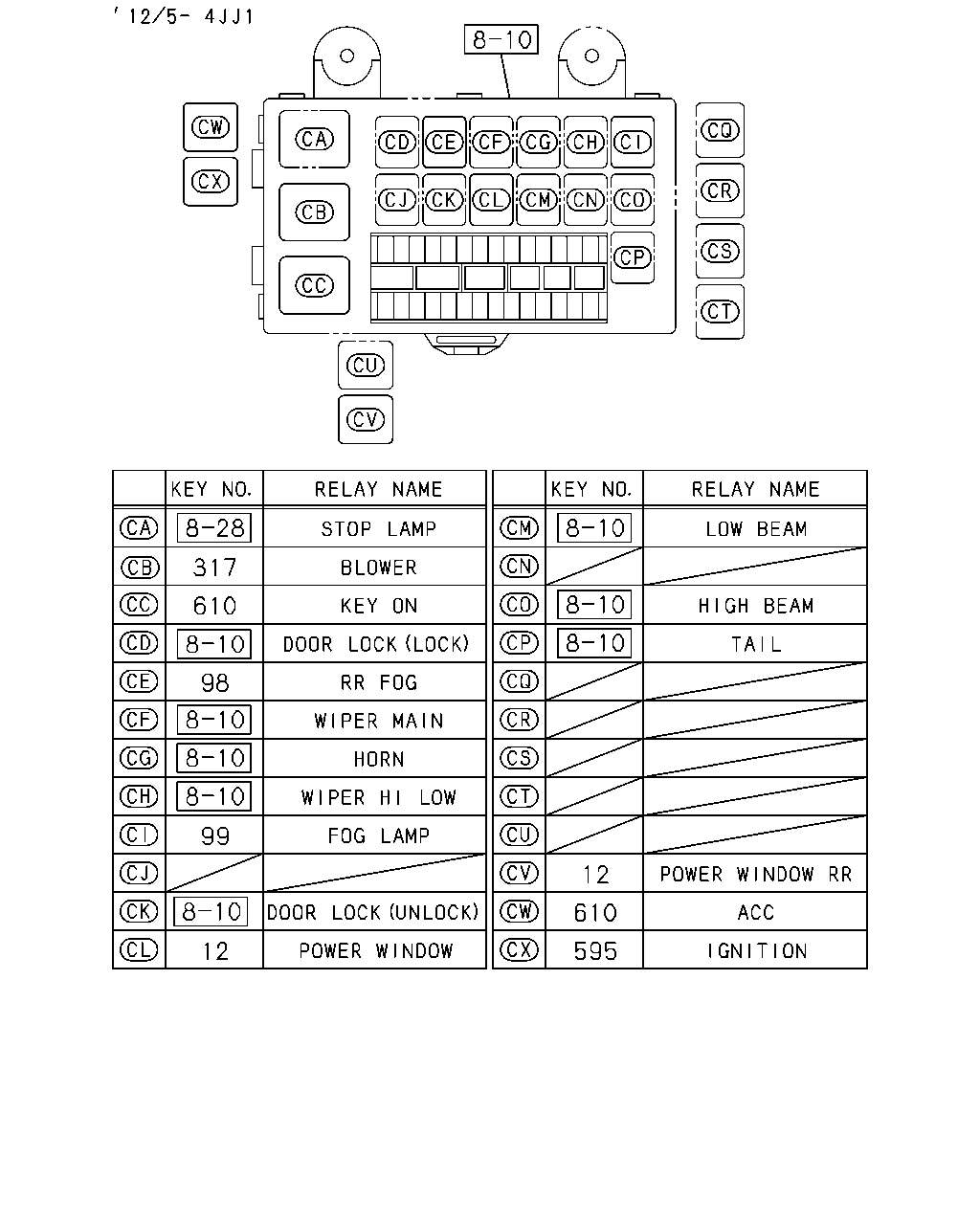

çizim 154178
317 610 98 99 12 610 12 595
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0804-0804 ● ●
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0805-0809 ●
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0810- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0803 ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ●
98 02.485 RELAY; RR FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803- ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A 		8-97210-972-1 01 1 0804-0804 ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A 		8-97210-972-1 01 1 0805-0809 ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A 		8-97210-972-1 01 1 0810-1509 ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 09.277 12V 30A 		8-97210-972-1 01 1 1510- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0803 ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-1509 ● ● ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1510- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1510- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0803 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0804-0804 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0805-0809 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0810- ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804-0804 ● ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0805-0809 ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0810- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0803 ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-1204 ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-1204 ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

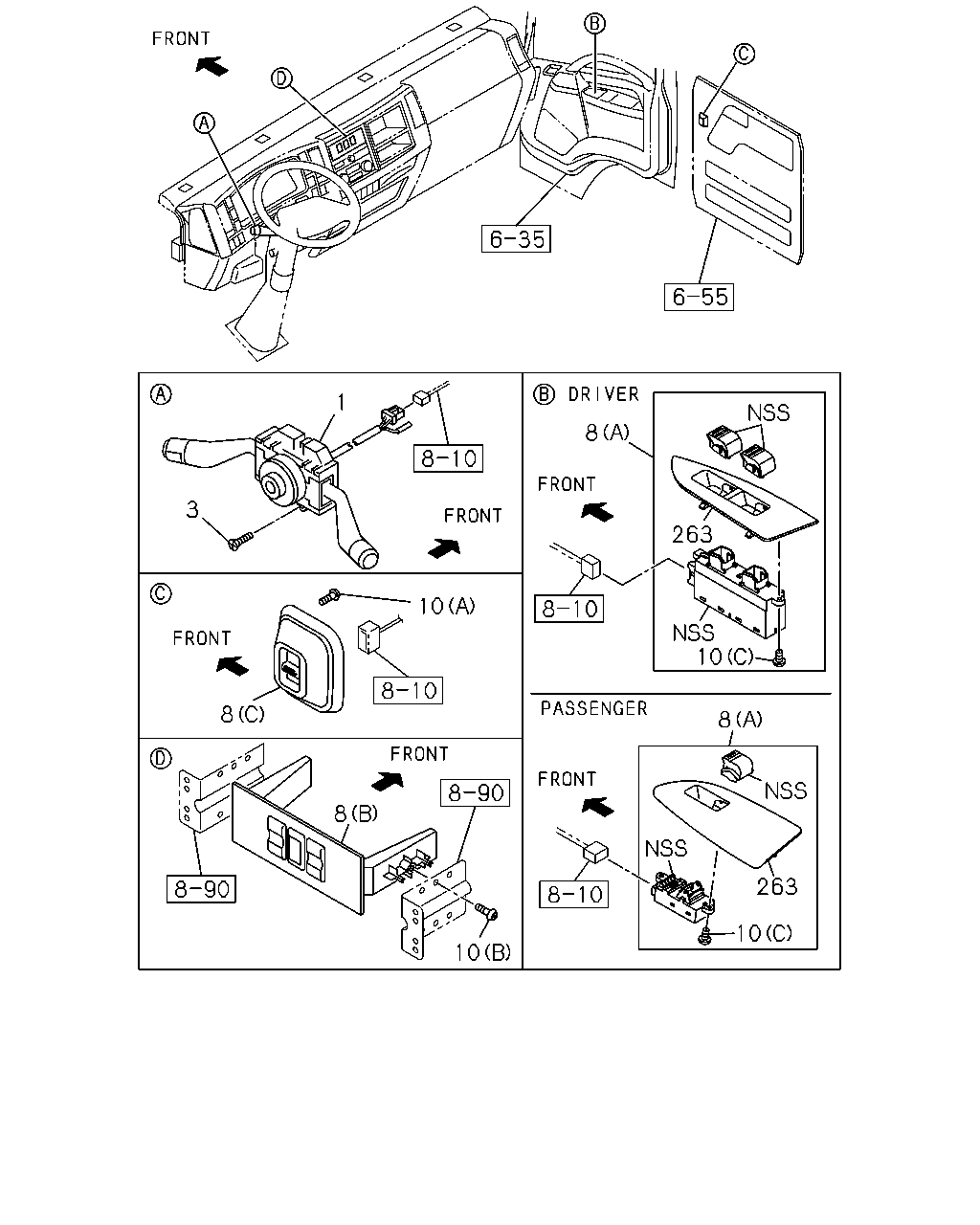

çizim 154181
1 8 3 263 10 10 8 8 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98146-640-0 01 1 1006-1210 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98217-813-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98243-739-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98146-638-0 01 1 1006-1210 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98217-811-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98243-738-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98070-015-1 01 1 0803-0803 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 		8-98070-015-1 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 		8-98070-015-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98070-015-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 		8-98070-015-1 01 1 0810-0905 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 		8-98146-639-0 01 1 0906-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 		8-98217-812-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 		8-98243-740-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 0803-0803 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 0805-0809 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98070-010-1 01 1 0803-0803 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ>,RR F OG LAMP<T79> 		8-98070-010-1 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98070-010-1 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ>,RR F OG LAMP<T79> 		8-98070-010-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98070-010-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98070-010-1 01 1 0805-0809 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ>,RR F OG LAMP<T79> 		8-98070-010-1 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98070-010-1 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ>,RR F OG LAMP<T79> 		8-98243-749-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-749-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98073-850-1 01 1 0803-0803 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ> 		8-98073-850-1 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ> 		8-98073-850-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98073-850-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ> 		8-98073-850-1 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ> 		8-98243-757-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 0803-0803 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98070-007-2 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98070-007-2 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98070-007-2 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98243-750-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-667-2 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-667-2 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-667-2 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98243-752-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98072-675-2 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98072-675-2 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98072-675-2 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-754-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-669-1 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-669-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-669-1 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98243-751-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. RR FOG LAMP<T79> 		8-98072-674-1 01 1 0804-0804 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. RR FOG LAMP<T79> 		8-98072-674-1 01 1 0805-0809 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. RR FOG LAMP<T79> 		8-98072-674-1 01 1 0810-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. RR FOG LAMP<T79> 		8-98243-753-0 01 1 1311- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0803-0803 ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0804- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 0803-0803 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 0804-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98001-737-2 01 1 0804-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98003-784-1 01 1 0803-0803 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98003-784-1 01 1 0804-0804 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98003-784-1 01 1 0804-0804 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98003-784-1 01 1 0805-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98003-784-1 01 1 0805-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98003-784-1 01 1 0805-0809 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98003-784-1 01 1 0810-0810 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98003-784-1 01 1 0810-0810 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98129-845-0 01 1 0810-1001 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98129-845-0 01 1 0810-1001 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1002-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1002-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98028-816-4 01 1 0804-0804 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98028-816-4 01 1 0805-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98028-816-4 01 1 0810-0810 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98129-848-0 01 1 0810-1001 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98159-546-0 01 1 1002-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98298-753-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 0804- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 0804- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 01 1 0803-0803 ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 01 1 0804- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 01 1 0804- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 02 1 0803-0803 ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 02 1 0804- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 02 1 0804- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0804- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-838-0 01 1 0803-0803 ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-838-0 01 1 0804- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98153-838-0 01 1 0804- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-843-0 01 1 0803-0803 ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-843-0 01 1 0804- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98153-843-0 01 1 0804- ● ●

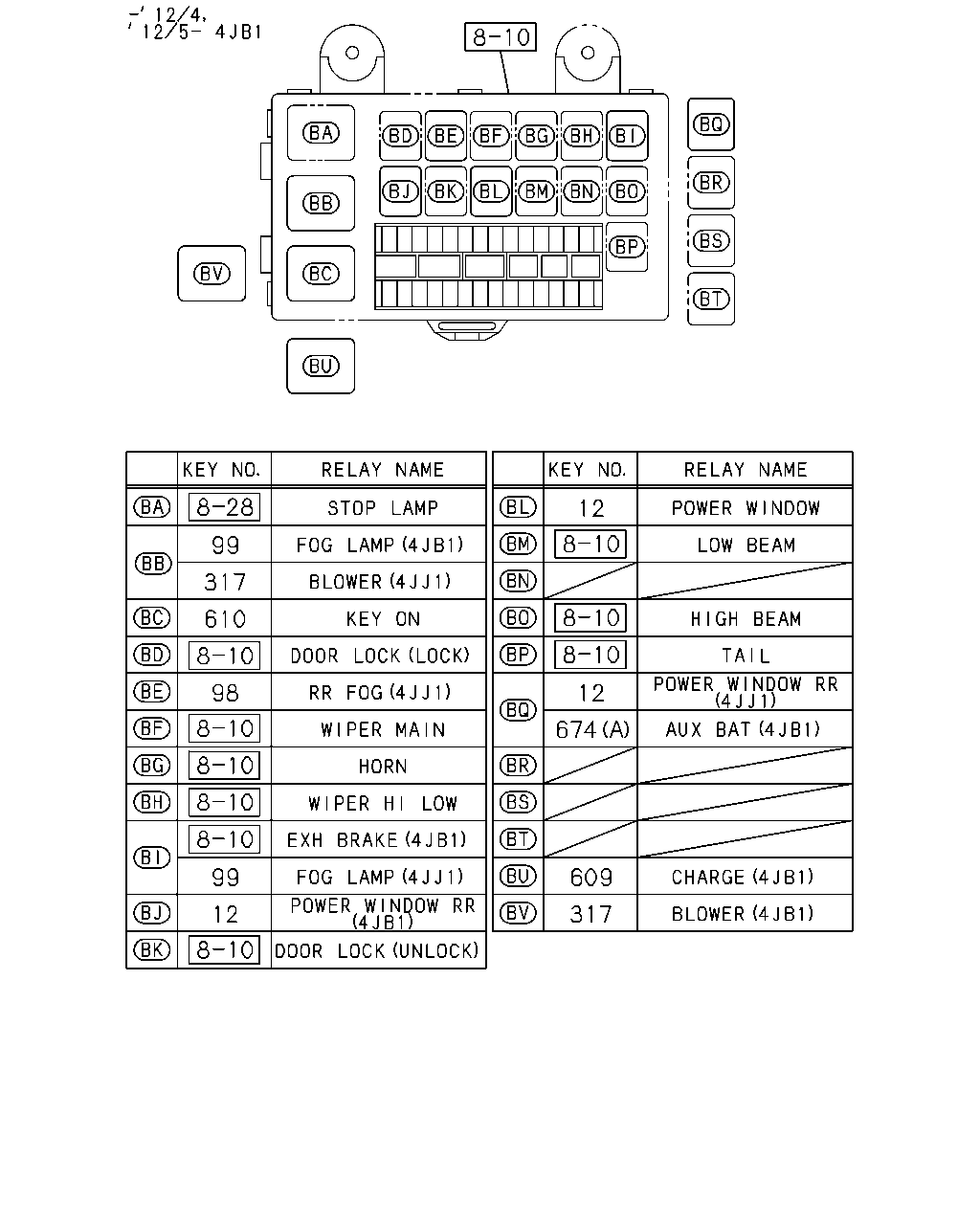

çizim 154182
12 99 317 610 98 12 674 99 609 317 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0804-0804 ● ●
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0805-0809 ●
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0810- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0803 ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ●
98 02.485 RELAY; RR FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803- ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A 		8-97210-972-1 01 1 0804-0804 ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A 		8-97210-972-1 01 1 0805-0809 ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A 		8-97210-972-1 01 1 0810-1509 ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 09.277 12V 30A 		8-97210-972-1 01 1 1510- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0803 ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-1509 ● ● ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1510- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1510- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0803 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0804-0804 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0805-0809 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0810- ● ●
609 02.485 RELAY; CHARGE
4JB1-TC ENG(RDT) 02.510 12V 		8-97063-441-2 01 1 0804-0804 ● ●
609 02.485 RELAY; CHARGE
4JB1-TC ENG(RDT) 02.510 12V 		8-97063-441-2 01 1 0805-0809 ●
609 02.485 RELAY; CHARGE
4JB1-TC ENG(RDT) 02.510 12V 		8-97063-441-2 01 1 0810- ● ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804-0804 ● ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0805-0809 ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0810- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0803 ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-1204 ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-1204 ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
674 02.510 RELAY; BATTERY
FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 08.852 (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0908- ● ●
674 02.510 RELAY; BATTERY
4JB1-TC ENG(RDT) (A) 12V 20A 		8-97173-037-1 01 1 0804-0804 ● ●
674 02.510 RELAY; BATTERY
4JB1-TC ENG(RDT) (A) 12V 20A 		8-97173-037-1 01 1 0805-0809 ●
674 02.510 RELAY; BATTERY
4JB1-TC ENG(RDT) (A) 12V 20A 		8-97173-037-1 01 1 0810- ● ●

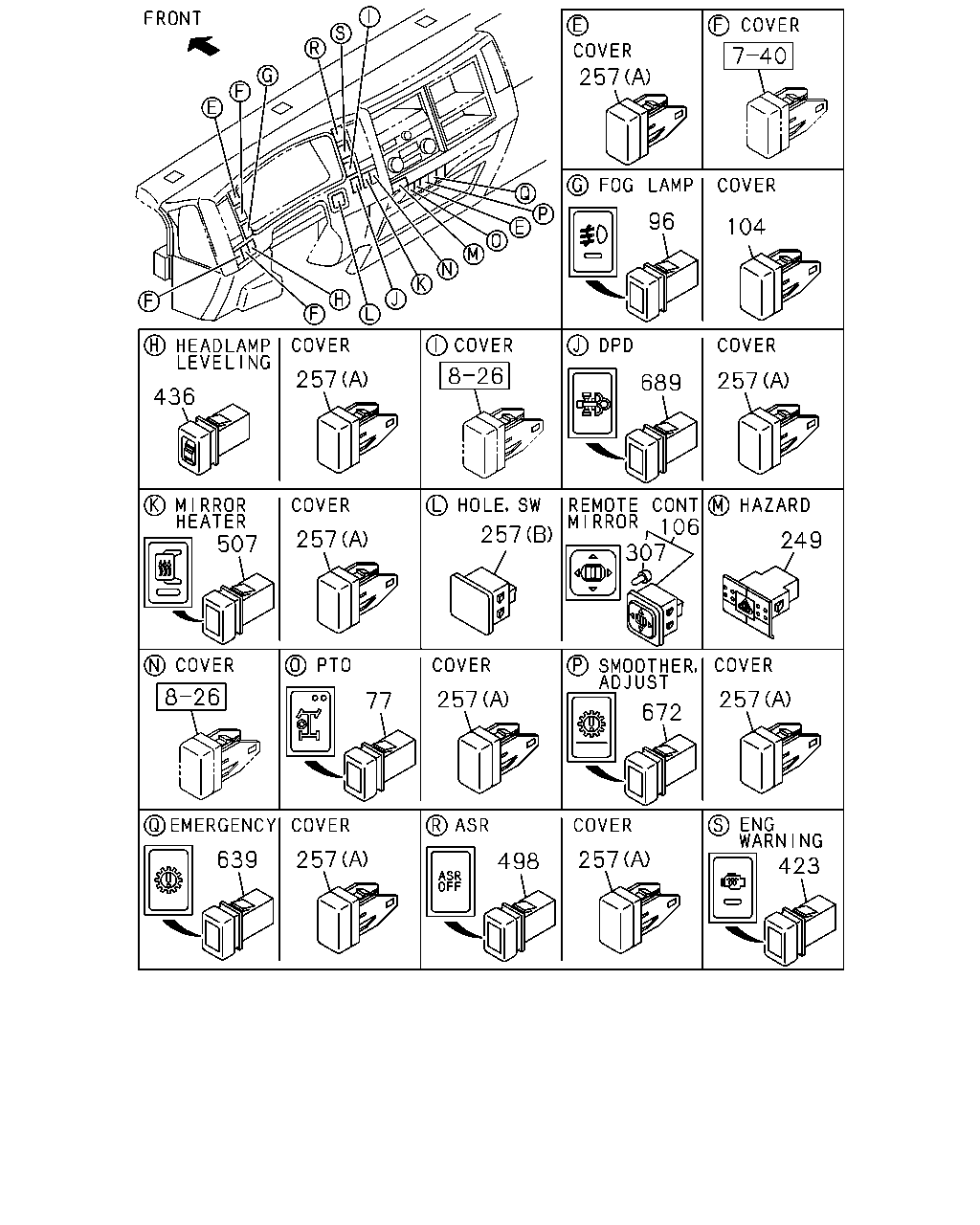

çizim 154204
257 96 104 257 257 689 436 507 106 307 257 257 249 257 257 77 672 423 257 257 639 498
BalonParca AdiParca NoAdetTipApplied Date A B C D
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0803- ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66),PTO T/M SIDEDIRECT PUMP(8KZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0803- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0803-0803 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97387-031-4 01 1 0804-0804 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0804-0804 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97387-031-4 01 1 0805-0809 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0805-0809 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97387-031-4 01 1 0810-1509 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0810-1509 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> EXC. VOLTAGE 12V<TRQ> 		8-97387-031-4 01 1 1510- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1510- ● ●
96 02.485 SWITCH; FOG LAMP
VOLTAGE 12V<TRQ> FOG LAMP<T96> 		8-98022-021-1 01 1 0804-0804 ● ●
96 02.485 SWITCH; FOG LAMP
VOLTAGE 12V<TRQ> FOG LAMP<T96> 		8-98022-021-1 01 1 0805-0809 ●
96 02.485 SWITCH; FOG LAMP
VOLTAGE 12V<TRQ> FOG LAMP<T96> 		8-98022-021-1 01 1 0810-1509 ● ●
96 02.485 SWITCH; FOG LAMP
VOLTAGE 12V<TRQ> FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98022-021-1 01 1 1510- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 0803-0803 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 0804-1509 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1510- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1510- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0803-0803 ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. VOLTAGE 12V<TRQ> 		8-97173-294-1 01 1 0804- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0803-0803 ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 12V<TRQ> 		8-97386-922-1 01 1 0804- ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 12V<TRQ> 		8-98011-707-2 01 1 0804-0804 ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 12V<TRQ> 		8-98011-707-2 01 1 0805-0809 ●
249 02.485 SWITCH; HAZARD
VOLTAGE 12V<TRQ> 		8-98011-707-2 01 1 0810- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0804-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0907- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 0803- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0803-0803 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0803-0803 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0803-0803 ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0804-0906 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0804-0906 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 0804-0906 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0804-0906 ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0803-0803 ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. VOLTAGE 12V<TRQ> 24V 		8-98226-896-0 01 1 0804- ● ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) 		8-97387-010-1 01 1 0803-0803 ● ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) EXC. VOLTAGE 12V<TRQ> 		8-97387-010-1 01 1 0804-0804 ● ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) EXC. VOLTAGE 12V<TRQ> 		8-97387-010-1 01 1 0805-0809 ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) 		8-97387-010-1 01 1 0805-0809 ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) EXC. VOLTAGE 12V<TRQ> 		8-97387-010-1 01 1 0810-1106 ● ●
423 03.883 SWITCH; ENG WARMING
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. ARGENTINA COUNTRY(CX1),VOLTAGE 12V<TRQ> 		8-97387-010-2 01 1 1107- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 0803-0803 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. VOLTAGE 12V<TRQ> 		8-97386-981-2 01 1 0804-0804 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 0804-0804 ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. VOLTAGE 12V<TRQ> 		8-97386-981-2 01 1 0805-0809 ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 0805-0809 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. VOLTAGE 12V<TRQ> 		8-97386-981-2 01 1 0810- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 0810- ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 0803-0803 ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> EXC. VOLTAGE 12V<TRQ> 		8-97386-920-2 01 1 0804-0804 ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> EXC. VOLTAGE 12V<TRQ> 		8-97386-920-2 01 1 0805-0809 ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 0805-0809 ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> EXC. VOLTAGE 12V<TRQ> 		8-97386-920-2 01 1 0810- ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 0803-0803 ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. VOLTAGE 12V<TRQ> 		8-97386-924-3 01 1 0804-0804 ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. VOLTAGE 12V<TRQ> 		8-97386-924-3 01 1 0805-0809 ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 0805-0809 ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. VOLTAGE 12V<TRQ> 		8-97386-924-3 01 1 0810- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97387-000-2 01 1 0803-0806 ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0807- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-971-2 01 1 0803-0806 ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0807- ● ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 0803- ● ●
çizim 284264
26 385 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0803-0803 ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0804-0804 ● ●
21 02.575 SWITCH; CLU
4JJ1-TCC ENG(RDU) 		8-97358-248-0 01 1 0804-0804 ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0805-0805 ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 0805-0805 ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0805-0809 ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0805-0809 ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 0805-0809 ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0810- ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 0810- ● ●
26 03.636 SWITCH; ACCEL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0804-0804 ● ●
26 03.636 SWITCH; ACCEL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0805-0805 ●
385 08.909 SCREW; ACCEL SW
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING 		0-71340-316-0 02 1 0804-0804 ● ●
385 08.909 SCREW; ACCEL SW
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING 		0-71340-316-0 02 1 0805-0805 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
