◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#53139) — 81 parça

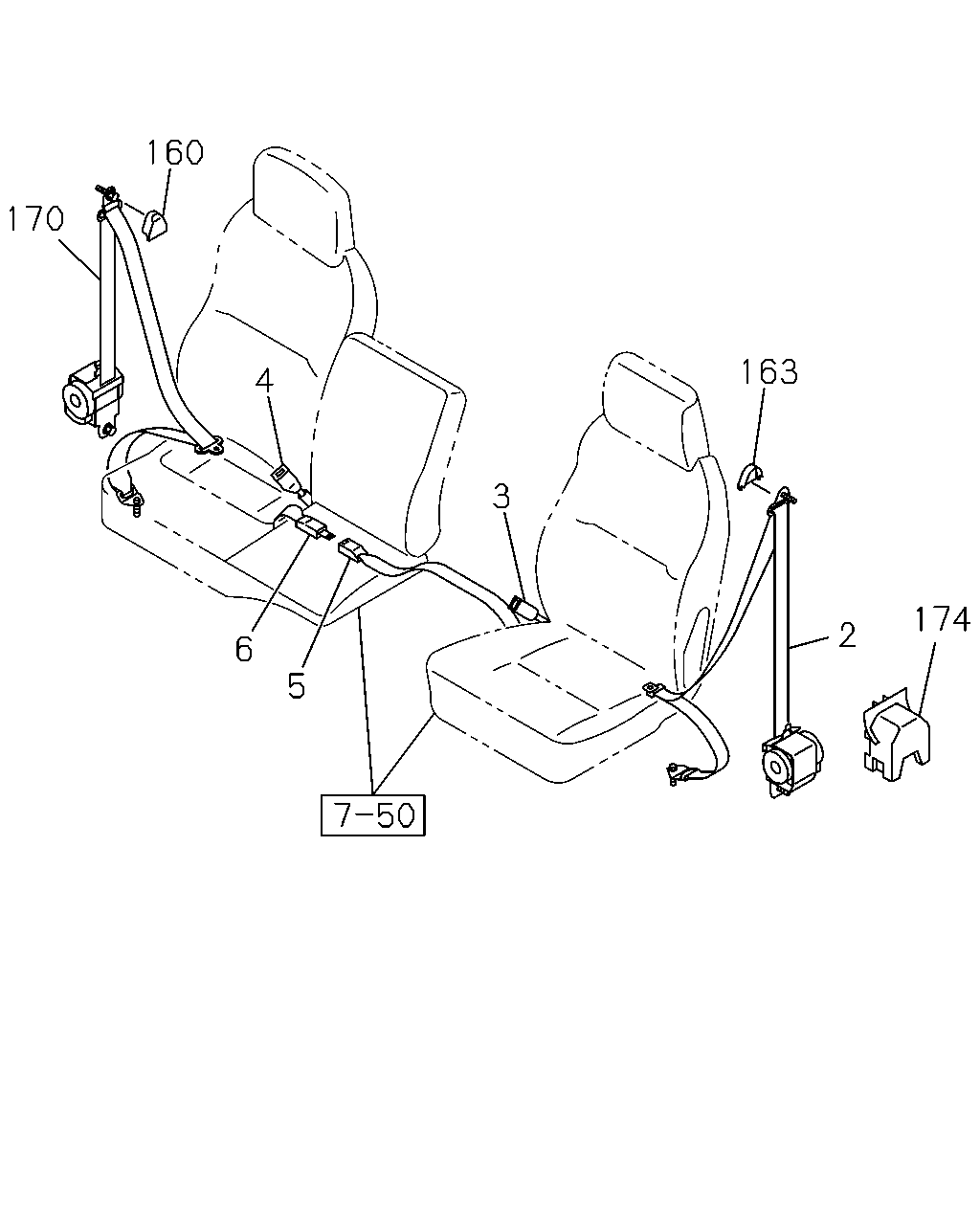

çizim 153989
160 170 163 4 3 174 2 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,TAIWAN EQUIPMENT(B04) GRAY 		8-97405-180-7 01 1 0901-1310 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) EXC. IDENTIFICATION LABEL FOR KD<6UT> GRAY 		8-97405-180-7 01 1 0901-1310 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 0901-1310 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-087-0 01 1 1311- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> GRAY 		8-97428-087-0 01 1 1311- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 0803-1310 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97405-179-9 01 1 1311-1406 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-456-0 01 1 1407- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> GRAY 		8-97405-180-5 01 1 0803-0803 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> GRAY 		8-97405-180-5 01 1 0804-0812 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-5 01 1 0804-0812 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> GRAY 		8-97405-180-7 02 1 0901-1310 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,TAIWAN EQUIPMENT(B04) GRAY 		8-97405-180-7 01 1 1311-1406 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1311-1406 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,TAIWAN EQUIPMENT(B04) GRAY 		8-97428-457-1 01 1 1407- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-1 01 1 0803-0803 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 0804- ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 0803-0803 ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 0804- ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 0803-0803 ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 0804- ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY 		8-97428-088-0 01 1 1311- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-1 01 1 0803-0803 ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 0804-1310 ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97411-507-2 01 1 1311- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1311- ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT GRAY 		8-97405-991-0 01 1 0803-0803 ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT GRAY 		8-97405-991-0 01 1 0804-0812 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
EXC. TAIWAN EQUIPMENT(B04) FRONT GRAY 		8-97405-991-0 01 1 0901- ● ●
160 16.714 COVER; THROUGH ANCHOR
TAIWAN EQUIPMENT(B04) EXC. IDENTIFICATION LABEL FOR KD<6UT> FRONT GRAY 		8-97405-991-0 01 1 0901- ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT GRAY 		8-97405-991-0 01 1 0901- ● ●
160 16.714 COVER; THROUGH ANCHOR
REAR GRAY 		8-97405-991-0 02 1 0804- ● ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0803-0803 ● ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0804-0812 ● ● ● ●
163 16.714 COVER; ADJUSTER
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97405-991-0 01 1 0901- ● ●
163 16.714 COVER; ADJUSTER
TAIWAN EQUIPMENT(B04) EXC. IDENTIFICATION LABEL FOR KD<6UT> GRAY 		8-97405-991-0 01 1 0901- ● ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0901- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) EXC. AIR BAG DRIVER & PASSENGER<AK5>, IDENTIFICATION LABEL FOR KD<6UT> GRAY 		8-97428-087-0 01 1 1311- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 0803-1310 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97405-179-9 01 1 1311-1406 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-456-0 01 1 1407- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-5 01 1 0803-0803 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-5 01 1 0804-0812 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-5 01 1 0804-0812 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5>, TAIWAN EQUIPMENT(B04) GRAY 		8-97405-180-7 01 1 0901-1310 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) EXC. IDENTIFICATION LABEL FOR KD<6UT> GRAY 		8-97405-180-7 01 1 0901-1310 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 0901-1310 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5>, TAIWAN EQUIPMENT(B04) GRAY 		8-97405-180-7 01 1 1311-1406 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1311-1406 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5>, TAIWAN EQUIPMENT(B04) GRAY 		8-97428-457-1 01 1 1407- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407- ● ●
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 0803- ● ●

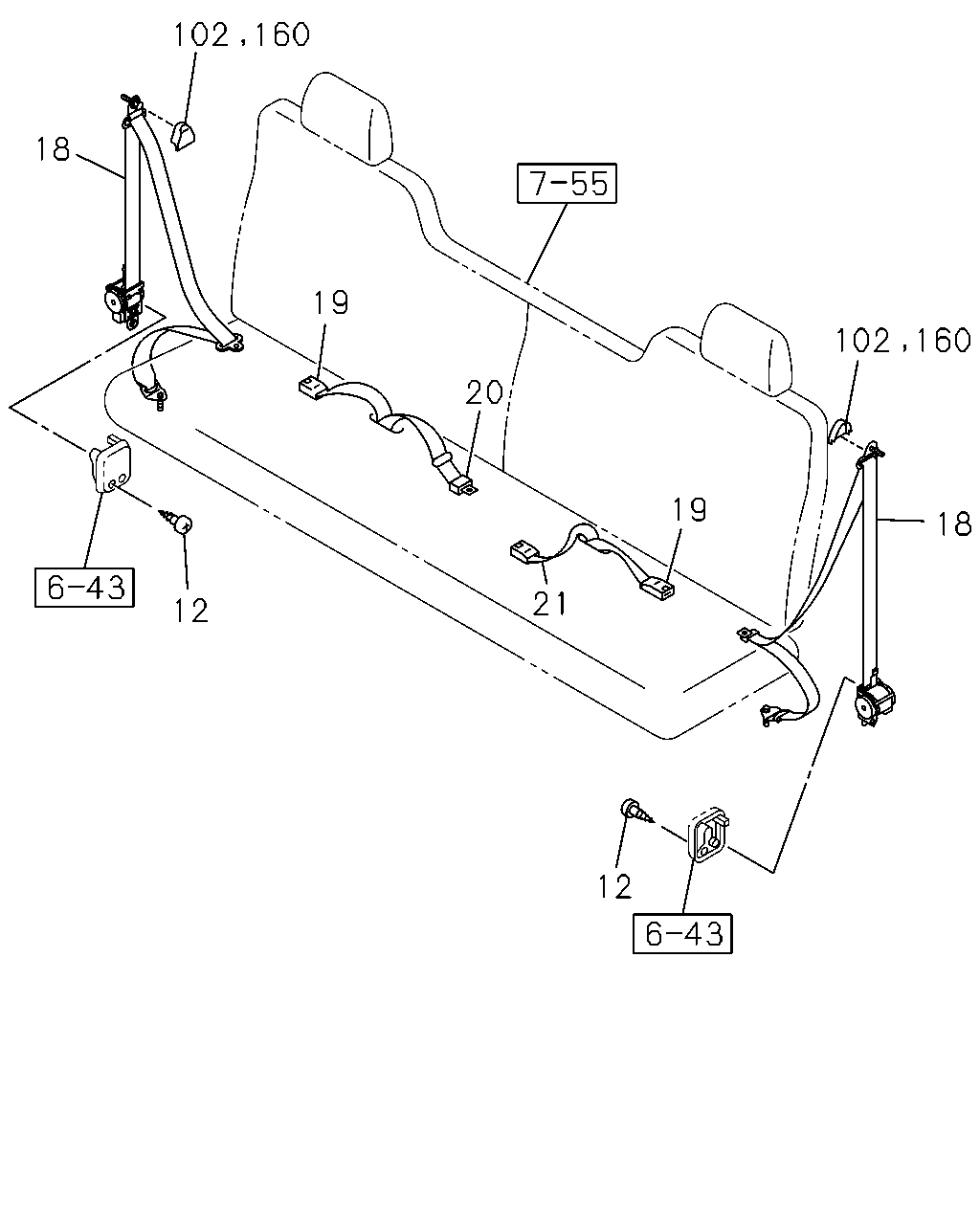

çizim 153990
18 19 20 19 18 21 12 12 102 160 102 160
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0804- ● ●
18 16.714 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 0804- ● ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97405-184-2 02 1 0804- ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-512-3 01 1 0804- ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97405-188-2 01 1 0804- ● ●
102 16.714 COVER; SHOULDER ANCHOR
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> REAR GRAY 		8-97405-991-0 02 1 0901- ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT GRAY 		8-97405-991-0 01 1 0803-0803 ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT GRAY 		8-97405-991-0 01 1 0804-0812 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
EXC. TAIWAN EQUIPMENT(B04) FRONT GRAY 		8-97405-991-0 01 1 0901- ● ●
160 16.714 COVER; THROUGH ANCHOR
TAIWAN EQUIPMENT(B04) EXC. IDENTIFICATION LABEL FOR KD<6UT> FRONT GRAY 		8-97405-991-0 01 1 0901- ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT GRAY 		8-97405-991-0 01 1 0901- ● ●
160 16.714 COVER; THROUGH ANCHOR
REAR GRAY 		8-97405-991-0 02 1 0804- ● ●

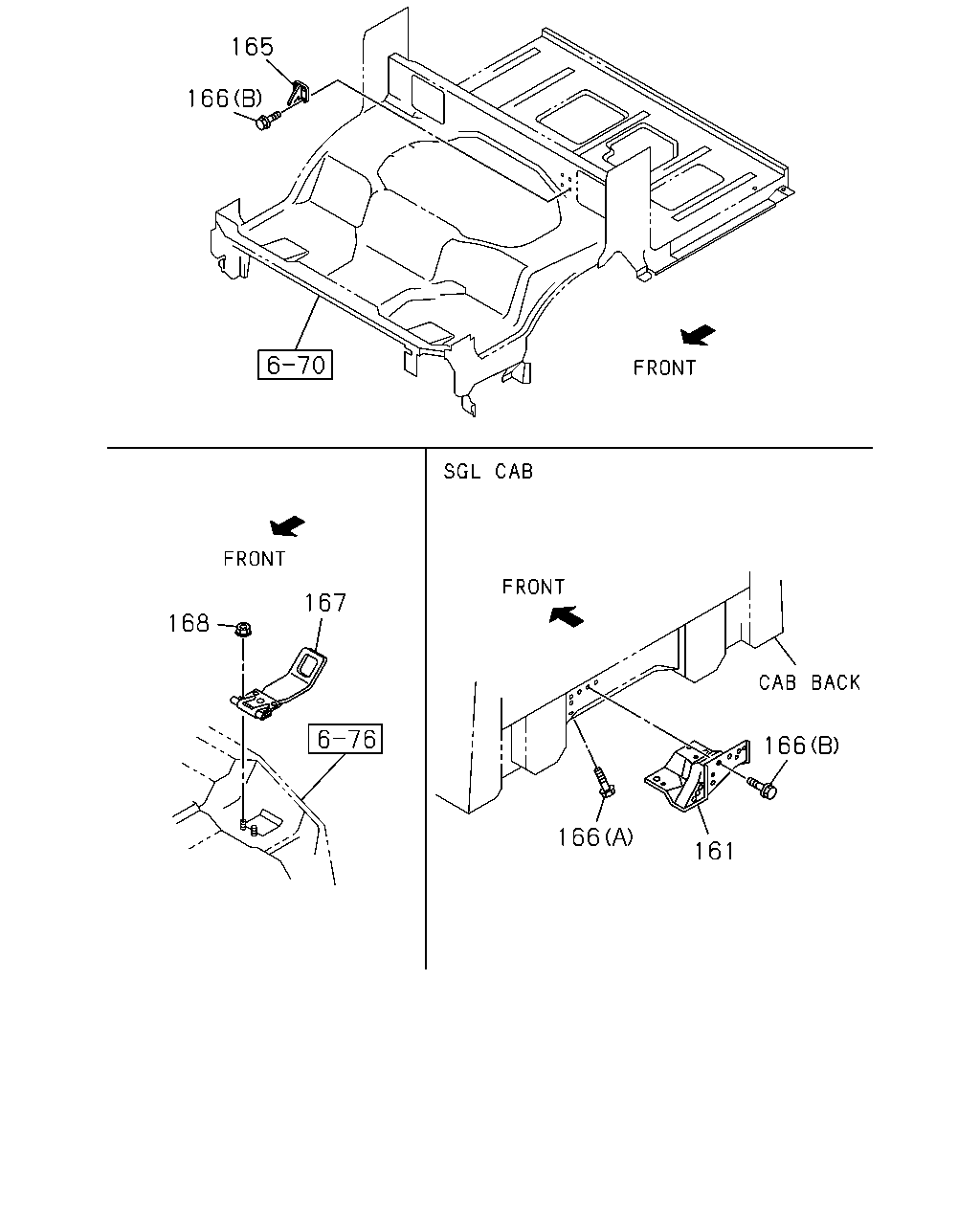

çizim 154176
165 166 167 168 166 166 161
BalonParca AdiParca NoAdetTipApplied Date A B C D
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545 		8-98021-748-0 01 1 0803- ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0803-0803 ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0804- ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 0804- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0803-0803 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0803-0803 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0803- ● ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0803-0803 ● ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0804- ● ●
167 16.714 PLATE; ANCHOR 8-97589-140-0 01 1 0804- ● ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
