7-43 — SUN VISOR AND ASSIST GRIP (#53136) — 153 parça

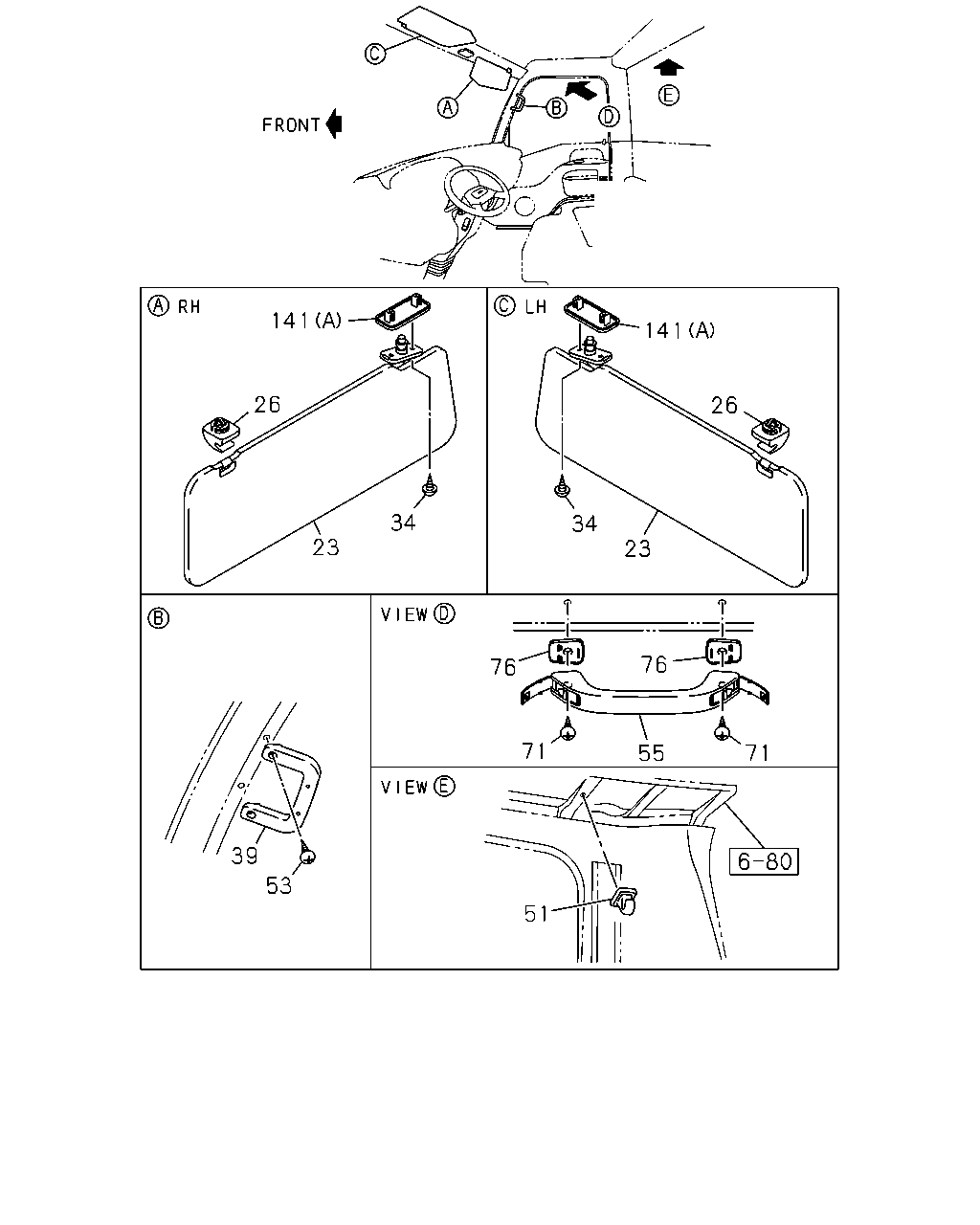

çizim 153959
141 141 26 26 34 34 23 23 76 76 71 71 55 39 53 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. EURO4 SPECIFICATION(NT4) DARK GRAY 		8-97406-197-2 01 1 0803-0803 ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. EURO4 SPECIFICATION(NT4) DARK GRAY 		8-97406-197-2 01 1 0804-0812 ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-197-2 01 1 0804-0812 ● ●
23 16.070 SUN VISOR
TAIWAN EQUIPMENT(B04) HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> IDENTIFICATION LABEL FOR KD<6UT> DARK GRAY 		8-97406-197-3 01 1 0901-0911 ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. EURO4 SPECIFICATION(NT4) DARK GRAY 		8-97406-197-3 01 1 0901-0911 ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-197-3 01 1 0901-0911 ● ●
23 16.070 SUN VISOR
TAIWAN EQUIPMENT(B04) HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-197-3 01 1 0912- ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. TAIWAN EQUIPMENT(B04),EURO4 SPECIFICATION(NT4) DARK GRAY 		8-97406-197-3 01 1 0912- ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-197-3 01 1 0912- ● ●
23 16.070 SUN VISOR
EXC. EURO4 SPECIFICATION(NT4),HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0803-0803 ● ●
23 16.070 SUN VISOR
EXC. EURO4 SPECIFICATION(NT4),HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0804-0812 ● ●
23 16.070 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0804-0812 ● ●
23 16.070 SUN VISOR
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0901-0911 ● ●
23 16.070 SUN VISOR
EXC. EURO4 SPECIFICATION(NT4),HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0901-0911 ● ●
23 16.070 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0901-0911 ● ●
23 16.070 SUN VISOR
EXC. TAIWAN EQUIPMENT(B04),EURO4 SPECIFICATION(NT4),HEADER TRAY DRIVER<W56>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0912- ● ●
23 16.070 SUN VISOR
TAIWAN EQUIPMENT(B04) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0912- ● ●
23 16.070 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 0912- ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97409-857-0 01 1 0803-0803 ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97409-857-0 01 1 0804- ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97409-858-0 01 1 0803-0803 ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97409-858-0 01 1 0804- ● ● ● ●
23 16.070 SUN VISOR
EURO4 SPECIFICATION(NT4) HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-094-2 01 1 0803-0911 ● ●
23 16.070 SUN VISOR
EURO4 SPECIFICATION(NT4) HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. TAIWAN EQUIPMENT(B04) DARK GRAY 		8-97413-094-2 01 1 0912- ● ●
23 16.070 SUN VISOR
EURO4 SPECIFICATION(NT4) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-092-1 01 1 0803-0911 ● ●
23 16.070 SUN VISOR
EURO4 SPECIFICATION(NT4) EXC. TAIWAN EQUIPMENT(B04),HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-092-1 01 1 0912- ● ●
26 16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0803-0803 ● ●
26 16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0804- ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0803-0803 ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0804- ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0803-0803 ● ●
26 16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0804- ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0803-0803 ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0804- ● ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 04 1 0803-0803 ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 04 1 0804- ● ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0803-0803 ● ●
34 16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0803-0803 ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0804- ● ● ● ●
34 16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0804- ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 0803-0803 ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 0804- ● ● ● ●
51 16.570 HOOK; COAT HANGER
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-302-1 01 1 0803- ● ●
51 16.570 HOOK; COAT HANGER
COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.070 DARK GRAY 		8-97406-200-0 01 1 0803- ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0803-0803 ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0804- ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0803-0803 ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0804- ● ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0803-0803 ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0804- ● ● ● ●
76 16.742 SPACER; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-286-0 02 1 0803- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0804- ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0804- ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAYDRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAYDRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●

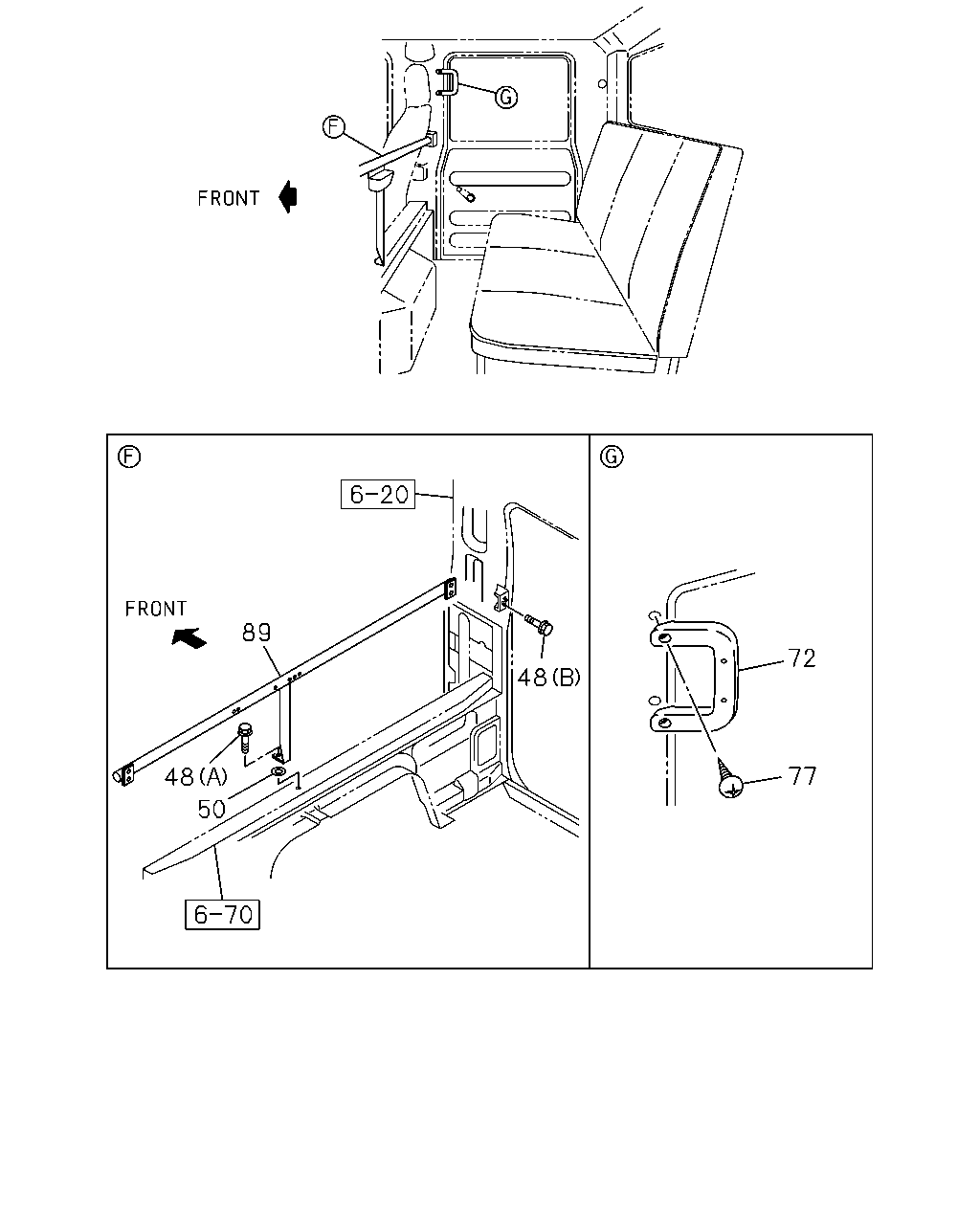

çizim 153985
89 72 48 77 48 50
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 16.450 BOLT; ASSIST GRIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 04 1 0804- ● ●
48 16.450 BOLT; ASSIST GRIP
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 0804- ● ●
50 16.450 WASHER; PL,ASSIST GRIP
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0804- ● ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97405-249-2 02 1 0804- ● ●
77 16.450 SCREW; ASSIST GRIP
M6X28 		8-98004-344-0 04 1 0804- ● ●
89 16.560 HANDLE; ASSIST 8-98046-362-2 01 1 0804- ● ●

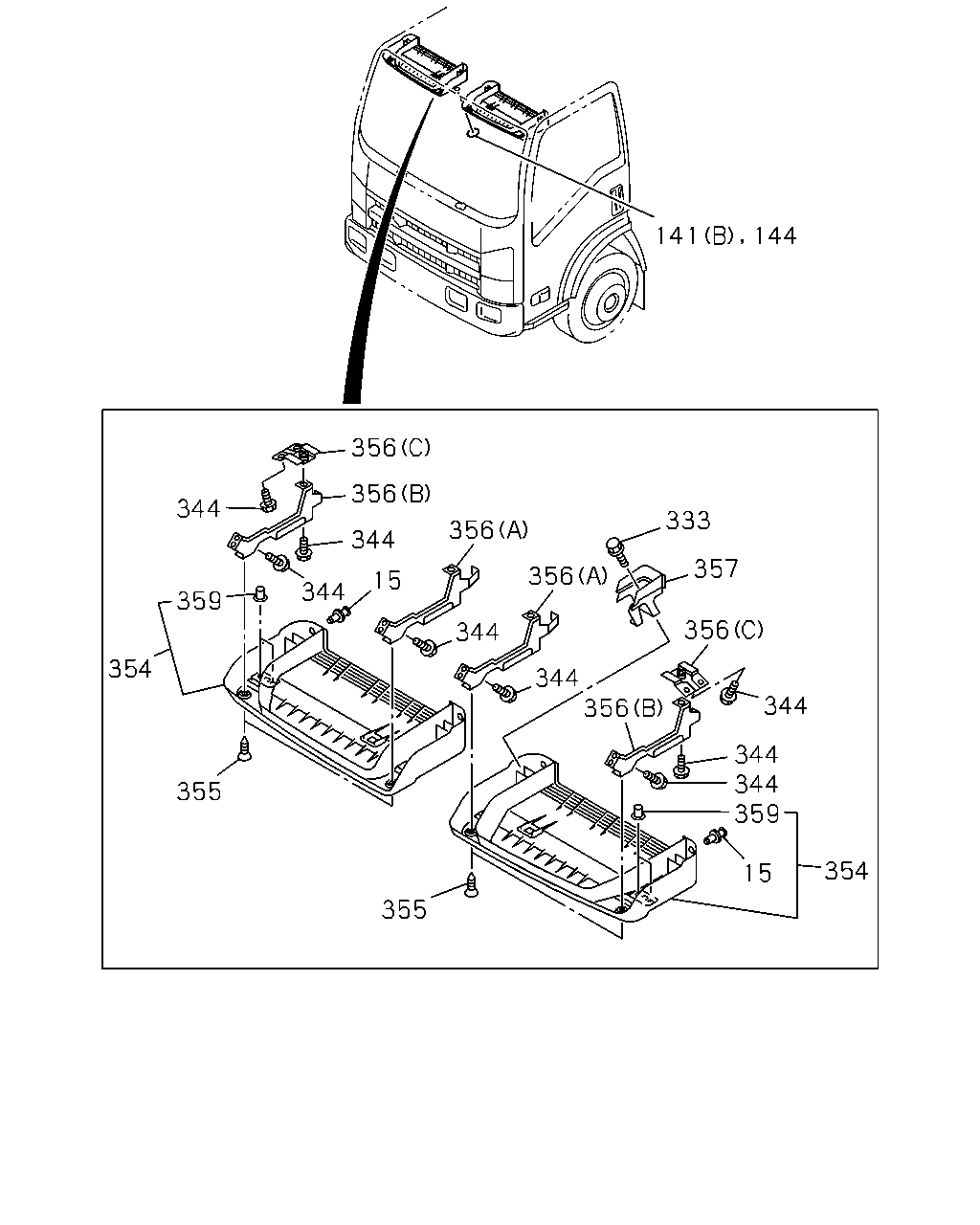

çizim 153988
141 144 356 356 344 333 356 344 357 356 15 344 359 356 344 354 344 356 344 344 344 359 355 354 15 355
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0803-0803 ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0803-0803 ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0804- ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0804- ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0804- ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0804- ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAYDRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0803-0803 ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAYDRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),HEADER TRAY DRIVER & PASSENGE R<8LY>,BODY COLOR WOODLAND GREEN(807), BODY COLOR WHEATLAND YELLOW(812),BODY CO LOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR T RANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0803-0803 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0803-0803 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0803-0803 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0804-0903 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0804-0903 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0804-0903 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0904-1503 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0904-1503 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0904-1503 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0803-0803 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0803-0803 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0803-0803 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0804-0903 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0804-0903 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0804-0903 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0904-1503 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0904-1503 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIV ER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0904-1503 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ●
333 16.742 SCREW; COVER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 01 1 0804- ● ●
333 16.742 SCREW; COVER
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 01 1 0804- ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 00.206 M6X12 FLANGE 		0-28450-612-0 06 1 0803-0803 ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 00.206 M6X12 FLANGE 		0-28450-612-0 06 1 0803-0803 ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 00.206 M6X12 FLANGE 		0-28450-612-0 06 1 0804-0809 ● ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 00.206 M6X12 FLANGE 		0-28450-612-0 06 1 0804-0809 ● ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 06 1 0810- ● ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 06 1 0810- ● ● ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-060-2 01 1 0803- ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-061-2 01 1 0803- ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 0803-0803 ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 0804- ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 0804- ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-065-2 01 1 0803-0803 ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-065-2 01 1 0804- ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 0804- ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0803-0803 ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0803-0803 ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0804- ● ● ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0804- ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 0803- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 0803- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98021-845-2 01 1 0804- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-364-2 01 1 0804- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0803-0803 ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0803-0803 ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0804- ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0804- ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0803-0803 ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0804- ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0803-0803 ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0804- ● ● ● ●
357 16.742 COVER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-220-1 01 1 0804- ● ●
357 16.742 COVER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-221-1 01 1 0804- ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0803-0803 ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0803-0803 ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0804- ● ● ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
