7-40 — INSTRUMENT PANEL AND BOX (#53134) — 347 parça

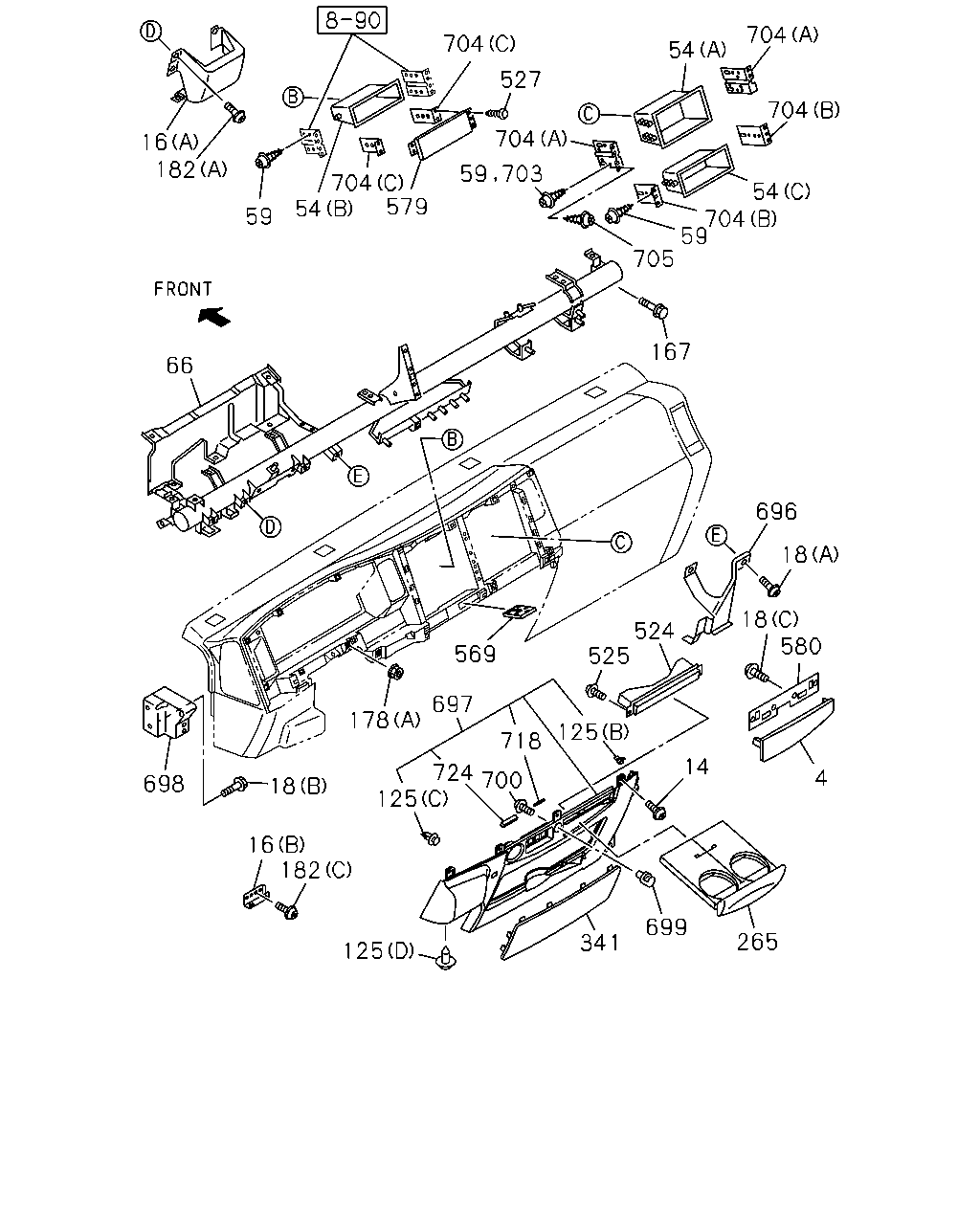

çizim 153977
265 699 341 125 4 14 182 16 125 724 700 718 125 580 18 18 696 524 525 569 697 178 18 698 167 705 59 704 54 704 704 54 703 59 704 527 704 579 704 54 59 182 16 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0803-0803 ● ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0804- ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803-0803 ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101 ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0803-1503 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0803-0803 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101 ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0803-0803 ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0804- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0803-0803 ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804- ● ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0803- ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0803-0803 ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0803-0803 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0804- ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0804- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0803-0803 ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0804-0910 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-2 01 1 0804-0910 ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0911-0911 ● ●
54 16.100 POCKET; CENTER CLUSTER
TACHOGRAPH DIGITAL<EBB> (B) H=58.4 BLACK 		8-97408-864-2 01 1 0911-0911 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-2 01 1 0911-0911 ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0912- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0912- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0803-0803 ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0804-0808 ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0809- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0809- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0803 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0803 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-0910 ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-0910 ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-0910 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-0910 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ● ●
59 16.100 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0912- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0912- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0912- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0912- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98192-943-0 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5>, KDPREPARATORY PACK VAR.4<7TV> 		8-98192-942-0 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98192-942-0 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-027-3 01 1 0803-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-027-3 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-026-3 01 1 0803-0803 ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-026-3 01 1 0804-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-98098-026-3 01 1 0804-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-026-3 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> 		8-98098-026-3 01 1 1310- ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0804-0909 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0804- ● ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0803-0803 ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0804- ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0803-0803 ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0803- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0803-0803 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0803-0903 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803-0803 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0803-0803 ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0804-0909 ● ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910- ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0803-0803 ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0804-1205 ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0803-0803 ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0804- ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803-0803 ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-1101 ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0803-0803 ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0804- ● ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0803-0803 ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0804- ● ● ● ●
579 16.080 COVER; INST PNL
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) BLACK 		8-97408-909-0 01 1 0803-0803 ● ●
579 16.080 COVER; INST PNL
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) BLACK 		8-97408-909-0 01 1 0804-0808 ● ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0803-0803 ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0804- ● ● ● ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 0803-0803 ● ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 0804-1109 ● ● ● ●
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ● ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0803-0803 ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0804-1205 ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0803-0803 ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0804- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0803-0803 ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0804- ● ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0803-0803 ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0804- ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0803 ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0803-0803 ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0803-0803 ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0804- ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0804- ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C) 		8-98073-822-0 02 1 0803-0803 ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C) 		8-98073-822-0 02 1 0804-0808 ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C) 		8-98107-549-0 02 1 0809- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> (A) 		8-97585-618-2 02 1 0803-0803 ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0803-0803 ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> (A) 		8-97585-618-2 02 1 0804- ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0804- ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0803-0803 ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0804- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0811 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0803-0803 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0804-1101 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0803-0803 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0803-0803 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0803-0803 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ● ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ● ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ● ●

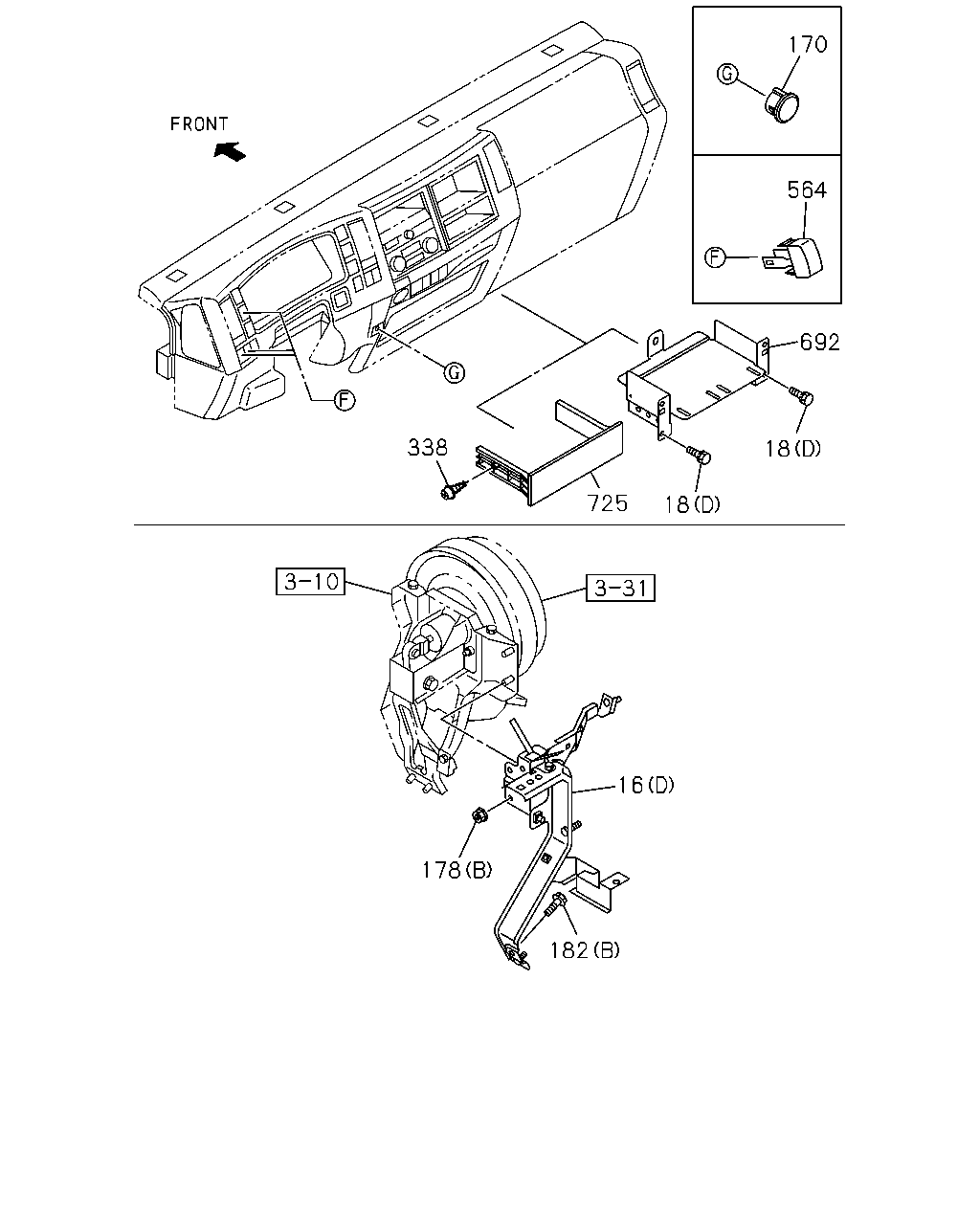

çizim 153978
170 564 692 338 18 725 18 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0803-1503 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0803-0803 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101 ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0803-0803 ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0804- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0803-0803 ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804- ● ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0803- ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 0803-0803 ● ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 0804- ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0803-0803 ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0803- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0803-0803 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0803-0903 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803-0803 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803- ●
564 16.081 COVER; SW 8-98025-954-1 03 1 0803-0803 ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 0804- ● ● ● ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-272-0 01 1 0803- ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-2 01 1 0803- ●

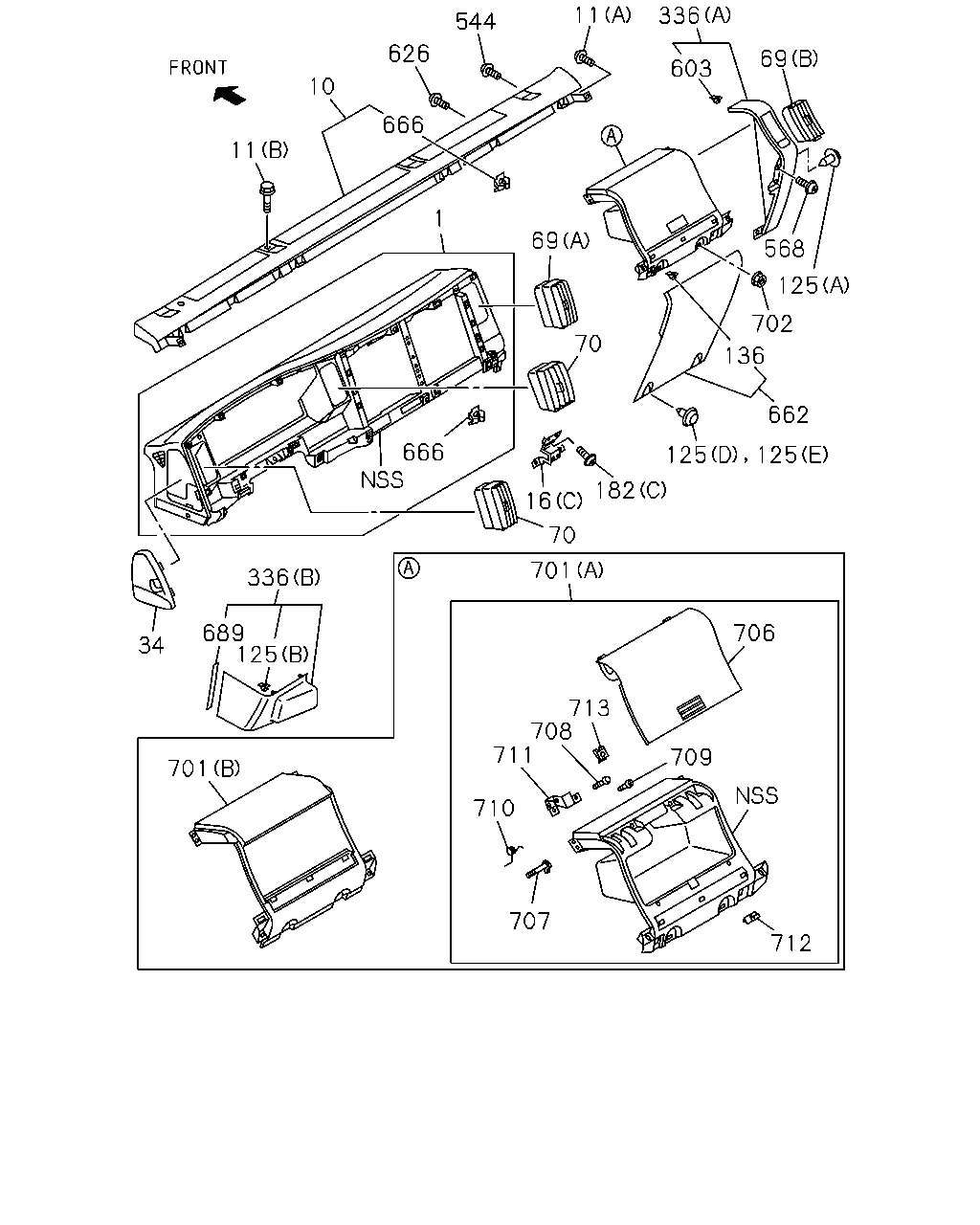

çizim 153987
707 709 706 713 708 711 710 34 125 689 336 666 712 70 16 182 125 125 662 136 702 125 568 69 603 336 11 544 626 10 666 11 1 69 70 701 701
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 0803-0803 ● ●
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 0804- ● ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0803-0803 ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0804-1003 ● ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004- ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0803-0803 ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0804-1101 ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0803-0803 ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0803-0803 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0804- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0803-1503 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0803-0803 ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0804- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0803-0803 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0804- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0803-0803 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0804- ● ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0803-0803 ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0804-0909 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0804- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0803-0803 ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0804- ● ● ● ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 0803-0803 ● ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 0804- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0803-0803 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0803-0903 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803-0803 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0803-0803 ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0804- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0803-0803 ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0804- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0803-0803 ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0804- ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803-0803 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0803 ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 0803-0803 ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 0804- ● ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0803-0803 ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0804- ● ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0803-0803 ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0804- ● ● ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0803-0803 ● ●
666 16.085 INSERT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98037-629-0 02 1 0803-0803 ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0804-0901 ● ● ● ●
666 16.085 INSERT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98037-629-0 02 1 0804-0901 ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0902-1003 ● ● ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 0803-0803 ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 0804- ● ● ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0803-0803 ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0804- ● ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97406-269-1 01 1 0803-0901 ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 0902- ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 0803-0803 ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 0804- ● ●
701 16.100 TRAY; INST
(A) GRAY 		8-97406-268-4 01 1 0804- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803-0803 ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 0803-0803 ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 0804- ● ●
706 16.081 LID; TRAY INST
GRAY 		8-97409-510-0 01 1 0804- ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0803-0803 ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0804-1311 ● ●
707 09.744 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0804-1311 ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
707 09.744 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0803-0803 ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0804- ● ●
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0804- ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0803-0803 ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0804- ● ●
709 16.085 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0804- ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-987-0 01 1 0803-0803 ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-987-0 01 1 0804-1311 ● ●
710 09.744 SPRING; TRAY INST LID
16.110 		8-98034-987-0 01 1 0804-1311 ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1312- ● ●
710 09.744 SPRING; TRAY INST LID 8-97926-399-0 01 1 1312- ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-986-0 01 1 0803-0803 ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-986-0 01 1 0804-1311 ● ●
710 09.744 SPRING; TRAY INST LID
16.110 		8-98034-986-0 01 1 0804-1311 ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1312- ● ●
710 09.744 SPRING; TRAY INST LID 8-97926-398-0 01 1 1312- ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-929-0 01 1 0803-0803 ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-929-0 01 1 0804-1311 ● ●
711 16.100 HOLDER ASM; LID
16.081 		8-98034-929-0 01 1 0804-1311 ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-397-0 01 1 1312- ● ●
711 16.100 HOLDER ASM; LID
16.081 		8-97926-397-0 01 1 1312- ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-928-0 01 1 0803-0803 ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-928-0 01 1 0804-1311 ● ●
711 16.100 HOLDER ASM; LID
16.081 		8-98034-928-0 01 1 0804-1311 ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-396-0 01 1 1312- ● ●
711 16.100 HOLDER ASM; LID
16.081 		8-97926-396-0 01 1 1312- ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0803-0803 ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0804- ● ●
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 0804- ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 08.845 M5 		1-09984-196-0 04 1 0803-0803 ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 08.845 M5 		1-09984-196-0 04 1 0804-1311 ● ●
713 16.069 NUT; TRAY INST LID
08.845 M5 		1-09984-196-0 04 1 0804-1311 ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.085 M5 		8-97926-400-0 04 1 1312- ● ●
713 16.069 NUT; TRAY INST LID
16.085 M5 		8-97926-400-0 04 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
