Sayfa 1-11A - Isuzu EPC

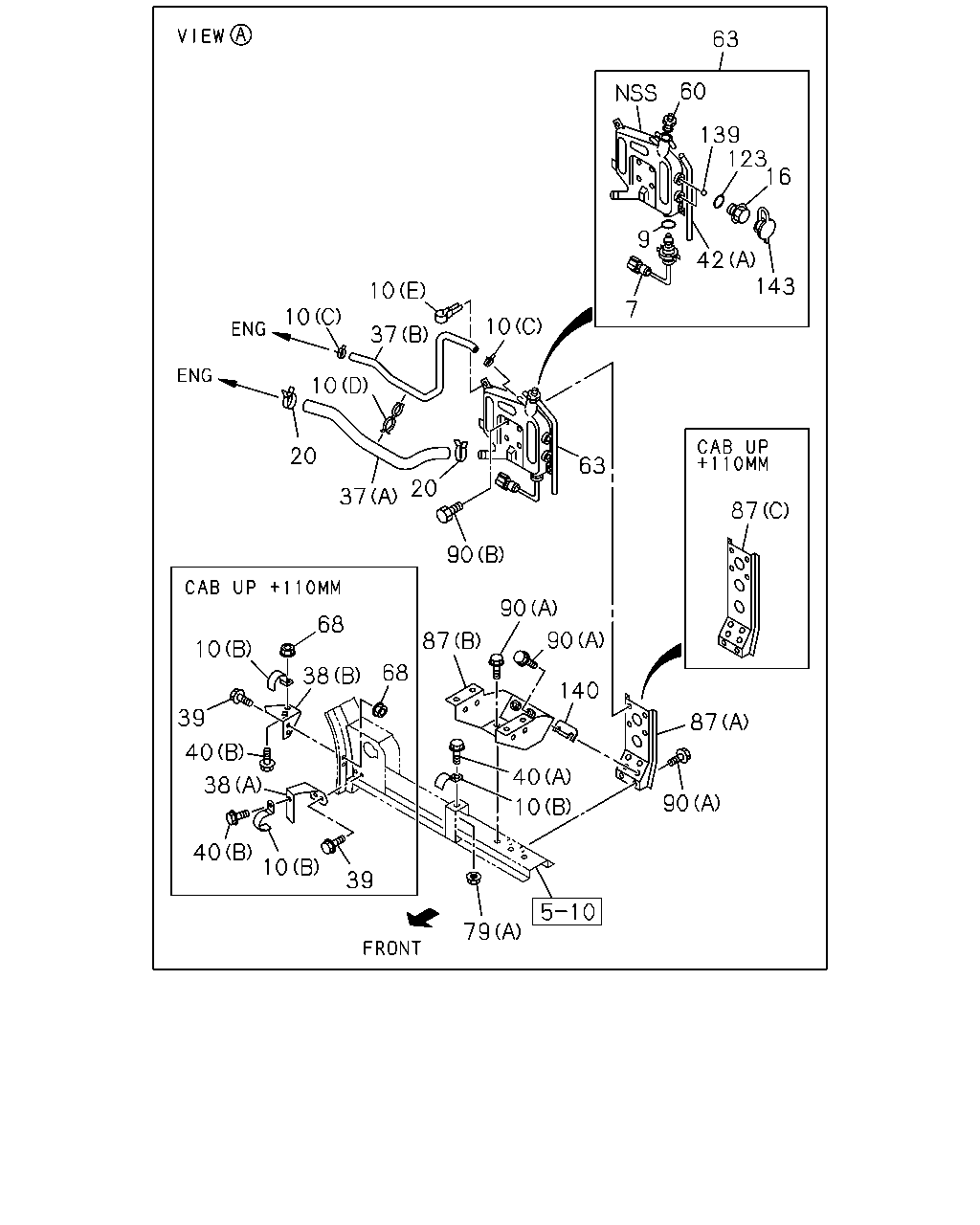

1-11A — RADIATOR HOSE AND SUB TANK (#5312) — 208 parça

63 60 139 123 16 9 42 143 10 10 7 10 37 10 20 63 20 37 87 90 90 68 90 87 10 38 68 140 39 7 40 40 38 90 10 40 10 39 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	SWITCH ASM; TANK	1-82480-045-0	01	1	9603-9901	●
7	SWITCH ASM; TANK	1-82480-045-0	01	1	9902-9904		●	●
7	SWITCH ASM; TANK	1-82480-045-0	01	1	9905-0103		●	●	●	●	●
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0104-		●	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	9603-9901	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	9902-9904		●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9901	●
10	CLIP; RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE (B) D=43	1-09700-703-0	01	1	9603-9901	●
10	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	04	1	9603-9901	●
10	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	04	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	04	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=44 & 16	1-09709-125-0	04	1	9603-9901	●
10	CLIP; RUBBER HOSE (D) ID=44 & 16	1-09709-125-0	04	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (D) ID=44 & 16	1-09709-125-0	04	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	02	1	9603-9901	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	02	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	02	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE SHORT CHASSIS(CX***C) (F) L=250	1-09707-126-0	01	1	0010-0010		●	●	●	●	●
10	CLIP; RUBBER HOSE SHORT CHASSIS(CX***C) (F) L=350	1-09707-183-0	01	1	0011-		●	●	●	●	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (B) D=43	1-09700-703-0	01	1	9902-		●	●
10	CLIP; RUBBER HOSE (B) D=43	1-09700-703-0	01	1	9902-9902		●	●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (B) D=43	1-09700-703-0	02	1	9902-9904		●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (B) D=43	1-09700-703-0	02	1	9905-		●				●
16	PLUG; TANK M28 WO/FLANGE	1-21464-425-0	02	1	9603-9609	●
16	PLUG; TANK M28 W/FLANGE	1-21464-514-0	02	1	9610-9901	●
16	PLUG; TANK M28 W/FLANGE	1-21464-514-0	02	1	9902-9904		●	●
16	PLUG; TANK M28 W/FLANGE	1-21464-514-0	02	1	9905-		●	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	9603-9901	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	9902-9904		●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	9905-		●	●	●	●	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9603-9901	●
37	HOSE; RUBBER (A)	1-21437-583-0	01	1	9603-9901	●
37	HOSE; RUBBER (A)	1-21437-583-0	01	1	9902-9902		●	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (A)	1-21437-583-0	01	1	9902-9904		●	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (A)	1-21437-583-0	01	1	9905-		●	●	●	●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9902-9904		●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9905-0103		●				●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0104-		●			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (A)	1-21437-568-1	01	1	9902-9904		●
37	HOSE; RUBBER CAB UP +110MM<TGG> (A)	1-21437-568-1	01	1	9905-		●			●	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9902-0103		●	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9902-0103		●	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0104-		●	●		●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (A)	1-21489-158-2	01	1	9902-9904		●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (A)	1-21489-158-2	01	1	9905-		●			●	●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (B)	1-21489-165-1	01	1	9902-9904		●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (B)	1-21489-165-1	01	1	9905-		●			●	●
39	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	04	1	9902-9904		●
39	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	04	1	9905-		●			●	●
40	BOLT; CLIP (A) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●
40	BOLT; CLIP (A) M10X20 FLANGE	0-28681-020-0	01	1	9607-9802	●
40	BOLT; CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	9803-9901	●
40	BOLT; CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	9902-9904		●	●
40	BOLT; CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	9905-		●	●	●	●	●
40	BOLT; CLIP CAB UP +110MM<TGG> (B) M10X25 FLANGE	0-28681-025-0	02	1	9902-9904		●
40	BOLT; CLIP CAB UP +110MM<TGG> (B) M10X25 FLANGE	0-28681-025-0	02	1	9905-		●			●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9603-9904	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9603-9904	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9905-		●	●	●	●	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9902-9904		●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9902-9904		●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9905-9909		●	●	●		●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9910-0103		●	●	●	●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0104-		●	●	●	●	●
60	CAP; SUB TANK	1-21450-083-4	01	1	9603-9807	●
60	CAP; SUB TANK	1-21450-137-0	01	1	9808-9901	●
60	CAP; SUB TANK	1-21450-137-0	01	1	9902-9904		●	●
60	CAP; SUB TANK	1-21450-137-0	01	1	9905-		●	●	●	●	●
63	TANK ASM; SUB	1-21481-097-1	01	1	9603-9609	●
63	TANK ASM; SUB	1-21481-106-1	01	1	9610-9901	●
63	TANK ASM; SUB	1-21481-106-1	01	1	9902-9904		●	●
63	TANK ASM; SUB	1-21481-106-1	01	1	9905-0003		●	●	●	●	●
63	TANK ASM; SUB	1-21481-128-0	01	1	0004-0103		●	●	●	●	●
63	TANK ASM; SUB	1-21481-144-0	01	1	0104-		●	●	●	●	●
68	NUT; BRKT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	9902-9904		●
68	NUT; BRKT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	9905-		●			●	●
79	NUT; CLIP,HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9603-9901	●
79	NUT; CLIP,HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9902-9904		●	●
79	NUT; CLIP,HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●	●	●
79	NUT; CLIP,HOSE (A) M10 FLANGE	0-91150-210-0	01	1	9607-9901	●
79	NUT; CLIP,HOSE (A) M10 FLANGE	0-91150-210-0	01	1	9902-9904		●	●
79	NUT; CLIP,HOSE (A) M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●	●	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	9603-9901	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	9902-9904		●	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	9905-		●	●	●	●	●
87	BRACKET; SUB TANK (A)	1-21489-156-0	01	1	9603-9901	●
87	BRACKET; SUB TANK (A)	1-21489-156-0	01	1	9902-9902		●	●
87	BRACKET; SUB TANK EXC. CAB UP +110MM<TGG> (A)	1-21489-156-0	01	1	9902-9904		●	●
87	BRACKET; SUB TANK EXC. CAB UP +110MM<TGG> (A)	1-21489-156-0	01	1	9905-		●	●	●	●	●
87	BRACKET; SUB TANK CAB UP +110MM<TGG> (C)	1-21489-162-0	01	1	9902-9904		●
87	BRACKET; SUB TANK CAB UP +110MM<TGG> (C)	1-21489-162-0	01	1	9905-		●			●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	9607-9901	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	9902-9904		●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	9905-		●	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9603-9901	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9902-9904		●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9905-		●	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	9603-9901	●
123	GASKET ID=26.2	8-94399-716-1	02	1	9902-9904		●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	9905-		●	●	●	●	●
139	FLOAT D=8 RED	1-21489-118-1	02	1	9603-9609	●
139	FLOAT D=8 WHITE	1-21489-161-0	02	1	9610-9901	●
139	FLOAT D=8 WHITE	1-21489-161-0	02	1	9902-9904		●	●
139	FLOAT D=8 WHITE	1-21489-161-0	02	1	9905-		●	●	●		●
140	SHIM T=0.8	1-53458-716-0	AR	1	9603-9901	●
140	SHIM T=0.8	1-53458-716-0	AR	1	9902-9904		●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	9905-		●	●	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	9610-9901	●
143	COVER; PLUG	1-82389-017-0	02	1	9902-9904		●	●
143	COVER; PLUG	1-82389-017-0	02	1	9905-		●	●	●	●	●

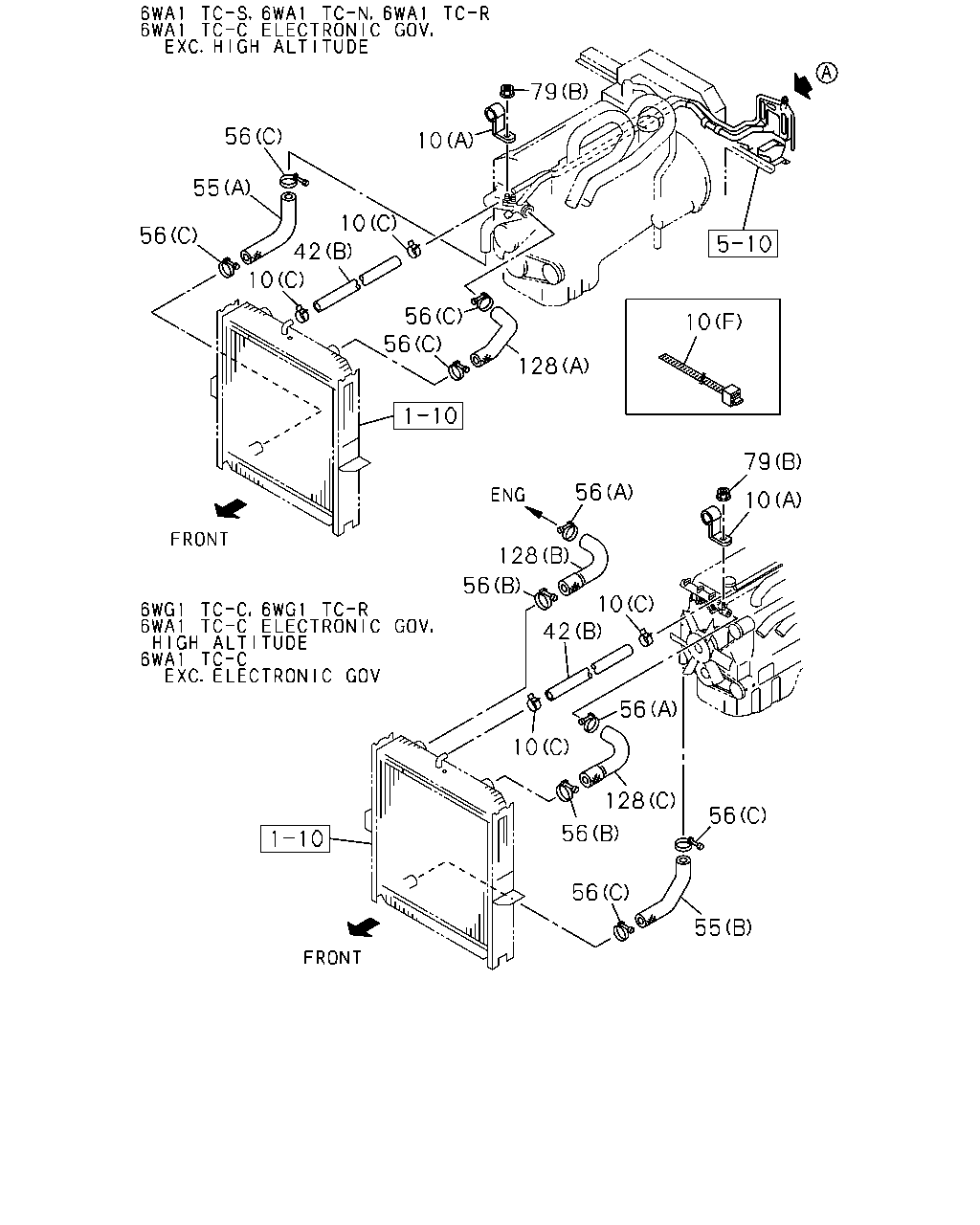

79 56 10 55 10 42 56 10 56 56 10 128 79 56 10 128 56 10 42 56 10 128 56 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	CLIP; RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9901	●
10	CLIP; RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE (B) D=43	1-09700-703-0	01	1	9603-9901	●
10	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	04	1	9603-9901	●
10	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	04	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	04	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=44 & 16	1-09709-125-0	04	1	9603-9901	●
10	CLIP; RUBBER HOSE (D) ID=44 & 16	1-09709-125-0	04	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (D) ID=44 & 16	1-09709-125-0	04	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	02	1	9603-9901	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	02	1	9902-9904		●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	02	1	9905-		●	●	●	●	●
10	CLIP; RUBBER HOSE SHORT CHASSIS(CX***C) (F) L=250	1-09707-126-0	01	1	0010-0010		●	●	●	●	●
10	CLIP; RUBBER HOSE SHORT CHASSIS(CX***C) (F) L=350	1-09707-183-0	01	1	0011-		●	●	●	●	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (B) D=43	1-09700-703-0	01	1	9902-		●	●
10	CLIP; RUBBER HOSE (B) D=43	1-09700-703-0	01	1	9902-9902		●	●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (B) D=43	1-09700-703-0	02	1	9902-9904		●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (B) D=43	1-09700-703-0	02	1	9905-		●				●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9603-9904	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9603-9904	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9905-		●	●	●	●	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9902-9904		●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9902-9904		●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9905-9909		●	●	●		●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9910-0103		●	●	●	●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0104-		●	●	●	●	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-448-2	01	1	9603-9901	●
55	HOSE; WATER,RAD OUTLET ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) (A)	1-21437-448-2	01	1	9902-9904		●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-448-2	01	1	9902-9904			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-448-2	01	1	9905-9912			●	●
55	HOSE; WATER,RAD OUTLET ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) (A)	1-21437-448-2	01	1	9905-9912		●
55	HOSE; WATER,RAD OUTLET EXC. CAB UP +110MM<TGG> (A)	1-21437-448-2	01	1	0001-		●	●	●	●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-615-1	01	1	9905-9909						●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-615-1	01	1	9910-9912					●	●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05> (B)	1-21437-615-1	01	1	0001-		●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-615-1	01	1	0001-					●	●
55	HOSE; WATER,RAD OUTLET ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B)	1-21437-710-0	01	1	9902-9912		●
55	HOSE; WATER,RAD OUTLET EXC. ELECTRONIC GOV RED3(KG5) (B)	1-21437-710-0	01	1	9902-9912		●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05> (B)	1-21437-710-0	01	1	0001-		●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	04	1	9603-9901	●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (C) ID=72	1-09704-068-0	02	1	9902-9904		●
56	CLIP; WATER HOSE,RAD EXC. ELECTRONIC GOV RED3(KG5) (C) ID=72	1-09704-068-0	02	1	9902-9904		●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (C) ID=72	1-09704-068-0	02	1	9905-9909		●
56	CLIP; WATER HOSE,RAD EXC. ELECTRONIC GOV RED3(KG5) (C) ID=72	1-09704-068-0	02	1	9905-9909		●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	9905-9909						●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (C) ID=72	1-09704-068-0	02	1	9910-		●			●	●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B) ID=63	1-09704-067-0	02	1	9902-9904		●
56	CLIP; WATER HOSE,RAD EXC. ELECTRONIC GOV RED3(KG5) (B) ID=63	1-09704-067-0	02	1	9902-9904		●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B) ID=63	1-09704-067-0	02	1	9905-9909		●
56	CLIP; WATER HOSE,RAD EXC. ELECTRONIC GOV RED3(KG5) (B) ID=63	1-09704-067-0	02	1	9905-9909		●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9905-9909						●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (B) ID=63	1-09704-067-0	02	1	9910-		●			●	●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) (C) ID=72	1-09704-068-0	04	1	9902-9904		●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	04	1	9902-9904			●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	04	1	9905-9912			●	●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) (C) ID=72	1-09704-068-0	04	1	9905-9912		●
56	CLIP; WATER HOSE,RAD EXC. CAB UP +110MM<TGG> (C) ID=72	1-09704-068-0	04	1	0001-		●	●	●	●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (A) ID=57	1-09704-066-0	02	1	9902-9904		●
56	CLIP; WATER HOSE,RAD EXC. ELECTRONIC GOV RED3(KG5) (A) ID=57	1-09704-066-0	02	1	9902-9904		●
56	CLIP; WATER HOSE,RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (A) ID=57	1-09704-066-0	02	1	9905-9909		●
56	CLIP; WATER HOSE,RAD EXC. ELECTRONIC GOV RED3(KG5) (A) ID=57	1-09704-066-0	02	1	9905-9909		●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	9905-9909						●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (A) ID=57	1-09704-066-0	02	1	9910-		●			●	●
79	NUT; CLIP,HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9603-9901	●
79	NUT; CLIP,HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9902-9904		●	●
79	NUT; CLIP,HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●	●	●
79	NUT; CLIP,HOSE (A) M10 FLANGE	0-91150-210-0	01	1	9607-9901	●
79	NUT; CLIP,HOSE (A) M10 FLANGE	0-91150-210-0	01	1	9902-9904		●	●
79	NUT; CLIP,HOSE (A) M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●	●	●
128	HOSE; WATER,RAD INL (A)	1-21437-495-1	01	1	9603-9901	●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) (A)	1-21437-495-1	01	1	9902-9904		●
128	HOSE; WATER,RAD INL (A)	1-21437-495-1	01	1	9902-9904			●
128	HOSE; WATER,RAD INL (A)	1-21437-495-1	01	1	9905-9912			●	●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) (A)	1-21437-495-1	01	1	9905-9912		●
128	HOSE; WATER,RAD INL EXC. CAB UP +110MM<TGG> (A)	1-21437-495-1	01	1	0001-		●	●	●	●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B)	1-21437-617-0	01	1	9902-9904		●
128	HOSE; WATER,RAD INL EXC. ELECTRONIC GOV RED3(KG5) (B)	1-21437-617-0	01	1	9902-9904		●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B)	1-21437-617-0	01	1	9905-9909		●
128	HOSE; WATER,RAD INL EXC. ELECTRONIC GOV RED3(KG5) (B)	1-21437-617-0	01	1	9905-9909		●
128	HOSE; WATER,RAD INL (B)	1-21437-617-0	01	1	9905-9909						●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B)	1-21437-617-0	01	1	9910-9912		●
128	HOSE; WATER,RAD INL EXC. ELECTRONIC GOV RED3(KG5) (B)	1-21437-617-0	01	1	9910-9912		●
128	HOSE; WATER,RAD INL (B)	1-21437-617-0	01	1	9910-9912					●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (B)	1-21437-617-0	01	1	0001-		●			●	●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (C)	1-21437-618-1	01	1	9902-9904		●
128	HOSE; WATER,RAD INL EXC. ELECTRONIC GOV RED3(KG5) (C)	1-21437-618-1	01	1	9902-9904		●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (C)	1-21437-618-1	01	1	9905-9909		●
128	HOSE; WATER,RAD INL EXC. ELECTRONIC GOV RED3(KG5) (C)	1-21437-618-1	01	1	9905-9909		●
128	HOSE; WATER,RAD INL (C)	1-21437-618-1	01	1	9905-9909						●
128	HOSE; WATER,RAD INL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (C)	1-21437-618-1	01	1	9910-9912		●
128	HOSE; WATER,RAD INL EXC. ELECTRONIC GOV RED3(KG5) (C)	1-21437-618-1	01	1	9910-9912		●
128	HOSE; WATER,RAD INL (C)	1-21437-618-1	01	1	9910-9912					●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (C)	1-21437-618-1	01	1	0001-		●			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
