1-10B — RADIATOR (#5311) — 154 parça

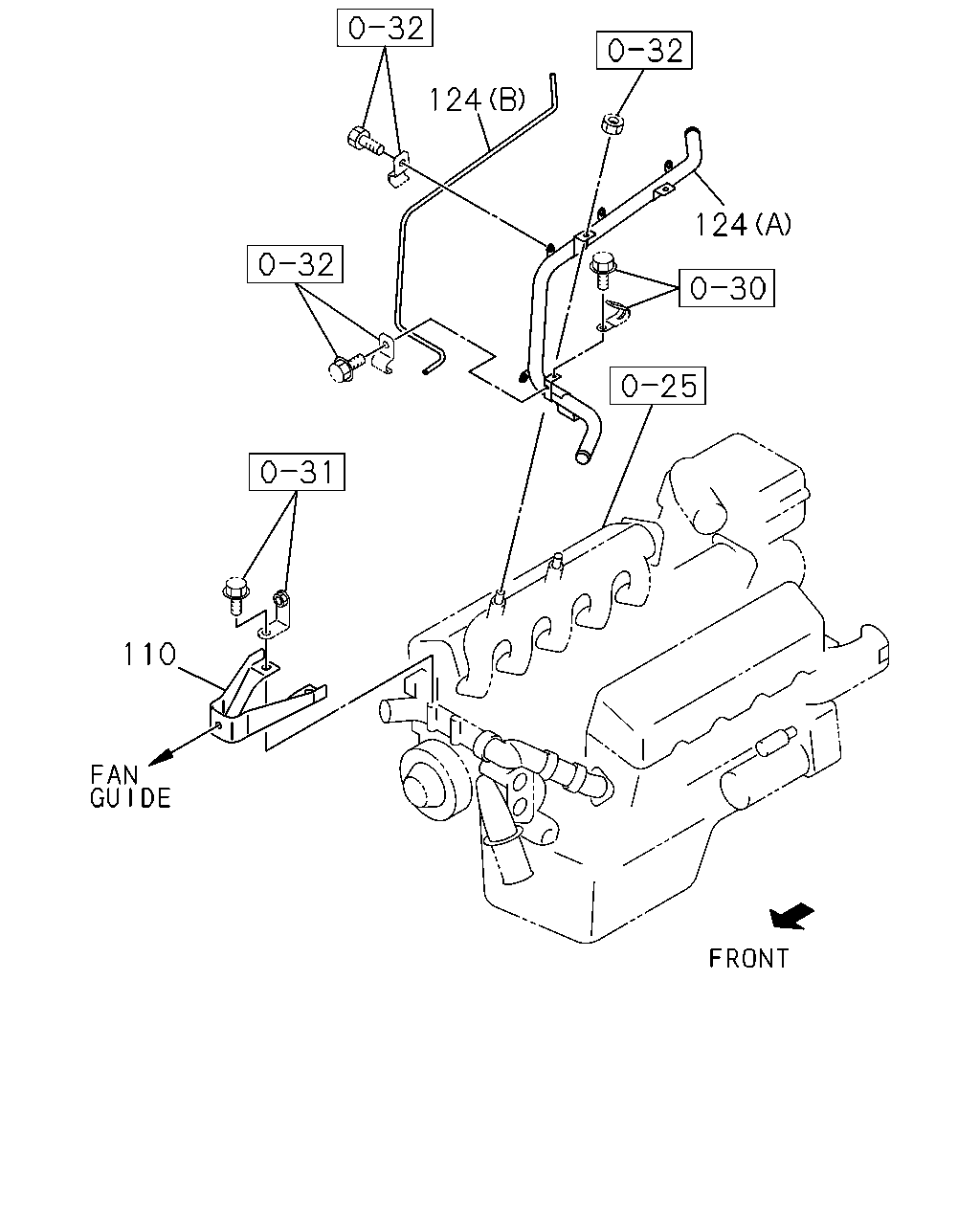

çizim 6193
124 124 110
BalonParca AdiParca NoAdetTipApplied Date A B C D
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9603-9904 ● ●
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9905- ● ● ● ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-668-1 01 1 9603- ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-570-0 01 1 9603-9705 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-729-0 01 1 9706- ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-667-2 01 1 9603-9904 ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-667-2 01 1 9905- ● ● ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-536-1 01 1 9603-9705 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-728-0 01 1 9706-9904 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-728-0 01 1 9905- ● ● ●

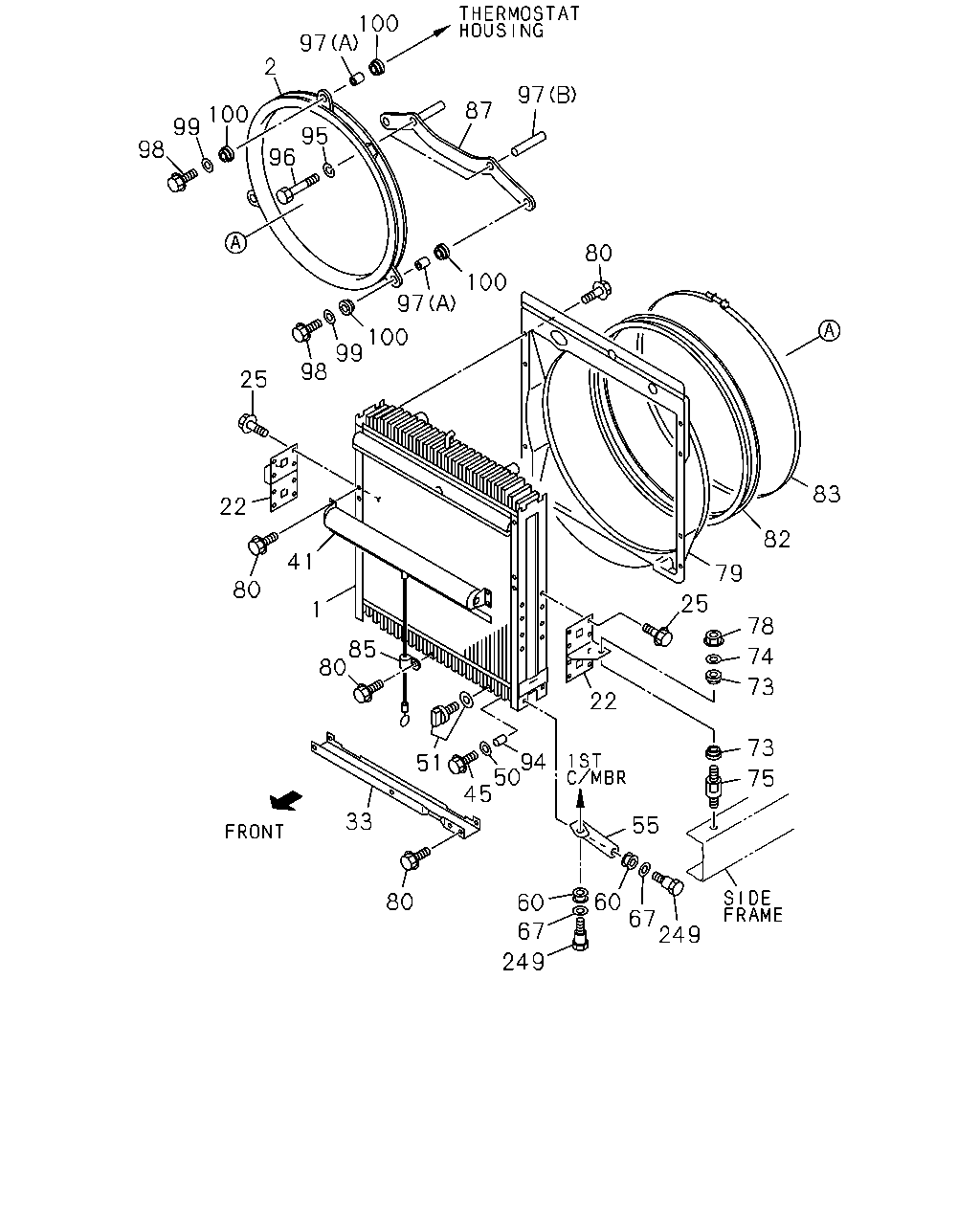

çizim 6212
100 97 2 97 87 100 99 98 95 96 80 97 100 100 99 98 25 83 22 82 41 79 80 25 1 78 85 80 74 73 22 73 94 50 45 51 75 33 55 60 67 249 80 60 67 249
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-685-0 01 1 9603-9801 ●
1 RADIATOR ASM
EXC. FIRE TRUCK<RA9> 		1-21410-685-0 01 1 9603-9801 ●
1 RADIATOR ASM 1-21410-685-0 01 1 9802-9904 ●
1 RADIATOR ASM
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21410-685-0 01 1 9802-9904 ●
1 RADIATOR ASM 1-21410-685-1 01 1 9905- ●
1 RADIATOR ASM
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21410-685-1 01 1 9905- ● ● ●
1 RADIATOR ASM
FIRE TRUCK<RA9> 		1-21410-706-0 01 1 9603- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> EXC. FIRE TRUCK<RA9> 		1-21410-684-0 01 1 9802-9904 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> EXC. FIRE TRUCK<RA9> 		1-21410-684-0 01 1 9905- ● ● ●
2 GUIDE; FAN 1-21551-235-3 01 1 9603-9901 ● ●
2 GUIDE; FAN 1-21551-235-3 01 1 9905- ● ● ● ●
22 BRACKET; RAD MTG 1-21464-382-0 01 1 9603-9801 ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9> 		1-21464-382-0 01 1 9603-9801 ●
22 BRACKET; RAD MTG 1-21464-382-0 01 1 9802-9904 ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21464-382-0 01 1 9802-9904 ●
22 BRACKET; RAD MTG 1-21464-381-0 01 1 9603-9801 ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9> 		1-21464-381-0 01 1 9603-9801 ●
22 BRACKET; RAD MTG 1-21464-381-0 01 1 9802-9904 ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21464-381-0 01 1 9802-9904 ●
22 BRACKET; RAD MTG 1-21464-381-0 01 1 9905- ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21464-381-0 01 1 9905- ● ● ●
22 BRACKET; RAD MTG 1-21464-382-0 01 1 9905- ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21464-382-0 01 1 9905- ● ● ●
22 BRACKET; RAD MTG
FIRE TRUCK<RA9> 		1-21464-380-0 01 1 9603-9904 ●
22 BRACKET; RAD MTG
FIRE TRUCK<RA9> RADIATOR HEAVY DUTY<V05> 		1-21464-380-0 01 1 9905- ● ● ●
22 BRACKET; RAD MTG
FIRE TRUCK<RA9> 		1-21464-379-0 01 1 9603-9904 ●
22 BRACKET; RAD MTG
FIRE TRUCK<RA9> RADIATOR HEAVY DUTY<V05> 		1-21464-379-0 01 1 9905- ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9603-9901 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9902-9904 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9905-9912 ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 0001- ● ● ● ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9603-9801 ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9> 		1-21419-050-0 01 1 9603-9801 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9802-9901 ●
33 PROTECTOR; RAD
CXZ&LONG CHASSIS(CXZ6MF) EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 9802-9901 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9905-9909 ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 9905-9909 ● ● ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9910-9912 ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 9910-9912 ● ● ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 0001- ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 0001- ● ● ●
33 PROTECTOR; RAD
RADIATOR HEAVY DUTY<V05> EXC. FIRE TRUCK<RA9> 		1-21419-049-0 01 1 9905-9909 ● ● ●
33 PROTECTOR; RAD
RADIATOR HEAVY DUTY<V05> EXC. FIRE TRUCK<RA9>,RADIATOR CURTAIN<SK7> 		1-21419-049-0 01 1 9910- ● ● ●
33 PROTECTOR; RAD
FIRE TRUCK<RA9> 		1-21419-051-0 01 1 9603- ●
33 PROTECTOR; RAD
RADIATOR HEAVY DUTY<V05> EXC. FIRE TRUCK<RA9> 		1-21419-049-0 01 1 9802-9901 ●
41 SHUTTER ASM; RAD 1-21511-105-1 01 1 9603-9904 ●
41 SHUTTER ASM; RAD
CXZ&LONG CHASSIS(CXZ6MF) RADIATOR CURTAIN<SK7> 		1-21511-105-1 01 1 9603-9904 ●
41 SHUTTER ASM; RAD 1-21511-105-1 01 1 9905- ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-105-1 01 1 9905- ● ● ●
45 BOLT; RAD SHUTTER
M8X20 FLANGE 		0-28080-820-0 01 1 9603-9904 ●
45 BOLT; RAD SHUTTER
CXZ&LONG CHASSIS(CXZ6MF) RADIATOR CURTAIN<SK7> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9904 ●
45 BOLT; RAD SHUTTER
M8X20 FLANGE 		0-28080-820-0 01 1 9905- ●
45 BOLT; RAD SHUTTER
RADIATOR CURTAIN<SK7> EXC. RADIATOR HEAVY DUTY<V05> M8X20 FLANGE 		0-28080-820-0 01 1 9905- ● ● ●
50 WASHER; PL,RAD SHUTTER
ID=8.4 OD=22 		9-09160-708-0 01 1 9603-9904 ●
50 WASHER; PL,RAD SHUTTER
CXZ&LONG CHASSIS(CXZ6MF) RADIATOR CURTAIN<SK7> ID=8.4 OD=22 		9-09160-708-0 01 1 9603-9904 ●
50 WASHER; PL,RAD SHUTTER
ID=8.4 OD=22 		9-09160-708-0 01 1 9905- ●
50 WASHER; PL,RAD SHUTTER
RADIATOR CURTAIN<SK7> EXC. RADIATOR HEAVY DUTY<V05> ID=8.4 OD=22 		9-09160-708-0 01 1 9905- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9603-9901 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9902-9904 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9905-9909 ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9910-9912 ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0001- ●
51 PLUG; DRAIN
EXC. RADIATOR HEAVY DUTY<V05> W/GASKET 		1-09609-009-0 01 1 0001- ● ● ●
55 STAY; RAD TO UPR MBR
EXC. FIRE TRUCK<RA9> 		1-21464-386-0 01 1 9603-9801 ● ●
55 STAY; RAD TO UPR MBR
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21464-386-0 01 1 9802- ● ●
55 STAY; RAD TO UPR MBR
EXC. FIRE TRUCK<RA9> 		1-21464-385-0 01 1 9603-9801 ● ●
55 STAY; RAD TO UPR MBR
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21464-385-0 01 1 9802- ● ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-384-0 01 1 9603-9904 ●
55 STAY; RAD TO UPR MBR
FIRE TRUCK<RA9> 		1-21464-384-0 01 1 9603-9904 ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-384-0 01 1 9905- ● ● ●
55 STAY; RAD TO UPR MBR
FIRE TRUCK<RA9> 		1-21464-384-0 01 1 9905- ● ● ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-383-0 01 1 9603-9904 ●
55 STAY; RAD TO UPR MBR
FIRE TRUCK<RA9> 		1-21464-383-0 01 1 9603-9904 ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-383-0 01 1 9905- ● ● ●
55 STAY; RAD TO UPR MBR
FIRE TRUCK<RA9> 		1-21464-383-0 01 1 9905- ● ● ●
60 GROMMET 1-09332-117-0 04 1 9603-9901 ● ●
60 GROMMET 1-09332-117-0 04 1 9902-9904 ● ●
60 GROMMET 1-09332-117-0 04 1 9905- ● ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9603-9901 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9902-9904 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9905- ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9603-9901 ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9902-9904 ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9905- ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9603-9901 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9902-9904 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9905- ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10,M12 L=82 STUD 		1-21466-005-0 02 1 9603-9901 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10,M12 L=82 STUD 		1-21466-005-0 02 1 9902-9904 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10,M12 L=82 STUD 		1-21466-005-0 02 1 9905- ● ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9607-9901 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9902-9904 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-402-0 01 1 9603-9904 ●
79 GUIDE; FAN,RAD 1-21551-402-0 01 1 9905-9907 ●
79 GUIDE; FAN,RAD 1-21551-479-0 01 1 9908- ●
79 GUIDE; FAN,RAD 1-21551-403-0 01 1 9603-9904 ●
79 GUIDE; FAN,RAD 1-21551-403-0 01 1 9905-9907 ● ● ●
79 GUIDE; FAN,RAD 1-21551-450-0 01 1 9908- ● ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 17 1 9603-9904 ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 17 1 9905-9909 ● ● ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 17 1 9910- ● ● ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 9603-9904 ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 9905- ● ● ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9603-9901 ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9902-9904 ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9905-0005 ● ● ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 0006- ● ● ● ●
83 CLIP; FAN COVER
ID=700 		1-09707-127-1 01 1 9603-9901 ● ●
83 CLIP; FAN COVER
ID=700 		1-09707-127-1 01 1 9902-9904 ● ●
83 CLIP; FAN COVER
ID=700 		1-09707-127-1 01 1 9905-0005 ● ● ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 0006- ● ● ● ●
85 CLIP 9-09520-835-0 01 1 9603-9904 ●
85 CLIP
CXZ&LONG CHASSIS(CXZ6MF) RADIATOR CURTAIN<SK7> 		9-09520-835-0 01 1 9603-9904 ●
85 CLIP 9-09520-835-0 01 1 9905- ●
85 CLIP
RADIATOR CURTAIN<SK7> 		9-09520-835-0 01 1 9905- ● ● ●
87 STAY; FAN GUIDE 1-21559-285-0 01 1 9603-9904 ● ●
87 STAY; FAN GUIDE 1-21559-285-0 01 1 9905- ● ● ● ●
94 TUBE; DIST 1-21419-052-0 01 1 9603-9904 ●
94 TUBE; DIST
CXZ&LONG CHASSIS(CXZ6MF) RADIATOR CURTAIN<SK7> 		1-21419-052-0 01 1 9603-9904 ●
94 TUBE; DIST 1-21419-052-0 01 1 9905- ●
94 TUBE; DIST
RADIATOR CURTAIN<SK7> EXC. RADIATOR HEAVY DUTY<V05> 		1-21419-052-0 01 1 9905- ● ● ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9603-9904 ● ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9905- ● ● ● ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 02 1 9603-9904 ● ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 02 1 9905- ● ● ● ●
97 TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8 		1-13666-037-0 01 1 9603-9904 ● ●
97 TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8 		1-13666-037-0 01 1 9905- ● ● ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9603-9904 ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9905-9909 ● ● ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9910-0005 ● ● ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 0006- ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9603-9904 ● ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9905- ● ● ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9603-9904 ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9905- ● ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9603-9901 ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9902-9904 ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9905-9909 ● ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9910- ● ● ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9603-9901 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9902-9904 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9905- ● ● ● ●
