5-30 — SPARE TIRE CARRIER AND COVER (#53103) — 78 parça

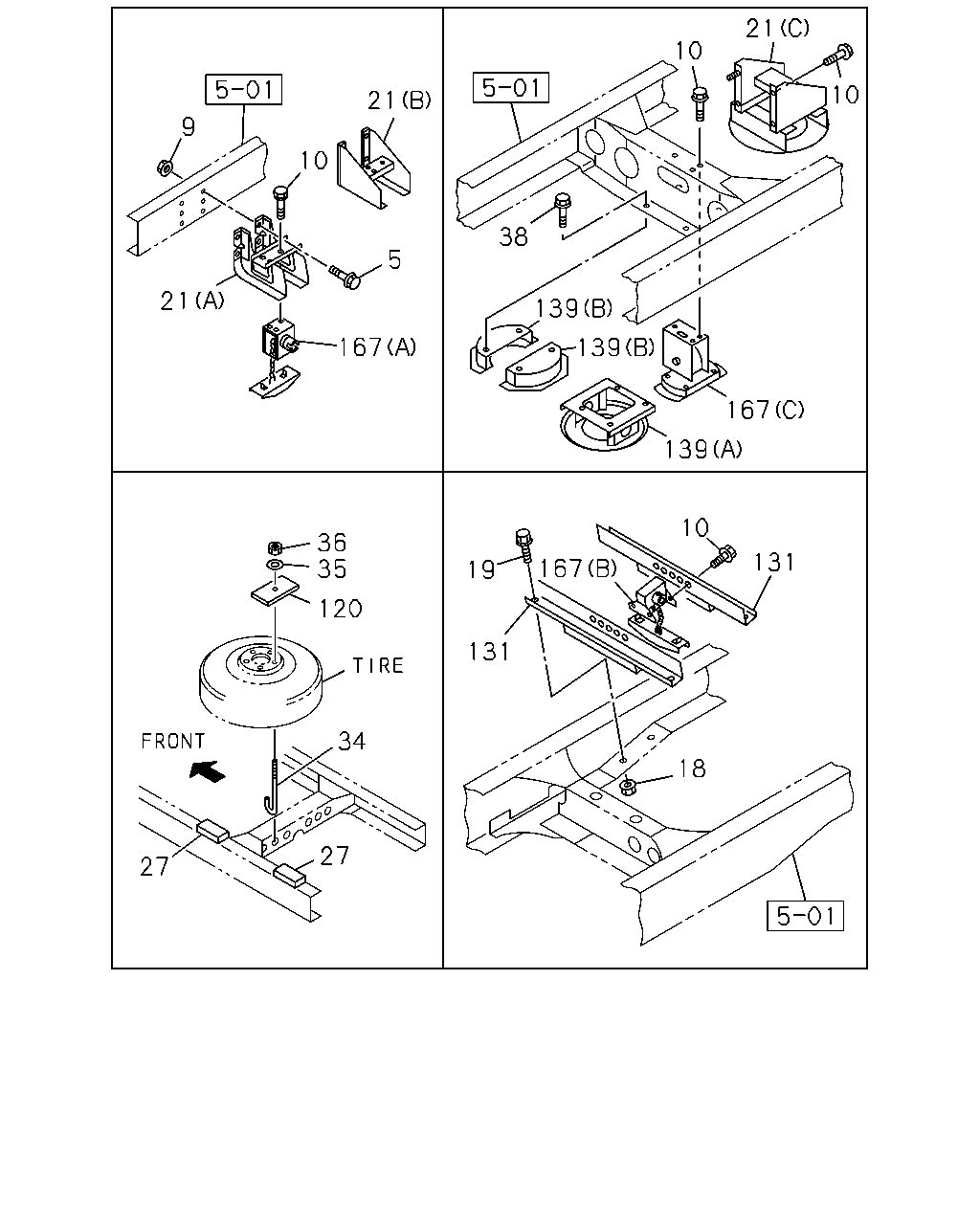

çizim 154145
21 10 5 5 10 21 9 10 38 5 21 139 167 139 167 139 10 36 35 131 167 19 120 131 34 18 27 27 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 0803- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 0803- ●
9 07.633 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0902- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0901 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0901 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0902- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0902- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0902- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0803-0803 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0803-0803 ●
10 07.632 BOLT; TIRE HANGER
SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0803-0803 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0803-0803 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0804- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0804- ●
10 07.632 BOLT; TIRE HANGER
SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0804- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0804- ●
10 07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0804- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) 01.531 M8X20 FLANGE 		0-28650-820-0 06 1 0804- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0803-0803 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0803-0803 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0804-0903 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0804-0903 ●
10 07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0804-0903 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0904- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0904- ●
10 07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0904- ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ● ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804-0903 ● ●
18 07.633 NUT; MEMBER
03.162 M10 FLANGE 		0-91180-110-0 04 1 0804-0903 ●
18 07.633 NUT; MEMBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0904- ● ●
18 07.633 NUT; MEMBER
03.162 M10 FLANGE 		0-91180-110-0 04 1 0904- ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0803-0803 ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804-0903 ● ●
19 07.632 BOLT; C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804-0903 ●
19 07.632 BOLT; C/MBR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0904- ● ●
19 07.632 BOLT; C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0904- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98036-085-2 01 1 0803-0803 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> (A) 		8-98036-085-2 01 1 0803-0803 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) (A) 		8-98036-085-2 01 1 0804- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> (A) 		8-98036-085-2 01 1 0804- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-98098-898-0 01 1 0804- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B) 		8-97384-022-3 01 1 0803-0803 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-97384-022-3 01 1 0804- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 03 1 0803- ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 0803-1209 ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330 		8-98226-501-0 01 1 1210- ●
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 0803- ●
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12 		0-91110-512-0 01 1 0803- ●
38 07.629 BOLT; STOPPER
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0803-0803 ●
38 07.629 BOLT; STOPPER
SMALL DOUBLE RR TIRE(6YE) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0804- ●
38 07.629 BOLT; STOPPER
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0804- ●
38 07.629 BOLT; STOPPER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0804- ●
120 07.629 PLATE; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME-KICK UP<7EW> 07.518 		1-51377-166-0 01 1 0910- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-825-2 02 1 0803-0803 ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-825-2 02 1 0804-0903 ● ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-98035-825-2 02 1 0804-0903 ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 0904- ● ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-98035-825-3 02 1 0904- ●
139 07.629 STOPPER; SPARE TIRE
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98107-563-2 01 1 0803-0803 ●
139 07.629 STOPPER; SPARE TIRE
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98107-563-2 01 1 0804- ●
139 07.629 STOPPER; SPARE TIRE
(A) 		8-98107-563-2 01 1 0804- ●
139 07.629 STOPPER; SPARE TIRE
SMALL DOUBLE RR TIRE(6YE) (B) 		8-98041-743-1 02 1 0804-1005 ●
139 07.629 STOPPER; SPARE TIRE
SMALL DOUBLE RR TIRE(6YE) (B) 		8-98147-900-0 02 1 1006- ●
167 07.629 HANGER; TIRE
SINGLE RR TIRE(6TD) (C) 		8-94380-175-1 01 1 0803-0803 ●
167 07.629 HANGER; TIRE
SMALL DOUBLE RR TIRE(6YE) (C) 		8-94380-175-1 01 1 0804- ●
167 07.629 HANGER; TIRE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) 		8-94380-175-1 01 1 0804- ●
167 07.629 HANGER; TIRE
(C) 		8-94380-175-1 01 1 0804- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A) 		8-94382-875-1 01 1 0803- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (A) 		8-94382-875-1 01 1 0803- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 0803- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (B) 		8-98036-384-0 01 1 0803-0803 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) 		8-98036-384-0 01 1 0803-0803 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (B) 		8-98036-384-0 01 1 0804-0903 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) 		8-98036-384-0 01 1 0804-0903 ●
167 07.629 HANGER; TIRE
(B) 		8-98036-384-0 01 1 0804-0903 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (B) 		8-98036-384-0 01 1 0904- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) 		8-98036-384-0 01 1 0904- ●
167 07.629 HANGER; TIRE
(B) 		8-98036-384-0 01 1 0904- ●
