Sayfa 5-20 - Isuzu EPC

5-20 — BATTERY CARRIER (#53102) — 285 parça

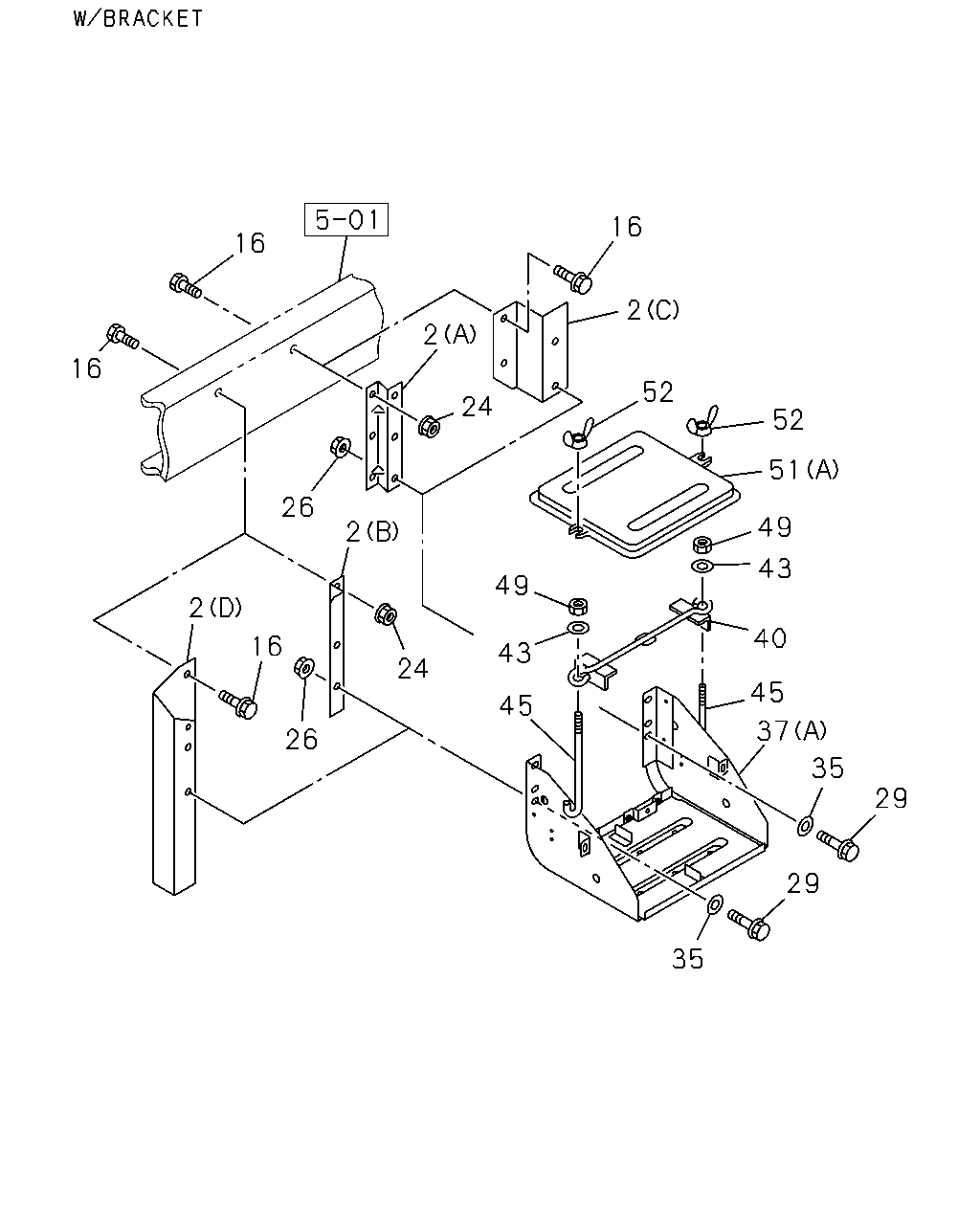

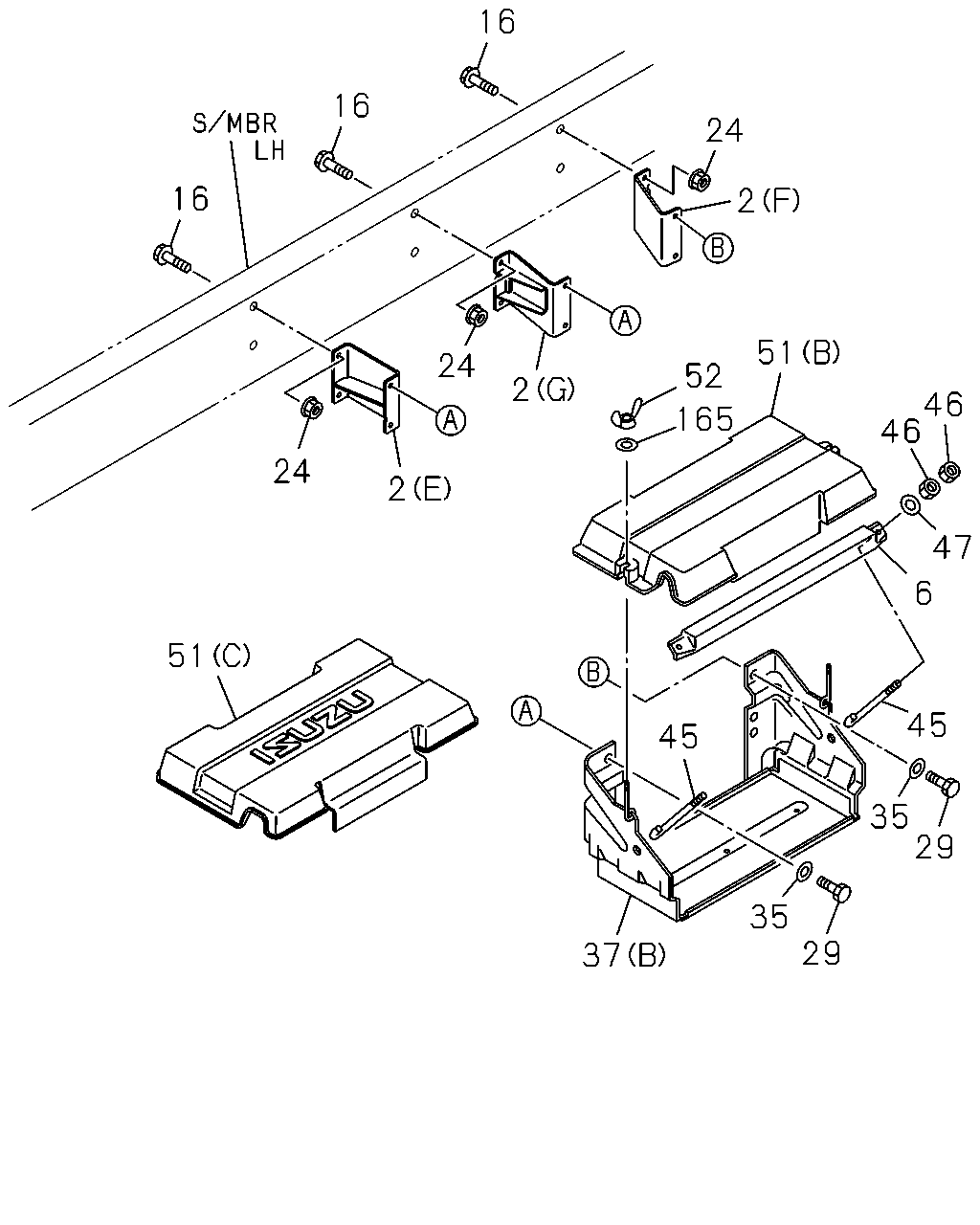

16 16 24 16 2 51 24 52 2 46 46 165 24 2 47 6 51 45 45 35 29 35 29 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	02.333 BRACKET; BATTERY 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (C)	8-97384-072-0	01	1	0803-	●
2	02.333 BRACKET; BATTERY 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (D)	8-97384-073-0	01	1	0803-	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> (G)	8-98095-028-0	01	1	0804-0804		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (G)	8-98095-028-0	01	1	0804-0804	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> (G)	8-98095-028-0	01	1	0805-0809		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> (G)	8-98095-028-0	01	1	0810-		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (G)	8-98095-028-0	01	1	0810-	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> (E)	8-98095-029-0	01	1	0804-0804		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> EXC. FRAME-KICK UP<7EW> (E)	8-98095-029-0	01	1	0804-0804	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> (E)	8-98095-029-0	01	1	0805-0809		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> (E)	8-98095-029-0	01	1	0810-		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> EXC. FRAME-KICK UP<7EW> (E)	8-98095-029-0	01	1	0810-	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (F)	8-98095-027-0	01	1	0804-0804		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (F)	8-98095-027-0	01	1	0804-0804	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (F)	8-98095-027-0	01	1	0805-0809		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (F)	8-98095-027-0	01	1	0810-		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (F)	8-98095-027-0	01	1	0810-	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	0803-0803		●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (A)	8-97384-069-1	01	1	0803-0803	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (A)	8-97384-069-1	01	1	0804-	●	●	●	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	0803-0803		●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (B)	8-97384-070-1	01	1	0803-0803	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (B)	8-97384-070-1	01	1	0804-	●	●	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31L<TQ8>	8-94108-314-0	01	1	0804-0804	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31L<TQ8>	8-94108-314-0	01	1	0805-0809		●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31L<TQ8>	8-94108-314-0	01	1	0810-	●	●
6	02.333 BRACKET; BATTERY CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC>	9-53616-153-0	01	1	0804-0804	●	●
6	02.333 BRACKET; BATTERY CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC>	9-53616-153-0	01	1	0805-0809		●
6	02.333 BRACKET; BATTERY CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC>	9-53616-153-0	01	1	0810-	●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804			●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809			●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912			●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0803-0803		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0803-0803	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	03	1	0803-0912		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	03	1	0803-0912	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1001-		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	03	1	1001-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803	●	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0803-0803	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0802-0803	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0802-0803	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31L<TQ8> (B)	8-97384-065-0	01	1	0804-	●	●
37	02.333 BRACKET; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> (B)	8-97384-064-0	01	1	0804-	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0803-0803	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0804-	●	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31L<TQ8> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0804-0804	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0804-0804	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31L<TQ8> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0805-0809		●
46	02.334 WASHER; PL,BATTERY TO CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0805-0809		●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31L<TQ8> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0810-	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0810-	●	●
47	02.334 NUT; BRKT BATTERY 95D31L<TQ8> M8	0-91110-508-0	02	1	0804-0804	●	●
47	02.334 NUT; BRKT VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M8	0-91110-508-0	02	1	0804-0804	●	●
47	02.334 NUT; BRKT BATTERY 95D31L<TQ8> M8	0-91110-508-0	02	1	0805-0809		●
47	02.334 NUT; BRKT VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M8	0-91110-508-0	02	1	0805-0809		●
47	02.334 NUT; BRKT BATTERY 95D31L<TQ8> M8	0-91110-508-0	02	1	0810-	●	●
47	02.334 NUT; BRKT VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M8	0-91110-508-0	02	1	0810-	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0803-0803	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0804-0804			●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0805-0809		●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0805-0809	●		●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0810-0908	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0810-0908			●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0909-	●	●
51	02.335 COVER; BATTERY 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0909-			●	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0805-0809		●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0810-	●	●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0805-0809		●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0810-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0803-0803	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0804-	●	●	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0804-0804	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0805-0809		●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0810-	●	●
165	02.334 WASHER; COVER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.335 ID=5.3 OD=16	0-91614-705-0	02	1	0804-0804	●	●
165	02.334 WASHER; COVER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.335 ID=5.3 OD=16	0-91614-705-0	02	1	0805-0809		●
165	02.334 WASHER; COVER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.335 ID=5.3 OD=16	0-91614-705-0	02	1	0810-	●	●

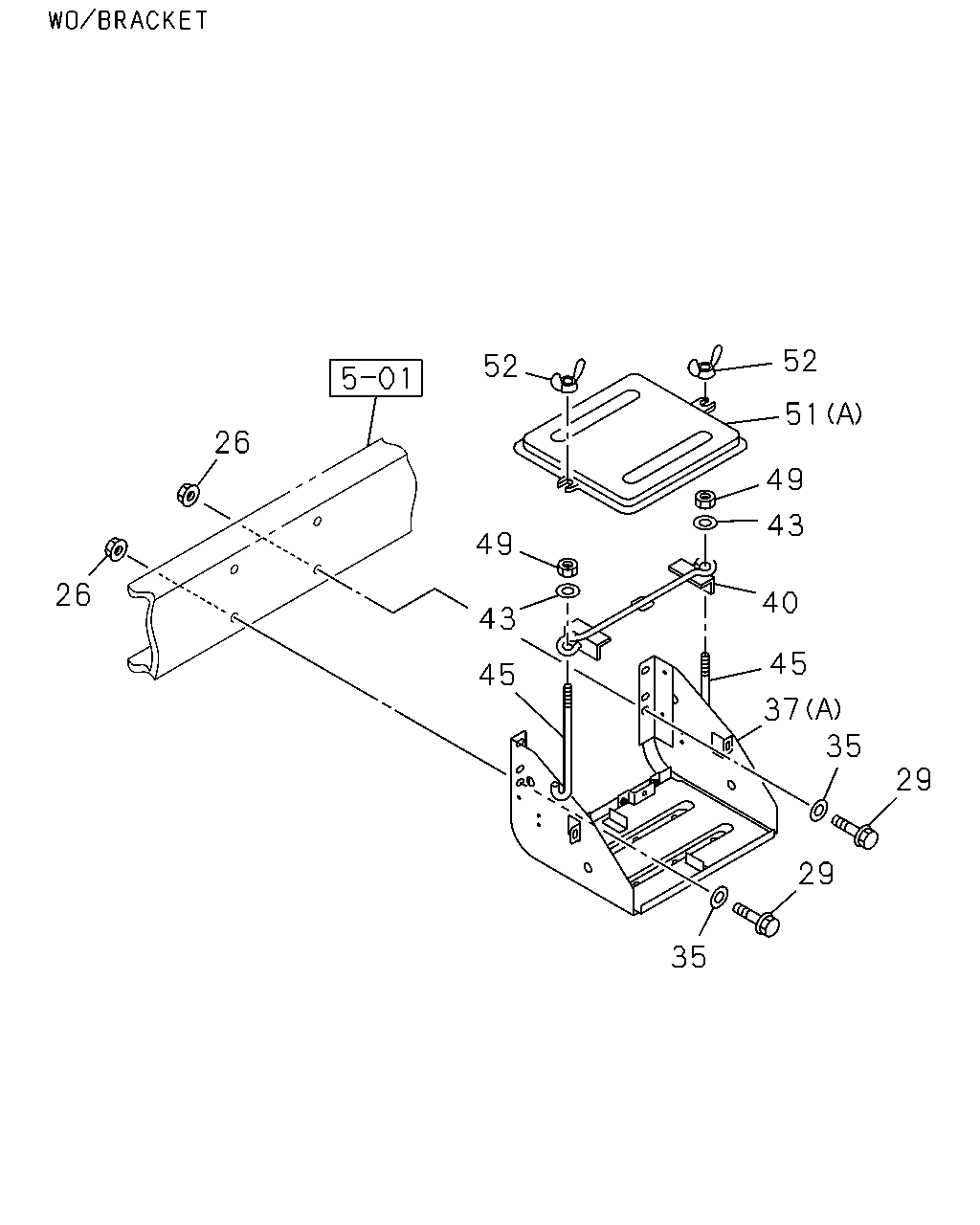

52 52 51 26 49 43 49 26 40 43 45 45 37 35 29 29 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0903		●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0903	●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0904-		●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	04	1	0904-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803	●	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0803-0803	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0802-0803	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0802-0803	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31L<TQ8> (B)	8-97384-065-0	01	1	0804-	●	●
37	02.333 BRACKET; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> (B)	8-97384-064-0	01	1	0804-	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0803-0803	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0804-	●	●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0803-0803	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0804-	●	●	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0803-0803	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0804-	●	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0803-0803	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0804-0804			●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0805-0809		●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0805-0809	●		●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0810-0908	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0810-0908			●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0909-	●	●
51	02.335 COVER; BATTERY 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0909-			●	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0805-0809		●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0810-	●	●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0805-0809		●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0810-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0803-0803	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0804-	●	●	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0804-0804	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0805-0809		●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0810-	●	●

16 16 2 2 16 52 24 52 51 26 49 2 43 49 2 40 16 43 24 45 45 37 26 35 29 29 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	02.333 BRACKET; BATTERY 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (C)	8-97384-072-0	01	1	0803-	●
2	02.333 BRACKET; BATTERY 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (D)	8-97384-073-0	01	1	0803-	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> (G)	8-98095-028-0	01	1	0804-0804		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (G)	8-98095-028-0	01	1	0804-0804	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> (G)	8-98095-028-0	01	1	0805-0809		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> (G)	8-98095-028-0	01	1	0810-		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (G)	8-98095-028-0	01	1	0810-	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> (E)	8-98095-029-0	01	1	0804-0804		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> EXC. FRAME-KICK UP<7EW> (E)	8-98095-029-0	01	1	0804-0804	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> (E)	8-98095-029-0	01	1	0805-0809		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> (E)	8-98095-029-0	01	1	0810-		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8> EXC. FRAME-KICK UP<7EW> (E)	8-98095-029-0	01	1	0810-	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (F)	8-98095-027-0	01	1	0804-0804		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (F)	8-98095-027-0	01	1	0804-0804	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (F)	8-98095-027-0	01	1	0805-0809		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (F)	8-98095-027-0	01	1	0810-		●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (F)	8-98095-027-0	01	1	0810-	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	0803-0803		●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (A)	8-97384-069-1	01	1	0803-0803	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (A)	8-97384-069-1	01	1	0804-	●	●	●	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	0803-0803		●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (B)	8-97384-070-1	01	1	0803-0803	●
2	02.333 BRACKET; BATTERY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (B)	8-97384-070-1	01	1	0804-	●	●	●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0804			●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-0809			●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0810-0912			●	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-		●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-		●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-	●
16	02.334 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0803-0803		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0803-0803	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0804			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-0809			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-0912			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-		●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-			●	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	03	1	0803-0912		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	03	1	0803-0912	●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1001-		●
24	02.334 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	03	1	1001-	●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0903		●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0903	●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0904-		●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	04	1	0904-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0803-0803	●	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0803-0803	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0802-0803	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0802-0803	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0804-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31L<TQ8> (B)	8-97384-065-0	01	1	0804-	●	●
37	02.333 BRACKET; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> (B)	8-97384-064-0	01	1	0804-	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0803-0803	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0804-	●	●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0803-0803	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0804-	●	●	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0803-0803	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0804-	●	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0803-0803	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0804-0804			●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0805-0809		●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0805-0809	●		●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0810-0908	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0810-0908			●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A)	8-97120-747-0	01	1	0909-	●	●
51	02.335 COVER; BATTERY 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0909-			●	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0805-0809		●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C)	8-97313-780-0	01	1	0810-	●	●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0804-0804	●	●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0805-0809		●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0810-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0803-0803	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0804-	●	●	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0804-0804	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0805-0809		●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0810-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
