Sayfa 1-10A - Isuzu EPC

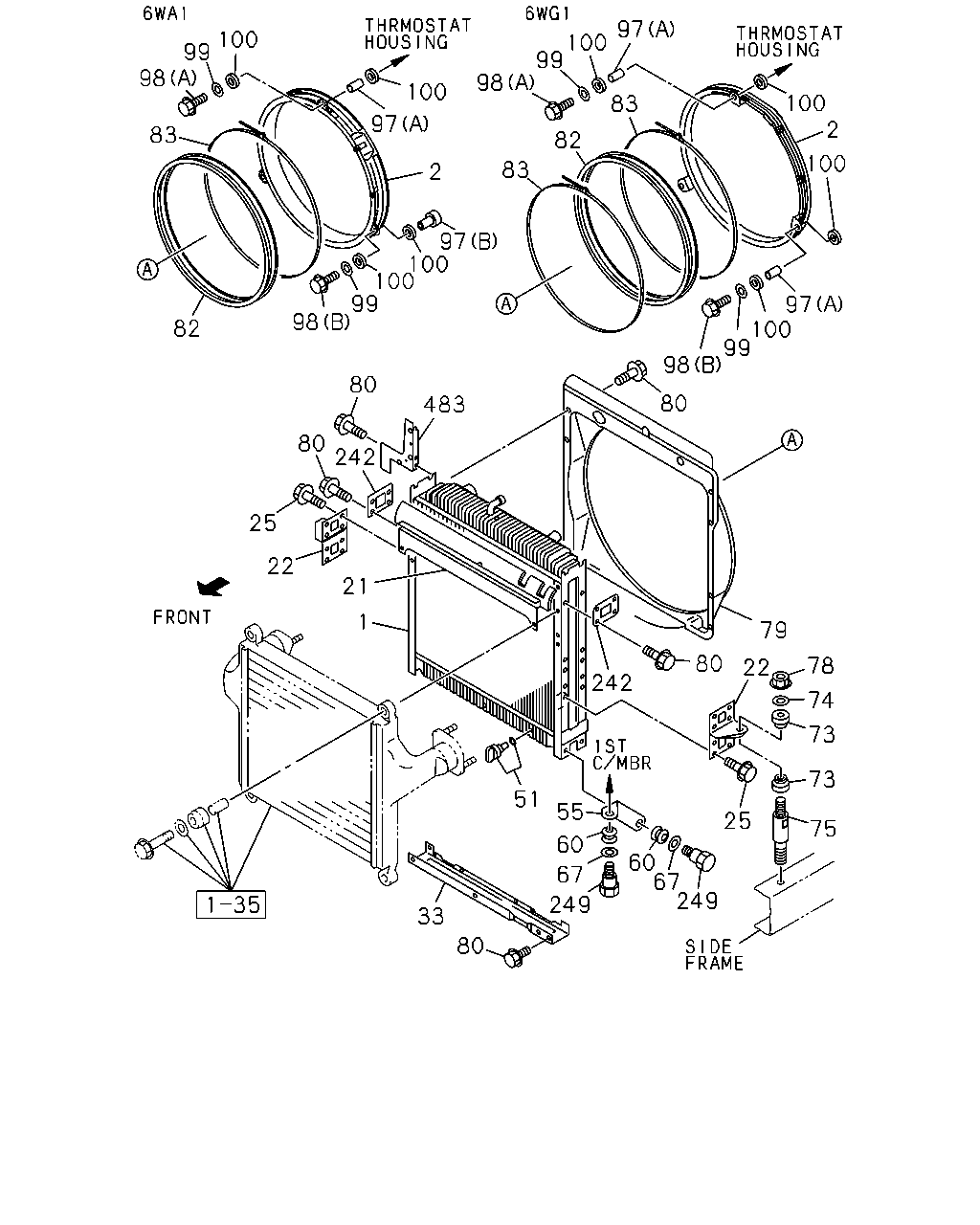

1-10A — RADIATOR (#5310) — 276 parça

97 100 100 99 99 98 98 83 100 100 2 97 83 82 100 83 2 97 100 100 99 98 97 100 99 98 82 80 80 483 80 242 25 22 21 1 79 242 80 78 22 74 73 73 51 55 25 75 60 60 67 249 67 249 33 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	RADIATOR ASM	1-21410-693-0	01	1	9603-9901	●
1	RADIATOR ASM ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21410-693-0	01	1	9902-9904		●
1	RADIATOR ASM	1-21410-693-0	01	1	9902-9904			●
1	RADIATOR ASM	1-21410-693-0	01	1	9905-9912			●	●
1	RADIATOR ASM ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21410-693-0	01	1	9905-9912		●
1	RADIATOR ASM EXC. CAB UP +110MM<TGG>	1-21410-693-0	01	1	0001-		●	●	●
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-807-0	01	1	9905-					●
1	RADIATOR ASM EXC. FIRE TRUCK<RA9>	1-21410-730-0	01	1	9905-9909					●
1	RADIATOR ASM EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21410-730-0	01	1	9910-9912					●	●
1	RADIATOR ASM CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21410-730-1	01	1	0001-		●
1	RADIATOR ASM EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21410-730-1	01	1	0001-					●	●
1	RADIATOR ASM TUNISIA EQUIPMENT(NGT)	1-21410-806-0	01	1	9910-						●
1	RADIATOR ASM CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21410-729-1	01	1	9902-9904		●
2	GUIDE; FAN	1-21551-369-0	01	1	9603-9901	●
2	GUIDE; FAN	1-21551-369-0	01	1	9902-9904		●	●
2	GUIDE; FAN	1-21551-369-0	01	1	9905-0005		●	●	●
2	GUIDE; FAN	1-21551-369-0	01	1	0006-			●	●
2	GUIDE; FAN EXC. RADIATOR HEAVY DUTY<V05>	1-21551-369-0	01	1	0006-		●
2	GUIDE; FAN	1-21551-420-0	01	1	9905-9909					●
2	GUIDE; FAN	1-21551-420-0	01	1	9910-0005					●	●
2	GUIDE; FAN RADIATOR HEAVY DUTY<V05>	1-21551-420-0	01	1	0006-		●
2	GUIDE; FAN	1-21551-420-0	01	1	0006-					●	●
21	SEAL; RAD	1-21460-094-0	01	1	9603-9901	●
21	SEAL; RAD ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21460-094-0	01	1	9902-9904		●
21	SEAL; RAD	1-21460-094-0	01	1	9902-9904			●
21	SEAL; RAD	1-21460-094-0	01	1	9905-9912			●	●
21	SEAL; RAD ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21460-094-0	01	1	9905-9912		●
21	SEAL; RAD EXC. CAB UP +110MM<TGG>	1-21460-094-0	01	1	0001-		●	●	●
21	SEAL; RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21460-098-0	01	1	9902-9904		●
21	SEAL; RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21460-098-0	01	1	9905-9909		●
21	SEAL; RAD	1-21460-098-0	01	1	9905-9909					●
21	SEAL; RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21460-098-0	01	1	9910-9912		●
21	SEAL; RAD EXC. TUNISIA EQUIPMENT(NGT)	1-21460-098-0	01	1	9910-9912					●
21	SEAL; RAD EXC. FIRE TRUCK<RA9>	1-21460-098-0	01	1	9910-9912						●
21	SEAL; RAD CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21460-098-0	01	1	0001-		●
21	SEAL; RAD EXC. TUNISIA EQUIPMENT(NGT)	1-21460-098-0	01	1	0001-					●
21	SEAL; RAD	1-21460-098-0	01	1	0001-						●
21	SEAL; RAD CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21460-103-0	01	1	0001-		●
22	BRACKET; RAD MTG	1-21464-444-0	01	1	9603-9901	●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-444-0	01	1	9902-9904		●
22	BRACKET; RAD MTG	1-21464-444-0	01	1	9902-9904			●
22	BRACKET; RAD MTG	1-21464-444-0	01	1	9905-9912			●	●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-444-0	01	1	9905-9912		●
22	BRACKET; RAD MTG EXC. CAB UP +110MM<TGG>	1-21464-444-0	01	1	0001-		●	●	●
22	BRACKET; RAD MTG	1-21464-443-0	01	1	9603-9901	●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-443-0	01	1	9902-9904		●
22	BRACKET; RAD MTG	1-21464-443-0	01	1	9902-9904			●
22	BRACKET; RAD MTG	1-21464-443-0	01	1	9905-9912			●	●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-443-0	01	1	9905-9912		●
22	BRACKET; RAD MTG EXC. CAB UP +110MM<TGG>	1-21464-443-0	01	1	0001-		●	●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21464-461-1	01	1	0001-		●
22	BRACKET; RAD MTG FIRE TRUCK<RA9>	1-21464-660-0	01	1	9905-					●
22	BRACKET; RAD MTG FIRE TRUCK<RA9>	1-21464-659-0	01	1	9905-9909					●
22	BRACKET; RAD MTG FIRE TRUCK<RA9>	1-21464-659-0	01	1	9910-					●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT)	1-21464-659-0	01	1	9910-						●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT)	1-21464-658-0	01	1	9910-						●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-504-0	01	1	9902-9904		●
22	BRACKET; RAD MTG INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-504-0	01	1	9905-9909		●
22	BRACKET; RAD MTG EXC. FIRE TRUCK<RA9>	1-21464-504-0	01	1	9905-9909					●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-504-0	01	1	9910-9912		●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-504-0	01	1	9910-9912					●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21464-504-0	01	1	0001-		●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-504-0	01	1	0001-					●	●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-503-0	01	1	9902-9904		●
22	BRACKET; RAD MTG INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-503-0	01	1	9905-9909		●
22	BRACKET; RAD MTG EXC. FIRE TRUCK<RA9>	1-21464-503-0	01	1	9905-9909					●
22	BRACKET; RAD MTG ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-503-0	01	1	9910-9912		●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-503-0	01	1	9910-9912					●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21464-503-0	01	1	0001-		●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-503-0	01	1	0001-					●	●
25	BOLT; BRKT ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) M8X16 FLANGE	0-28080-816-0	18	1	9902-9904		●
25	BOLT; BRKT ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) M8X16 FLANGE	0-28080-816-0	18	1	9905-9909		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	9905-9909					●
25	BOLT; BRKT ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) M8X16 FLANGE	0-28080-816-0	18	1	9910-9912		●
25	BOLT; BRKT EXC. TUNISIA EQUIPMENT(NGT) M8X16 FLANGE	0-28080-816-0	18	1	9910-9912					●
25	BOLT; BRKT EXC. FIRE TRUCK<RA9> M8X16 FLANGE	0-28080-816-0	18	1	9910-9912						●
25	BOLT; BRKT CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05> M8X16 FLANGE	0-28080-816-0	18	1	0001-		●
25	BOLT; BRKT EXC. TUNISIA EQUIPMENT(NGT) M8X16 FLANGE	0-28080-816-0	18	1	0001-					●
25	BOLT; BRKT EXC. FIRE TRUCK<RA9> M8X16 FLANGE	0-28080-816-0	18	1	0001-						●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9603-9901	●
25	BOLT; BRKT ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) M8X16 FLANGE	0-28080-816-0	14	1	9902-9904		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9902-9904			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9905-9912			●	●
25	BOLT; BRKT ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) M8X16 FLANGE	0-28080-816-0	14	1	9905-9912		●
25	BOLT; BRKT EXC. CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	14	1	0001-		●	●	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9603-9801	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9802-9901	●
33	PROTECTOR; RAD ELECTRONIC GOV RED3(KG5)	1-21419-050-0	01	1	9902-9904		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9902-9904			●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9905-9909			●	●
33	PROTECTOR; RAD ELECTRONIC GOV RED3(KG5)	1-21419-050-0	01	1	9905-9909		●
33	PROTECTOR; RAD EXC. FIRE TRUCK<RA9>	1-21419-050-0	01	1	9905-9909					●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9910-9912			●	●
33	PROTECTOR; RAD ELECTRONIC GOV RED3(KG5)	1-21419-050-0	01	1	9910-9912		●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	9910-9912					●	●
33	PROTECTOR; RAD EXC. CAB UP +110MM<TGG>	1-21419-050-0	01	1	0001-			●	●
33	PROTECTOR; RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21419-050-0	01	1	0001-		●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0001-					●	●
33	PROTECTOR; RAD CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-21419-049-0	01	1	9905-9909					●
33	PROTECTOR; RAD CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9>	1-21419-049-0	01	1	9910-					●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9603-9901	●
51	PLUG; DRAIN ELECTRONIC GOV RED3(KG5) W/GASKET	1-09609-009-0	01	1	9902-9904		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9902-9904			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9905-9909			●	●	●
51	PLUG; DRAIN ELECTRONIC GOV RED3(KG5) W/GASKET	1-09609-009-0	01	1	9905-9909		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9910-9912			●	●
51	PLUG; DRAIN ELECTRONIC GOV RED3(KG5) W/GASKET	1-09609-009-0	01	1	9910-9912		●
51	PLUG; DRAIN EXC. TUNISIA EQUIPMENT(NGT) W/GASKET	1-09609-009-0	01	1	9910-9912					●
51	PLUG; DRAIN EXC. FIRE TRUCK<RA9> W/GASKET	1-09609-009-0	01	1	9910-9912						●
51	PLUG; DRAIN EXC. CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0001-			●	●
51	PLUG; DRAIN EXC. RADIATOR HEAVY DUTY<V05> W/GASKET	1-09609-009-0	01	1	0001-		●
51	PLUG; DRAIN EXC. TUNISIA EQUIPMENT(NGT) W/GASKET	1-09609-009-0	01	1	0001-					●
51	PLUG; DRAIN EXC. FIRE TRUCK<RA9> W/GASKET	1-09609-009-0	01	1	0001-						●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9603-9901	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-397-0	01	1	9902-9904		●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9902-9904			●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9905-9912			●	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-397-0	01	1	9905-9912		●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-397-0	01	1	0001-		●	●	●		●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9603-9901	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-396-0	01	1	9902-9904		●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9902-9904			●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9905-9912			●	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21464-396-0	01	1	9905-9912		●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-396-0	01	1	0001-		●	●	●		●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21464-640-0	01	1	0001-		●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21464-639-0	01	1	0001-		●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-653-0	01	1	9905-9909					●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-653-0	01	1	9910-					●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-653-0	01	1	9910-						●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-652-0	01	1	9905-9909					●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-652-0	01	1	9910-					●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-652-0	01	1	9910-						●
55	STAY; RAD TO UPR MBR EXC. FIRE TRUCK<RA9>	1-21464-499-0	01	1	9905-9909					●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-499-0	01	1	9910-					●	●
55	STAY; RAD TO UPR MBR EXC. FIRE TRUCK<RA9>	1-21464-498-0	01	1	9905-9909					●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-498-0	01	1	9910-					●	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-638-0	01	1	9902-9912		●
55	STAY; RAD TO UPR MBR EXC. ELECTRONIC GOV RED3(KG5)	1-21464-638-0	01	1	9902-9912		●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21464-638-0	01	1	0001-		●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-637-0	01	1	9902-9912		●
55	STAY; RAD TO UPR MBR EXC. ELECTRONIC GOV RED3(KG5)	1-21464-637-0	01	1	9902-9912		●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21464-637-0	01	1	0001-		●
60	GROMMET	1-09332-117-0	04	1	9603-9901	●
60	GROMMET	1-09332-117-0	04	1	9902-9904		●	●
60	GROMMET	1-09332-117-0	04	1	9905-		●	●	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9603-9901	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9902-9904		●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9905-		●	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9603-9901	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9902-9904		●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9905-		●	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9603-9901	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9902-9904		●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9905-		●	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M10,M12 L=82 STUD	1-21466-005-0	02	1	9603-9901	●
75	BOLT; CUSHION RUBBER,RAD MTG M10,M12 L=82 STUD	1-21466-005-0	02	1	9902-9904		●	●
75	BOLT; CUSHION RUBBER,RAD MTG M10,M12 L=82 STUD	1-21466-005-0	02	1	9905-		●	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-110-0	02	1	9603-9606	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9607-9901	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9902-9904		●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●	●	●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9603-9901	●
79	GUIDE; FAN,RAD ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21551-438-0	01	1	9902-9912		●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-438-0	01	1	0001-		●
79	GUIDE; FAN,RAD	1-21551-422-0	01	1	9905-9909					●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	9910-					●	●
79	GUIDE; FAN,RAD ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21551-384-0	01	1	9902-9904		●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9902-9904			●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9905-9912			●	●
79	GUIDE; FAN,RAD ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T)	1-21551-384-0	01	1	9905-9912		●
79	GUIDE; FAN,RAD EXC. CAB UP +110MM<TGG>	1-21551-384-0	01	1	0001-		●	●	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9603-9901	●
80	BOLT; FAN GUIDE ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) M8X12 FLANGE	0-28080-812-0	15	1	9902-9912		●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0001-		●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	18	1	9905-9909					●
80	BOLT; FAN GUIDE EXC. TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	18	1	9910-					●	●
80	BOLT; FAN GUIDE TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	17	1	9910-						●
80	BOLT; FAN GUIDE ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) M8X12 FLANGE	0-28080-812-0	16	1	9902-9904		●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9902-9904			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9905-9912			●	●
80	BOLT; FAN GUIDE ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) M8X12 FLANGE	0-28080-812-0	16	1	9905-9912		●
80	BOLT; FAN GUIDE EXC. CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	16	1	0001-		●	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9603-9901	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9902-9904		●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9905-0005		●	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	0006-			●	●
82	COVER; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21559-134-1	01	1	0006-		●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9905-9909					●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9910-0005					●	●
82	COVER; FAN,RAD CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21559-262-1	01	1	0006-		●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0006-					●	●
83	CLIP; FAN COVER ID=700	1-09707-127-1	01	1	9603-9901	●
83	CLIP; FAN COVER ID=700	1-09707-127-1	01	1	9902-9904		●	●
83	CLIP; FAN COVER ID=700	1-09707-127-1	01	1	9905-0005		●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	0006-			●	●
83	CLIP; FAN COVER EXC. RADIATOR HEAVY DUTY<V05>	1-09707-127-1	01	1	0006-		●
83	CLIP; FAN COVER ID=720	1-09707-152-1	02	1	9905-9909					●
83	CLIP; FAN COVER	1-09707-152-1	02	1	9910-0005					●	●
83	CLIP; FAN COVER CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-09707-152-2	02	1	0006-		●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0006-					●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9603-9901	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9902-9904		●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9905-0005		●	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	0006-			●	●
97	TUBE; DIST,FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> (A) ID=11.8 L=27	1-21559-149-0	01	1	0006-		●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9603-9901	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9902-9904		●	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9905-0005		●	●	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	0006-			●	●
97	TUBE; DIST,FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> (B)	1-21559-273-0	02	1	0006-		●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	9910-0005					●	●
97	TUBE; DIST,FAN GUIDE RADIATOR HEAVY DUTY<V05> (A) ID=11.8 L=27	1-21559-149-0	03	1	0006-		●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	0006-					●	●
98	BOLT; RAD FAN GUIDE (A) M10X40	0-10806-040-0	01	1	9603-9612	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9701-9901	●
98	BOLT; RAD FAN GUIDE (B) M10X55	0-10806-055-0	02	1	9603-9612	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9701-9901	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9902-9904		●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9905-9909		●	●	●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9910-		●	●	●	●	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9902-9904		●	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9905-9909		●	●	●	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9910-		●	●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9603-9901	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9902-9904		●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9905-9909		●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9910-		●	●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	9603-9901	●
100	RUBBER; MTG	1-09337-017-0	06	1	9902-9904		●	●
100	RUBBER; MTG	1-09337-017-0	06	1	9905-9909		●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	9910-		●	●	●	●	●
242	BRACKET; RAD	1-21464-461-1	02	1	9603-9901	●
242	BRACKET; RAD ELECTRONIC GOV RED3(KG5)	1-21464-461-1	02	1	9902-9904		●
242	BRACKET; RAD	1-21464-461-1	02	1	9902-9904			●
242	BRACKET; RAD	1-21464-461-1	02	1	9905-9912			●	●
242	BRACKET; RAD ELECTRONIC GOV RED3(KG5)	1-21464-461-1	02	1	9905-9912		●
242	BRACKET; RAD	1-21464-461-1	02	1	0001-		●	●	●
242	BRACKET; RAD FIRE TRUCK<RA9>	1-21464-661-0	01	1	9905-9909					●
242	BRACKET; RAD FIRE TRUCK<RA9>	1-21464-661-0	01	1	9910-					●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT)	1-21464-661-0	01	1	9910-						●
242	BRACKET; RAD FIRE TRUCK<RA9>	1-21464-662-0	01	1	9905-9909					●
242	BRACKET; RAD FIRE TRUCK<RA9>	1-21464-662-0	01	1	9910-					●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT)	1-21464-662-0	01	1	9910-						●
242	BRACKET; RAD EXC. FIRE TRUCK<RA9>	1-21464-629-0	01	1	9905-9909					●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-629-0	01	1	9910-					●	●
242	BRACKET; RAD EXC. FIRE TRUCK<RA9>	1-21464-630-0	01	1	9905-9909					●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-630-0	01	1	9910-					●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9603-9901	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9902-9904		●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9905-		●	●	●	●
483	BRACKET; SEAL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21460-092-1	01	1	9902-9904		●
483	BRACKET; SEAL INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21460-092-1	01	1	9905-9909		●
483	BRACKET; SEAL EXC. FIRE TRUCK<RA9>	1-21460-092-1	01	1	9905-9909					●
483	BRACKET; SEAL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21460-092-1	01	1	9910-9910		●
483	BRACKET; SEAL EXC. FIRE TRUCK<RA9>	1-21460-092-1	01	1	9910-9910					●	●
483	BRACKET; SEAL ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21460-092-1	01	1	9910-9912		●
483	BRACKET; SEAL EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21460-092-1	01	1	9910-9912					●	●
483	BRACKET; SEAL CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21460-092-1	01	1	0001-		●
483	BRACKET; SEAL EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21460-092-1	01	1	0001-					●	●

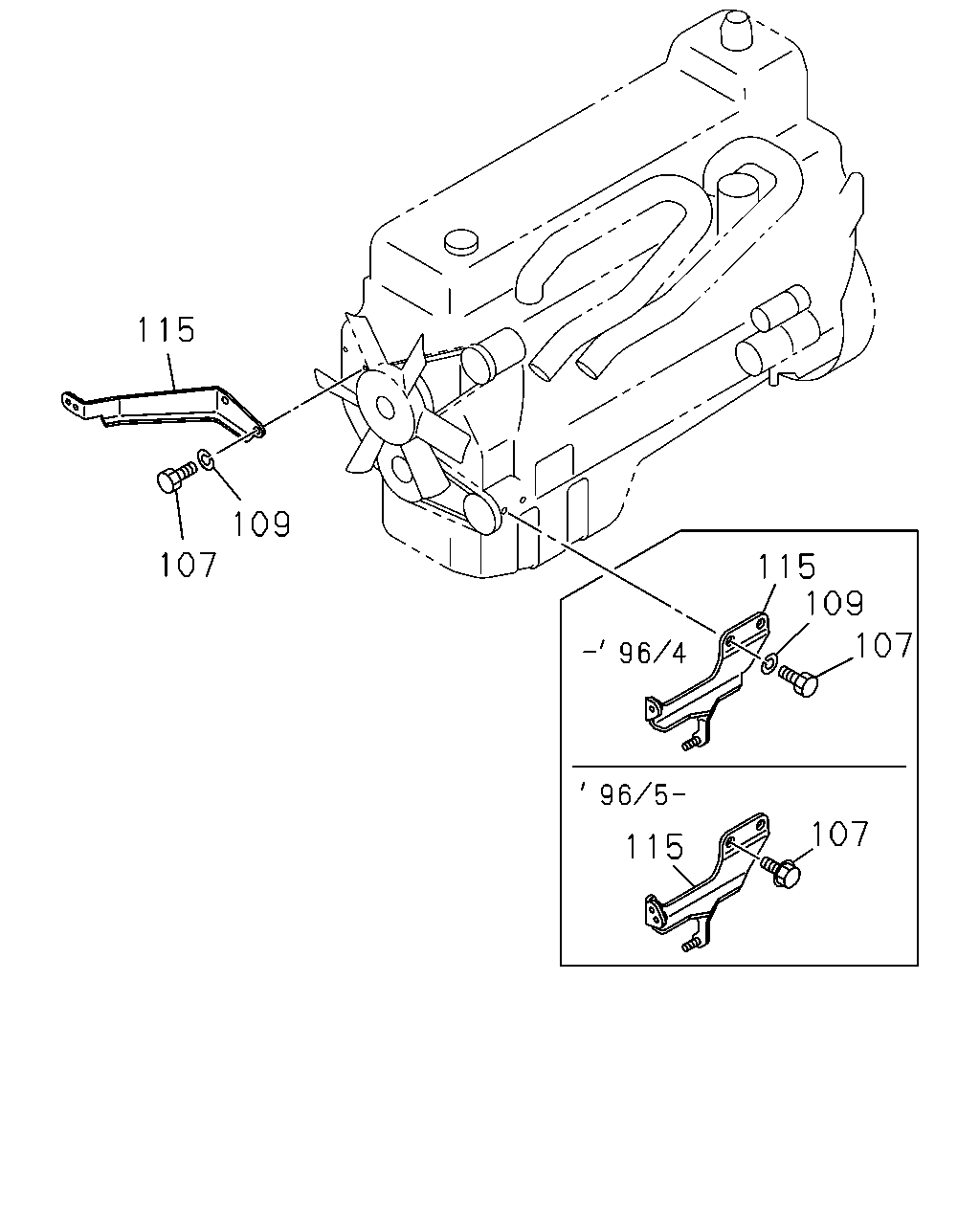

115 109 107 115 109 107 107 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	BOLT; BRKT TO STAY M14X30	0-23801-430-0	02	1	9603-9604	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9605-9901	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9902-9904		●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9905-9909		●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9910-		●	●	●	●	●
109	WASHER; LK,BRKT,FAN GUIDE ID=14.2	9-09150-514-0	02	1	9603-9604	●
115	BRACKET; FAN GUIDE	1-21559-347-0	01	1	9603-9604	●
115	BRACKET; FAN GUIDE	1-21559-353-0	01	1	9605-9901	●
115	BRACKET; FAN GUIDE	1-21559-353-0	01	1	9902-9904		●	●
115	BRACKET; FAN GUIDE	1-21559-353-0	01	1	9905-9909		●	●	●	●
115	BRACKET; FAN GUIDE	1-21559-353-0	01	1	9910-		●	●	●	●	●
115	BRACKET; FAN GUIDE	1-21559-335-1	01	1	9603-9604	●
115	BRACKET; FAN GUIDE	1-21559-354-0	01	1	9605-9901	●
115	BRACKET; FAN GUIDE	1-21559-354-0	01	1	9902-9904		●	●
115	BRACKET; FAN GUIDE	1-21559-354-0	01	1	9905-9909		●	●	●	●
115	BRACKET; FAN GUIDE	1-21559-354-0	01	1	9910-		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
