◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#531) — 92 parça

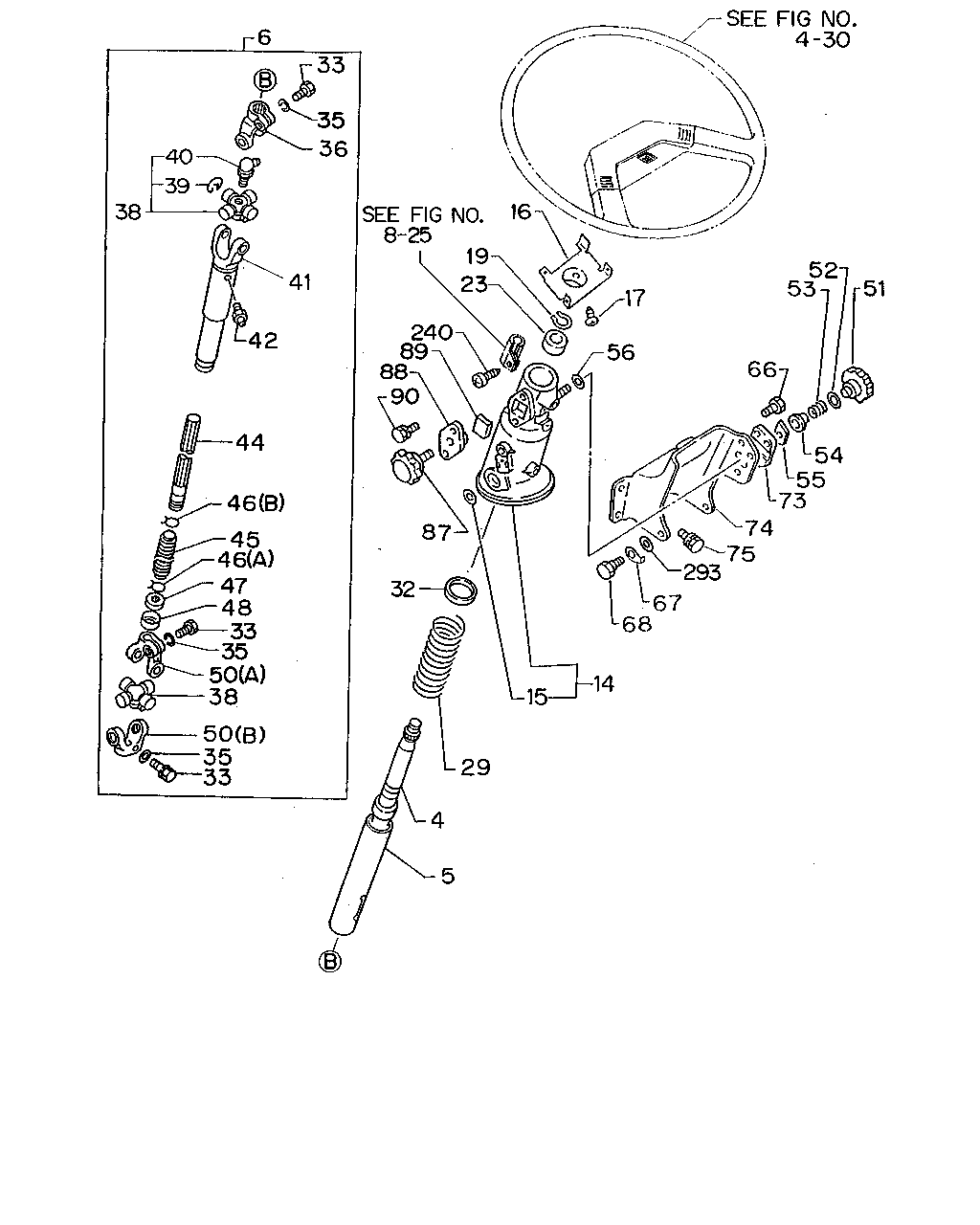

çizim 27616
6 33 35 36 40 39 38 41 42 44 46 45 46 47 48 33 35 50 38 50 36 33 5 4 29 32 87 15 14 68 67 293 75 74 73 55 54 66 53 52 51 17 56 16 19 23 240 89 88 90
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; STRG 1-44131-118-1 01 1 9002-
4 SHAFT; STRG
STEERING COLUMN LOCK<N50> 		1-44131-053-0 01 1 8712-9001
4 SHAFT; STRG
EXC. STEERING COLUMN LOCK<N50> 		1-44131-118-1 01 1 8712-9001
5 COLUMN; STRG 1-44211-043-1 01 1 9002-
5 COLUMN; STRG
STEERING COLUMN LOCK<N50> 		1-44211-063-0 01 1 8712-9001
5 COLUMN; STRG
EXC. STEERING COLUMN LOCK<N50> 		1-44211-043-1 01 1 8712-9001
6 SHAFT; STRG LWR
L TYPE ENG<90L> 		1-44130-384-1 01 1 8712-
6 SHAFT; STRG LWR
V TYPE ENG<91L> 		1-44130-352-2 01 1 8712-
14 CASE ASM; STRG SHAFT 1-44221-046-3 01 1 9002-
14 CASE ASM; STRG SHAFT
STEERING COLUMN LOCK<N50> 		1-44221-054-3 01 1 8712-9001
14 CASE ASM; STRG SHAFT
EXC. STEERING COLUMN LOCK<N50> 		1-44221-046-2 01 1 8712-9001
15 WASHER; TILT CENTER 1-44227-077-1 02 1 8712-
16 BRACKET; COMB SW 1-44227-074-2 01 1 8712-
17 SCREW; BRKT
M5X10 PAN-HD 		9-93490-510-0 03 1 8712-
19 RING; SNAP,STRG SHAFT
ID=23.4 T=1.5 		1-09588-140-0 02 1 8712-
23 BEARING; BALL,STRG SHAFT 1-09800-157-0 02 1 8712-
29 SPRING; COLUMN 1-09583-223-0 01 1 9002-
29 SPRING; COLUMN
STEERING COLUMN LOCK<N50> 		1-09580-418-0 01 1 8712-9001
29 SPRING; COLUMN
EXC. STEERING COLUMN LOCK<N50> 		1-09583-223-0 01 1 8712-9001
32 COVER; SPRING,STRG COLUMN
STEERING COLUMN LOCK<N50> 		1-44229-048-0 01 1 8712-9001
33 BOLT; STRG SHAFT TO UNIT
CAB UP +50MM<W60> M10X35 		1-09009-126-1 02 1 8712-9001
33 BOLT; STRG SHAFT TO UNIT
EXC. CAB UP +50MM<W60> M10X35 		1-09009-126-1 01 1 8712-9001
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9002-
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 02 1 8712-
36 YOKE; STRG SHAFT 1-44135-095-0 01 1 8712-8803
36 YOKE; STRG SHAFT 1-44135-179-0 01 1 8804-
38 JOURNAL; STRG SHAFT 1-44135-098-0 02 1 8712-
39 RING; SNAP,JOURNAL
T=1.2 		1-09587-061-1 08 1 8712-
40 NIPPLE; GREASE,JOURNAL 1-09380-004-0 02 1 8712-
41 YOKE; SLEEVE,STRG
CAB UP +50MM<W60> 		1-44135-153-0 01 1 8712-
41 YOKE; SLEEVE,STRG
EXC. CAB UP +50MM<W60> 		1-44135-143-0 01 1 8712-
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 8712-
44 SHAFT; SPLINE,STRG 1-44131-109-2 01 1 8712-
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 8712-
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 8712-
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 8712-
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 8712-
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 8712-
50 YOKE; SPLINE,STRG SHAFT
(A) 		1-44135-090-1 01 1 8712-
50 YOKE; SPLINE,STRG SHAFT
(B) 		1-44135-095-0 01 1 8712-8803
50 YOKE; SPLINE,STRG SHAFT
(B) 		1-44135-179-0 01 1 8804-
51 KNOB; TILT 1-44227-099-0 01 1 9002-
51 KNOB; TILT
STEERING COLUMN LOCK<N50> 		1-44227-089-0 01 1 8712-9001
51 KNOB; TILT
EXC. STEERING COLUMN LOCK<N50> 		1-44227-099-0 01 1 8712-9001
52 WASHER; PL,ADJ LEVER 1-44227-086-0 01 1 8712-
53 SPRING; TILT KNOB 1-09580-343-0 01 1 9002-
53 SPRING; TILT KNOB
STEERING COLUMN LOCK<N50> 		1-09580-414-0 01 1 8712-9001
53 SPRING; TILT KNOB
EXC. STEERING COLUMN LOCK<N50> 		1-09580-343-0 01 1 8712-9001
54 GUIDE; SPR 1-44227-072-0 01 1 9002-
54 GUIDE; SPR
STEERING COLUMN LOCK<N50> 		1-44227-097-0 01 1 8712-9001
54 GUIDE; SPR
EXC. STEERING COLUMN LOCK<N50> 		1-44227-072-0 01 1 8712-9001
55 PLATE; GUIDE 1-44227-091-0 01 1 8712-
56 WASHER; LOCATING PLATE 1-09503-127-1 01 1 8712-
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		9-01900-620-0 03 1 8712-9204
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205-
67 WASHER; LK,BRKT,STRG COLUMN 1-44227-082-0 02 1 8712-
68 PIN; TILT CENTER 1-44227-080-1 02 1 8712-
73 PLATE; LOCATING 1-44227-092-0 01 1 8712-
74 BRACKET; SUPPORT,STRG 1-44221-047-1 01 1 9002-
74 BRACKET; SUPPORT,STRG
STEERING COLUMN LOCK<N50> 		1-44221-055-1 01 1 8712-9001
74 BRACKET; SUPPORT,STRG
EXC. STEERING COLUMN LOCK<N50> 		1-44221-047-0 01 1 8712-9001
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		9-01970-825-0 04 1 8712-9005
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9006-
87 KNOB; TELESCOPIC 1-44227-098-0 01 1 9002-
87 KNOB; TELESCOPIC
STEERING COLUMN LOCK<N50> 		1-44227-088-0 01 1 8712-9001
87 KNOB; TELESCOPIC
EXC. STEERING COLUMN LOCK<N50> 		1-44227-098-0 01 1 8712-9001
88 FLANGE; KNOB 1-44227-056-1 01 1 8712-
89 PLUNGER; STRG COLUMN 1-44227-093-0 01 1 8712-
90 BOLT; FLANGE
M8X18 W/LK WASHER 		9-01900-818-0 02 1 8712-9204
90 BOLT; FLANGE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-
240 SCREW; CLIP
M6X8 W/LK WASHER 		1-09981-040-0 01 1 9002-
293 WASHER; TILT CENTER 1-44227-077-1 02 1 8712-

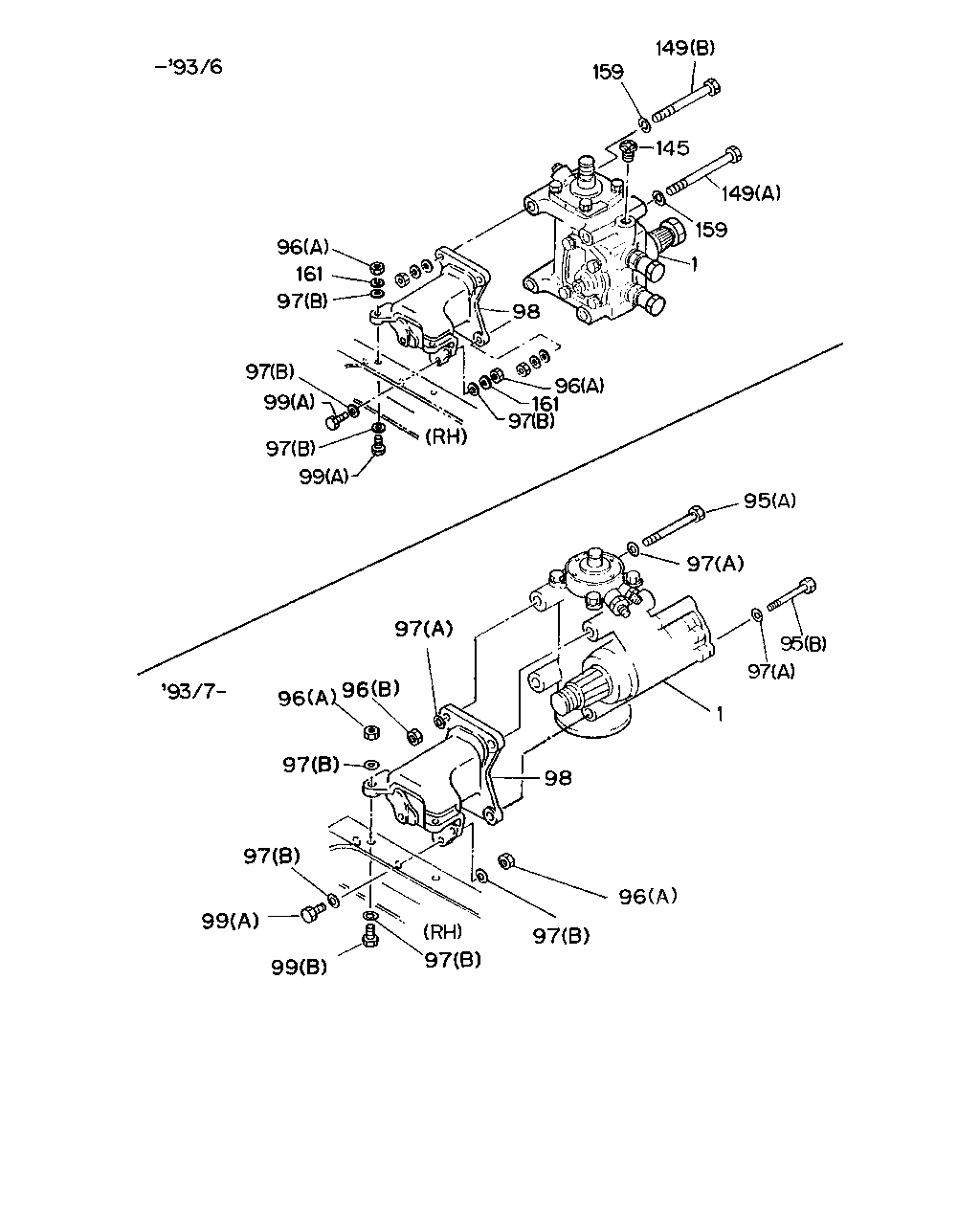

çizim 92516
149 159 145 149 159 1 98 96 161 97 97 99 97 99 97 161 96 95 95 97 97 97 96 96 97 98 1 97 99 99 97 97 96
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-746-6 01 1 8712-9306
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-812-2 01 1 9307-
95 BOLT; STRG UNIT
(A) M16X177 		1-09000-426-0 02 1 9307-
95 BOLT; STRG UNIT
(B) M16X166 		1-09000-427-0 02 1 9307-
96 NUT; STRG UNIT
(A) M14 		9-99110-514-0 04 1 8712-9306
96 NUT; STRG UNIT
(A) M14 		9-99110-514-0 06 1 9307-
96 NUT; STRG UNIT
(B) M16 		9-99110-516-0 02 1 9307-
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 08 1 8712-9306
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 12 1 9307-
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 9307-
98 BRACKET; STRG GEAR BOX 1-44226-075-3 01 1 8712-9306
98 BRACKET; STRG GEAR BOX 1-44226-108-3 01 1 9307-
99 BOLT; BRKT TO FRAME
(A) M14X50 		9-91066-450-0 04 1 8712-9306
99 BOLT; BRKT TO FRAME
(A) M14X55 		1-09000-425-0 04 1 9307-
99 BOLT; BRKT TO FRAME
(B) M14X55 		9-92061-455-0 02 1 9307-
145 PLUG; AIR BREATHER 1-09605-083-0 01 1 8712-9306
149 BOLT; GEAR BOX
(A) M14X154 		1-09000-116-1 02 1 8712-9306
149 BOLT; GEAR BOX
(B) M14X157 		1-09009-067-3 02 1 8712-9306
159 WASHER; LK,BRKT TO GEAR BOX
ID=14.2 		9-09150-514-0 04 1 8712-9306
161 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-614-0 04 1 8712-9306
