4-61 — SHOCK ABSORBER; REAR SUSPENSION (#53092) — 87 parça

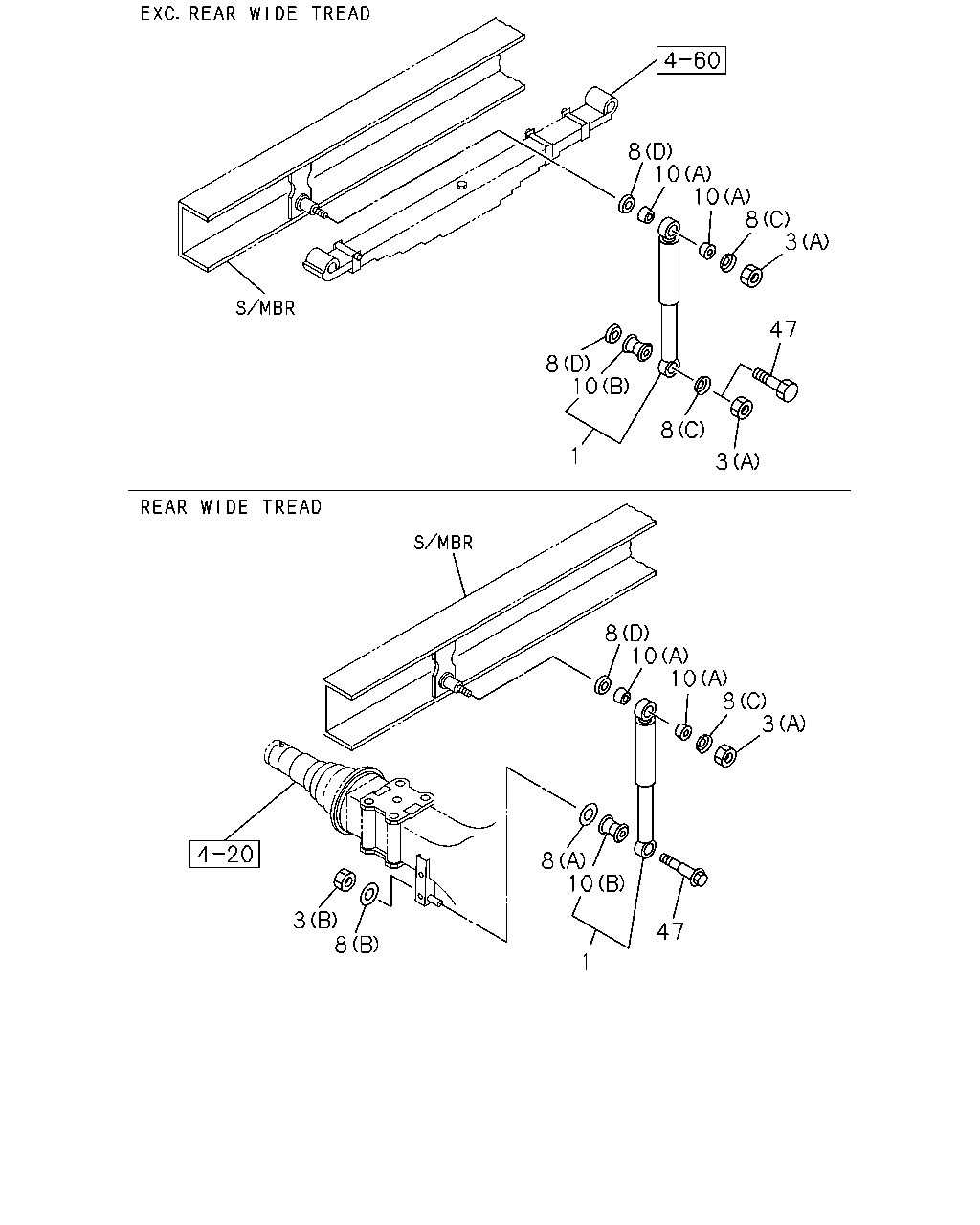

çizim 154113
8 10 10 8 3 47 8 10 8 1 3 8 10 10 8 3 8 10 3 8 47 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME-KICK UP<7EW> 		8-97253-645-1 02 1 0803- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 0803-0803 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 0804-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 0804-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
SINGLE RR TIRE(6TD) 		8-98018-780-1 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
SINGLE RR TIRE(6TD) 		8-98018-780-1 02 1 0804-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-98018-780-1 02 1 0804-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
SINGLE RR TIRE(6TD) 		8-98316-232-0 02 1 1507- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-98316-232-0 02 1 1507- ●
1 07.395 ABSORBER ASM; SHOCK,RR
SMALL DOUBLE RR TIRE(6YE) 		8-97253-636-1 02 1 0804- ●
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION - RR UNDER SLUNG<V4U> 		8-98040-034-2 02 1 0803- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1507- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-98316-233-0 02 1 1507- ●
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 00.785 (B) M16 		0-91111-516-0 02 1 0803-0803 ● ●
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 00.785 (B) M16 		0-91111-516-0 02 1 0804- ● ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 0804- ●
3 07.347 NUT; S/ABS
SINGLE RR TIRE(6TD) 05.002 (A) M12 		0-91110-512-0 02 1 0803-0803 ●
3 07.347 NUT; S/ABS
SINGLE RR TIRE(6TD) 05.002 (A) M12 		0-91110-512-0 02 1 0803-0803 ●
3 07.347 NUT; S/ABS
SINGLE RR TIRE(6TD) 05.002 (A) M12 		0-91110-512-0 02 1 0804- ●
3 07.347 NUT; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 05.002 (A) M12 		0-91110-512-0 02 1 0804- ●
3 07.347 NUT; S/ABS
05.002 (A) M12 		0-91110-512-0 02 1 0804- ●
3 07.347 NUT; S/ABS
05.002 (A) M12 		0-91110-512-0 02 1 0804- ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 0803-0803 ●
3 07.347 NUT; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> 07.833 (A) M14 		0-91110-514-0 02 1 0803-0803 ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 0803-0803 ●
3 07.347 NUT; S/ABS
FRAME-KICK UP<7EW> 07.833 (A) M14 		0-91110-514-0 02 1 0803-0803 ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.833 (A) M14 		0-91110-514-0 02 1 0804- ●
3 07.347 NUT; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> 07.833 (A) M14 		0-91110-514-0 02 1 0804- ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 0804- ● ●
3 07.347 NUT; S/ABS
FRAME-KICK UP<7EW> 07.833 (A) M14 		0-91110-514-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 0803-0803 ● ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 0804- ● ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0803-0803 ● ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0804- ● ●
8 07.347 WASHER; S/ABS
07.427 (B) ID=16.5 		8-98011-489-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (D) ID=16.5 		9-51679-021-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (D) ID=16.5 		9-51679-021-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (D) ID=16.5 		9-51679-021-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) ID=16.5 		9-51679-021-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
(D) ID=16.5 		9-51679-021-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
(D) ID=16.5 		9-51679-021-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (C) ID=12.5 		9-51679-022-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (C) ID=12.5 		9-51679-022-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (C) ID=12.5 		9-51679-022-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) ID=12.5 		9-51679-022-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (C) ID=15 		8-97360-056-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (C) ID=15 		8-97360-056-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
FRAME-KICK UP<7EW> (C) ID=15 		8-97360-056-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) ID=15 		8-97360-056-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (C) ID=15 		8-97360-056-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 0804- ● ●
8 07.347 WASHER; S/ABS
FRAME-KICK UP<7EW> (C) ID=15 		8-97360-056-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (D) ID=20.0 		8-97360-057-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (D) ID=20.0 		8-97360-057-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
FRAME-KICK UP<7EW> (D) ID=20.0 		8-97360-057-0 02 1 0803-0803 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) ID=20.0 		8-97360-057-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (D) ID=20.0 		8-97360-057-0 02 1 0804- ●
8 07.347 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 0804- ● ●
8 07.347 WASHER; S/ABS
FRAME-KICK UP<7EW> (D) ID=20.0 		8-97360-057-0 02 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (A) KYB 		8-94132-727-1 04 1 0803-0803 ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.347 (A) KYB 		8-94132-727-1 04 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (A) KYB 		8-94132-727-1 04 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (B) TOKICO 		8-94224-694-0 02 1 0803-0803 ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (B) TOKICO 		8-94224-694-0 02 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (B) TOKICO 		8-94224-694-0 02 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD) (A) TOKICO 		9-51631-014-0 04 1 0803-0803 ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0803-0803 ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) TOKICO 		9-51631-014-0 04 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0804- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 0803-0803 ● ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (B) TOKICO 		8-94382-149-0 02 1 0803-0803 ●
10 07.388 BUSHING; RUBBER,S/ABS
FRAME-KICK UP<7EW> (B) TOKICO 		8-94382-149-0 02 1 0803-0803 ●
10 07.388 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 0804- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (B) TOKICO 		8-94382-149-0 02 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
FRAME-KICK UP<7EW> (B) TOKICO 		8-94382-149-0 02 1 0804- ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0804- ●
47 07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97316-972-0 02 1 0803-0803 ● ●
47 07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97316-972-0 02 1 0804- ● ●
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 0804- ●
47 07.347 PIN; S/ABS SETTING
SMALL DOUBLE RR TIRE(6YE) 02.042 M12X60 FLANGE 		0-28051-260-0 02 1 0804- ●
