◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#53091) — 370 parça

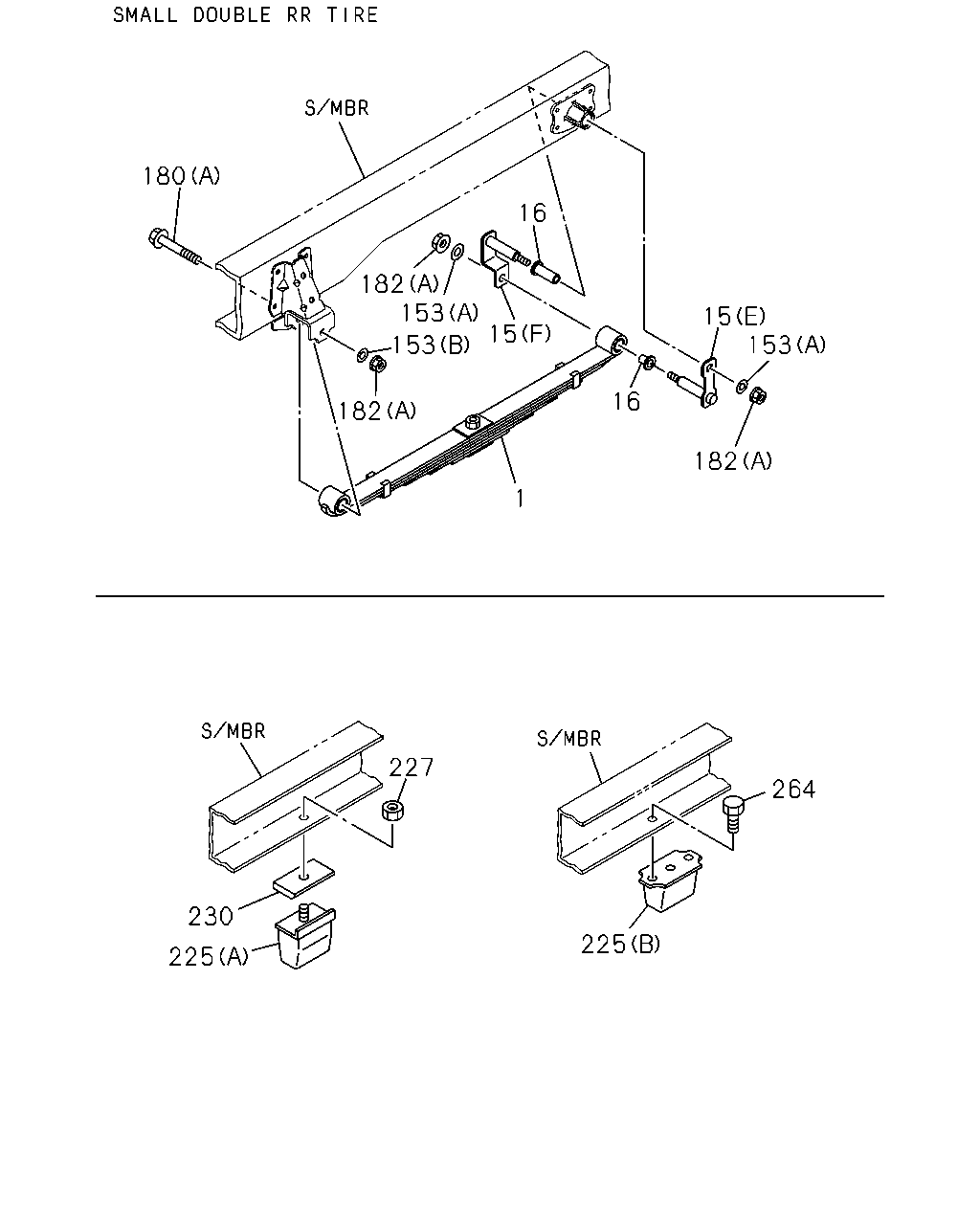

çizim 154095
180 16 182 153 15 153 15 15 16 182 182 1 227 264 230 225 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 5-LEAF 		8-98001-551-1 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 5-LEAF 		8-98001-551-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-98032-760-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. TAIWAN EQUIPMENT(B04) 4-LEAF 		8-98032-760-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) 3-LEAF 		8-98001-548-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 3-LEAF 		8-98001-548-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 3-LEAF 		8-98001-543-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 3-LEAF 		8-98001-543-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 3-LEAF 		8-98001-543-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6),SUSPENSION - RR UN DER SLUNG<V4U>,FULL FLATLOW<6GL>, SINGLERR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIAEQUIPMENT(GH3),DUMP CHASSIS(V4D),FRAME -KICK UP<7EW> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> 5-LEAF 		8-98048-271-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 5-LEAF 		8-98048-271-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1) 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. TAIWAN EQUIPMENT(B04) 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6) 5-LEAF 		8-98001-564-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6) 5-LEAF 		8-98001-564-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98001-652-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98100-522-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98100-522-0 02 1 1309- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-97033-966-1 02 1 0803- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) (E) 		8-97169-264-0 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (C) 		8-94118-511-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) 		8-94118-511-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 0804- ● ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (D) 		8-97360-011-0 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
(D) 		8-97360-011-0 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) 		8-97360-011-0 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(D) 		8-97360-011-0 02 1 0804- ● ●
15 07.523 SHACKLE; RR SPR
SMALL DOUBLE RR TIRE(6YE) (F) 		8-97162-959-0 02 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SMALL DOUBLE RR TIRE(6YE) 		8-97166-028-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0803-0803 ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD) (B) ID=19 		8-97360-119-0 02 1 0803-0803 ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 0803-0803 ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19 		8-97360-119-0 02 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 0804- ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0803-0803 ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0804- ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130 		8-98011-488-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 		8-98011-488-0 02 1 0804- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0804- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD) (B) M18X130 FLANGE 		8-97360-112-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE 		8-97360-112-0 02 1 0804- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0804- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0803-0803 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0804- ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0803-0803 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0804- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (A) M16 		0-91110-516-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16 		0-91110-516-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD) (B) M18 		0-91110-518-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18 		0-91110-518-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0804- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0803-0803 ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0804- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0803-0803 ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0804- ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME-KICK UP<7EW> (B) 		8-97035-815-0 02 1 0803-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. TAIWAN EQUIPMENT(B04) (B) 		8-97035-815-1 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME-KICK UP<7EW> (B) 		8-97035-815-1 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
SINGLE RR TIRE(6TD) (A) 		8-98002-085-0 02 1 0803-0803 ●
225 07.535 RUBBER; CUSHION,RR SPR
SINGLE RR TIRE(6TD) (A) 		8-98002-085-0 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98002-085-0 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> (A) 		8-98002-085-1 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98002-085-1 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>, SMALL DOUBLE RR TIRE(6YE) (A) 		8-98002-085-1 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98002-085-1 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
SMALL DOUBLE RR TIRE(6YE) (A) 		8-94258-734-1 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> (A) 		8-94258-734-2 02 1 0909-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> (A) 		8-98187-341-0 02 1 1104-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>, SINGLE RR TIRE(6TD) (A) 		8-98187-341-0 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (A) 		8-94380-249-1 02 1 0803-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (A) 		8-94380-249-2 02 1 0909-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1) (A) 		8-94380-249-2 02 1 0909-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (A) 		8-98187-340-0 02 1 1104- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1) (A) 		8-98187-340-0 02 1 1104- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6) (A) 		8-98021-554-0 02 1 0803-0803 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (A) 		8-98021-554-0 02 1 0803-0803 ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98021-554-0 02 1 0803-0803 ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) (A) 		8-98021-554-0 02 1 0803-0803 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6) (A) 		8-98021-554-0 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (A) 		8-98021-554-0 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98021-554-0 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) (A) 		8-98021-554-0 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98021-554-0 02 1 0804-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6),SUSPENSION - RR UN DER SLUNG<V4U>,FULL FLATLOW<6GL>, SINGLERR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6) (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIAEQUIPMENT(GH3),DUMP CHASSIS(V4D),FRAME -KICK UP<7EW> (A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98021-554-0 02 1 0909-1509 ●
225 07.535 RUBBER; CUSHION,RR SPR
SOFT RIDE SUSPENSION SYSTEM(FE1) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. TAIWAN EQUIPMENT(B04) (A) 		8-98021-554-0 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. TAIWAN EQUIPMENT(B04),SOFT RIDE SUSPENSION SYSTEM(FE1) (A) 		8-98021-554-0 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, FULL FLATLOW<6GL> (A) 		8-98021-554-0 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6) (A) 		8-98021-554-0 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98021-554-0 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME-KICK UP<7EW> (A) 		8-98021-554-0 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98021-554-0 02 1 1510- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0803-0803 ●
227 07.535 NUT; CUSHION RUBBER
EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE 		0-91180-112-0 02 1 0803-0803 ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0804- ● ● ●
227 07.535 NUT; CUSHION RUBBER
EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE 		0-91180-112-0 02 1 0804- ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-97136-853-0 02 1 0803- ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0803-0803 ● ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0804- ● ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 0804- ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0803- ●

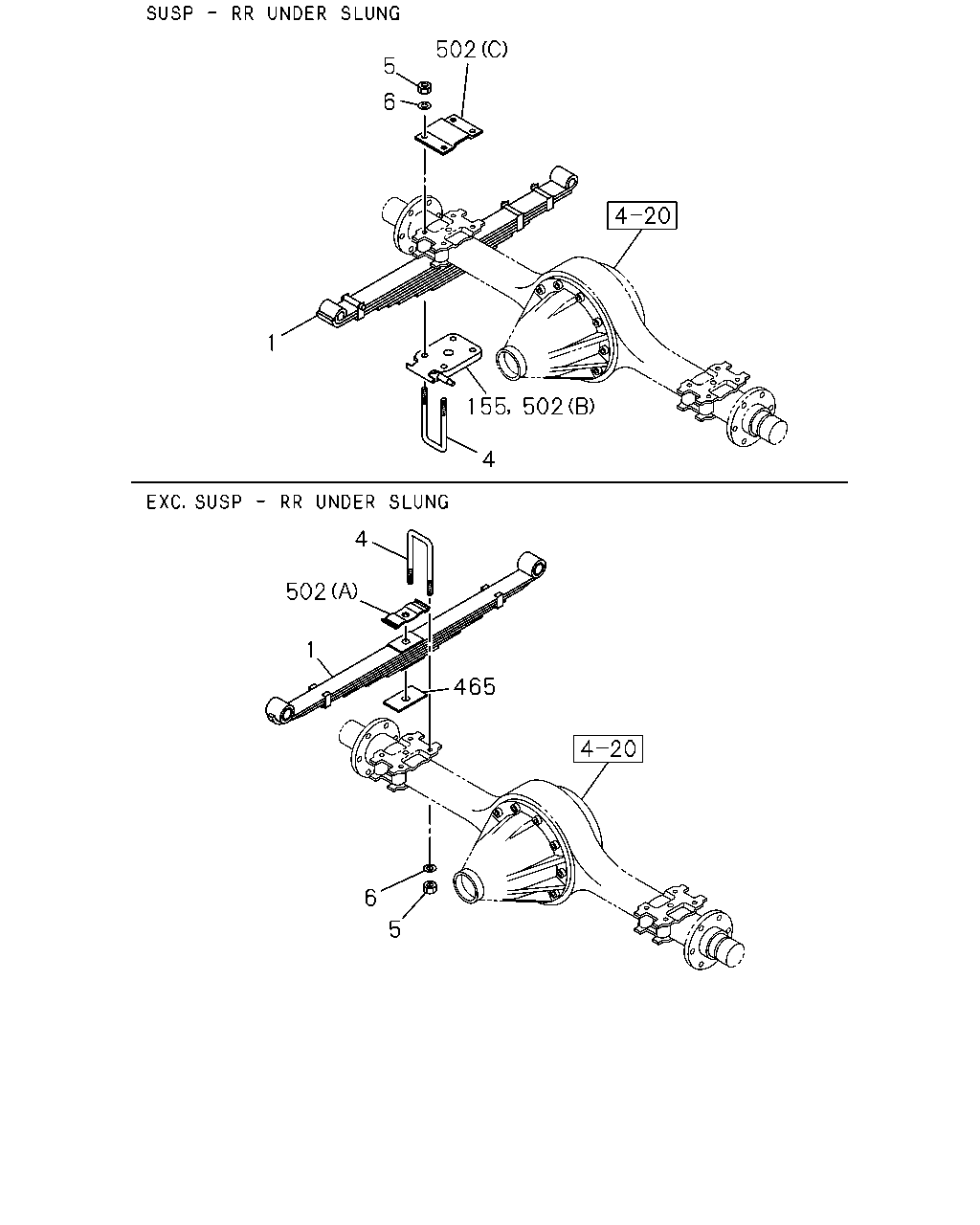

çizim 154101
502 5 6 1 155 502 4 4 502 1 465 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 5-LEAF 		8-98001-551-1 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 5-LEAF 		8-98001-551-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-98032-760-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. TAIWAN EQUIPMENT(B04) 4-LEAF 		8-98032-760-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) 3-LEAF 		8-98001-548-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 3-LEAF 		8-98001-548-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 3-LEAF 		8-98001-543-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 3-LEAF 		8-98001-543-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 3-LEAF 		8-98001-543-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6),SUSPENSION - RR UN DER SLUNG<V4U>,FULL FLATLOW<6GL>, SINGLERR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIAEQUIPMENT(GH3),DUMP CHASSIS(V4D),FRAME -KICK UP<7EW> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> 5-LEAF 		8-98048-271-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 5-LEAF 		8-98048-271-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1) 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. TAIWAN EQUIPMENT(B04) 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6) 5-LEAF 		8-98001-564-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6) 5-LEAF 		8-98001-564-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98001-652-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98100-522-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98100-522-0 02 1 1309- ●
4 07.516 U-BOLT; RR SPR
SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> L=235 		8-94127-920-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
SAUDI ARABIA EQUIPMENT(GH3) L=235 		8-94127-920-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) L=255 		8-94127-922-3 04 1 0803-1308 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. TAIWAN EQUIPMENT(B04) L=255 		8-94127-922-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) L=245 		8-94127-921-3 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) L=245 		8-94127-921-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=245 		8-94127-921-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
SAUDI ARABIA EQUIPMENT(GH3) L=245 		8-94127-921-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> L=245 		8-94127-921-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) L=205 		8-94127-917-3 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
SMALL DOUBLE RR TIRE(6YE) L=205 		8-94127-917-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) L=205 		8-94127-917-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
L=205 		8-94127-917-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> L=205 		8-94127-917-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> L=205 		8-94127-917-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
L=205 		8-94127-917-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> L=235 		8-97262-039-0 04 1 0803-1308 ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> L=235 		8-97262-039-0 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. TAIWAN EQUIPMENT(B04) L=235 		8-97262-039-0 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3) L=265 		8-94127-923-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
EXC. SAUDI ARABIA EQUIPMENT(GH3) L=265 		8-94127-923-3 04 1 0804-1308 ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6),SUSPENSION - RR UN DER SLUNG<V4U>,FULL FLATLOW<6GL>, SINGLERR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U> L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIAEQUIPMENT(GH3),DUMP CHASSIS(V4D),FRAME -KICK UP<7EW> L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
EXC. SAUDI ARABIA EQUIPMENT(GH3) L=265 		8-94127-923-3 04 1 1309- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0803-0803 ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0804- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0803-0803 ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0804- ● ● ● ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-361-4 01 1 0803-0803 ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-361-4 01 1 0804- ●
155 07.380 BRACKET; S/ABS 8-94128-361-4 01 1 0804- ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-360-4 01 1 0803-0803 ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-360-4 01 1 0804- ●
155 07.380 BRACKET; S/ABS 8-94128-360-4 01 1 0804- ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED(RS6) 		8-97072-589-0 AR 1 0803-0803 ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED(RS6) 		8-97072-589-0 AR 1 0804- ● ● ● ●
502 07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.380 (B) 		8-94128-362-3 01 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.380 (B) 		8-94128-363-3 01 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.518 (A) L=130 T=6 		8-94165-555-1 02 1 0803-0803 ●
502 07.506 CLAMP; RR LEAF SPR
SMALL DOUBLE RR TIRE(6YE) 07.518 (A) L=130 T=6 		8-94165-555-1 02 1 0804- ●
502 07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.518 (A) L=130 T=6 		8-94165-555-1 02 1 0804- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0803-0803 ●
502 07.506 CLAMP; RR LEAF SPR
SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0803-0803 ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0803-0803 ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0804- ●
502 07.506 CLAMP; RR LEAF SPR
SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0804- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0804- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0804- ● ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) L=176 T=8 		8-97136-907-0 02 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B) 		8-94113-326-2 01 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B) 		8-94113-325-2 01 1 0803- ●

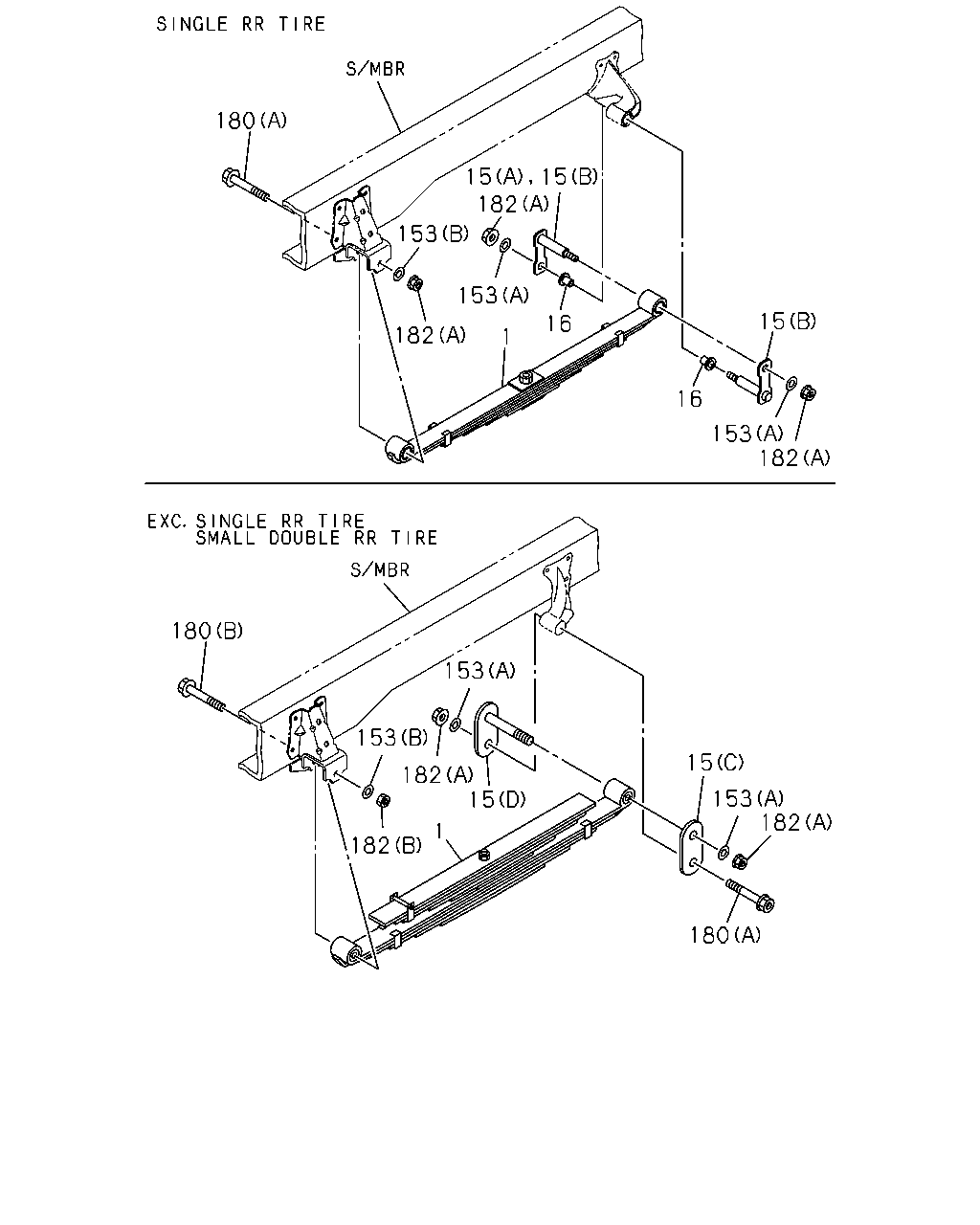

çizim 154111
180 15 182 15 153 153 15 16 182 1 16 153 182 180 153 153 15 182 15 153 182 1 182 180
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 5-LEAF 		8-98001-551-1 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 5-LEAF 		8-98001-551-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-98032-760-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. TAIWAN EQUIPMENT(B04) 4-LEAF 		8-98032-760-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) 3-LEAF 		8-98001-548-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 3-LEAF 		8-98001-548-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 3-LEAF 		8-98001-543-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 3-LEAF 		8-98001-543-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSI ON - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL> 3-LEAF 		8-98001-543-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6),SUSPENSION - RR UN DER SLUNG<V4U>,FULL FLATLOW<6GL>, SINGLERR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIAEQUIPMENT(GH3),DUMP CHASSIS(V4D),FRAME -KICK UP<7EW> 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF 		8-98022-373-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> 5-LEAF 		8-98048-271-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 5-LEAF 		8-98048-271-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1) 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. TAIWAN EQUIPMENT(B04) 5-LEAF 		8-98048-271-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6) 5-LEAF 		8-98001-564-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), RR BODY FLAT BED(RS6) 5-LEAF 		8-98001-564-0 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98001-652-0 02 1 0804-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98100-522-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98100-522-0 02 1 1309- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-97033-966-1 02 1 0803- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) (E) 		8-97169-264-0 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94113-322-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (C) 		8-94118-511-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) 		8-94118-511-3 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 0804- ● ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (D) 		8-97360-011-0 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
(D) 		8-97360-011-0 02 1 0803-0803 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) 		8-97360-011-0 02 1 0804- ●
15 07.523 SHACKLE; RR SPR
(D) 		8-97360-011-0 02 1 0804- ● ●
15 07.523 SHACKLE; RR SPR
SMALL DOUBLE RR TIRE(6YE) (F) 		8-97162-959-0 02 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SMALL DOUBLE RR TIRE(6YE) 		8-97166-028-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0803-0803 ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0803-0803 ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD) (B) ID=19 		8-97360-119-0 02 1 0803-0803 ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 0803-0803 ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19 		8-97360-119-0 02 1 0804- ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 0804- ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0803-0803 ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0804- ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130 		8-98011-488-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 		8-98011-488-0 02 1 0804- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0804- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD) (B) M18X130 FLANGE 		8-97360-112-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0803-0803 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE 		8-97360-112-0 02 1 0804- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0804- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0803-0803 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0804- ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0803-0803 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0804- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (A) M16 		0-91110-516-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16 		0-91110-516-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD) (B) M18 		0-91110-518-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0803-0803 ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18 		0-91110-518-0 02 1 0804- ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0804- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0803-0803 ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0804- ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0803-0803 ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
