1-01B — ACCELERATOR PEDAL AND CONTROL (#5309) — 163 parça

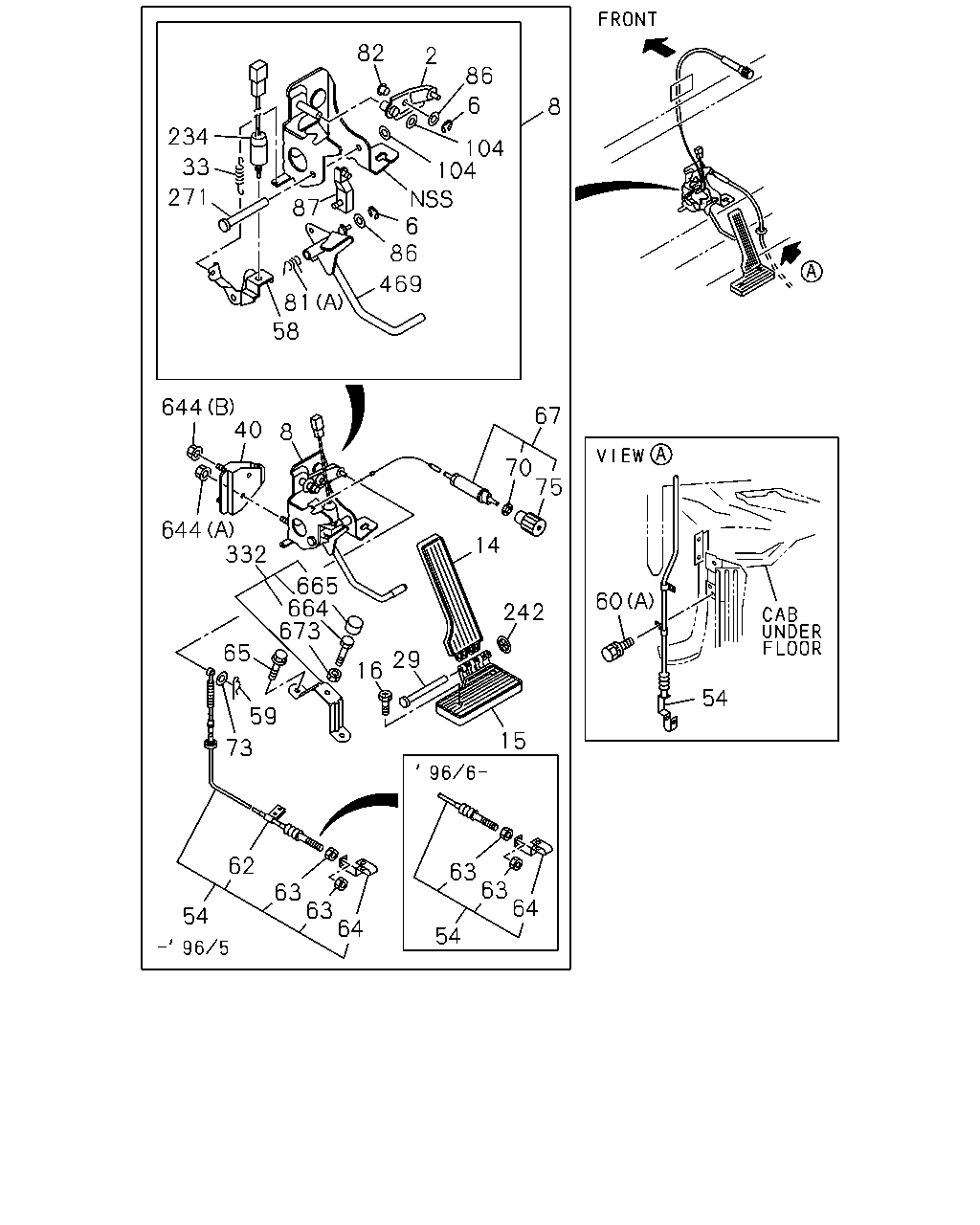

çizim 4514
82 2 86 6 8 234 104 104 6 86 33 87 271 469 81 58 644 40 67 8 70 75 644 332 14 665 664 673 60 242 65 29 16 54 59 15 73 62 63 63 64 63 63 64 54 54
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LEVER; ENG CONT 1-71907-210-2 01 1 9603-9901 ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9902- ● ● ● ●
6 RING; SNAP,LINK TO LINK
ID=4 		9-09185-404-0 02 1 9603-9901 ● ●
6 RING; SNAP,LINK TO LINK
ID=4 		9-09185-404-0 02 1 9902- ● ● ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9603-9901 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9902- ● ● ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9603-9708 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-9901 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9902-9904 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9905- ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9603-9901 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9902-9904 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9905- ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9603-9901 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9902-9902 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-9904 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9905- ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9603-9901 ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9902-9904 ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9905- ● ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9603-9901 ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9902- ● ● ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 9603-9901 ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 9902-9904 ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 9905- ● ● ● ●
54 CABLE; ENG CONT
L=2735 		1-73907-421-3 01 1 9603-9904 ● ●
54 CABLE; ENG CONT
L=2735 		1-73907-421-3 01 1 9905-0001 ● ● ● ●
54 CABLE; ENG CONT
EXC. RLD GOVERNOR(SD7) L=2735 		1-73907-421-3 01 1 0002- ● ● ● ●
54 CABLE; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=1234 		1-23230-107-1 01 1 0004- ●
54 CABLE; ENG CONT
RLD GOVERNOR(SD7) PTO CONTROL OPERATION CAB BACK<TBZ> L=2035 		1-73907-654-0 01 1 0002- ●
54 CABLE; ENG CONT
RLD GOVERNOR(SD7) EXC. PTO CONTROL OPERATION CAB BACK<TBZ> L=2035 		1-73907-627-1 01 1 0002- ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9603-9901 ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9902- ● ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9603-9901 ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9902- ● ● ● ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-9901 ● ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9902- ● ● ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9904 ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9603- ● ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9603-9901 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9905- ● ● ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9603-9904 ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9905- ● ● ● ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9603-9901 ● ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-9904 ● ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ● ● ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9603-9901 ● ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9902- ● ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9603-9901 ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9902- ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9603-9901 ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9902- ● ● ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9603-9901 ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9902- ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9603-9901 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9902-9904 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9905- ● ● ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9603-9901 ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9902- ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9603-9901 ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9902- ● ● ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9603-9901 ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9902- ● ● ● ●
104 NUT; ENG CONT
PUSH ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9603-9901 ● ●
104 NUT; ENG CONT
PUSH ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9902- ● ● ● ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9603-9901 ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9902- ● ● ● ●
242 NUT; ACCEL PEDAL
PUSH ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9603-9901 ● ●
242 NUT; ACCEL PEDAL
PUSH ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9902-9904 ● ●
242 NUT; ACCEL PEDAL
PUSH ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9905- ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9603-9901 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9902- ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9603-9901 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9902-9904 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9905- ● ● ● ●
469 LEVER ASM 1-71907-209-5 01 1 9603-9901 ● ●
469 LEVER ASM 1-71907-209-5 01 1 9902- ● ● ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 9603-9901 ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 9603-9901 ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 9902-9904 ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 9905- ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9603-9901 ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9902-9904 ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9905- ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9603-9901 ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9902-9904 ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9905- ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9603-9901 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9902-9904 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9905- ● ● ● ●

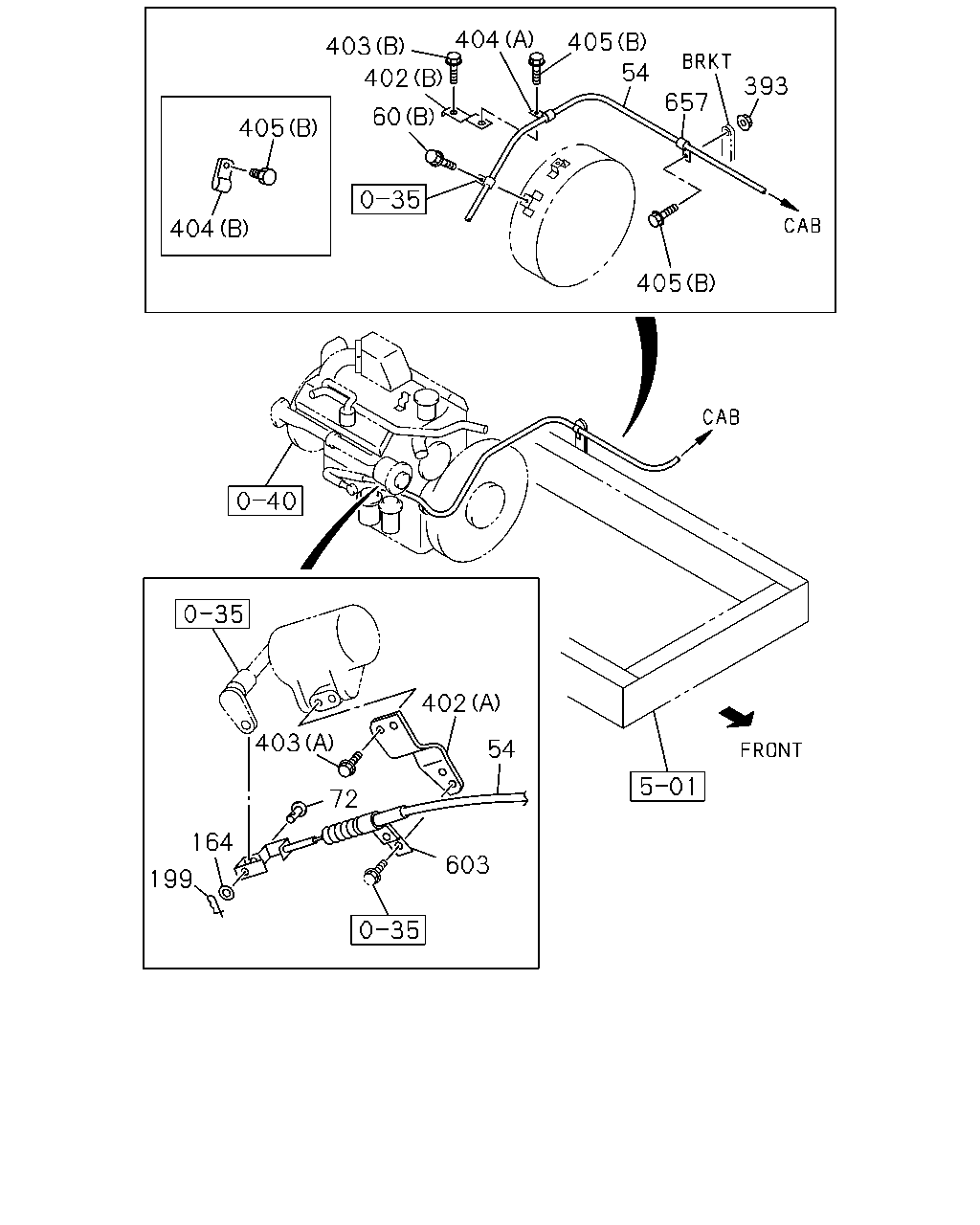

çizim 40400
404 405 403 54 402 393 657 60 405 404 405 402 403 54 72 164 603 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
L=2735 		1-73907-421-3 01 1 9603-9904 ● ●
54 CABLE; ENG CONT
L=2735 		1-73907-421-3 01 1 9905-0001 ● ● ● ●
54 CABLE; ENG CONT
EXC. RLD GOVERNOR(SD7) L=2735 		1-73907-421-3 01 1 0002- ● ● ● ●
54 CABLE; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=1234 		1-23230-107-1 01 1 0004- ●
54 CABLE; ENG CONT
RLD GOVERNOR(SD7) PTO CONTROL OPERATION CAB BACK<TBZ> L=2035 		1-73907-654-0 01 1 0002- ●
54 CABLE; ENG CONT
RLD GOVERNOR(SD7) EXC. PTO CONTROL OPERATION CAB BACK<TBZ> L=2035 		1-73907-627-1 01 1 0002- ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-9901 ● ●
60 BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9902- ● ● ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9904 ● ●
60 BOLT; CABLE
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ●
72 PIN; JAW JOINT,CABLE END
OD=8 L=17 		9-08223-817-0 01 1 9603-9904 ● ●
72 PIN; JAW JOINT,CABLE END
EXC. RLD GOVERNOR(SD7) OD=8 L=17 		9-08223-817-0 01 1 9905- ● ● ● ●
164 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9603-9904 ● ●
164 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9905- ● ● ● ●
199 PIN; SNAP
L=27.7 		1-09747-005-0 01 1 9603-9904 ● ●
199 PIN; SNAP
L=27.7 		1-09747-005-0 01 1 9905- ● ● ● ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-208-0 01 1 9603-9606 ● ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9607-9609 ● ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9610-9901 ● ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
402 BRACKET; CABLE CLIP
(A) 		1-23335-379-0 01 1 9603-9904 ● ●
402 BRACKET; CABLE CLIP
EXC. RLD GOVERNOR(SD7) (A) 		1-23335-379-0 01 1 9905- ● ● ● ●
402 BRACKET; CABLE CLIP
(B) 		1-47476-527-0 01 1 9603-9904 ● ●
402 BRACKET; CABLE CLIP
EXC. RLD GOVERNOR(SD7) (B) 		1-47476-527-0 01 1 9905-0001 ● ● ● ●
402 BRACKET; CABLE CLIP
(B) 		1-47476-527-0 01 1 0002- ● ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9603-9606 ● ●
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9709 ● ●
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9710-9904 ● ●
403 BOLT; BRKT,ACCEL PEDAL
EXC. RLD GOVERNOR(SD7) (A) M8X16 FLANGE 		0-28080-816-0 02 1 9905- ● ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9904 ● ●
403 BOLT; BRKT,ACCEL PEDAL
EXC. RLD GOVERNOR(SD7) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0001 ● ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0002- ● ● ● ●
404 CLIP; CABLE
EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20 		9-09525-035-0 01 1 9606-9901 ● ●
404 CLIP; CABLE
EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20 		9-09525-035-0 01 1 9905-0001 ● ● ● ●
404 CLIP; CABLE
(B) ID=11 L=20 		9-09525-035-0 01 1 0002- ● ● ● ●
404 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9603-9901 ● ●
404 CLIP; CABLE
EXC. RLD GOVERNOR(SD7) (A) ID=7 L=20 		9-09524-635-0 01 1 9905-0001 ● ● ● ●
404 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0002- ● ● ● ●
405 BOLT; CABLE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
405 BOLT; CABLE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
405 BOLT; CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9901 ● ●
405 BOLT; CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9901 ● ●
405 BOLT; CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9902-9904 ● ●
405 BOLT; CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9902-9904 ● ●
405 BOLT; CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ●
405 BOLT; CABLE CLIP
EXC. RLD GOVERNOR(SD7) (B) M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ●
603 BRACKET; ENG CONT SHAFT
L=30 		1-09700-326-0 01 1 9606-9901 ● ●
603 BRACKET; ENG CONT SHAFT
L=30 		1-09700-326-0 01 1 9905- ● ● ● ●
657 CLIP; ENG CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 9606-9901 ● ●
657 CLIP; ENG CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 9902- ● ● ● ●
çizim 40532
23 24 439 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 BRACKET; FUEL CUT CABLE 1-14319-082-0 01 1 9603-9808 ● ●
23 BRACKET; FUEL CUT CABLE 1-14319-138-0 01 1 9809-9901 ● ●
23 BRACKET; FUEL CUT CABLE 1-14319-138-0 01 1 9902-9904 ● ●
23 BRACKET; FUEL CUT CABLE 1-14319-138-0 01 1 9905- ● ● ● ●
24 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 9603-9606 ● ●
24 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ● ●
24 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 9610-9904 ● ●
24 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 9905- ● ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9603-9901 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9902-9904 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9905- ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9603-9901 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9902-9904 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
