4-50 — FRONT SUSPENSION (#53087) — 262 parça

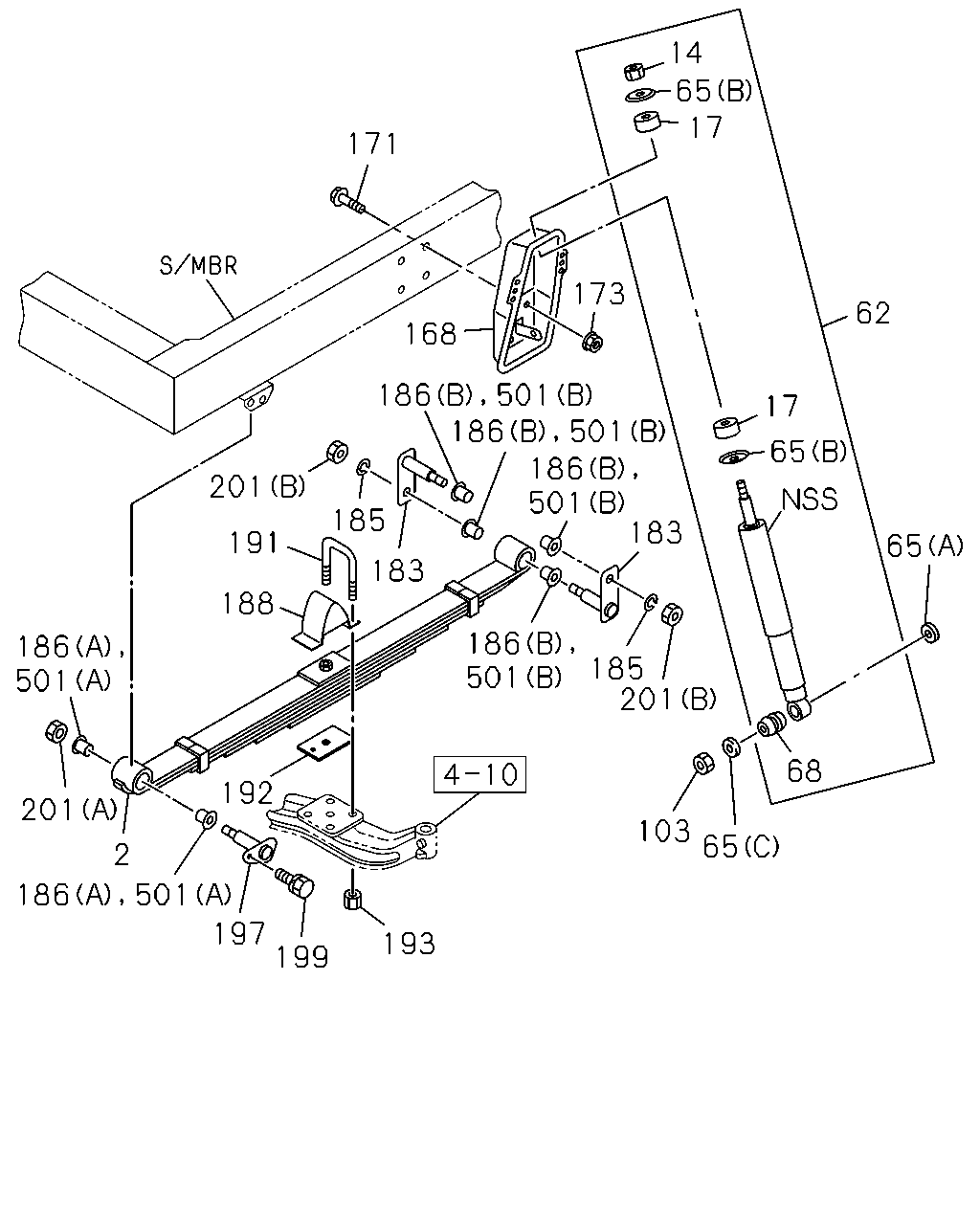

çizim 154100
14 65 17 171 173 62 168 186 501 183 17 65 201 185 191 65 183 188 186 501 186 501 185 201 68 192 201 103 65 2 186 501 197 199 193 186 501 186 501
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME-KICK UP<7EW> 5-LEAF 		8-98079-897-0 01 1 0803- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME-KICK UP<7EW> 5-LEAF 		8-98079-898-0 01 1 0803- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF 		8-98079-887-0 01 1 0803- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. TAIWAN EQUIPMENT(B04),SOFT RIDE SUSPENSION SYSTEM(FE1),FRT INDEPENDENT SU SPENSION(FF0) 6-LEAF 		8-98079-887-0 01 1 0803- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF 		8-98079-885-0 01 1 0803- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. TAIWAN EQUIPMENT(B04),SOFT RIDE SUSPENSION SYSTEM(FE1),FRT INDEPENDENT SU SPENSION(FF0) 6-LEAF 		8-98079-885-0 01 1 0803- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF 		8-98079-881-0 01 1 0803-0803 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME-KICK UP<7EW> 6-LEAF 		8-98079-881-0 01 1 0803-0803 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF 		8-98079-881-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3), FRAME-KICK UP<7EW> 6-LEAF 		8-98079-881-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98079-881-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98079-881-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF 		8-98001-533-0 01 1 0803-0803 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME-KICK UP<7EW> 6-LEAF 		8-98001-533-0 01 1 0803-0803 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF 		8-98001-533-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3), FRAME-KICK UP<7EW> 6-LEAF 		8-98001-533-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98001-533-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF 		8-98001-533-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME-KICK UP<7EW> 2-LEAF 		8-98001-531-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 2-LEAF 		8-98001-531-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME-KICK UP<7EW> 2-LEAF 		8-98001-530-0 01 1 0804- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 2-LEAF 		8-98001-530-0 01 1 0804- ●
14 07.389 NUT; S/ABS,UPR
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 		8-94317-772-0 02 1 0803-0803 ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0803-0803 ●
14 07.389 NUT; S/ABS,UPR
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 		8-94317-772-0 02 1 0804- ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0804- ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
FRT INDEPENDENT SUSPENSION(FF0) 		8-97370-319-0 02 1 0803-1201 ●
17 07.388 BUSHING; RUBBER,S/ABS
FRT INDEPENDENT SUSPENSION(FF0) HITACHI 		8-98197-281-0 02 1 1202- ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO 		9-51631-603-0 04 1 0803-0803 ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0803-0803 ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO 		9-51631-603-0 04 1 0804- ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0804- ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98033-271-0 02 1 0803-1201 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 		8-98033-271-0 02 1 0803-1201 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98197-652-0 02 1 1202- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 		8-98197-652-0 02 1 1202- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98085-708-1 02 1 0803- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-708-1 02 1 0803- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98093-668-0 02 1 0803-1201 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98197-653-0 02 1 1202-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98316-234-0 02 1 1507- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0803-0803 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0803-0803 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0804-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0804-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98085-709-1 02 1 0804-1506 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98316-235-0 02 1 1507- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98316-235-0 02 1 1507- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98316-235-0 02 1 1507- ● ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40 		0-91614-620-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15 		8-97360-056-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0 		8-97360-057-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5 		8-97360-058-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0804-1011 ●
65 07.347 WASHER; S/ABS
07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0804-1011 ● ● ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ●
65 07.347 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ● ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0803-0803 ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0803-0803 ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0804- ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0804- ● ● ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5 		9-51679-022-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5 		9-51679-022-0 02 1 0804- ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0804- ● ● ●
68 07.388 BUSHING; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) 		8-97370-319-0 02 1 0803-1201 ●
68 07.388 BUSHING; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) HITACHI 		8-98197-281-0 02 1 1202- ●
68 07.388 BUSHING; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO 		8-94224-694-0 02 1 0803-0803 ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0803-0803 ●
68 07.388 BUSHING; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO 		8-94224-694-0 02 1 0804- ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0804- ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14 		0-91110-514-0 02 1 0803- ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12 		0-91111-512-0 02 1 0803-0803 ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 0803-0803 ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12 		0-91111-512-0 02 1 0804- ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 0804- ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98002-083-0 01 1 0803- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52> 		8-98002-083-0 01 1 0803- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98002-082-1 01 1 0803- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52> 		8-98002-082-1 01 1 0803- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRT INDEPENDENT SUSPENSION(FF0), DISC BRAKE FRT<J52> 		8-98002-081-0 01 1 0803-0803 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52> 		8-98002-081-0 01 1 0803-0803 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRT INDEPENDENT SUSPENSION(FF0), DISC BRAKE FRT<J52> 		8-98002-081-0 01 1 0804- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52> 		8-98002-081-0 01 1 0804- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-081-0 01 1 0804- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRT INDEPENDENT SUSPENSION(FF0), DISC BRAKE FRT<J52> 		8-98002-080-1 01 1 0803-0803 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52> 		8-98002-080-1 01 1 0803-0803 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRT INDEPENDENT SUSPENSION(FF0), DISC BRAKE FRT<J52> 		8-98002-080-1 01 1 0804- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52> 		8-98002-080-1 01 1 0804- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-080-1 01 1 0804- ● ●
171 07.395 BOLT; S/ABS BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0803-0803 ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0803-0803 ●
171 07.395 BOLT; S/ABS BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0804- ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0804- ● ● ●
173 07.395 NUT; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
173 07.395 NUT; S/ABS
04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
173 07.395 NUT; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE 		0-91180-210-0 08 1 0804-1006 ●
173 07.395 NUT; S/ABS
04.085 M10 FLANGE 		0-91180-210-0 08 1 0804-1006 ● ● ●
173 07.395 NUT; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1007- ●
173 07.395 NUT; S/ABS
03.162 M10 FLANGE 		0-91180-110-0 08 1 1007- ● ● ●
183 07.436 SHACKLE; FRT SUSP
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98034-341-0 04 1 0803-0803 ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 0803-0803 ●
183 07.436 SHACKLE; FRT SUSP
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98034-341-0 04 1 0804- ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 0804- ● ● ●
185 07.427 WASHER; LK,PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=16.5 		8-98011-489-0 04 1 0803-0803 ●
185 07.427 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 0803-0803 ●
185 07.427 WASHER; LK,PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=16.5 		8-98011-489-0 04 1 0804- ●
185 07.427 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 0804- ● ● ●
186 07.105 BUSHING; SHACKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97081-531-0 08 1 0803-0803 ●
186 07.105 BUSHING; SHACKLE
(B) 		8-97081-531-0 08 1 0803-0803 ●
186 07.105 BUSHING; SHACKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97081-531-0 08 1 0804-1010 ●
186 07.105 BUSHING; SHACKLE
(B) 		8-97081-531-0 08 1 0804-1010 ● ● ●
186 07.105 BUSHING; SHACKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97259-495-0 04 1 0803-0803 ●
186 07.105 BUSHING; SHACKLE
(A) 		8-97259-495-0 04 1 0803-0803 ●
186 07.105 BUSHING; SHACKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97259-495-0 04 1 0804-1010 ●
186 07.105 BUSHING; SHACKLE
(A) 		8-97259-495-0 04 1 0804-1010 ● ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT INDEPENDENT SUSPENSION(FF0) 		8-98009-114-0 02 1 0803- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-515-0 02 1 0803-0803 ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0803-0803 ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-515-0 02 1 0804- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0804- ● ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) REAR L=105 		8-97304-074-1 02 1 0803-0803 ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) REAR L=105 		8-97304-074-1 02 1 0804- ● ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) FRONT L=115 		8-97304-075-1 02 1 0803-0803 ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) FRONT L=115 		8-97304-075-1 02 1 0804- ● ● ●
191 07.417 U-BOLT; FRT SPR
EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 0803-0803 ● ●
191 07.417 U-BOLT; FRT SPR
EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 0804- ● ● ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 0804- ●
192 07.436 PIECE; DIST
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.425 		8-94249-413-1 02 1 0803-0803 ●
192 07.436 PIECE; DIST
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.425 		8-94249-413-1 02 1 0804- ●
192 07.436 PIECE; DIST
07.425 		8-94249-413-1 02 1 0804- ●
193 07.417 NUT; U BOLT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M14 FLANGE 		8-97360-124-0 08 1 0803-0803 ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 0803-0803 ●
193 07.417 NUT; U BOLT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M14 FLANGE 		8-97360-124-0 08 1 0804- ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 0804- ● ● ●
197 07.427 PIN; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97261-861-0 02 1 0803-0803 ●
197 07.427 PIN; FRT SPR,FRT 8-97261-861-0 02 1 0803-0803 ●
197 07.427 PIN; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97261-861-0 02 1 0804-1010 ●
197 07.427 PIN; FRT SPR,FRT 8-97261-861-0 02 1 0804-1010 ● ● ●
197 07.427 PIN; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94117-900-1 02 1 1011- ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1011- ● ● ●
199 07.427 BOLT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0803-0803 ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0803-0803 ●
199 07.427 BOLT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0804- ● ● ●
201 07.427 NUT; PIN LK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M16 		0-91110-516-0 04 1 0803-0803 ●
201 07.427 NUT; PIN LK
06.509 (B) M16 		0-91110-516-0 04 1 0803-0803 ●
201 07.427 NUT; PIN LK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M16 		0-91110-516-0 04 1 0804- ●
201 07.427 NUT; PIN LK
06.509 (B) M16 		0-91110-516-0 04 1 0804- ● ● ●
201 07.427 NUT; PIN LK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16 FLANGE 		8-97360-125-0 02 1 0803-0803 ●
201 07.427 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 0803-0803 ●
201 07.427 NUT; PIN LK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16 FLANGE 		8-97360-125-0 02 1 0804- ●
201 07.427 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 0804- ● ● ●
501 07.413 BUSHING; LEAF SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.105 (A) 		8-97081-531-0 04 1 1011- ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (A) 		8-97081-531-0 04 1 1011- ● ● ●
501 07.413 BUSHING; LEAF SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.105 (B) 		8-97081-531-0 08 1 1011- ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (B) 		8-97081-531-0 08 1 1011- ● ● ●

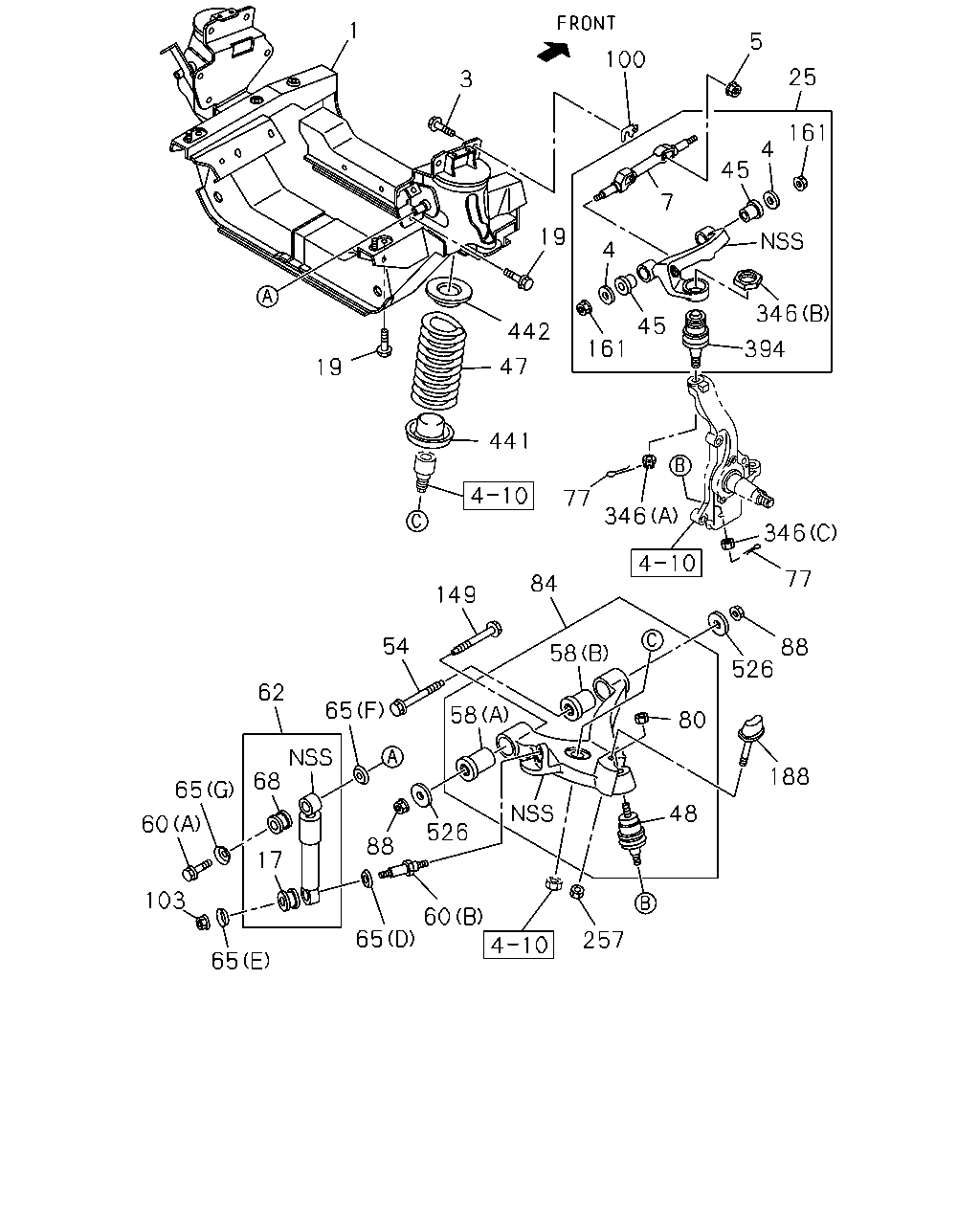

çizim 154130
1 3 19 442 47 441 149 54 62 65 60 103 65 65 68 17 88 65 257 58 526 58 84 77 346 77 88 526 188 48 60 346 161 45 346 394 161 4 45 4 7 19 25 5 100 80 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.010 MEMBER; CROSS,FRT SUSP
FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-830-1 01 1 0803-1306 ●
1 07.010 MEMBER; CROSS,FRT SUSP
FRT INDEPENDENT SUSPENSION(FF0) 		8-98247-588-0 01 1 1307- ●
3 06.164 BOLT; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 06.178 M16X70 FLANGE 		0-28861-670-0 04 1 0803- ●
4 06.164 WASHER; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-786-0 04 1 0803- ●
5 06.164 NUT; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE 		0-91180-216-0 04 1 0803- ●
7 06.174 PIN; FULCRUM,UPR LINK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-654-0 02 1 0803- ●
17 07.388 BUSHING; RUBBER,S/ABS
FRT INDEPENDENT SUSPENSION(FF0) 		8-97370-319-0 02 1 0803-1201 ●
17 07.388 BUSHING; RUBBER,S/ABS
FRT INDEPENDENT SUSPENSION(FF0) HITACHI 		8-98197-281-0 02 1 1202- ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO 		9-51631-603-0 04 1 0803-0803 ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0803-0803 ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO 		9-51631-603-0 04 1 0804- ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0804- ● ● ●
19 07.425 BOLT; FRT SUSP TO C/MBR
FRT INDEPENDENT SUSPENSION(FF0) 06.509 M12X30 FLANGE 		0-28661-230-0 14 1 0803- ●
25 06.168 ARM; UPR CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-652-0 01 1 0803- ●
25 06.168 ARM; UPR CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-653-0 01 1 0803- ●
45 06.164 BUSHING; UPR LINK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97188-369-0 04 1 0803- ●
47 07.412 SPRING; COIL,FRT SUSP
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-97357-109-1 02 1 0803- ●
47 07.412 SPRING; COIL,FRT SUSP
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 		8-97357-109-1 02 1 0803- ●
47 07.412 SPRING; COIL,FRT SUSP
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98039-621-0 02 1 0803- ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
FRT INDEPENDENT SUSPENSION(FF0) 		8-97142-452-1 02 1 0803- ●
54 06.174 PIN; FULCRUM,LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) 06.172 		8-98021-825-1 02 1 0803- ●
58 06.170 BUSHING; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94336-509-1 02 1 0803- ●
58 06.170 BUSHING; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-049-1 02 1 0803- ●
60 07.347 BOLT; S/ABS TO LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M10X20 FLANGE 		0-28651-020-0 02 1 0803- ●
60 07.347 BOLT; S/ABS TO LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97145-460-0 02 1 0803- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98033-271-0 02 1 0803-1201 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 		8-98033-271-0 02 1 0803-1201 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98197-652-0 02 1 1202- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) 		8-98197-652-0 02 1 1202- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98085-708-1 02 1 0803- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-708-1 02 1 0803- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98093-668-0 02 1 0803-1201 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98197-653-0 02 1 1202-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 4.0-4.5TON(RPR) 		8-98316-234-0 02 1 1507- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0803-0803 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0803-0803 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0804-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 0804-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98085-709-1 02 1 0804-1506 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98316-235-0 02 1 1507- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98316-235-0 02 1 1507- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98316-235-0 02 1 1507- ● ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40 		0-91614-620-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15 		8-97360-056-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0 		8-97360-057-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5 		8-97360-058-0 02 1 0803- ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0804-1011 ●
65 07.347 WASHER; S/ABS
07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 0804-1011 ● ● ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ●
65 07.347 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ● ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0803-0803 ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0803-0803 ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0804- ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 0804- ● ● ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5 		9-51679-022-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0803-0803 ●
65 07.347 WASHER; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5 		9-51679-022-0 02 1 0804- ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0804- ● ● ●
68 07.388 BUSHING; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) 		8-97370-319-0 02 1 0803-1201 ●
68 07.388 BUSHING; S/ABS
FRT INDEPENDENT SUSPENSION(FF0) HITACHI 		8-98197-281-0 02 1 1202- ●
68 07.388 BUSHING; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO 		8-94224-694-0 02 1 0803-0803 ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0803-0803 ●
68 07.388 BUSHING; S/ABS
EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO 		8-94224-694-0 02 1 0804- ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0804- ● ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) 05.812 OD=3.7 L=30 		0-81124-030-0 04 1 0803- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) 00.785 M16 		0-91111-516-0 02 1 0803- ●
84 06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98001-259-0 01 1 0803-1508 ●
84 06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98330-120-0 01 1 1509- ●
84 06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98001-260-0 01 1 0803-1508 ●
84 06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98330-121-0 01 1 1509- ●
88 06.174 NUT; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) 07.172 M22 		0-91110-522-0 04 1 0803- ●
100 06.164 SHIM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) T=1.2 		8-98029-250-0 AR 1 0803- ●
100 06.164 SHIM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) T=2.3 		8-98029-251-0 AR 1 0803- ●
100 06.164 SHIM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) T=4.5 		8-98029-252-0 AR 1 0803- ●
103 07.347 NUT; S/ABS TO LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14 		0-91110-514-0 02 1 0803- ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12 		0-91111-512-0 02 1 0803-0803 ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 0803-0803 ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12 		0-91111-512-0 02 1 0804- ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 0804- ● ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
FRT INDEPENDENT SUSPENSION(FF0) 06.174 		8-98021-826-1 02 1 0803- ●
161 06.178 NUT ASM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 06.164 M16 FLANGE 		0-91180-216-0 04 1 0803- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT INDEPENDENT SUSPENSION(FF0) 		8-98009-114-0 02 1 0803- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-515-0 02 1 0803-0803 ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0803-0803 ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-515-0 02 1 0804- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0804- ● ● ●
257 07.346 NUT; CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE 		0-91180-210-0 02 1 0803- ●
346 06.174 NUT; LINK END
FRT INDEPENDENT SUSPENSION(FF0) 06.861 (C) M22 		0-91111-522-0 02 1 0803- ●
346 06.174 NUT; LINK END
FRT INDEPENDENT SUSPENSION(FF0) (A) M18 SLOTTED 		8-97245-632-0 02 1 0803- ●
346 06.174 NUT; LINK END
FRT INDEPENDENT SUSPENSION(FF0) (B) M52 		8-98021-784-0 02 1 0803-0909 ●
346 06.174 NUT; LINK END
FRT INDEPENDENT SUSPENSION(FF0) (B) M52 		8-98158-133-0 02 1 0910- ●
394 06.714 END ASM; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) 		8-97327-369-5 02 1 0803- ●
441 07.420 SEAT; COIL SPR
FRT INDEPENDENT SUSPENSION(FF0) 		8-97354-580-2 02 1 0803- ●
442 07.420 INSULATOR; COIL SPR
FRT INDEPENDENT SUSPENSION(FF0) 		8-97354-550-1 02 1 0803- ●
526 06.172 WASHER; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0) 06.174 ID=23 		0-91614-522-0 04 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
