4-36 — POWER STEERING CONTROL; ENGINE SIDE (#53083) — 64 parça

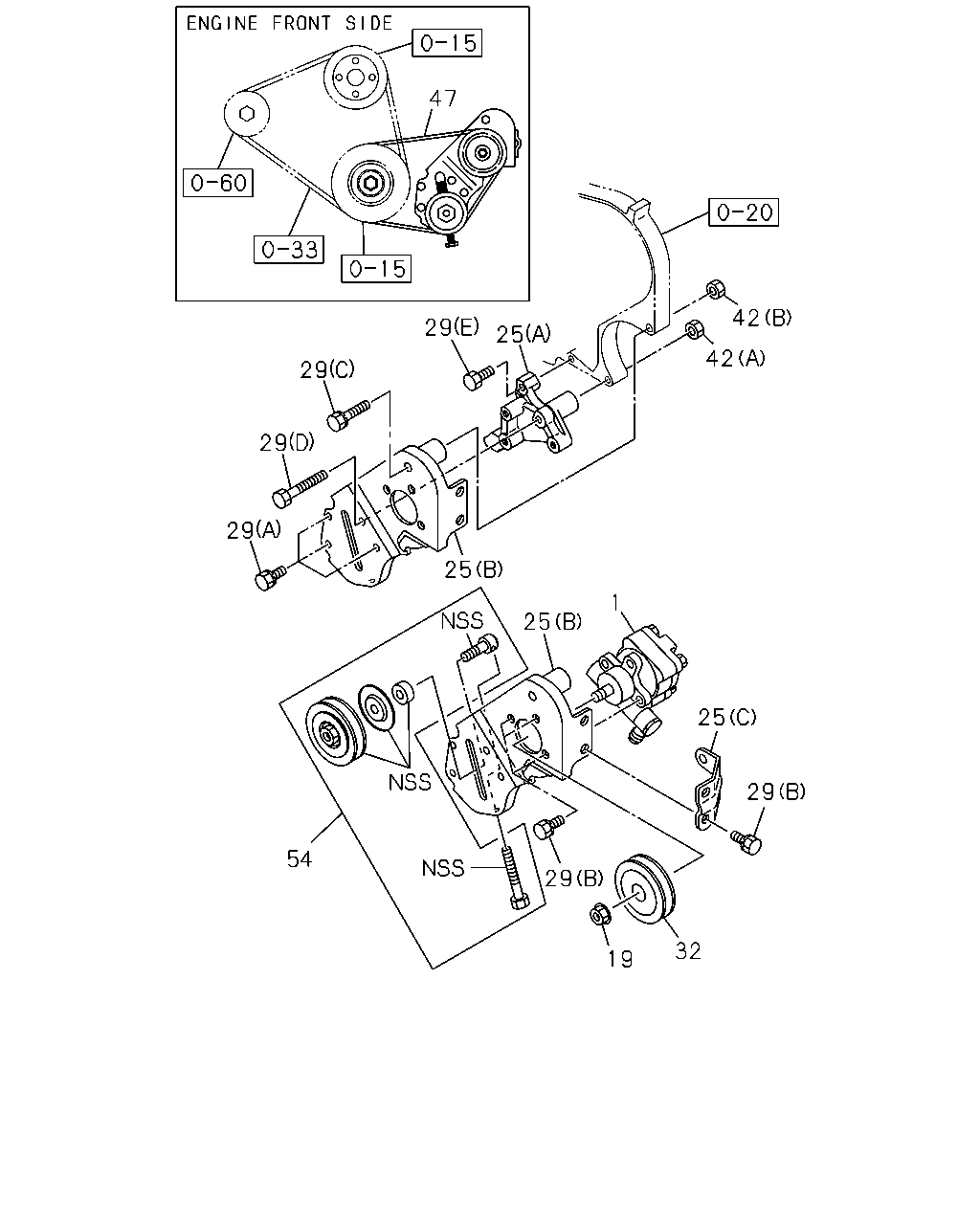

çizim 153933
47 42 42 25 29 29 29 29 25 25 1 25 29 32 29 19 54
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-823-4 01 1 0803- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0804-0804 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0805-0809 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0810-1303 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-98217-772-0 01 1 1304- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-205-4 01 1 0803-0803 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98043-205-4 01 1 0803-0803 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-205-4 01 1 0804- ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JB1-TC ENG(RDT) 07.395 M12 		8-97360-126-0 01 1 0804-0804 ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JB1-TC ENG(RDT) 07.395 M12 		8-97360-126-0 01 1 0805-0809 ●
19 07.874 NUT; PULLEY,OIL PUMP
4JB1-TC ENG(RDT) 07.395 M12 		8-97360-126-0 01 1 0810- ● ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (B) 		8-97065-974-0 01 1 0804-0804 ● ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (B) 		8-97065-974-0 01 1 0805-0809 ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (B) 		8-97065-974-0 01 1 0810- ● ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (A) 		8-97107-869-0 01 1 0804-0804 ● ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (A) 		8-97107-869-0 01 1 0805-0809 ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (A) 		8-97107-869-0 01 1 0810- ● ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (C) 		8-97107-872-0 01 1 0804-0804 ● ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (C) 		8-97107-872-0 01 1 0805-0809 ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (C) 		8-97107-872-0 01 1 0810- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0804-0804 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0805-0809 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0810- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0804-0804 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0805-0809 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0810- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0804-0804 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0805-0809 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0810- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0804-0804 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0805-0809 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0810- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0804-0804 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0805-0809 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0810- ● ●
32 06.665 PULLEY; IDLER,P/S
4JB1-TC ENG(RDT) 		8-97084-332-2 01 1 0804-0804 ● ●
32 06.665 PULLEY; IDLER,P/S
4JB1-TC ENG(RDT) 		8-97084-332-2 01 1 0805-0809 ●
32 06.665 PULLEY; IDLER,P/S
4JB1-TC ENG(RDT) 		8-97084-332-2 01 1 0810-1303 ● ●
32 06.665 PULLEY; IDLER,P/S
4JB1-TC ENG(RDT) 		8-98217-771-0 01 1 1304- ● ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804-0804 ● ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0805-0809 ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0810- ● ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) 		8-97085-131-0 01 1 0804-0804 ● ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) 		8-97085-131-0 01 1 0805-0809 ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) 		8-97085-131-0 01 1 0810- ● ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-096-0 01 1 0804-0804 ● ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-096-0 01 1 0805-0809 ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-096-0 01 1 0810- ● ●
54 06.655 IDLER ASM; P/S OIL PUMP
4JB1-TC ENG(RDT) 		8-94128-866-0 01 1 0804-0804 ● ●
54 06.655 IDLER ASM; P/S OIL PUMP
4JB1-TC ENG(RDT) 		8-94128-866-0 01 1 0805-0809 ●
54 06.655 IDLER ASM; P/S OIL PUMP
4JB1-TC ENG(RDT) 		8-94128-866-0 01 1 0810- ● ●

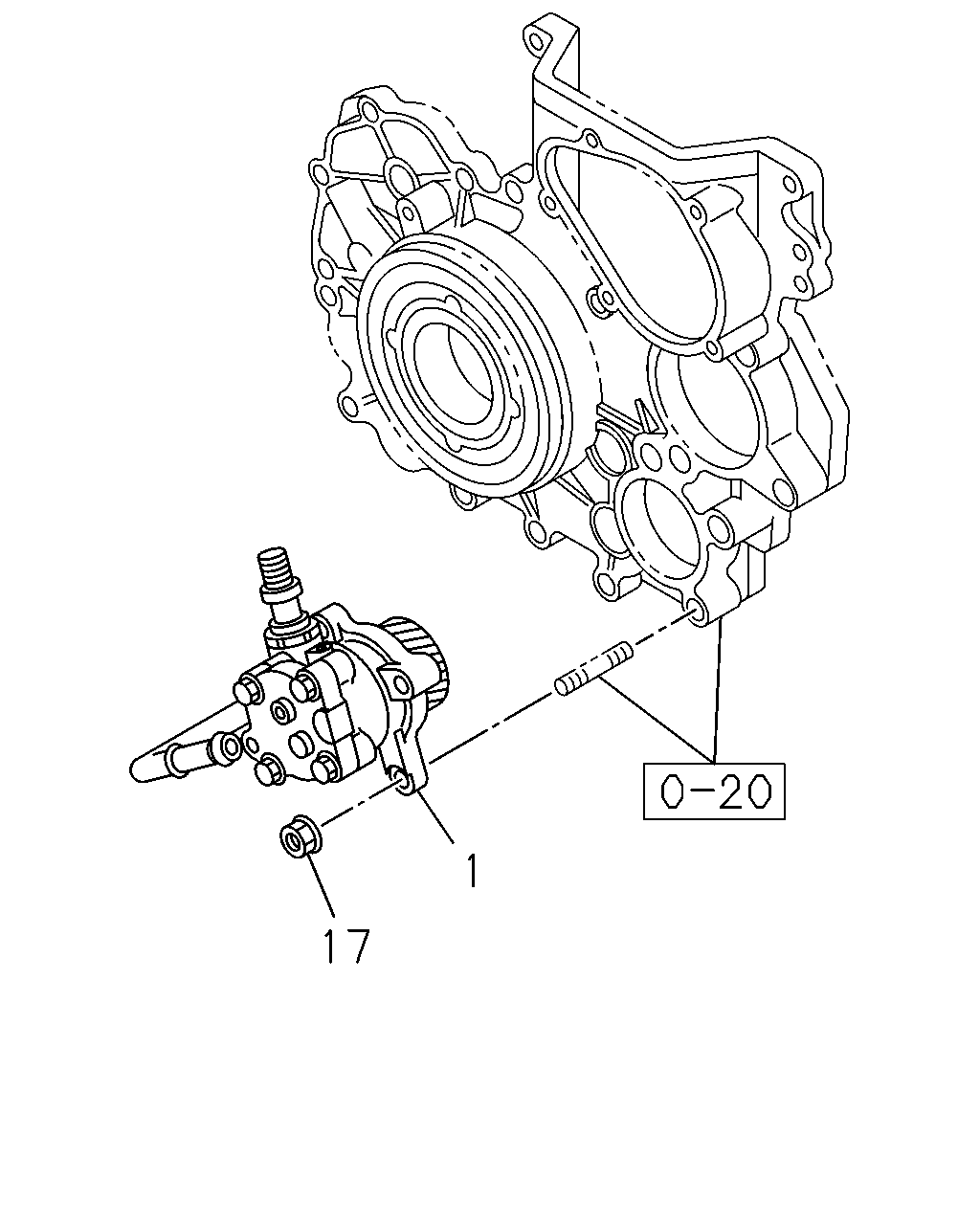

çizim 154094
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-823-4 01 1 0803- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0804-0804 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0805-0809 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0810-1303 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-98217-772-0 01 1 1304- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-205-4 01 1 0803-0803 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98043-205-4 01 1 0803-0803 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-205-4 01 1 0804- ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0803-0803 ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0804- ● ● ● ●
