4-31 — STEERING COLUMN AND SHAFT (#53080) — 122 parça

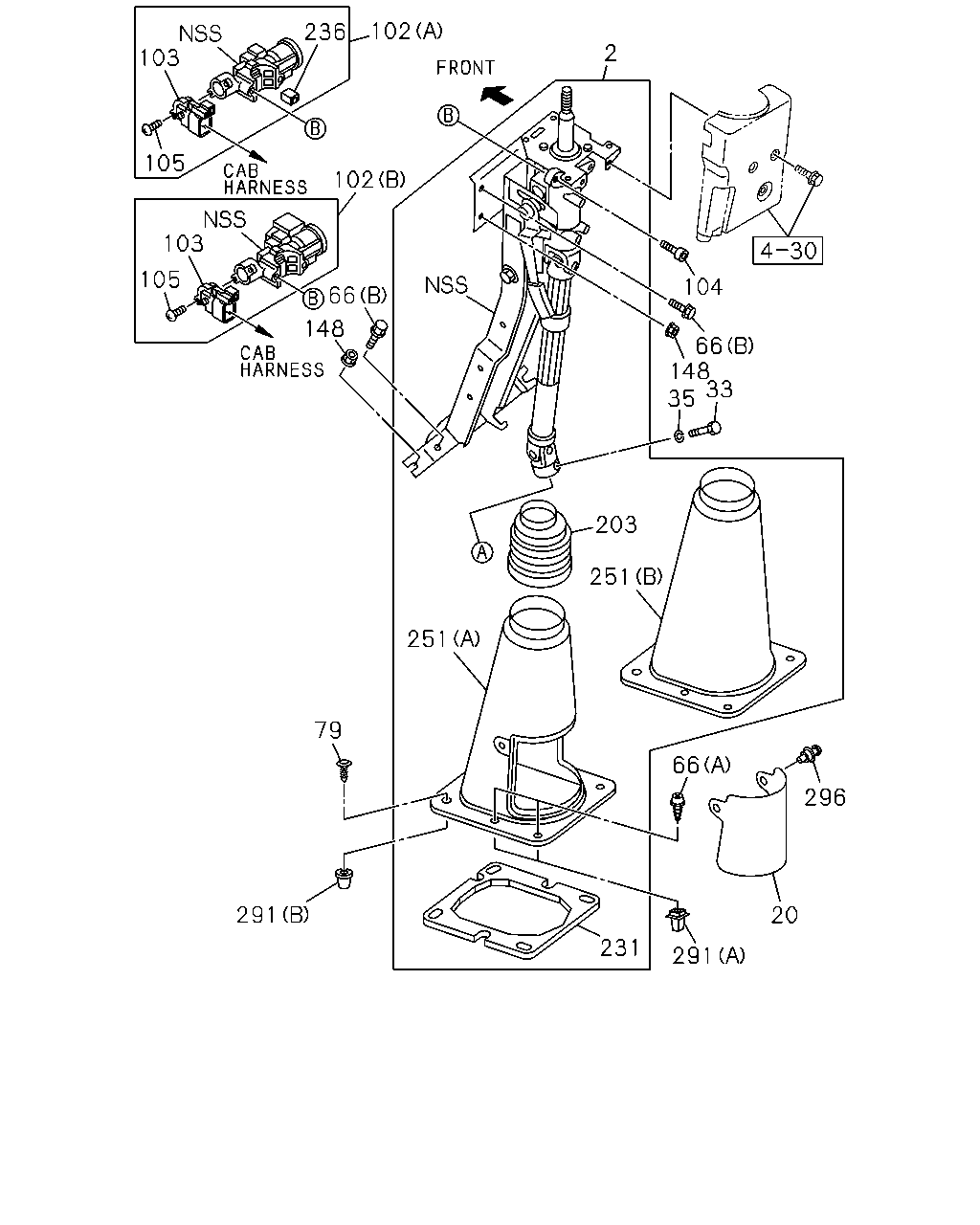

çizim 154083
102 236 103 2 105 102 103 105 104 66 148 66 148 33 35 203 251 251 79 66 296 291 20 231 291
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) BLACK 		8-97418-801-2 01 1 1008- ●
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-801-2 01 1 1008- ●
2 06.518 SHAFT ASM; STRG
FRT INDEPENDENT SUSPENSION(FF0) BLACK 		8-97406-375-6 01 1 0803-1007 ●
2 06.518 SHAFT ASM; STRG
FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1008- ●
2 06.518 SHAFT ASM; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) BLACK 		8-97405-355-6 01 1 0803-0803 ●
2 06.518 SHAFT ASM; STRG
BLACK 		8-97405-355-6 01 1 0803-0803 ●
2 06.518 SHAFT ASM; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) BLACK 		8-97405-355-6 01 1 0804-1007 ●
2 06.518 SHAFT ASM; STRG
BLACK 		8-97405-355-6 01 1 0804-1007 ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0), MANUAL TILT CAB<RWZ> BLACK 		8-97405-355-8 01 1 1008- ●
2 06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-355-8 01 1 1008- ●
2 06.518 SHAFT ASM; STRG
BLACK 		8-97405-355-8 01 1 1008- ● ●
20 06.525 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 0803-0803 ● ●
20 06.525 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 0804-1007 ● ● ● ●
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1008- ● ●
20 06.525 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 1008- ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0803-0803 ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0804- ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 0803-0803 ● ●
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 0804- ● ● ● ●
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201- ● ● ● ●
66 06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 0803-0803 ● ●
66 06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 0804- ● ● ● ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0803-0803 ● ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0804-1112 ● ● ● ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ● ● ●
79 06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK 		8-94363-776-0 02 1 0803-0803 ● ●
79 06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK 		8-94363-776-0 02 1 0804- ● ● ● ●
102 06.500 LOCK ASM; STRG
4JB1-TC ENG(RDT) (B) 		8-98006-150-0 01 1 1111- ● ●
102 06.500 LOCK ASM; STRG
(A) 		8-97387-036-0 01 1 0803-0803 ● ●
102 06.500 LOCK ASM; STRG
(A) 		8-97387-036-0 01 1 0804-1110 ● ● ● ●
102 06.500 LOCK ASM; STRG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-97387-036-0 01 1 1111- ● ●
102 06.500 LOCK ASM; STRG
(A) 		8-97387-036-0 01 1 1111- ● ●
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 0803-0803 ● ●
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 0804- ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0803-0803 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0804- ● ● ● ●
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 0803-0803 ● ●
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 0804- ● ● ● ●
148 06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 03 1 0803-0803 ● ●
148 06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 03 1 0804- ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98137-331-0 01 1 0803-0803 ●
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 0803-0803 ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98137-331-0 01 1 0804-0811 ●
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 0804-0811 ● ● ●
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 0803- ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98137-329-0 01 1 0803-0803 ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 0803-0803 ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98137-329-0 01 1 0804-0811 ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 0804-0811 ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 0803- ● ● ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0803-0803 ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0804-1110 ● ● ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98045-350-0 01 1 1111- ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 1111- ● ●
251 06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1008- ● ●
251 06.518 COVER; LWR
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BLACK 		8-97417-049-0 01 1 0803-0803 ●
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0803-0803 ●
251 06.518 COVER; LWR
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BLACK 		8-97417-049-0 01 1 0804-0811 ●
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0804-0811 ● ● ●
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0803-1007 ● ● ● ●
251 06.518 COVER; LWR
EXC. FRT INDEPENDENT SUSPENSION(FF0), MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1008- ●
251 06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1008- ●
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 1008- ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 		8-94463-268-1 04 1 0803-0803 ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 		8-94463-268-1 04 1 0804- ● ● ● ●
291 06.518 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 0803-0803 ● ●
291 06.518 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 0804- ● ● ● ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0803-0803 ● ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0804-1007 ● ● ● ●
296 06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1008- ● ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 1008- ● ●

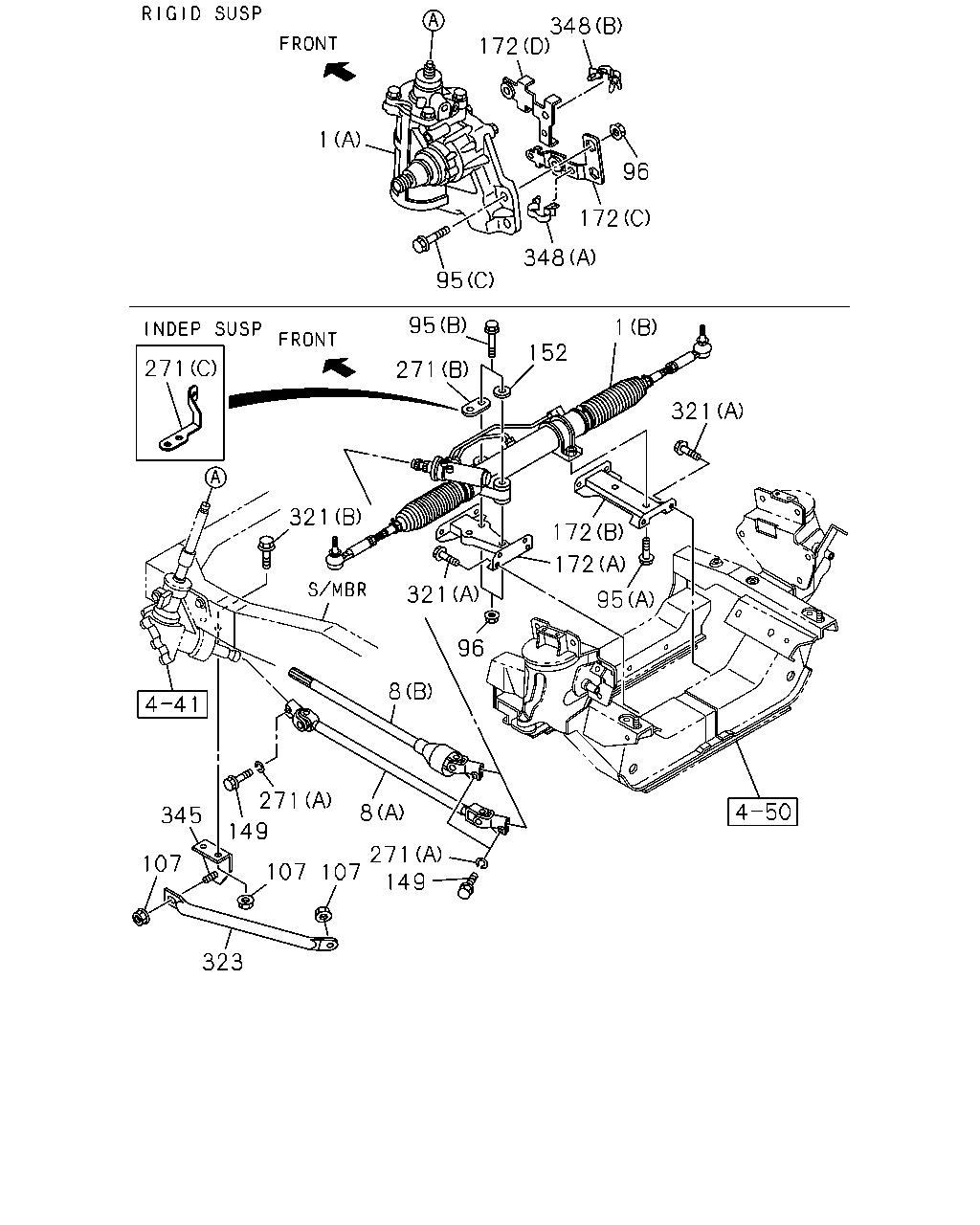

çizim 154096
348 172 1 96 172 348 95 95 1 152 271 271 321 321 172 172 321 95 96 8 271 8 345 149 271 107 149 107 107 323
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97388-318-2 01 1 0803- ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-218-1 01 1 0803-0803 ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		8-98110-218-1 01 1 0803-0803 ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-218-1 01 1 0804-1010 ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		8-98110-218-1 01 1 0804-1010 ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98101-298-3 01 1 1011- ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		8-98101-298-3 01 1 1011- ● ● ●
8 06.525 JOINT; UNIVERSAL
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98001-483-1 01 1 0803-0805 ●
8 06.525 JOINT; UNIVERSAL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98115-712-0 01 1 0806- ●
95 06.509 BOLT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 07.874 (A) M14X30 FLANGE 		0-28651-430-0 02 1 0803- ●
95 06.509 BOLT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 06.525 (B) M14X80 FLANGE 		0-28851-480-0 03 1 0803- ●
95 06.509 BOLT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M12X47 FLANGE 		8-98055-055-0 04 1 0803-0803 ●
95 06.509 BOLT; STRG UNIT
(C) M12X47 FLANGE 		8-98055-055-0 04 1 0803-0803 ●
95 06.509 BOLT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M12X47 FLANGE 		8-98055-055-0 04 1 0804- ●
95 06.509 BOLT; STRG UNIT
(C) M12X47 FLANGE 		8-98055-055-0 04 1 0804- ● ● ●
96 06.509 NUT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 00.429 M14 FLANGE 		0-91180-214-0 03 1 0803- ●
96 06.509 NUT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE 		8-97359-618-0 02 1 0803-0803 ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 02 1 0803-0803 ●
96 06.509 NUT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE 		8-97359-618-0 02 1 0804- ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 02 1 0804- ● ● ●
107 06.514 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 05.816 M12 FLANGE 		0-91180-212-0 08 1 0803- ●
149 06.525 BOLT; GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) M8X30 		8-97359-615-0 02 1 0803- ●
152 00.796 WASHER; LK,STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 03.704 ID=15 OD=40 		9-09851-995-0 01 1 0803- ●
172 06.509 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) EXC. KD PREPARATORY PACK<6HF> (B) 		8-98141-245-0 01 1 0902- ●
172 06.509 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98034-269-1 01 1 0803- ●
172 06.509 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98034-270-2 01 1 0803-0901 ●
172 06.509 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) KD PREPARATORY PACK<6HF> (B) 		8-98034-270-2 01 1 0902- ●
172 06.509 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98060-973-0 01 1 0803-0803 ●
172 06.509 BRACKET; STRG
(D) 		8-98060-973-0 01 1 0803-0803 ●
172 06.509 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98060-973-0 01 1 0804- ●
172 06.509 BRACKET; STRG
(D) 		8-98060-973-0 01 1 0804- ● ● ●
172 06.509 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98078-804-0 01 1 0803-0803 ●
172 06.509 BRACKET; STRG
(C) 		8-98078-804-0 01 1 0803-0803 ●
172 06.509 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98078-804-0 01 1 0804- ●
172 06.509 BRACKET; STRG
(C) 		8-98078-804-0 01 1 0804- ● ● ●
271 06.514 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98141-257-0 01 1 0902- ●
271 06.514 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) 02.559 (A) ID=8.2 		0-91510-808-0 02 1 0803- ●
271 06.514 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) 06.521 (B) 		8-98018-561-0 01 1 0803-0901 ●
271 06.514 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 06.521 (B) 		8-98018-561-0 01 1 0902- ●
321 06.514 BOLT; BRKT,STRG
FRT INDEPENDENT SUSPENSION(FF0) 07.395 (A) M12X30 FLANGE 		0-28651-230-0 10 1 0803- ●
321 06.514 BOLT; BRKT,STRG
FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M12X30 FLANGE 		0-28661-230-0 04 1 0803- ●
323 06.518 ROD; GUARD,STRG SHAFT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-649-0 02 1 0803- ●
345 06.509 BRACKET; ROD
FRT INDEPENDENT SUSPENSION(FF0) 06.518 		8-98033-651-0 02 1 0803- ●
348 06.525 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
348 06.525 CLIP; BRKT,STRG
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
348 06.525 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
348 06.525 CLIP; BRKT,STRG
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ● ●
348 06.525 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0803-0803 ●
348 06.525 CLIP; BRKT,STRG
(B) ID=5-12 L=22 		1-09709-288-0 01 1 0803-0803 ●
348 06.525 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0804- ●
348 06.525 CLIP; BRKT,STRG
(B) ID=5-12 L=22 		1-09709-288-0 01 1 0804- ● ● ●
