Sayfa 4-25 - Isuzu EPC

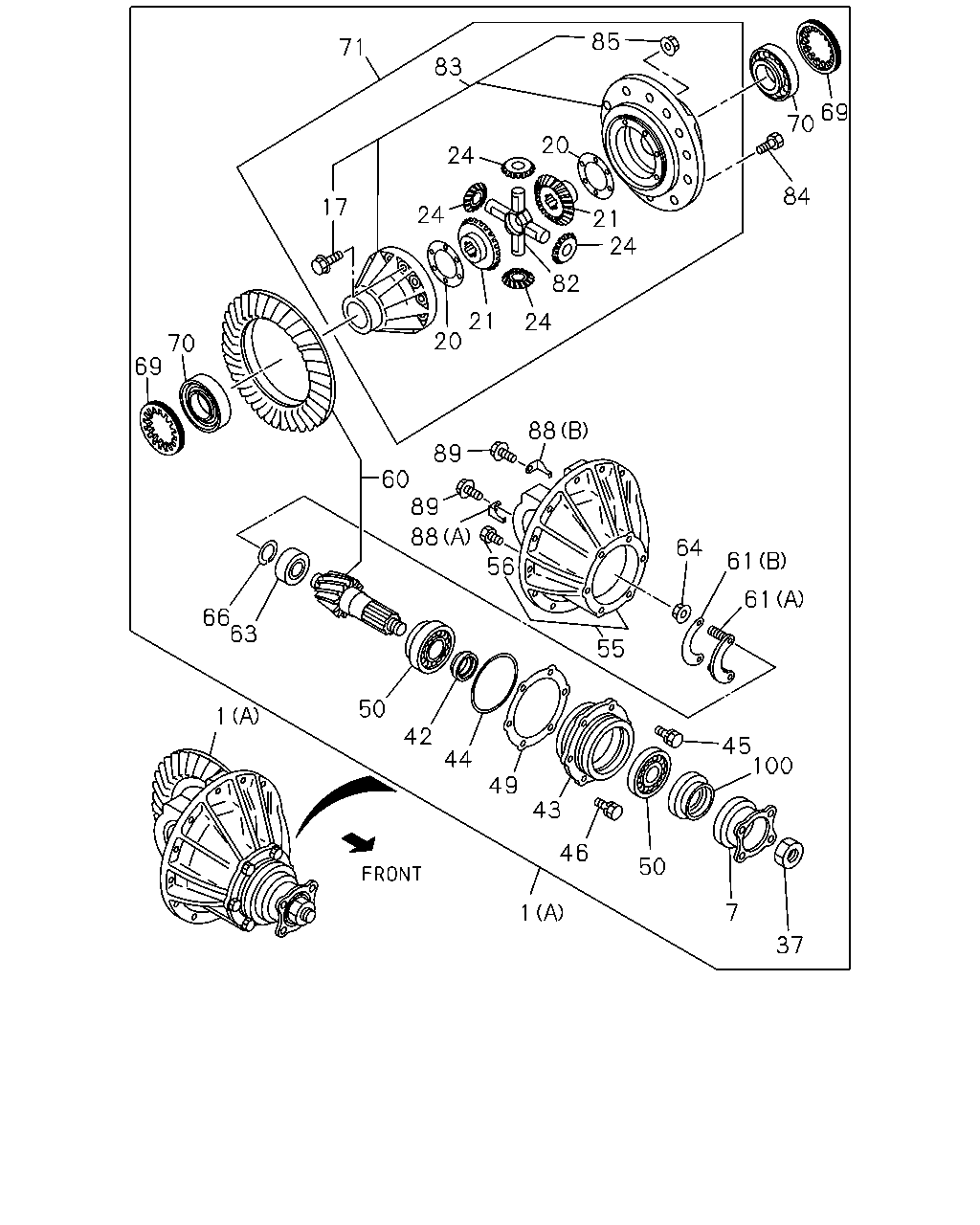

4-25 — REAR FINAL DRIVE (#53078) — 340 parça

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-146-0	01	1	1006-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	0803-0803	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	0804-		●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) (A) 43/9	8-98015-138-0	01	1	0803-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-141-0	01	1	0803-0803		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-141-0	01	1	0804-		●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (A) 43/8	8-98015-140-0	01	1	0803-0803		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (A) 43/8	8-98015-140-0	01	1	0804-		●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D) (A) 43/7	8-98015-143-0	01	1	0803-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D) (A) 43/7	8-98015-147-0	01	1	0810-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 41/8(RU1) (B) 41/8	8-97080-668-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/8(RV9) (B) 39/8	8-97367-499-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-98015-135-0	01	1	0803-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) (B) 43/11	8-97035-400-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-145-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) (B) 39/7	8-97367-501-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-98015-136-0	01	1	0803-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-98015-137-0	01	1	0803-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D) (A) 43/7	8-98015-147-0	01	1	0804-0804		●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	0804-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1)	8-94426-787-4	01	1	0804-0804	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D)	8-94426-787-4	01	1	0804-0804		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1)	8-94426-787-4	01	1	0805-0809	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1)	8-94426-787-4	01	1	0810-1005	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D)	8-94426-787-4	01	1	0810-1005		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41)	8-94426-787-4	01	1	1006-	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D)	8-94426-787-4	01	1	1006-		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0803-0803	●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GE AR RATIO 43/10(S7C)	8-94477-723-4	01	1	0804-0804	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GE AR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C)	8-94477-723-4	01	1	0804-0804		●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D)	8-94477-723-4	01	1	0804-0804		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0804-0804			●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GE AR RATIO 43/10(S7C)	8-94477-723-4	01	1	0805-	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0805-		●	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) 05.650 M12X58	8-97314-497-0	08	1	0804-	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0803-0803	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	0804-	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0804-		●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	0804-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0803-0803	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0804-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0804-		●	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	0804-1105	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-0	02	1	0803-0803	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	0804-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	0804-		●	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	0804-1105	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0803-0803	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0804-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0804-		●	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	0804-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0803-0803	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0804-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0804-		●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0803-0803	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0804-		●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0803-0803	●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0804-	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0804-		●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0803-0803	●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0804-	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0804-		●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0803-0803	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0804-0909	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0804-0909		●	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311		●	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0803-0803	●	●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0804-0909	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0804-0909		●	●	●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0803-0803	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0804-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0804-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0803-0803	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0804-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0804-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0803-0803	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0804-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0804-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0803-0803	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0804-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0804-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0803-0803	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0804-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0804-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0803-0803	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0804-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0804-		●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0803-0803	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0804-	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0804-		●	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0803-0803	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0804-	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0804-		●	●	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9)	8-94376-227-3	01	1	0804-	●
55	05.505 CARRIER; DIFF FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	8-97078-154-2	01	1	0804-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0803-0803	●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0804-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0804-		●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0803-0803	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0804-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0803-0803	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0804-		●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0803-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0803-0803		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-		●		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	0803-0803		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	0804-		●		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D) 43/7	8-97320-103-0	01	1	0803-0803		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97319-153-0	01	1	0803-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) 43/11	8-97035-428-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97319-155-0	01	1	0803-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	0803-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0803-0803	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0804-	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0804-		●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0803-0803	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0804-	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0804-		●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0803-0803	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0804-	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0804-		●	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0803-0803	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0804-	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0804-		●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-0803	●	●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-		●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0803-0803	●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0804-	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0804-		●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0803-0803	●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0804-	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0804-		●	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0803-0803	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0804-		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-98015-182-0	01	1	0803-0803	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1)	8-98015-182-0	01	1	0804-1005	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-98015-182-0	01	1	0804-1005		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0804-1005			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1006-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-98015-182-1	01	1	1006-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1006-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9)	8-97228-309-0	01	1	0804-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) 05.453	8-98191-996-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	8-97228-311-0	01	1	0804-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	8-98191-998-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-0	01	1	0803-0803	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-1	01	1	0804-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-1	01	1	0804-		●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	0804-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0803-0803	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	0804-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0804-		●	●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-97319-396-1	01	1	0803-0803	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1)	8-97319-396-1	01	1	0804-1005	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-97319-396-1	01	1	0804-1005		●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	0804-1005			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1006-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-97319-396-1	01	1	1006-		●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1006-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9)	9-41510-610-0	01	1	0804-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	5-41510-012-0	01	1	0804-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	0803-0803	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	0804-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	0804-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M12X25	9-09606-505-2	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) M12X22	9-09600-066-3	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0803-0803	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0804-		●	●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	0803-0803	●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	0804-	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	0804-		●	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0803-0803	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0804-	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0804-		●	●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0803-0803	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0804-	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0804-		●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-0803	●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-		●	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	0804-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0803-0803	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0804-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0804-		●	●	●

70 84 73 71 83 24 82 24 21 73 161 17 21 20 20 24 24 73 70 73 60 51 51 39 42 56 55 39 100 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	0804-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1)	8-94426-787-4	01	1	0804-0804	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D)	8-94426-787-4	01	1	0804-0804		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1)	8-94426-787-4	01	1	0805-0809	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1)	8-94426-787-4	01	1	0810-1005	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D)	8-94426-787-4	01	1	0810-1005		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41)	8-94426-787-4	01	1	1006-	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) EXC. DUMP CHASSIS(V4D)	8-94426-787-4	01	1	1006-		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0803-0803	●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GE AR RATIO 43/10(S7C)	8-94477-723-4	01	1	0804-0804	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GE AR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C)	8-94477-723-4	01	1	0804-0804		●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D)	8-94477-723-4	01	1	0804-0804		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0804-0804			●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GE AR RATIO 43/10(S7C)	8-94477-723-4	01	1	0805-	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0805-		●	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) 05.650 M12X58	8-97314-497-0	08	1	0804-	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0803-0803	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	0804-	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0804-		●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	0804-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0803-0803	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0804-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0804-		●	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	0804-1105	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-0	02	1	0803-0803	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	0804-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	0804-		●	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	0804-1105	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0803-0803	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0804-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0804-		●	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	0804-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0803-0803	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0804-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0804-		●	●	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) NSK	9-00093-078-0	01	1	0804-	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) 05.447 JTEKT	9-00093-079-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0803-0803	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0804-		●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.12	9-41219-608-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.16	9-41219-610-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.20	9-41219-612-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.24	9-41219-614-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.28	9-41219-616-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.32	9-41219-618-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.36	9-41219-620-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.40	9-41219-622-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.44	9-41219-624-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.48	9-41219-626-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.52	9-41219-628-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.56	9-41219-630-0	01	1	0804-	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9)	8-94376-227-3	01	1	0804-	●
55	05.505 CARRIER; DIFF FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	8-97078-154-2	01	1	0804-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0803-0803	●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0804-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0804-		●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0803-0803	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0804-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0803-0803	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0804-		●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0803-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0803-0803		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-		●		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	0803-0803		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	0804-		●		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) DUMP CHASSIS(V4D) 43/7	8-97320-103-0	01	1	0803-0803		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97319-153-0	01	1	0803-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) 43/11	8-97035-428-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97319-155-0	01	1	0803-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	0803-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0803-0803	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0804-		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-98015-182-0	01	1	0803-0803	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1)	8-98015-182-0	01	1	0804-1005	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-98015-182-0	01	1	0804-1005		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0804-1005			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1006-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-98015-182-1	01	1	1006-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1006-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9)	8-97228-309-0	01	1	0804-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) 05.453	8-98191-996-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	8-97228-311-0	01	1	0804-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	8-98191-998-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-0	01	1	0803-0803	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-1	01	1	0804-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-1	01	1	0804-		●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.50	9-41519-009-0	AR	1	0804-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.25	9-41519-010-0	AR	1	0804-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.30	9-41519-601-0	AR	1	0804-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.35	9-41519-602-0	AR	1	0804-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	0804-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0803-0803	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	0804-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0804-		●	●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-97319-396-1	01	1	0803-0803	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1)	8-97319-396-1	01	1	0804-1005	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-97319-396-1	01	1	0804-1005		●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	0804-1005			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1006-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/7(R42)	8-97319-396-1	01	1	1006-		●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1006-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9)	9-41510-610-0	01	1	0804-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE)	5-41510-012-0	01	1	0804-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	0803-0803	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	0804-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	0804-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M12X25	9-09606-505-2	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 43/11(GNA) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) M12X22	9-09600-066-3	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0803-0803	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0804-		●	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	0804-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0803-0803	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0804-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0804-		●	●	●
161	05.506 WASHER; LK REAR AXLE STANDARD 244MM(R39) 00.002 ID=12.2	0-91510-612-0	08	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
