1 |

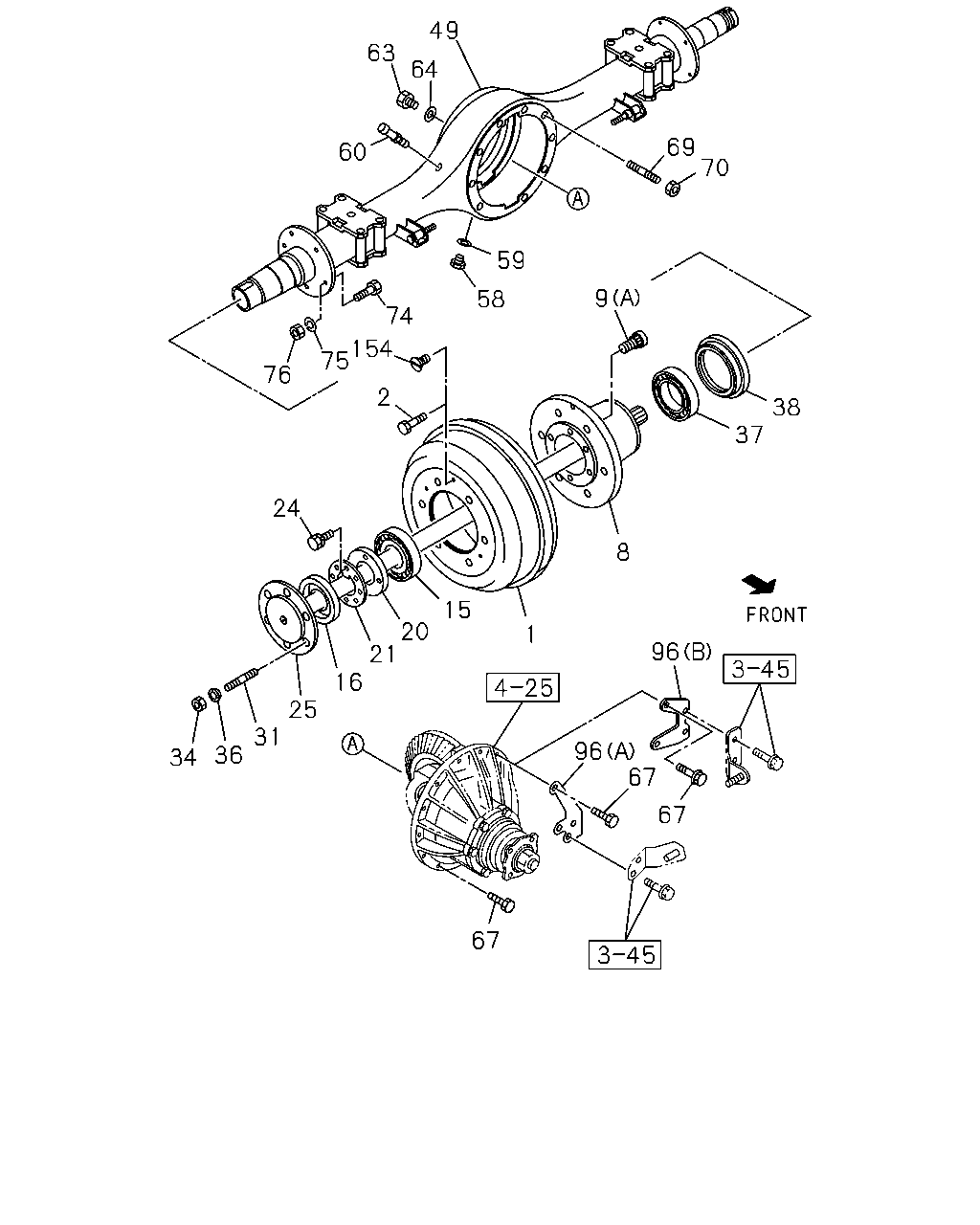

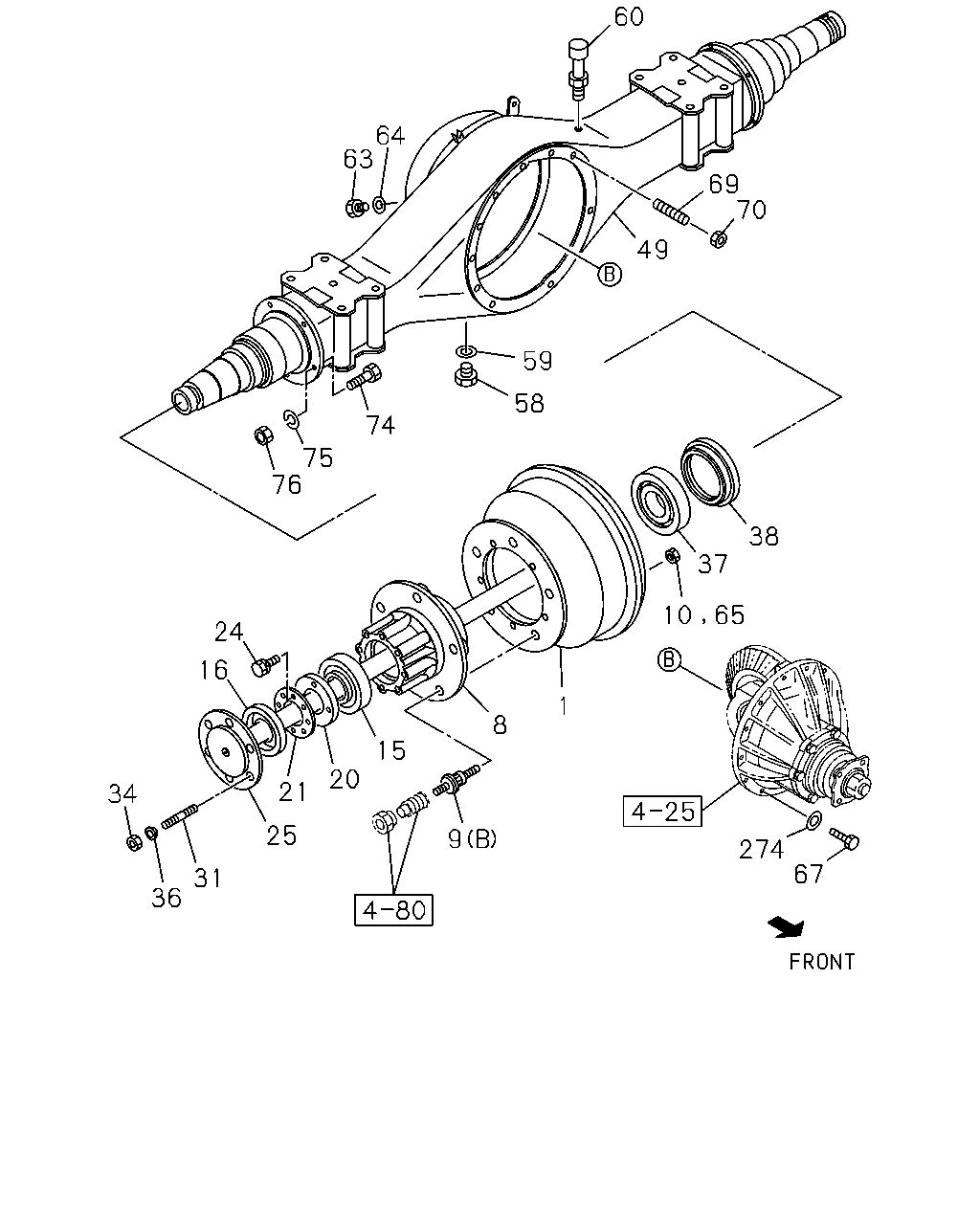

05.809 DRUM; BRK,RR
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
|
8-94455-285-2 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
|
8-94455-285-2 |
02 |
1 |
0804- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
|
8-94455-285-2 |
02 |
1 |
0804- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-94455-285-2 |
02 |
1 |
0804- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94455-285-2 |
02 |
1 |
0804- |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94382-884-4 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
|
8-94382-884-4 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94382-884-4 |
02 |
1 |
0804-0804 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
|
8-94382-884-4 |
02 |
1 |
0804-0804 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94382-884-4 |
02 |
1 |
0804-0804 |
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
|
8-94382-884-4 |
02 |
1 |
0805-1301 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
|
8-94382-884-4 |
02 |
1 |
0805-1301 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94382-884-4 |
02 |
1 |
0805-1301 |
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
|
8-94382-884-4 |
02 |
1 |
1302- |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-94382-884-4 |
02 |
1 |
1302- |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-94382-884-4 |
02 |
1 |
1302- |
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
|
5-42315-041-4 |
02 |
1 |
0804- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD)
|
8-97034-770-3 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-3 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97034-770-3 |
02 |
1 |
0804-0804 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-3 |
02 |
1 |
0804-0804 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97034-770-3 |
02 |
1 |
0805-1310 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-3 |
02 |
1 |
0805-1310 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.0-5.5TON(RPT)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-770-3 |
02 |
1 |
0805-1310 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-98248-900-0 |
02 |
1 |
1311- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-98248-900-0 |
02 |
1 |
1311- |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.0-5.5TON(RPT)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98248-900-0 |
02 |
1 |
1311- |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
|
8-97184-245-2 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
|
8-97184-245-2 |
02 |
1 |
0804- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
|
8-97366-736-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
|
8-97366-736-0 |
02 |
1 |
0804-0901 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
|
8-97366-736-0 |
02 |
1 |
0902-1308 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FRT INDEPENDENT SUSPENSION(FF0)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
|
8-97366-736-0 |
02 |
1 |
0902-1308 |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
|
8-98248-899-0 |
02 |
1 |
1309- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FRT INDEPENDENT SUSPENSION(FF0)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
|
8-98248-899-0 |
02 |
1 |
1309- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
|
8-97036-367-1 |
02 |
1 |
0803-1301 |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
|
8-97036-367-1 |
02 |
1 |
1302- |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-97036-367-1 |
02 |
1 |
1302- |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-97036-367-1 |
02 |
1 |
1302- |
|
|
|
● |
| |
2 |
05.812 BOLT; BRK DRUM
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
04.012
M6X18
|
0-20800-618-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
05.812 BOLT; BRK DRUM
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
04.012
M6X18
|
0-20800-618-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
2 |
05.812 BOLT; BRK DRUM
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
04.012
M6X18
|
0-20800-618-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
2 |
05.812 BOLT; BRK DRUM
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. FRT INDEPENDENT SUSPENSION(FF0)
04.012
M6X18
|
0-20800-618-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
2 |
05.812 BOLT; BRK DRUM
04.012
M6X18
|
0-20800-618-0 |
02 |
1 |
0804- |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 3.5-4.0TON(RPQ)
|
8-97240-323-1 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 3.5-4.0TON(RPQ)
|
8-97240-323-1 |
02 |
1 |
0804- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
|
5-42311-009-3 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
|
5-42311-009-3 |
02 |
1 |
0804- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
|
5-42311-009-3 |
02 |
1 |
0804- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
5-42311-009-3 |
02 |
1 |
0804- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
|
5-42311-009-3 |
02 |
1 |
0804- |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
|
8-97032-606-3 |
02 |
1 |
0804- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.0-3.5TON(RPP)
BRK WHL LK CONT LSPV<6PH>
EXC. SINGLE RR TIRE(6TD)
|
8-97026-139-3 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
|
8-97026-139-3 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.0-3.5TON(RPP)
BRK WHL LK CONT LSPV<6PH>
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97026-139-3 |
02 |
1 |
0804-1301 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0804-1301 |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
|
8-97026-139-3 |
02 |
1 |
0804-1301 |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97026-139-3 |
02 |
1 |
0804-1301 |
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.0-3.5TON(RPP)
BRK WHL LK CONT LSPV<6PH>
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97026-139-3 |
02 |
1 |
1302- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-97026-139-3 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-97026-139-3 |
02 |
1 |
1302- |
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
|
8-97034-406-4 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-97034-406-4 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.0-3.5TON(RPP)
EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE
RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
|
8-97034-406-4 |
02 |
1 |
0804- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
|
8-97034-406-4 |
02 |
1 |
0804- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-97034-406-4 |
02 |
1 |
0804- |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0804-0901 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0902- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
FRT INDEPENDENT SUSPENSION(FF0)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
|
8-94335-927-4 |
02 |
1 |
0902- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
|
8-97173-549-0 |
02 |
1 |
0803-1301 |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
|
8-97173-549-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-97173-549-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
|
8-97173-549-0 |
02 |
1 |
1302- |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
(B)
M16X26 LH THREAD,M16X37 RH THREAD
|
8-98000-406-1 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
(B)
M16X26,M16X37 RH THREAD
|
8-98000-404-1 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(A)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
0803-0803 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
(A)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(A)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
(A)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(A)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
0804- |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(A)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
0803-0803 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
(A)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(A)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
(A)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
0804- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(A)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
0804- |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0803-0803 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0803-0803 |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0804-1301 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0804-1301 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0804-1301 |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0804-1301 |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1302- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1302- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.0-5.5TON(RPT)
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1302- |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0803-0803 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0803-0803 |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0804-1301 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0804-1301 |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0804-1301 |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0804-1301 |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.0-3.5TON(RPP)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1302- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
EXC. SINGLE RR TIRE(6TD)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1302- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.0-5.5TON(RPT)
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1302- |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
(B)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
05 |
1 |
0803-1301 |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
(B)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
05 |
1 |
1302- |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
(B)
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
05 |
1 |
0803-1301 |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
(B)
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
05 |
1 |
1302- |
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3>
(B)
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
05 |
1 |
1302- |
|
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
0804-1207 |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-911-0 |
02 |
1 |
1208- |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
0804-1106 |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
0804-1303 |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-98236-850-0 |
02 |
1 |
1304- |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-1 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0803-0803 |
● |
|
● |
|
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0804-1508 |
● |
● |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.162
M6X12 FLANGE
|
0-28050-612-0 |
04 |
1 |
1509- |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
|
8-94341-978-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
REAR WIDE TREAD(V4T)
EXC. SINGLE RR TIRE(6TD)
|
8-97032-496-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
|
8-97032-496-0 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D)
|
8-97032-496-0 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 3.0-3.5TON(RPP)
REAR WIDE TREAD(V4T)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97032-496-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
REAR WIDE TREAD(V4T)
EXC. SINGLE RR TIRE(6TD)
|
8-97032-496-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
|
8-97032-496-0 |
02 |
1 |
0804- |
|
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D)
|
8-97032-496-0 |
02 |
1 |
0804- |
|
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97032-496-0 |
02 |
1 |
0804- |
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
SINGLE RR TIRE(6TD)
|
8-94366-192-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
|
8-94366-192-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
|
8-94366-192-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
|
8-94366-192-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
0804- |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. SINGLE RR TIRE(6TD)
|
8-97032-495-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 5.5-6.0TON(RPU)
DUMP CHASSIS(V4D)
|
8-97032-495-0 |
02 |
1 |
0803-0803 |
|
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 3.0-3.5TON(RPP)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97032-495-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. SINGLE RR TIRE(6TD)
|
8-97032-495-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 5.5-6.0TON(RPU)
DUMP CHASSIS(V4D)
|
8-97032-495-0 |
02 |
1 |
0804- |
|
|
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
SINGLE RR TIRE(6TD)
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
0804- |
|
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
EXC. SINGLE RR TIRE(6TD)
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0803-0803 |
● |
|
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0803-0803 |
|
|
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0804- |
● |
|
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0804- |
|
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
SINGLE RR TIRE(6TD)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0804- |
|
● |
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
EXC. SINGLE RR TIRE(6TD)
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0803-0803 |
● |
|
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0803-0803 |
|
|
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0804- |
● |
|
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0804- |
|
|
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
SINGLE RR TIRE(6TD)
ID=10.5
|
8-97360-004-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
ID=10.5
|
8-97360-004-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
12 |
1 |
0804- |
|
● |
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. SINGLE RR TIRE(6TD)
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0803-0803 |
● |
|
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0803-0803 |
|
|
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0804- |
● |
|
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0804- |
|
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 3.5-4.0TON(RPQ)
|
8-97240-329-3 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 3.5-4.0TON(RPQ)
|
8-97240-329-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 4.0-4.5TON(RPR)
REAR WIDE TREAD(V4T)
EXC. SINGLE RR TIRE(6TD)
|
8-97251-368-2 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-97251-368-2 |
01 |
1 |
0803-0803 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
REAR WIDE TREAD(V4T)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97251-368-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
|
8-97251-368-3 |
01 |
1 |
0804- |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 4.0-4.5TON(RPR)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. SINGLE RR TIRE(6TD)
|
8-97251-367-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
|
8-97251-367-2 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
DUMP CHASSIS(V4D)
|
8-97258-241-1 |
01 |
1 |
0803- |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
|
8-97205-145-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
|
8-97205-144-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
|
8-97205-144-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ)
REAR WIDE TREAD(V4T)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
SINGLE RR TIRE(6TD)
|
8-97032-861-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97032-861-4 |
01 |
1 |
0803-0803 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 5.5-6.0TON(RPU),G.V.W.
6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-97032-861-4 |
01 |
1 |
0803-0803 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ)
REAR WIDE TREAD(V4T)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
|
8-97032-861-5 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 5.0-5.5TON(RPT)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97032-861-5 |
01 |
1 |
0804- |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 5.5-6.0TON(RPU),G.V.W.
6.0-6.5TON(RPV)
EXC. DUMP CHASSIS(V4D)
|
8-97032-861-5 |
01 |
1 |
0804- |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97032-861-5 |
01 |
1 |
0804- |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98061-921-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98061-921-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-98061-921-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
SINGLE RR TIRE(6TD)
|
8-97042-906-3 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
|
8-97042-906-4 |
01 |
1 |
0804- |
● |
|
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0804- |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0804- |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0804- |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0804- |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0804- |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
M10X100
|
0-10956-000-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0804-0909 |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
0910- |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
M10X40 W/LK WASHER
|
0-50061-040-0 |
08 |
1 |
0804-0909 |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
M10X40 W/LK WASHER
|
0-50061-040-0 |
08 |
1 |
0804-0909 |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
08 |
1 |
0910- |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
08 |
1 |
0910- |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0803-0803 |
● |
|
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. SMALL DOUBLE RR TIRE(6YE)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0804-0909 |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0804-0909 |
|
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. SMALL DOUBLE RR TIRE(6YE)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
0910-1509 |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
0910-1509 |
|
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1510- |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1510- |
|
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0803-0803 |
● |
|
● |
|
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
M12X32
|
8-97359-819-0 |
08 |
1 |
0804- |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
SINGLE RR TIRE(6TD)
|
8-98007-877-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
|
8-98007-877-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
|
8-98007-877-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
|
8-98007-877-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
|
8-98007-877-0 |
12 |
1 |
0804- |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
EXC. SINGLE RR TIRE(6TD)
M12X32
|
8-97359-819-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
0803-0803 |
|
|
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
M12X32
|
8-97359-819-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
0804- |
|
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
07.347
ID=12.2
|
0-91510-812-0 |
08 |
1 |
0804- |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
SINGLE RR TIRE(6TD)
02.277
ID=10.2
|
0-91510-810-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
02.277
ID=10.2
|
0-91510-810-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
02.277
ID=10.2
|
0-91510-810-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
02.277
ID=10.2
|
0-91510-810-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
02.277
ID=10.2
|
0-91510-810-0 |
12 |
1 |
0804- |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
EXC. SINGLE RR TIRE(6TD)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0803-0803 |
|
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0804- |
|
|
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
M12
|
0-91110-512-0 |
08 |
1 |
0804- |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
SINGLE RR TIRE(6TD)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0804- |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
EXC. SINGLE RR TIRE(6TD)
M12
|
0-91110-512-0 |
12 |
1 |
0803-0803 |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
M12
|
0-91110-512-0 |
12 |
1 |
0803-0803 |
|
|
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
M12
|
0-91110-512-0 |
12 |
1 |
0804- |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
M12
|
0-91110-512-0 |
12 |
1 |
0804- |
|
|
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
FINAL GEAR RATIO 43/11(GNA)
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
(D)
|
8-97205-277-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.0-3.5TON(RPP)
SINGLE RR TIRE(6TD)
(B)
|
8-94368-449-2 |
01 |
1 |
0804- |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE STANDARD 244MM(R39)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR)
(B)
|
8-94368-449-2 |
01 |
1 |
0804- |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(A)
|
8-98030-956-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(A)
|
8-98030-956-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
(A)
|
8-98030-956-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
SINGLE RR TIRE(6TD)
(C)
|
8-98030-957-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(C)
|
8-98030-957-0 |
01 |
1 |
0803-0803 |
|
|
● |
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(C)
|
8-98030-957-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(C)
|
8-98030-957-0 |
01 |
1 |
0804- |
|
|
● |
|
| |
154 |
04.665 SCREW; SLOTTED
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
05.812
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
154 |
04.665 SCREW; SLOTTED
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
05.812
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
0804-0901 |
● |
|
|
|
| |
154 |
04.665 SCREW; SLOTTED
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
05.812
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
0902-1402 |
● |
|
|
|
| |
154 |
04.665 SCREW; SLOTTED
REAR AXLE HEAVY DUTY 292MM(G73)
FRT INDEPENDENT SUSPENSION(FF0)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
05.812
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
0902-1402 |
● |
|
|
|
| |
154 |
04.665 SCREW; SLOTTED
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
05.812
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
1409- |
● |
|
|
|
| |
154 |
04.665 SCREW; SLOTTED
REAR AXLE HEAVY DUTY 292MM(G73)
FRT INDEPENDENT SUSPENSION(FF0)
G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
05.812
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
1409- |
● |
|
|
|
