◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#53063) — 198 parça

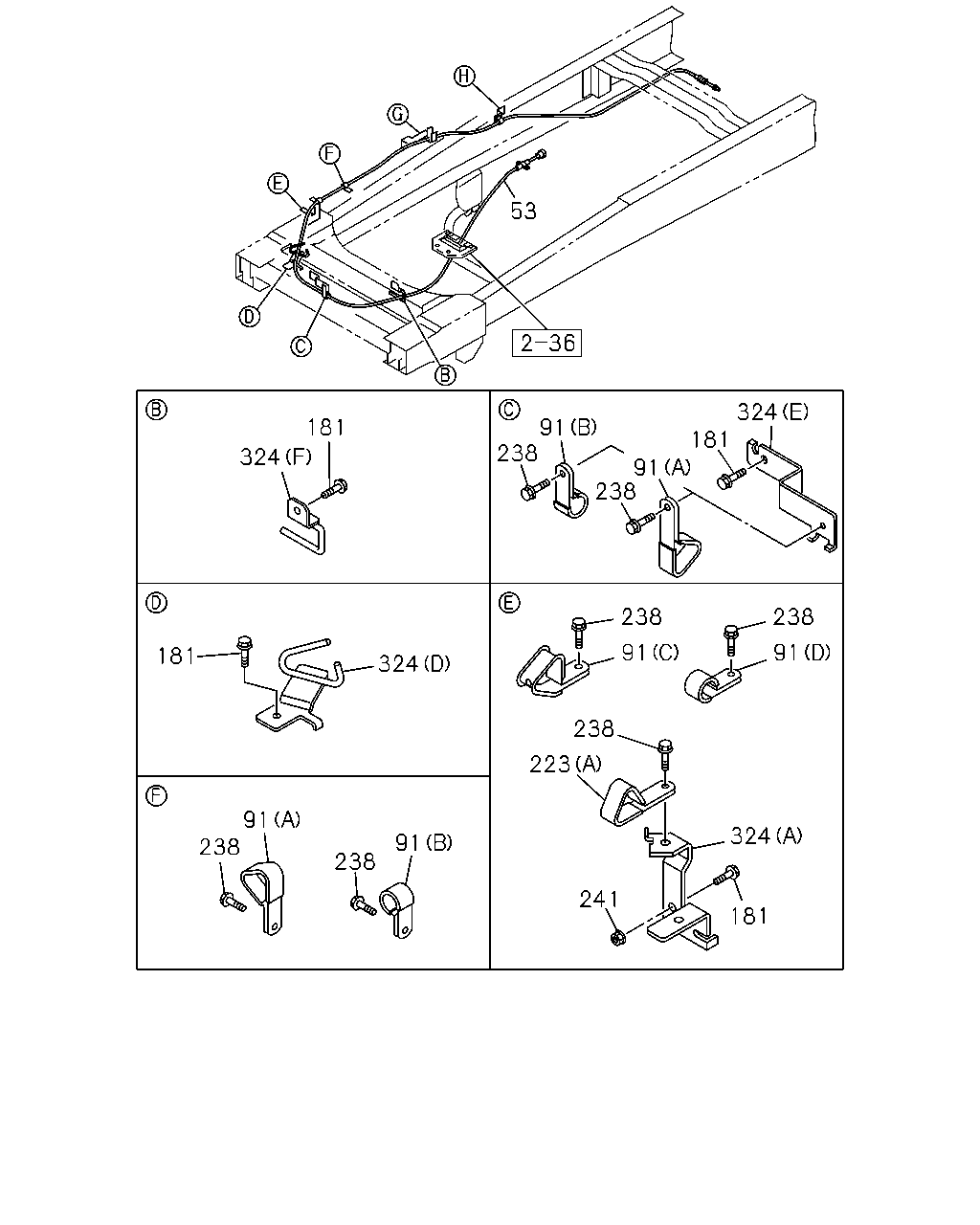

çizim 154016
53 324 181 91 238 181 324 91 238 238 238 91 91 181 324 238 223 91 238 324 91 238 241 181
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-112-4 01 1 1007- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0804-0804 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0804-0804 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0805-0809 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0810-1005 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0810-1005 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 1006-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 1006-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-094-2 01 1 0803- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98051-572-4 01 1 0803-0803 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98051-572-4 01 1 0804- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 0804- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-113-2 01 1 0803- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (D) ID=16 L=28 		0-95235-556-0 01 1 0803- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (C) 		8-97036-332-1 01 1 0804-0804 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (C) 		8-97036-332-1 01 1 0805-0809 ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (C) 		8-97036-332-1 01 1 0810- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (B) ID=13 L=28 		0-95235-255-0 02 1 0803-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (B) ID=13 L=28 		0-95235-255-0 02 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 02 1 0803-0803 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 02 1 0804-0804 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (A) 		8-97036-333-1 02 1 0804-0804 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 02 1 0805-0809 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (A) 		8-97036-333-1 02 1 0805-0809 ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 02 1 0810- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (A) 		8-97036-333-1 02 1 0810- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (B) ID=13 L=20 		1-09701-138-1 01 1 0803- ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-0803 ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0804- ● ●
223 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0804- ● ●
238 04.785 BOLT; CLIP TO BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0804-0804 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0805-0809 ●
238 04.785 BOLT; CLIP TO BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0810- ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0803-0803 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0804- ● ● ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ● ●
241 04.785 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ● ●
241 04.785 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> (H) 		8-98064-280-1 01 1 1312- ● ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 0803- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (F) 		8-98116-060-0 01 1 0804-0804 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (F) 		8-98116-060-0 01 1 0805-0809 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (F) 		8-98116-060-0 01 1 0810-0906 ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 0907- ● ● ● ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 0803-0803 ● ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 0804- ● ● ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 0803-0803 ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 0804- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F) 		8-98047-576-1 01 1 0803-0803 ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F) 		8-98047-576-1 01 1 0804-0906 ● ● ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 0804-0804 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (H) 		8-98106-757-1 01 1 0805-0809 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 0810-1212 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (H) 		8-98106-757-1 01 1 1301-1311 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 0803-0803 ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 0804- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-98038-563-0 01 1 0803- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> (G) 		8-98038-563-0 01 1 0803- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 0803-0803 ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 0803-0803 ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 0804- ● ● ● ●

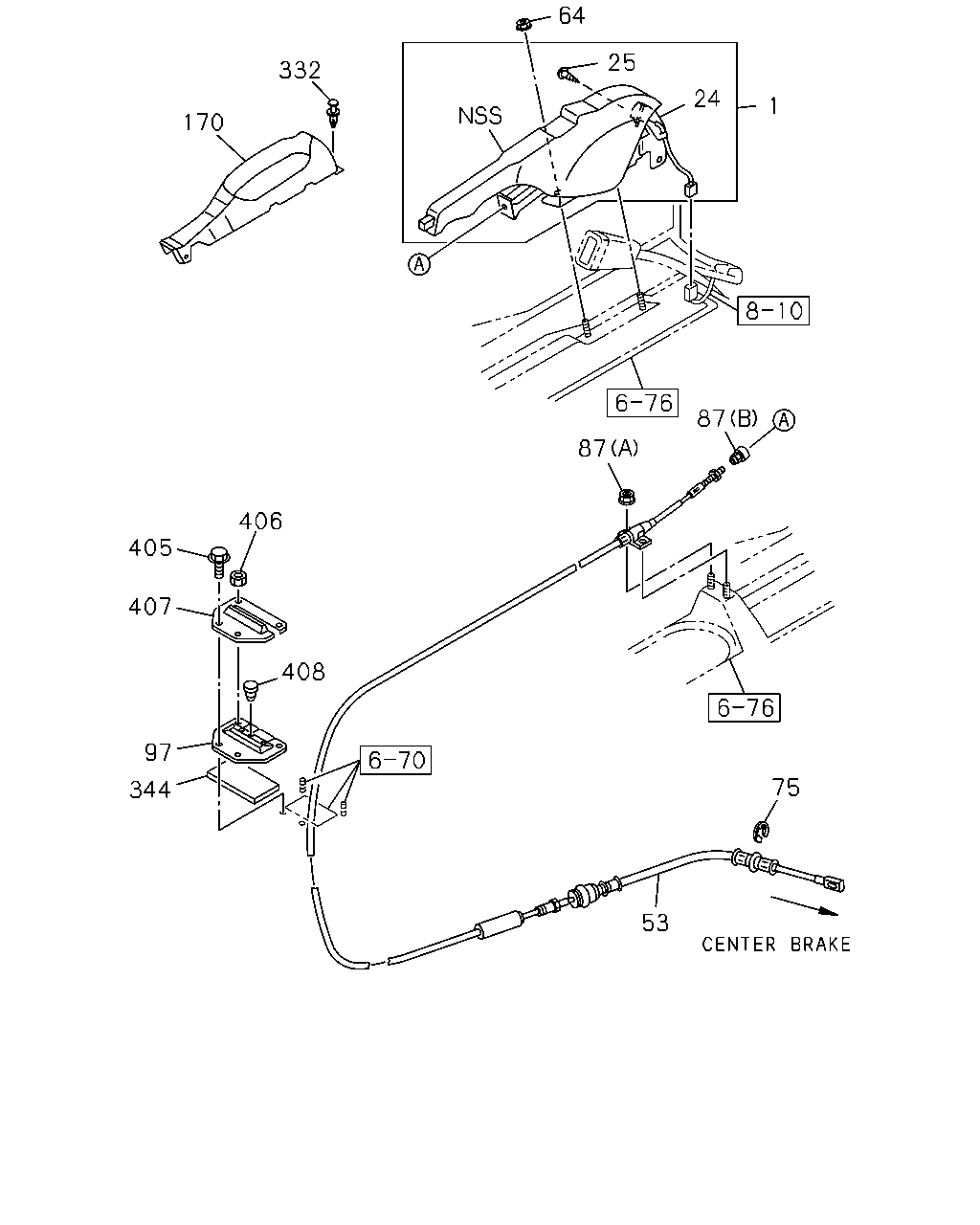

çizim 154018
64 25 332 24 1 170 87 87 406 405 407 408 97 344 53 75
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0803-0803 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0804-1303 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0803-0803 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0804-1303 ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0803-0803 ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0804- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-112-4 01 1 1007- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0804-0804 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0804-0804 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0805-0809 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0810-1005 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 0810-1005 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 1006-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-096-6 01 1 1006-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-094-2 01 1 0803- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98051-572-4 01 1 0803-0803 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98051-572-4 01 1 0804- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 0804- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-113-2 01 1 0803- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0803-0803 ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0804- ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0803-0803 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0804- ● ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0803-0803 ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0804- ● ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 0803-0803 ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 0804- ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97411-674-1 01 1 0803-0803 ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97411-674-1 01 1 0804- ● ● ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 0803-0803 ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 0804- ● ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0803- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0803-0803 ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0804- ● ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803-0803 ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0803-0803 ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0804- ● ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 0803- ● ●

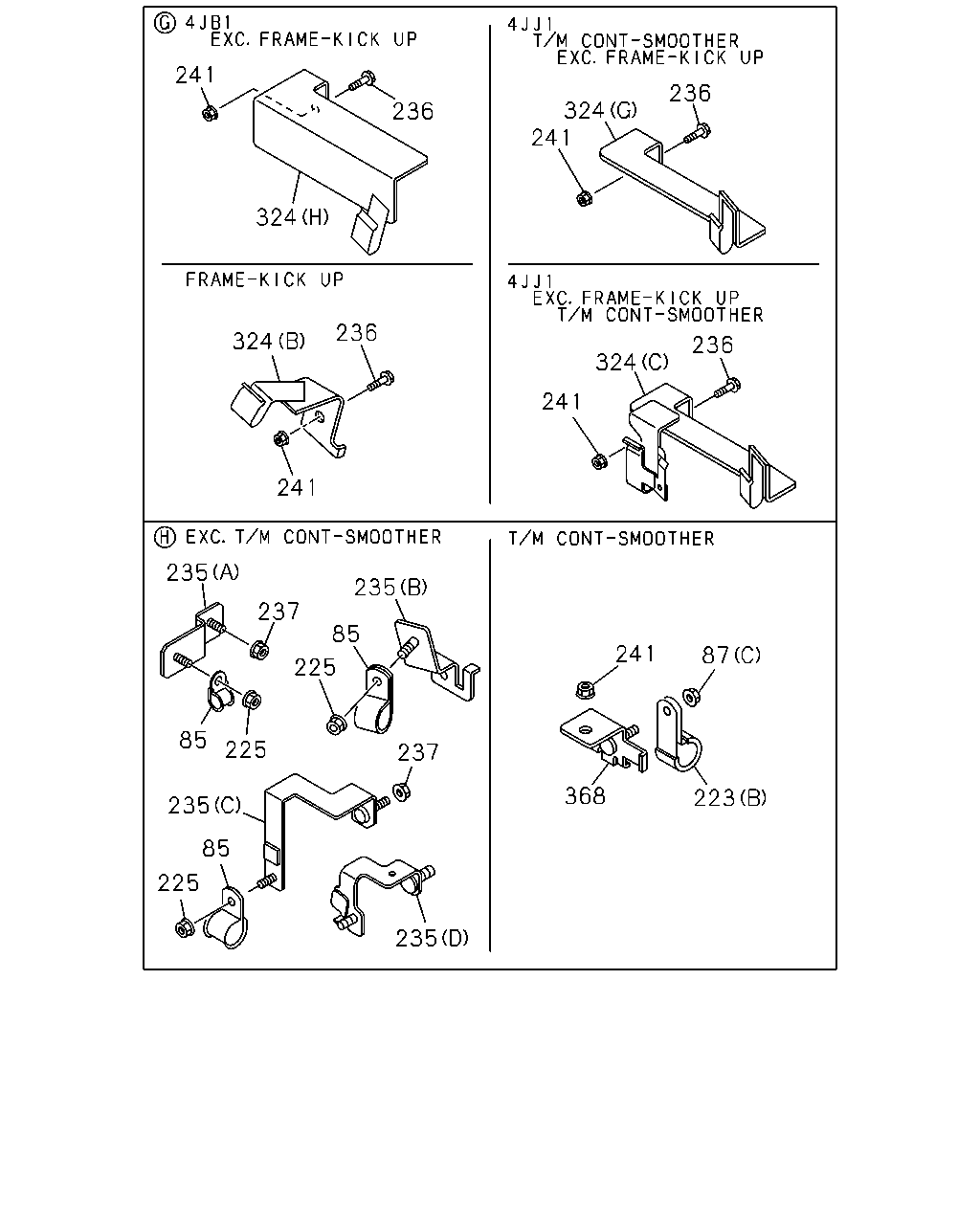

çizim 154086
241 236 324 324 236 241 324 236 241 324 236 241 241 87 223 368 235 237 235 85 225 237 225 85 235 235 85 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20 		1-09701-012-0 01 1 0803-0803 ● ●
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20 		1-09701-012-0 01 1 0804- ● ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 0804- ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0803-0803 ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0804- ● ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (B) ID=13 L=20 		1-09701-138-1 01 1 0803- ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-0803 ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0804- ● ●
223 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0804- ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> (D) 		8-98255-956-0 01 1 1312- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> (B) 		8-98013-968-0 01 1 0803- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98106-619-1 01 1 0804-0804 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5S(R45) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98106-619-1 01 1 0805-0809 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98106-619-1 01 1 0810-1212 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT) (C) 		8-98106-619-1 01 1 1301-1311 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT) EXC. HEAVY DUTY FRAME<6WB> (C) 		8-98106-619-1 01 1 1312- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98034-352-0 01 1 0803-0803 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98034-352-0 01 1 0804- ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
236 04.785 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ●
236 04.785 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804-0804 ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0805-0809 ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0810- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ● ●
241 04.785 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ● ●
241 04.785 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> (H) 		8-98064-280-1 01 1 1312- ● ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 0803- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (F) 		8-98116-060-0 01 1 0804-0804 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (F) 		8-98116-060-0 01 1 0805-0809 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (F) 		8-98116-060-0 01 1 0810-0906 ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 0907- ● ● ● ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 0803-0803 ● ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 0804- ● ● ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 0803-0803 ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 0804- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F) 		8-98047-576-1 01 1 0803-0803 ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F) 		8-98047-576-1 01 1 0804-0906 ● ● ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 0804-0804 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (H) 		8-98106-757-1 01 1 0805-0809 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 0810-1212 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (H) 		8-98106-757-1 01 1 1301-1311 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 0803-0803 ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 0804- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-98038-563-0 01 1 0803- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> (G) 		8-98038-563-0 01 1 0803- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 0803-0803 ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 0803-0803 ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 0804- ● ● ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
