◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#53059) — 48 parça

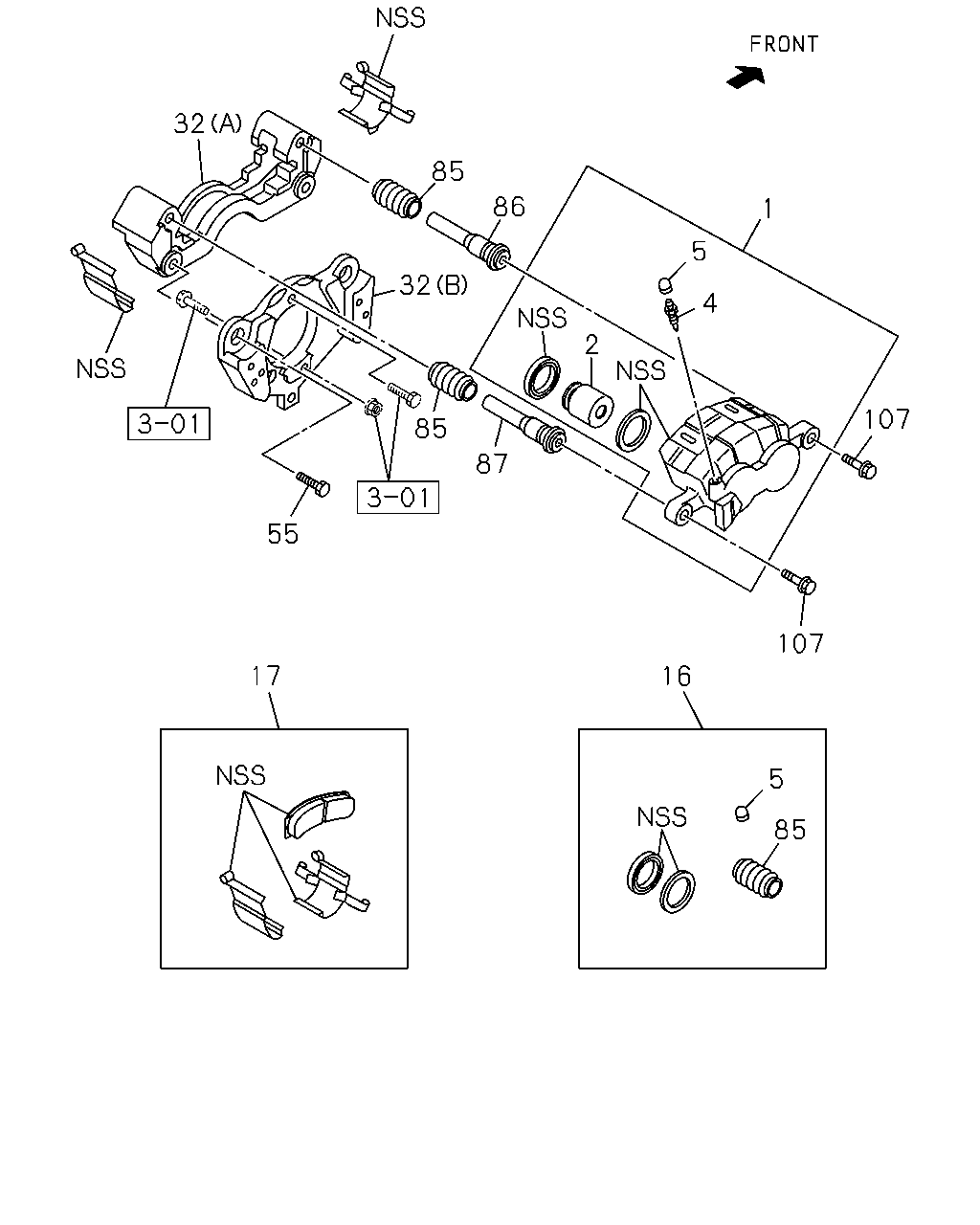

çizim 154030
32 85 86 1 5 32 4 2 107 85 87 55 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-533-0 01 1 0803-1412 ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-459-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-534-0 01 1 0803-1412 ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-460-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-908-0 01 1 0803-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98247-731-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-462-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-907-0 01 1 0803-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98247-730-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-461-0 01 1 1501- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-256-0 04 1 0803- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-269-0 04 1 0803- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-476-0 02 1 1311-1412 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1501- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0803-1310 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47615-027-0 02 1 1311-1412 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-479-0 02 1 1311-1412 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1501- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0803-1310 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47619-009-0 02 1 1311-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-383-0 01 1 0803-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98302-529-0 01 1 1501- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) W/GREASE 		8-98120-357-0 01 1 0803-1310 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) W/GREASE 		8-98248-904-0 01 1 1311-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) W/GREASE 		8-98302-531-0 01 1 1501- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98091-271-0 01 1 0803-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-921-0 01 1 1301- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97329-266-0 01 1 0803-1212 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-922-0 01 1 1301- ● ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97365-258-0 02 1 0803- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-726-0 01 1 0804- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-727-0 01 1 0804- ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97365-271-0 02 1 0803- ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-729-0 01 1 0803-0803 ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-729-0 01 1 0804- ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-728-0 01 1 0803-0803 ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-728-0 01 1 0804- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE 		8-98033-656-0 04 1 0803- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 M10X12 FLANGE 		0-28051-012-0 02 1 0803- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) M16X31 FLANGE 		8-97359-816-0 04 1 0803- ● ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-97365-265-0 04 1 0803-0901 ● ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 0902- ● ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-530-0 02 1 0803- ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-529-0 02 1 0803- ● ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-532-0 02 1 0803- ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-531-0 02 1 0803-1310 ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98248-005-0 02 1 1311- ● ●
107 04.665 BOLT; PIN
DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 0803- ● ●
