Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#53050) — 434 parça

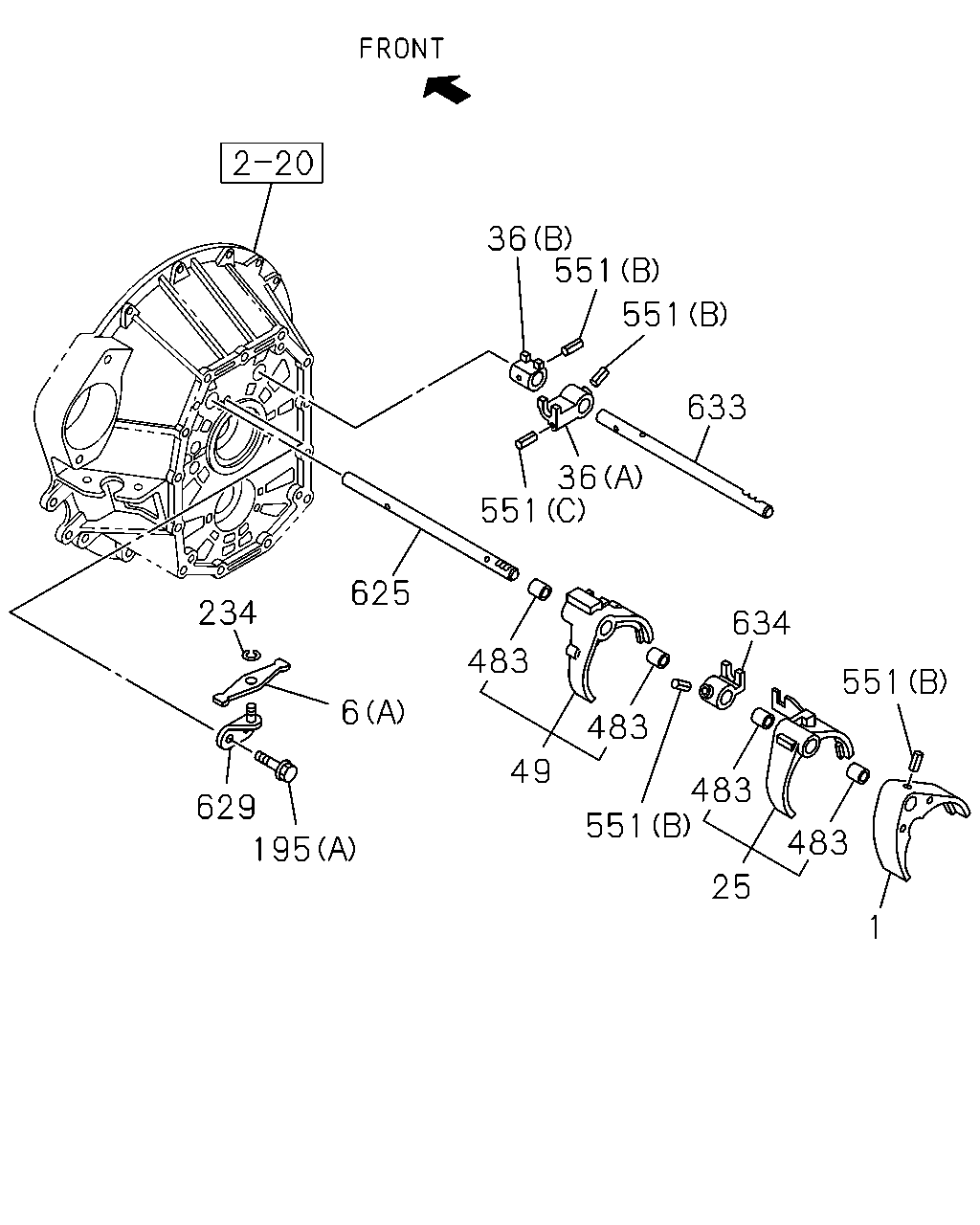

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.302 ARM; SHIFT,1ST & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-320-2	01	1	0803-	●	●
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	0803-	●
6	04.302 LEVER; RELAY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0803-	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97362-731-2	01	1	0803-1407	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98255-926-1	01	1	1408-	●	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (A)	8-97241-329-1	01	1	0803-	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (B)	8-97241-330-0	01	1	0803-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	0803-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-732-1	01	1	0803-		●
195	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0803-	●	●
195	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	0803-	●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	0803-		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0803-	●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0803-	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.302 (B) L=32	8-97011-596-2	04	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) L=20	8-97241-340-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0803-		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97362-741-0	01	1	0803-	●	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	0803-	●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0803-		●
633	04.309 ROD; GEAR SHIFT,4TH,5TH TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-518-0	01	1	1202-	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH	8-97362-743-0	01	1	0803-1201	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97362-743-0	01	1	1202-	●
634	04.303 BLOCK; SHIFT,LOW,REV	8-97241-327-1	01	1	0803-	●

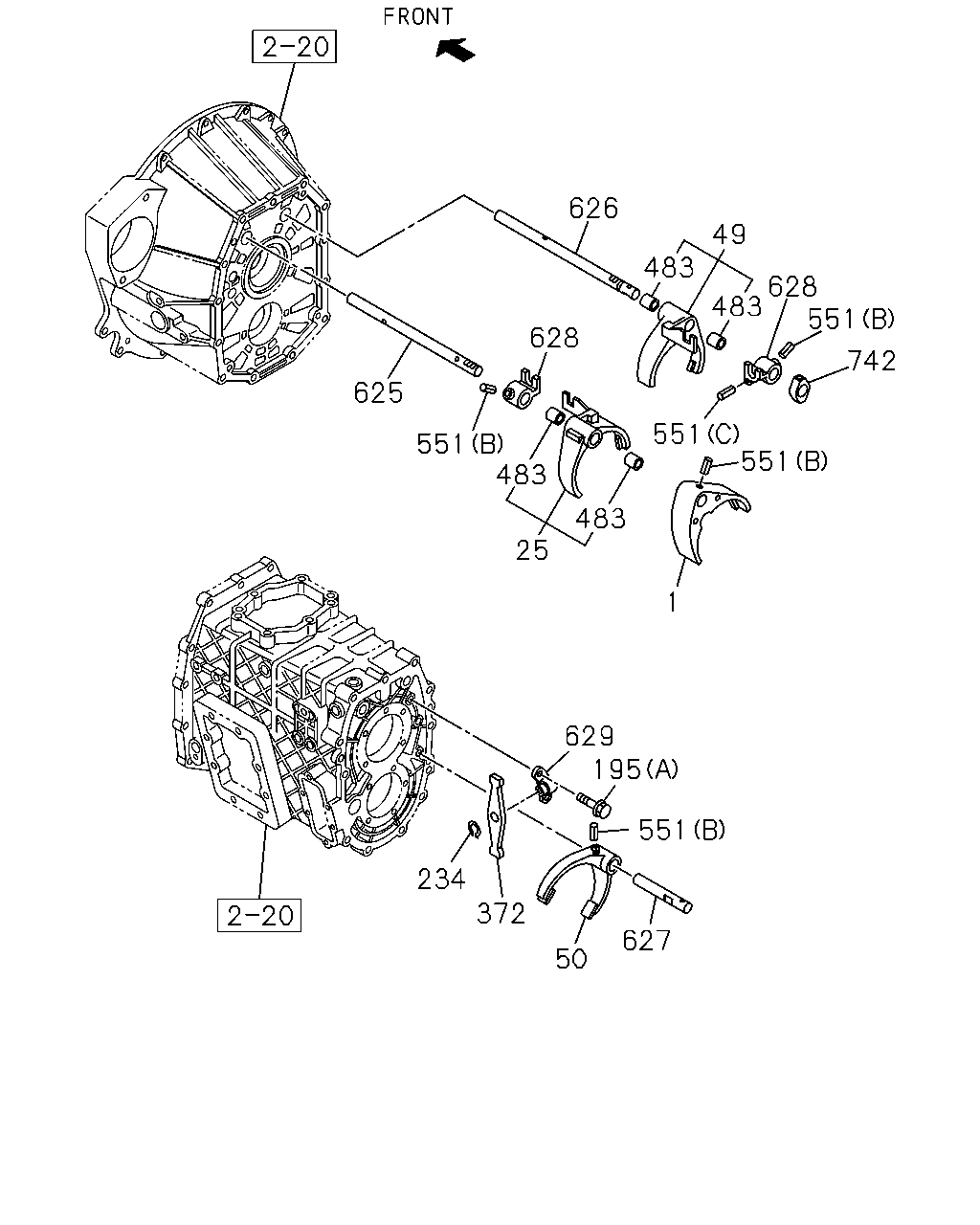

626 483 49 483 628 742 551 551 628 551 625 483 25 1 483 551 629 195 551 234 372 50 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.302 ARM; SHIFT,1ST & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-320-2	01	1	0803-	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97362-731-2	01	1	0803-1407	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98255-926-1	01	1	1408-	●	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	0803-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-732-1	01	1	0803-		●
50	04.302 ARM; SHIFT,6TH	8-97241-325-1	01	1	0803-		●
195	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0803-	●	●
195	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	0803-	●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	0803-		●
372	04.302 LEVER; RELAY,6TH	8-97241-343-0	01	1	0803-		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0803-	●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0803-	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.302 (B) L=32	8-97011-596-2	04	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) L=20	8-97241-340-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0803-		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97362-741-0	01	1	0803-	●	●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-689-0	01	1	1510-		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97366-024-1	01	1	0803-1509		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97366-024-1	01	1	1510-		●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-97241-339-0	01	1	0803-0805		●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-98119-293-0	01	1	0806-		●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	0803-		●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	0803-	●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0803-		●
742	04.162 COLLAR; ROD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-722-0	01	1	1510-		●

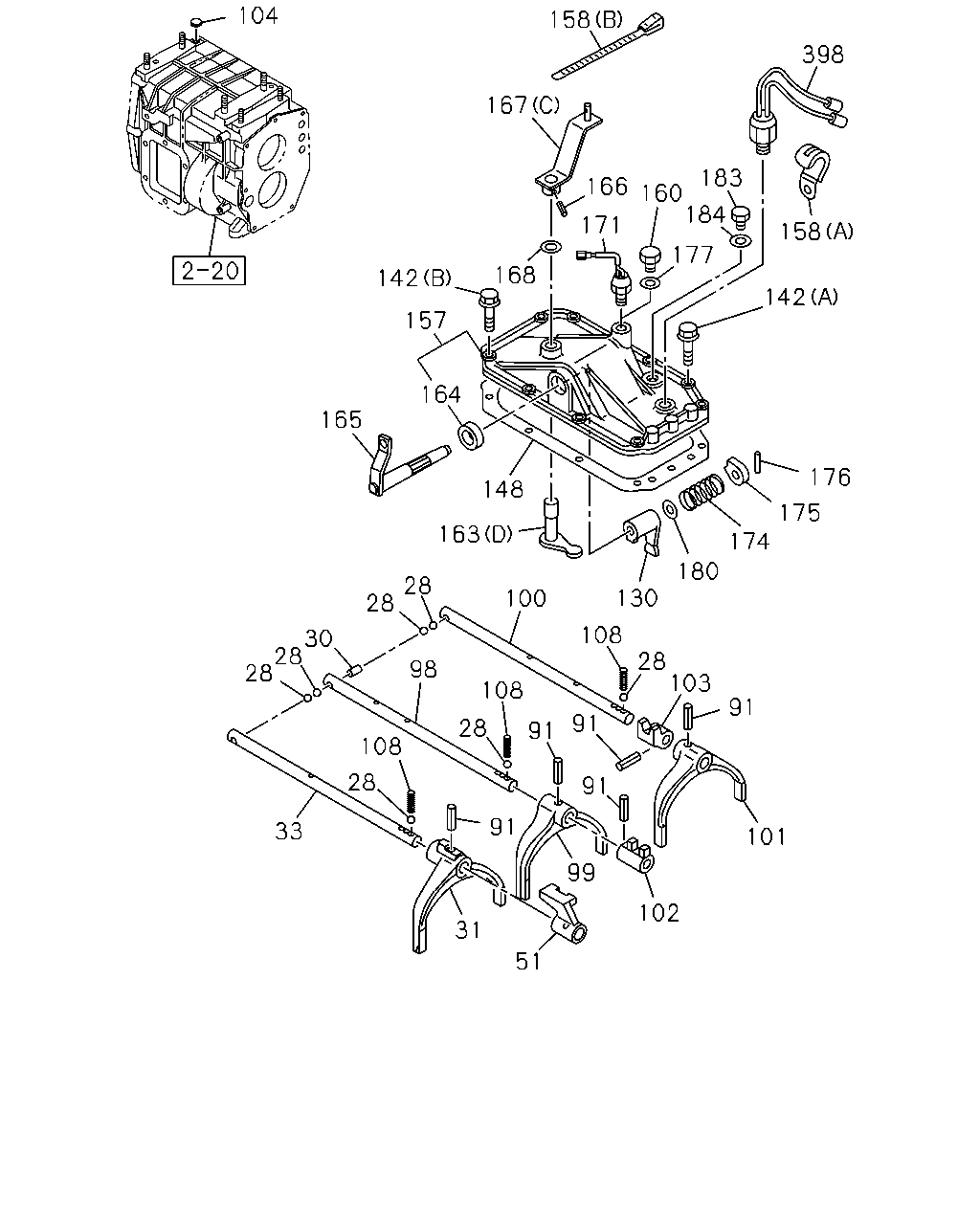

104 167 158 160 166 168 171 177 142 158 398 183 184 176 174 180 175 130 103 91 28 108 100 108 91 91 91 91 99 101 102 51 31 33 108 28 28 28 28 28 98 148 163 164 165 157 142 28 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0804-0804			●	●
28	04.311 BALL; INTER LK 4JB1-TC ENG(RDT)	9-00097-010-0	07	1	0805-0809			●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0810-			●	●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	0804-0804			●	●
30	04.307 PIN; INTER LK 4JB1-TC ENG(RDT) 04.311	5-33534-001-0	01	1	0805-0809			●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	0810-1210			●	●
30	04.307 PIN; INTER LK	8-98189-971-0	01	1	1211-			●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	0804-0804			●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JB1-TC ENG(RDT)	8-97011-365-1	01	1	0805-0809			●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	0810-1210			●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-98190-300-0	01	1	1211-			●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	0804-0804			●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JB1-TC ENG(RDT)	8-97011-370-1	01	1	0805-0809			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	0810-1210			●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98188-591-0	01	1	1211-			●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	0804-0804			●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JB1-TC ENG(RDT)	8-97022-837-2	01	1	0805-0809			●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	0810-1210			●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-98188-589-0	01	1	1211-			●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	0804-0804			●	●
91	04.302 PIN; SPR,SHIFT ARM 4JB1-TC ENG(RDT) 04.303 L=25 OD=5	8-94135-771-0	06	1	0805-0809			●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	0810-1210			●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	1-09748-032-0	06	1	1211-			●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	1-09748-032-0	06	1	1211-			●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	0804-0804			●	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JB1-TC ENG(RDT)	8-97011-371-1	01	1	0805-0809			●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	0810-1210			●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-98188-590-0	01	1	1211-			●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	0804-0804			●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JB1-TC ENG(RDT)	8-97011-366-1	01	1	0805-0809			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	0810-1210			●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-98190-301-0	01	1	1211-			●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	0804-0804			●	●
100	04.309 ROD; SHIFT,REV & 5TH 4JB1-TC ENG(RDT)	8-94316-923-0	01	1	0805-0809			●
100	04.309 ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	0810-1210			●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-98188-592-0	01	1	1211-			●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	0804-0804			●	●
101	04.302 ARM; SHIFT,REV & 5TH 4JB1-TC ENG(RDT)	8-97107-545-0	01	1	0805-0809			●
101	04.302 ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	0810-1210			●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-98190-303-0	01	1	1211-			●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	0804-0804			●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH 4JB1-TC ENG(RDT)	8-97017-573-1	01	1	0805-0809			●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	0810-1210			●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-98188-588-0	01	1	1211-			●	●
103	04.303 BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	0804-0804			●	●
103	04.303 BLOCK; SHIFT,REV TO OD 4JB1-TC ENG(RDT)	8-94135-719-4	01	1	0805-0809			●
103	04.303 BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	0810-1210			●	●
103	04.303 BLOCK; SHIFT,REV TO OD	8-98188-587-0	01	1	1211-			●	●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	0804-0804			●	●
104	04.311 PLUG; PLATE 4JB1-TC ENG(RDT) 04.105 OD=16	9-09201-316-0	01	1	0805-0809			●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	0810-1210			●	●
104	04.311 PLUG; PLATE OD=16	0-92001-416-0	01	1	1211-			●	●
108	04.311 SPRING; LOCK BALL OD=6.8 L=31.6	9-09740-114-0	03	1	0804-0804			●	●
108	04.311 SPRING; LOCK BALL 4JB1-TC ENG(RDT) OD=6.8 L=31.6	9-09740-114-0	03	1	0805-0809			●
108	04.311 SPRING; LOCK BALL OD=6.8 L=31.6	9-09740-114-0	03	1	0810-1210			●	●
108	04.311 SPRING; LOCK BALL OD=6.8 L=31.6	8-98188-917-0	03	1	1211-			●	●
130	04.302 LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	0803-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0804-0804			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JB1-TC ENG(RDT)	8-94105-141-2	01	1	0805-0809			●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0810-1210			●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-98190-340-0	01	1	1211-			●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 (C) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	0804-0804			●	●
142	04.012 BOLT; QUAD BOX 4JB1-TC ENG(RDT) 04.105 (A) M8X25	8-94128-786-0	08	1	0805-0809			●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	0810-1210			●	●
142	04.012 BOLT; QUAD BOX 03.275 (A) M8X25 FLANGE	0-28050-825-0	08	1	1211-			●	●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	0804-0804			●	●
142	04.012 BOLT; QUAD BOX 4JB1-TC ENG(RDT) 04.105 (B) M8X30	8-97029-705-0	02	1	0805-0809			●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	0810-1210			●	●
142	04.012 BOLT; QUAD BOX 00.206 (B) M8X30 FLANGE	0-28050-830-0	02	1	1211-			●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94257-162-0	01	1	0804-0804			●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) 04.012	8-94257-162-0	01	1	0805-0809			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94257-162-0	01	1	0810-1210			●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98189-273-0	01	1	1211-			●	●
157	04.105 BOX; QUAD,TRANS	8-94340-145-0	01	1	0804-0804			●	●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT)	8-94340-145-0	01	1	0805-0809			●
157	04.105 BOX; QUAD,TRANS	8-94340-145-0	01	1	0810-1210			●	●
157	04.105 BOX; QUAD,TRANS	8-98190-265-0	01	1	1211-			●	●
158	04.105 CLIP; HARNESS 4JB1-TC ENG(RDT) 03.162 (B) L=140	5-09707-031-1	01	1	0807-0808			●
158	04.105 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-0804			●	●
158	04.105 CLIP; HARNESS 4JB1-TC ENG(RDT) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0805-0809			●
158	04.105 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0810-			●	●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8> 08.971 M14X9	9-99202-314-0	01	1	0804-0804			●	●
160	04.105 PLUG; BLIND 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 08.971 M14X9	9-99202-314-0	01	1	0805-0805			●
160	04.105 PLUG; BLIND 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M14X9	8-98042-944-0	01	1	0806-0809			●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8> M14X9	8-98042-944-0	01	1	0810-			●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-663-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-94159-268-1	01	1	0804-0804			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JB1-TC ENG(RDT) (D)	8-94159-268-1	01	1	0805-0809			●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-94159-268-1	01	1	0810-1210			●	●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-98190-302-0	01	1	1211-			●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=27	8-97304-068-0	02	1	0804-0804			●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) OD=27	8-97304-068-0	02	1	0805-0809			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=27	8-97304-068-0	02	1	0810-			●	●
165	04.302 LEVER; SHIFT	8-97036-221-0	01	1	0804-0804			●	●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT)	8-97036-221-0	01	1	0805-0809			●
165	04.302 LEVER; SHIFT	8-97036-221-0	01	1	0810-1210			●	●
165	04.302 LEVER; SHIFT	8-98190-282-0	01	1	1211-			●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	0804-0804			●	●
166	04.302 PIN; SPR,SELECT LEVER 4JB1-TC ENG(RDT) 04.303 L=25 OD=5	8-94135-771-0	01	1	0805-0809			●

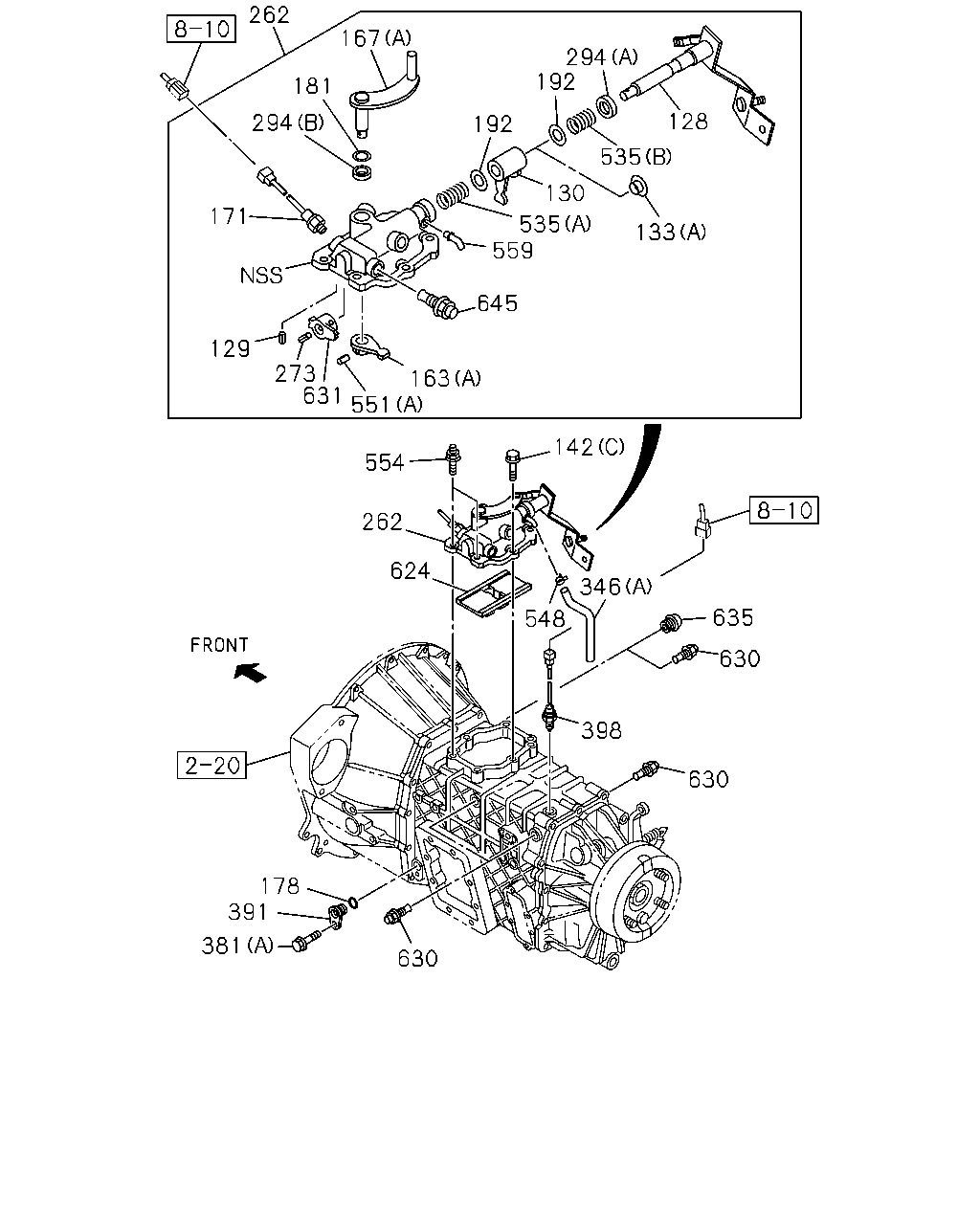

166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	0810-1210			●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	1-09748-032-0	01	1	1211-			●	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98039-436-0	01	1	0803-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-994-0	01	1	0803-	●	●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-97035-560-1	01	1	0804-0804			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JB1-TC ENG(RDT) (C)	8-97035-560-1	01	1	0805-0809			●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-97035-560-1	01	1	0810-1210			●	●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-98190-276-0	01	1	1211-			●	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0804-0804			●	●
168	04.302 WASHER; LK,SELECT LEVER 4JB1-TC ENG(RDT)	8-94249-250-1	01	1	0805-0809			●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0810-1210			●	●
168	04.302 WASHER; LK,SELECT LEVER	8-98190-433-0	01	1	1211-			●	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0803-1312	●	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0804-0804			●	●
171	04.054 SWITCH; NEUTRAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0805-0809			●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0810-1210			●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98190-415-0	01	1	1211-			●	●
174	04.307 SPRING; REV	8-97031-927-0	01	1	0804-0804			●	●
174	04.307 SPRING; REV 4JB1-TC ENG(RDT)	8-97031-927-0	01	1	0805-0809			●
174	04.307 SPRING; REV	8-97031-927-0	01	1	0810-1210			●	●
174	04.307 SPRING; REV	8-98190-419-0	01	1	1211-			●	●
175	04.302 RING; STOPPER,SHIFT LEVER	8-94249-048-2	01	1	0804-0804			●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1-TC ENG(RDT)	8-94249-048-2	01	1	0805-0809			●
175	04.302 RING; STOPPER,SHIFT LEVER	8-94249-048-2	01	1	0810-1210			●	●
175	04.302 RING; STOPPER,SHIFT LEVER	8-98190-338-0	01	1	1211-			●	●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	0804-0804			●	●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT) 04.555 L=30 OD=4	9-09678-549-0	02	1	0805-0809			●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	0810-1210			●	●
176	04.302 PIN; SPR,STOPPER 04.027 L=30 OD=4	1-09748-031-0	02	1	1211-			●	●
177	04.105 GASKET; CONT BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0804-0804			●	●
177	04.105 GASKET; CONT BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0805-0809			●
177	04.105 GASKET; CONT BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0810-			●	●
180	04.302 WASHER; REV STOP SPRING 04.307	8-94249-244-0	01	1	0804-0804			●	●
180	04.302 WASHER; REV STOP SPRING 4JB1-TC ENG(RDT) 04.307	8-94249-244-0	01	1	0805-0809			●
180	04.302 WASHER; REV STOP SPRING 04.307	8-94249-244-0	01	1	0810-1210			●	●
180	04.302 WASHER; REV STOP SPRING	8-98190-423-0	01	1	1211-			●	●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	0804-0804			●	●
183	04.105 PLUG; SCREW,OIL FILTER 4JB1-TC ENG(RDT) M18	8-94337-946-1	01	1	0805-0809			●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	0810-1210			●	●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-98190-432-0	01	1	1211-			●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0804-0804			●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) 04.422 ID=15.3	8-94336-511-0	01	1	0805-0809			●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0810-1210			●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1211-			●	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98186-003-0	01	1	1107-1311	●	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98256-418-0	01	1	1312-	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-050-0	01	1	0803-1106	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98023-050-0	01	1	1107-1312	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-173-1	01	1	1401-	●	●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	0804-0804			●	●
398	02.698 SWITCH; REV LAMP 4JB1-TC ENG(RDT)	8-98112-229-0	01	1	0805-0809			●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	0810-1210			●	●
398	02.698 SWITCH; REV LAMP	8-98190-417-0	01	1	1211-			●	●

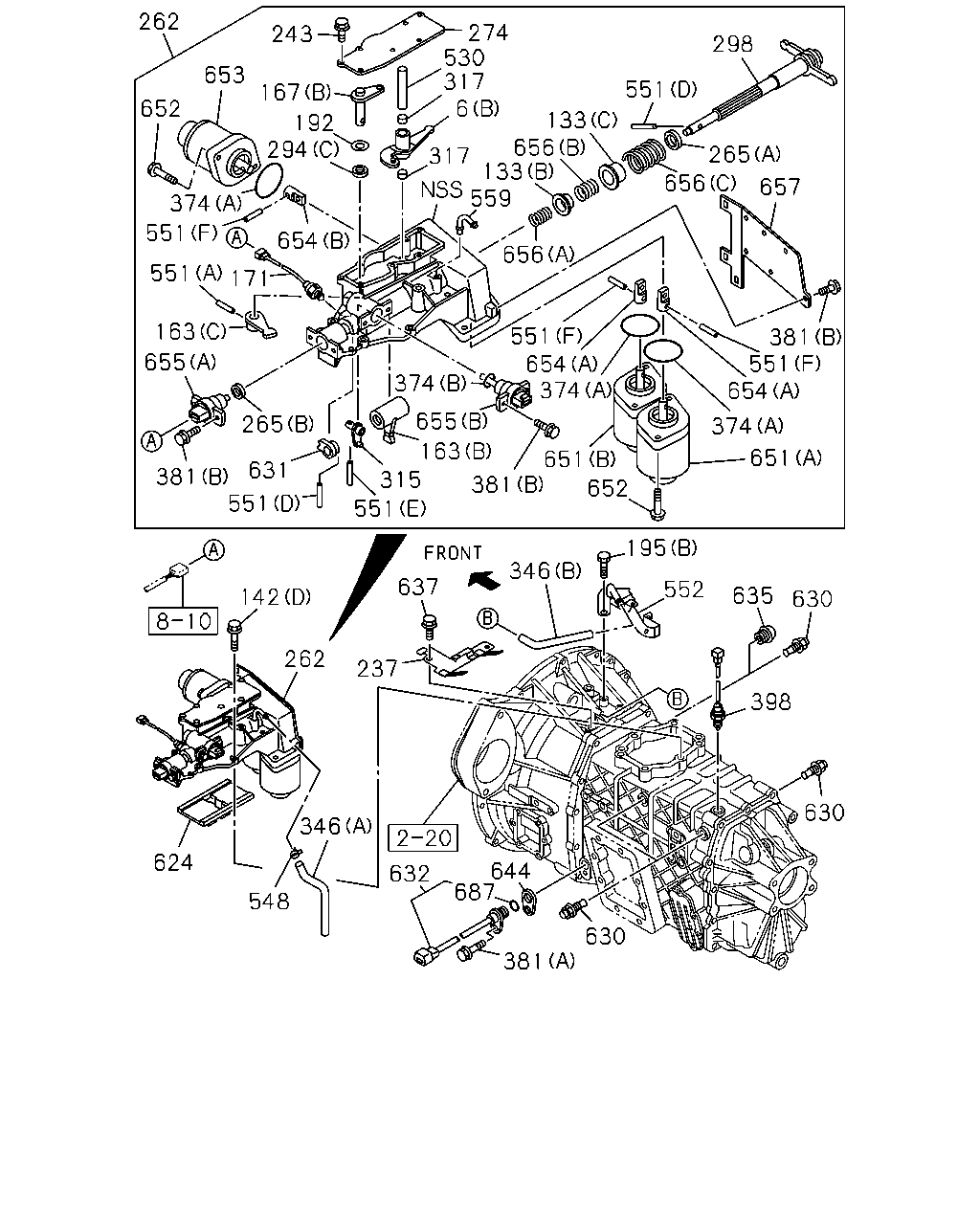

651 262 243 653 652 167 374 192 294 551 654 551 274 530 6 317 551 298 133 317 656 133 559 656 265 171 163 655 265 381 631 551 551 163 655 374 551 374 651 374 654 551 381 657 656 654 652 381 315 142 262 237 637 346 195 552 635 630 624 548 632 687 346 644 630 630 398 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	0803-	●
6	04.302 LEVER; RELAY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0803-	●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-667-0	01	1	0803-	●
133	04.027 SEAT; SPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0803-	●	●
133	04.027 SEAT; SPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 (C) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	0804-0804			●	●
142	04.012 BOLT; QUAD BOX 4JB1-TC ENG(RDT) 04.105 (A) M8X25	8-94128-786-0	08	1	0805-0809			●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	0810-1210			●	●
142	04.012 BOLT; QUAD BOX 03.275 (A) M8X25 FLANGE	0-28050-825-0	08	1	1211-			●	●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	0804-0804			●	●
142	04.012 BOLT; QUAD BOX 4JB1-TC ENG(RDT) 04.105 (B) M8X30	8-97029-705-0	02	1	0805-0809			●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	0810-1210			●	●
142	04.012 BOLT; QUAD BOX 00.206 (B) M8X30 FLANGE	0-28050-830-0	02	1	1211-			●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-663-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-94159-268-1	01	1	0804-0804			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JB1-TC ENG(RDT) (D)	8-94159-268-1	01	1	0805-0809			●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-94159-268-1	01	1	0810-1210			●	●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-98190-302-0	01	1	1211-			●	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98039-436-0	01	1	0803-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-994-0	01	1	0803-	●	●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-97035-560-1	01	1	0804-0804			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JB1-TC ENG(RDT) (C)	8-97035-560-1	01	1	0805-0809			●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-97035-560-1	01	1	0810-1210			●	●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-98190-276-0	01	1	1211-			●	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0803-1312	●	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0804-0804			●	●
171	04.054 SWITCH; NEUTRAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0805-0809			●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0810-1210			●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98190-415-0	01	1	1211-			●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-661-0	01	1	0803-	●
192	04.309 WASHER; PL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0803-	●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-661-0	02	1	0803-		●
195	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0803-	●	●
195	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
237	04.057 BRACKET; CABLE,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-905-1	01	1	0803-	●	●
243	04.105 BOLT; COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE	0-28050-612-0	11	1	0803-0906	●	●
243	04.105 BOLT; COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M6X12 FLANGE	1-33739-842-0	11	1	0907-	●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97362-753-2	01	1	0803-1312	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98241-002-2	01	1	1401-	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-5	01	1	0803-1010	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98109-435-1	01	1	1011-1312	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98241-121-1	01	1	1401-1411	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-529-0	01	1	1412-1509	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-685-0	01	1	1510-	●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-591-1	01	1	0803-1312		●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98240-993-2	01	1	1401-		●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0803-	●	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0803-	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	0803-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-662-0	01	1	0803-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97363-225-0	01	1	0803-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0803-	●	●
298	04.309 SHAFT; SHIFT LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0803-	●	●
315	04.302 LEVER; SELECT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0803-1411	●	●
315	04.302 LEVER; SELECT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-	●	●
317	04.302 BUSHING; LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0803-	●	●
346	04.545 HOSE; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97309-855-0	01	1	0803-	●	●
346	04.545 HOSE; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0803-	●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0803-	●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0803-	●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-		●
381	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0803-0906	●	●
381	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0803-		●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98186-003-0	01	1	1107-1311	●	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98256-418-0	01	1	1312-	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-050-0	01	1	0803-1106	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98023-050-0	01	1	1107-1312	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-173-1	01	1	1401-	●	●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	0804-0804			●	●
398	02.698 SWITCH; REV LAMP 4JB1-TC ENG(RDT)	8-98112-229-0	01	1	0805-0809			●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	0810-1210			●	●
398	02.698 SWITCH; REV LAMP	8-98190-417-0	01	1	1211-			●	●
530	04.302 SHAFT; SELECT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0803-	●	●
548	04.457 CLIP; HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.278	8-97031-674-0	01	1	0803-	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.302 (B) L=32	8-97011-596-2	04	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) L=20	8-97241-340-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0803-		●
552	04.105 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-914-1	01	1	0803-	●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510	8-97358-318-0	01	1	0803-	●	●
559	04.302 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0803-	●	●
624	04.105 PLATE; INTER LOCK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-317-3	01	1	0803-	●	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	0803-	●
630	04.307 DETENT ASM	8-98019-536-0	04	1	0803-		●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	0803-	●	●
631	04.105 STOPPER; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0803-	●	●
632	04.054 SENSOR; TRANS,REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	0803-	●	●
635	04.309 PLUG; DETENT 00.206	8-97380-892-0	01	1	0803-	●
637	04.105 BOLT; BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
644	04.302 SPACER; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-489-1	01	1	0803-		●
651	04.309 SOLENOID ASM; SHIFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98002-759-0	01	1	0803-	●	●
651	04.309 SOLENOID ASM; SHIFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98002-760-0	01	1	0803-	●	●
652	04.309 BOLT; SORENOID 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE	0-28151-025-0	06	1	0803-	●	●
653	04.309 SOLENOID ASM; SELECT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	0803-	●	●
654	04.309 JOINT; SOLENOID,CASE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0803-	●	●
654	04.309 JOINT; SOLENOID,CASE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0803-	●	●
655	04.309 SENSOR; STROKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0803-1010	●	●
655	04.309 SENSOR; STROKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1011-	●	●
655	04.309 SENSOR; STROKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0803-1010	●	●
655	04.309 SENSOR; STROKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1011-	●	●
656	04.307 SPRING; SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0803-	●	●
656	04.307 SPRING; SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0803-	●	●
656	04.307 SPRING; SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0803-	●	●
657	04.105 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	0803-	●	●
687	04.075 GASKET; SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	9-09567-113-0	01	1	0803-	●	●

128 535 133 535 559 645 163 551 631 273 129 171 294 181 167 262 192 192 294 130 142 346 635 630 630 398 548 624 262 554 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
128	04.030 LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-725-0	01	1	0803-	●
128	04.030 LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97363-226-0	01	1	0803-		●
129	04.027 PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	0803-	●	●
130	04.302 LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	0803-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0804-0804			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JB1-TC ENG(RDT)	8-94105-141-2	01	1	0805-0809			●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0810-1210			●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-98190-340-0	01	1	1211-			●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-667-0	01	1	0803-	●
133	04.027 SEAT; SPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0803-	●	●
133	04.027 SEAT; SPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 (C) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●	●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	0804-0804			●	●
142	04.012 BOLT; QUAD BOX 4JB1-TC ENG(RDT) 04.105 (A) M8X25	8-94128-786-0	08	1	0805-0809			●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	0810-1210			●	●
142	04.012 BOLT; QUAD BOX 03.275 (A) M8X25 FLANGE	0-28050-825-0	08	1	1211-			●	●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	0804-0804			●	●
142	04.012 BOLT; QUAD BOX 4JB1-TC ENG(RDT) 04.105 (B) M8X30	8-97029-705-0	02	1	0805-0809			●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	0810-1210			●	●
142	04.012 BOLT; QUAD BOX 00.206 (B) M8X30 FLANGE	0-28050-830-0	02	1	1211-			●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-663-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0803-	●	●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-94159-268-1	01	1	0804-0804			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JB1-TC ENG(RDT) (D)	8-94159-268-1	01	1	0805-0809			●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-94159-268-1	01	1	0810-1210			●	●
163	04.302 LEVER; SELECT,INTERNAL (D)	8-98190-302-0	01	1	1211-			●	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98039-436-0	01	1	0803-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-994-0	01	1	0803-	●	●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-97035-560-1	01	1	0804-0804			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JB1-TC ENG(RDT) (C)	8-97035-560-1	01	1	0805-0809			●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-97035-560-1	01	1	0810-1210			●	●
167	04.302 LEVER; SELECT,EXTERNAL (C)	8-98190-276-0	01	1	1211-			●	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0803-1312	●	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0804-0804			●	●
171	04.054 SWITCH; NEUTRAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0805-0809			●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	0810-1210			●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98190-415-0	01	1	1211-			●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	0803-	●	●
181	04.302 WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	0803-	●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-661-0	01	1	0803-	●
192	04.309 WASHER; PL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0803-	●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-661-0	02	1	0803-		●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97362-753-2	01	1	0803-1312	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98241-002-2	01	1	1401-	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-5	01	1	0803-1010	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98109-435-1	01	1	1011-1312	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98241-121-1	01	1	1401-1411	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-529-0	01	1	1412-1509	●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-685-0	01	1	1510-	●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-591-1	01	1	0803-1312		●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98240-993-2	01	1	1401-		●
273	04.309 PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0803-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-662-0	01	1	0803-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97363-225-0	01	1	0803-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0803-	●	●
346	04.545 HOSE; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97309-855-0	01	1	0803-	●	●
346	04.545 HOSE; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0803-	●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-		●
381	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0803-0906	●	●
381	04.105 BOLT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0803-		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	0803-	●	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98186-003-0	01	1	1107-1311	●	●
398	02.698 SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98256-418-0	01	1	1312-	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-050-0	01	1	0803-1106	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98023-050-0	01	1	1107-1312	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-173-1	01	1	1401-	●	●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	0804-0804			●	●
398	02.698 SWITCH; REV LAMP 4JB1-TC ENG(RDT)	8-98112-229-0	01	1	0805-0809			●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	0810-1210			●	●
398	02.698 SWITCH; REV LAMP	8-98190-417-0	01	1	1211-			●	●
535	04.302 SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97323-771-0	01	1	0803-	●
535	04.302 SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97323-772-0	01	1	0803-	●
535	04.302 SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-659-0	01	1	0803-		●
535	04.302 SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-660-0	01	1	0803-		●
548	04.457 CLIP; HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.278	8-97031-674-0	01	1	0803-	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.302 (B) L=32	8-97011-596-2	04	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) L=20	8-97241-340-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0803-	●	●
551	04.303 PIN; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0803-	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0803-		●
554	04.302 STUD; CONT BOX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	0803-	●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510	8-97358-318-0	01	1	0803-	●	●
559	04.302 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0803-	●	●
624	04.105 PLATE; INTER LOCK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-317-3	01	1	0803-	●	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	0803-	●
630	04.307 DETENT ASM	8-98019-536-0	04	1	0803-		●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	0803-	●	●
631	04.105 STOPPER; SPRING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0803-	●	●
635	04.309 PLUG; DETENT 00.206	8-97380-892-0	01	1	0803-	●
645	04.311 DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307	8-98019-536-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
