◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87A - COUPLING; INJECTION PUMP ▶
0-87A — COUPLING; INJECTION PUMP (#5305) — 192 parça

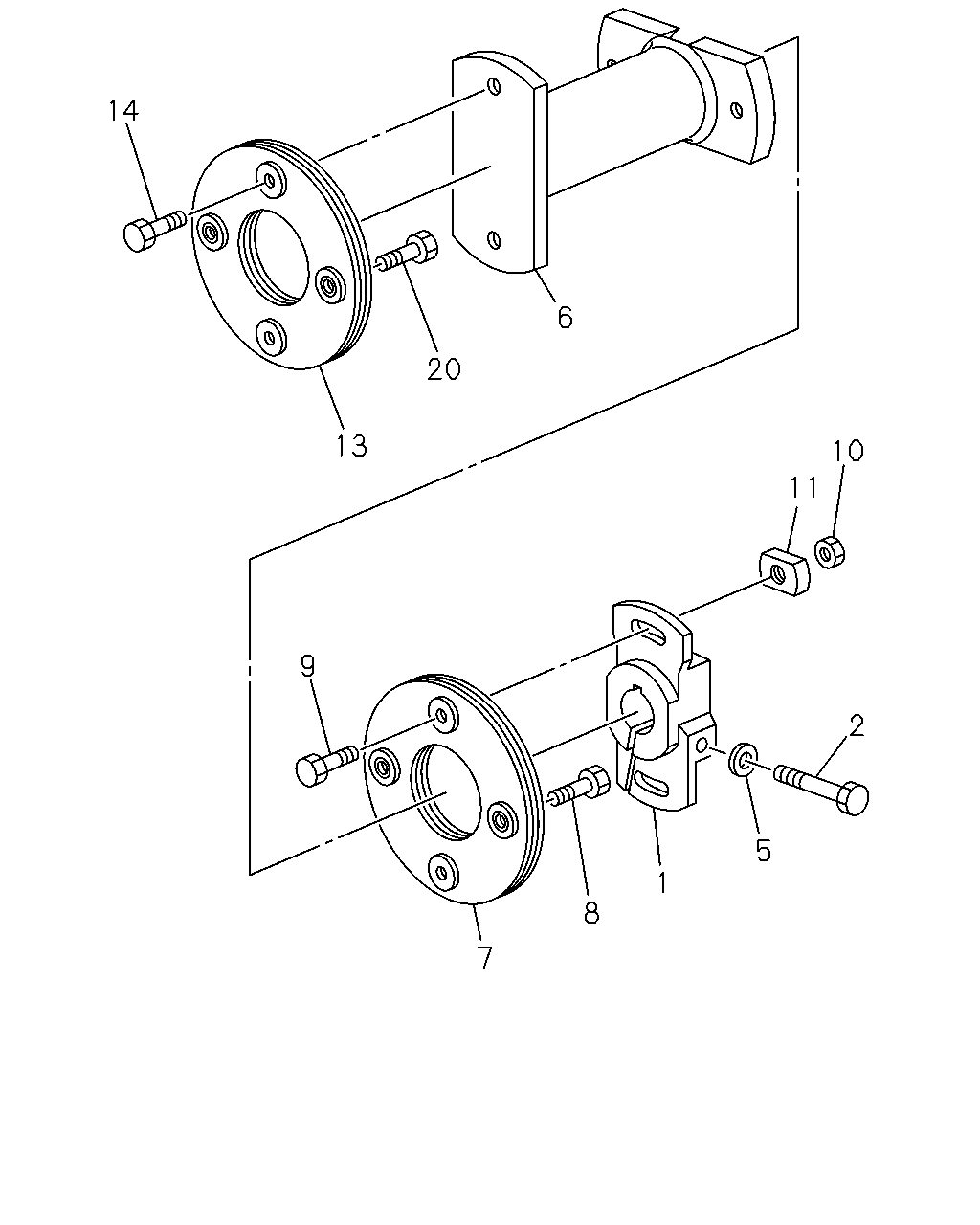

çizim 7070
14 6 20 13 10 11 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COUPLING; INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15782-021-0 01 1 9603-9901 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9902-9904 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9905-9909 ● ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9910- ● ● ●
1 COUPLING; INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15781-029-0 01 1 9603-9901 ●
1 COUPLING; INJ PUMP DRIVE 1-15781-029-0 01 1 9902-9904 ●
1 COUPLING; INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15781-029-0 01 1 9905- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-029-0 01 1 9905- ●
1 COUPLING; INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15782-021-0 01 1 9905-9905 ●
1 COUPLING; INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15782-021-0 01 1 9905- ● ●
2 BOLT; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-162-0 01 1 9603-9901 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9902-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9905-9909 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9910- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-079-0 01 1 9603-9901 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 9902-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-079-0 01 1 9905- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 9905- ●
2 BOLT; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-162-0 01 1 9905-9905 ●
2 BOLT; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-162-0 01 1 9905- ● ●
5 WASHER; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-021-0 01 1 9603-9901 ●
5 WASHER; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-021-0 01 1 9905-9905 ●
5 WASHER; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-021-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-223-0 01 1 9905-9905 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-223-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-180-0 01 1 9603-9901 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9902-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9905-9909 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9910- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-171-0 01 1 9603-9901 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-171-0 01 1 9902-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-171-0 01 1 9905- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-171-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-181-0 01 1 9603-9901 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9902-9904 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9905-9909 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9910- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-096-0 01 1 9603-9901 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9902-9904 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-096-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-181-0 01 1 9905-9905 ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-181-0 01 1 9905- ● ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-183-0 02 1 9603-9901 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9902-9904 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9905-9909 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9910- ● ● ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-098-0 02 1 9603-9901 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 9902-9904 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-098-0 02 1 9905- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 9905- ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-183-0 02 1 9905-9905 ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-183-0 02 1 9905- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-163-0 02 1 9603-9901 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9902-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9905-9909 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9910- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-075-0 02 1 9603-9901 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-075-0 02 1 9902-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-075-0 02 1 9905- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-075-0 02 1 9905- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-163-0 02 1 9905-9905 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-163-0 02 1 9905- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-179-0 02 1 9603-9901 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9902-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9905-9909 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9910- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-073-0 02 1 9603-9901 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9902-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-073-0 02 1 9905- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9905- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-179-0 02 1 9905-9905 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-179-0 02 1 9905- ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-076-0 02 1 9603-9901 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-076-0 02 1 9902-9904 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-076-0 02 1 9905- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-076-0 02 1 9905- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9603-9901 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9902-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9905- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9902-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9905-9909 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9910- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9603-9901 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9902-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9905- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9902-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9905-9909 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9910- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9603-9901 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9902-9904 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9905- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9902-9904 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9905-9909 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9910- ● ● ●

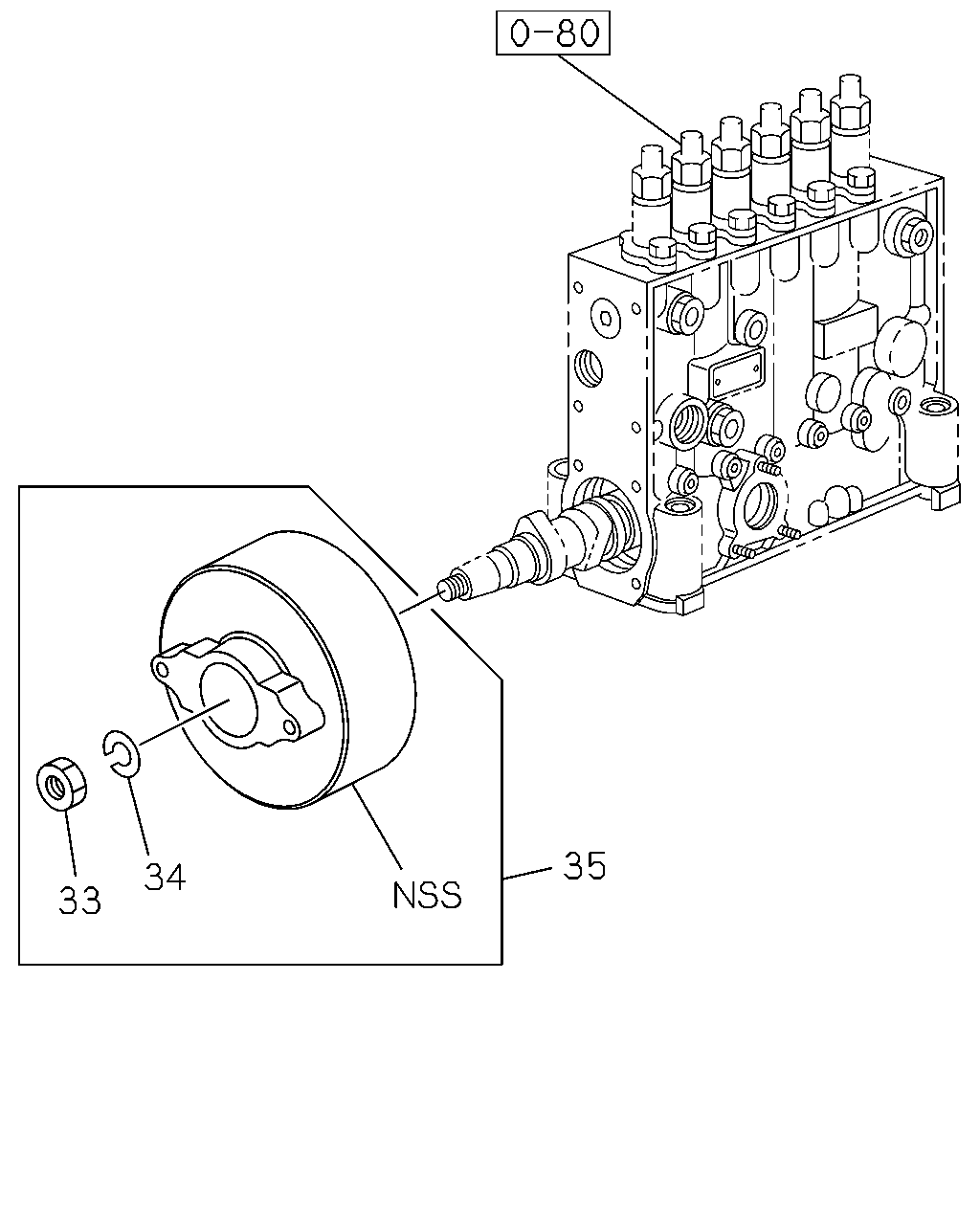

çizim 7158
35 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
33 NUT; DAMPER 1-19179-020-0 01 1 9902-9904 ●
33 NUT; DAMPER 1-19179-020-0 01 1 9905-9909 ● ●
33 NUT; DAMPER 1-19179-020-0 01 1 9910- ● ● ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9902-9904 ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9905-9909 ● ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9910- ● ● ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9902-9904 ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9905-9909 ● ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9910- ● ● ●

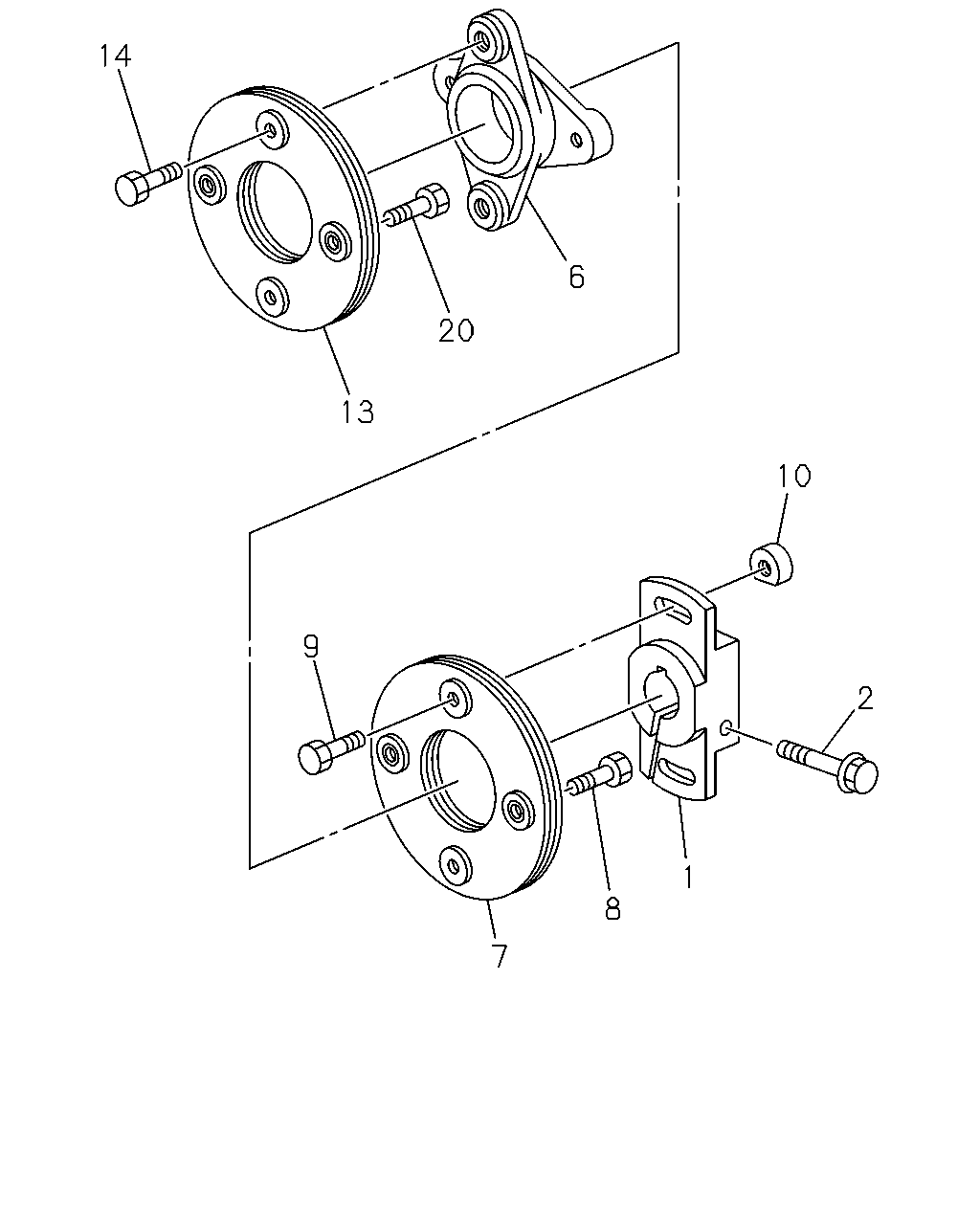

çizim 39158
14 6 20 13 10 9 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COUPLING; INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15782-021-0 01 1 9603-9901 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9902-9904 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9905-9909 ● ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9910- ● ● ●
1 COUPLING; INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15781-029-0 01 1 9603-9901 ●
1 COUPLING; INJ PUMP DRIVE 1-15781-029-0 01 1 9902-9904 ●
1 COUPLING; INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15781-029-0 01 1 9905- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-029-0 01 1 9905- ●
1 COUPLING; INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15782-021-0 01 1 9905-9905 ●
1 COUPLING; INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15782-021-0 01 1 9905- ● ●
2 BOLT; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-162-0 01 1 9603-9901 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9902-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9905-9909 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9910- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-079-0 01 1 9603-9901 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 9902-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-079-0 01 1 9905- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 9905- ●
2 BOLT; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-162-0 01 1 9905-9905 ●
2 BOLT; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-162-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-223-0 01 1 9905-9905 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-223-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-180-0 01 1 9603-9901 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9902-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9905-9909 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9910- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-171-0 01 1 9603-9901 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-171-0 01 1 9902-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-171-0 01 1 9905- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-171-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-181-0 01 1 9603-9901 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9902-9904 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9905-9909 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9910- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-096-0 01 1 9603-9901 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9902-9904 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-096-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-181-0 01 1 9905-9905 ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-181-0 01 1 9905- ● ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-183-0 02 1 9603-9901 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9902-9904 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9905-9909 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9910- ● ● ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-098-0 02 1 9603-9901 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 9902-9904 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-098-0 02 1 9905- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 9905- ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-183-0 02 1 9905-9905 ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15619-183-0 02 1 9905- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-163-0 02 1 9603-9901 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9902-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9905-9909 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9910- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-075-0 02 1 9603-9901 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-075-0 02 1 9902-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-075-0 02 1 9905- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-075-0 02 1 9905- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-163-0 02 1 9905-9905 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-163-0 02 1 9905- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-179-0 02 1 9603-9901 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9902-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9905-9909 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9910- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-073-0 02 1 9603-9901 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9902-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-073-0 02 1 9905- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9905- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-179-0 02 1 9905-9905 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-179-0 02 1 9905- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9603-9901 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9902-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9905- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9902-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9905-9909 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9910- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9603-9901 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9902-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9905- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9902-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9905-9909 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9910- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9603-9901 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9902-9904 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9905- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9902-9904 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9905-9909 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9910- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
