Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#53049) — 565 parça

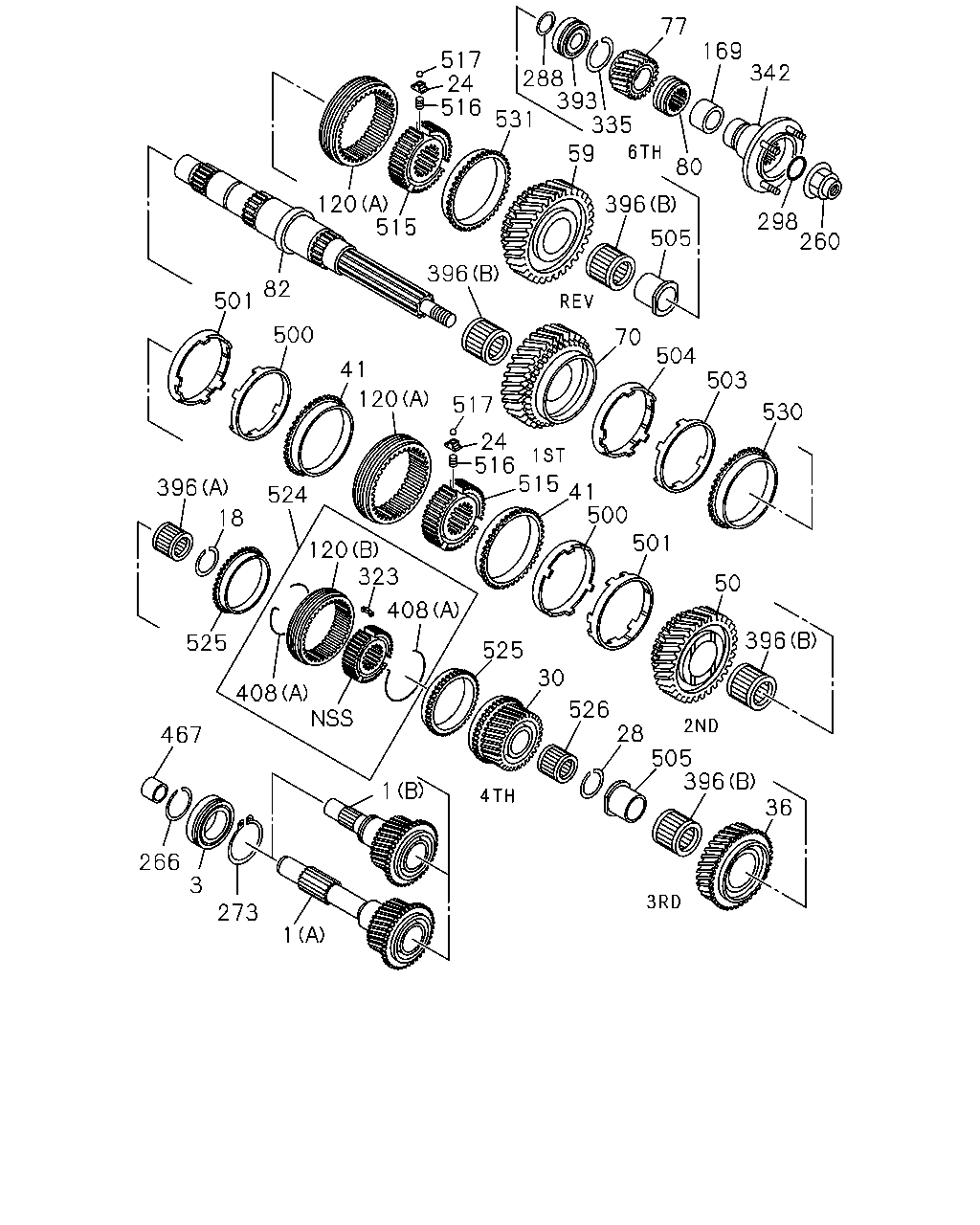

519 517 24 516 342 288 393 335 531 59 80 120 515 396 298 260 505 396 82 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 120 501 323 50 396 525 525 523 408 467 526 28 505 396 36 408 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-97177-683-0	01	1	0810-1010	●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-98179-968-1	01	1	1011-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0803-			●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0803-			●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-97177-683-0	01	1	0804-0804	●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=30	8-97177-684-0	01	1	0804-1010				●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=30	8-98179-969-1	01	1	1011-				●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) NSK	8-97253-098-1	01	1	0803-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	0804-0804	●			●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-1	01	1	0805-0809				●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-2	01	1	0810-1210	●			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1211-	●			●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0804-0804	●			●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0805-0809				●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0810-1210	●			●
18	04.384 RING; SNAP,CLU HUB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0803-		●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0803-		●	●
28	04.416 RING; SNAP,3RD GEAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=46.5 T=1.8	8-97254-743-0	01	1	0803-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97174-923-0	01	1	0810-1010	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=34	8-97241-234-0	01	1	0803-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97174-923-0	01	1	0804-0804	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-97372-905-0	01	1	0804-1010				●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=45	8-97241-306-1	02	1	0803-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	0810-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=38	8-97241-237-1	01	1	0803-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	0804-0804	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	0804-				●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=41	8-97241-244-0	01	1	0803-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0804-0804	●			●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0805-0809				●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0810-1210	●			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1211-	●			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0803-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0803-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97204-109-0	01	1	0804-0804	●			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0805-0809				●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97204-109-0	01	1	0810-1010	●			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1011-	●			●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=4	8-97253-556-0	01	1	0803-		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0804-0804	●			●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0805-0809				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0810-1210	●			●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1211-	●			●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0803-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0803-			●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	0804-0804	●			●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0805-0809				●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	0810-	●			●
120	04.383 SLEEVE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.535 (B) Z=45	8-94421-871-1	01	1	0803-		●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0803-1311		●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0803-1311		●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-		●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-		●	●
260	04.412 NUT; MAINSHAFT END 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.525 M27 H=25	8-97360-410-0	01	1	0803-		●	●
266	04.525 RING; SNAP,BRG INNER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97286-916-0	01	1	0803-		●	●
273	04.525 RING; SNAP,BRG OUTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97254-610-0	01	1	0803-		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97252-942-0	01	1	0803-		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.6 T=5.7	8-98028-226-0	01	1	0803-		●	●
323	04.384 INSERT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-94448-202-2	03	1	0803-		●	●
335	04.383 RING; SNAP,BEARING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97254-722-0	01	1	0803-		●	●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98031-640-0	01	1	0803-		●	●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-105-1	01	1	0803-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-0	01	1	0804-0804	●			●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-0	01	1	0805-0809				●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-1	01	1	0810-1210	●			●
393	04.352 BEARING; MAINSHAFT END	8-98189-743-0	01	1	1211-	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97253-102-1	01	1	0803-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-97253-110-0	04	1	0803-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	0804-0804	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-97161-658-0	01	1	0805-0809				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	0810-1210	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-98189-970-0	01	1	1211-	●			●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-			●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0803-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0804-0804	●			●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0805-0809				●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0810-1210	●			●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-	●			●
467	04.317 COLLAR; SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0803-		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-309-1	02	1	0803-		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-312-1	02	1	0803-		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0803-		●	●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0803-		●	●
505	04.419 COLLAR; 3RD & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-119-2	02	1	0803-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0803-		●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0803-		●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0803-		●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	0803-		●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0803-		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97366-526-0	01	1	0803-		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=45	8-97309-532-0	02	1	0803-		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-112-0	01	1	0803-		●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0803-		●	●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0803-		●	●

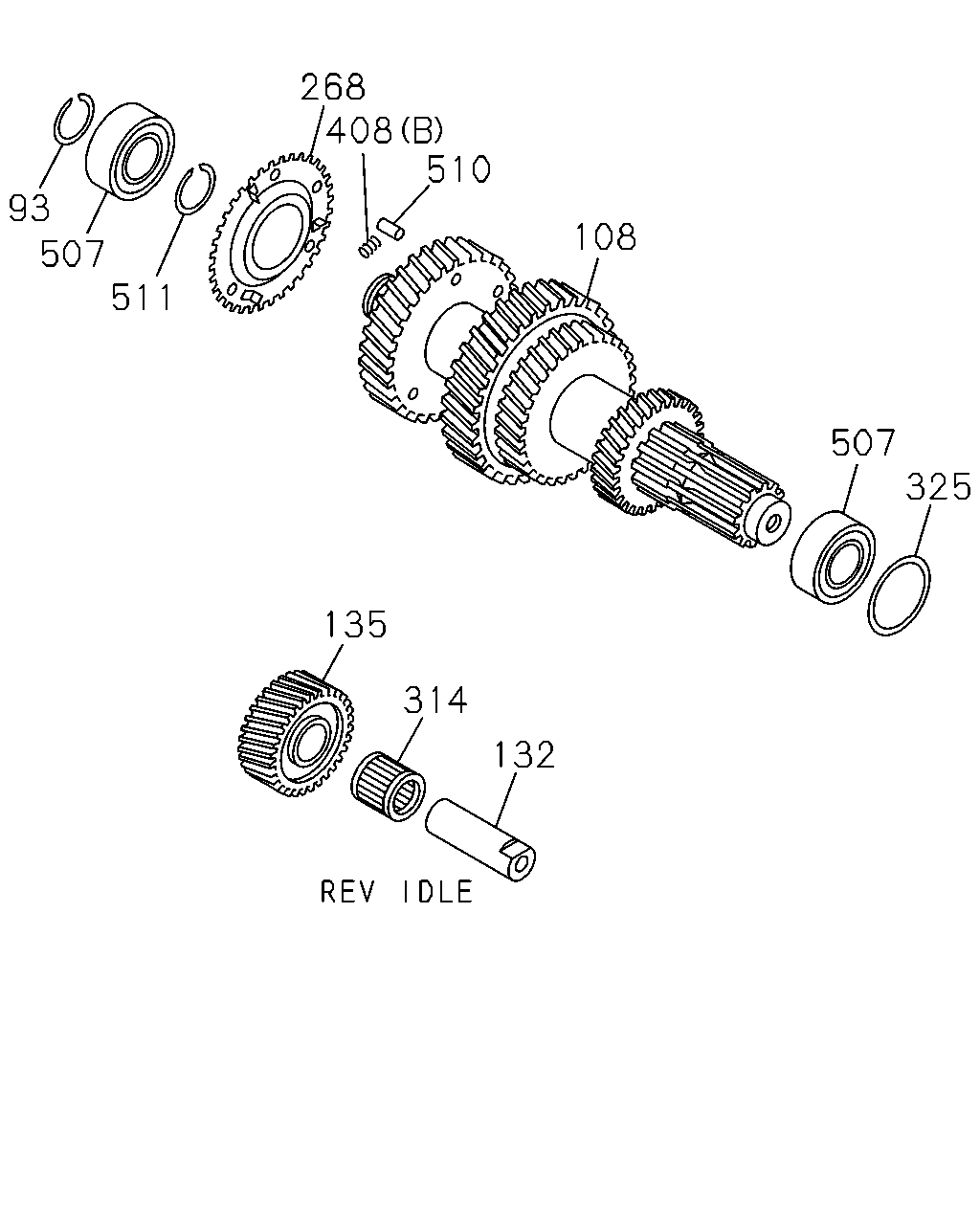

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=2.1	8-97254-740-0	01	1	0803-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=2.3	8-97254-742-0	01	1	0803-		●	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0803-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0803-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0803-			●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0803-			●
132	04.433 SHAFT; REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97252-655-0	01	1	0803-		●	●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0804-0804	●			●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0805-0809				●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0810-1210	●			●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1211-	●			●
135	04.430 GEAR; REV IDLER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=25	8-98031-869-1	01	1	0803-		●	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	0804-0804	●			●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0805-0809				●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	0810-	●			●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0803-		●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0803-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) NSK	8-97253-114-0	01	1	0803-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0804-0804	●			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0805-0809				●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0810-1210	●			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1211-	●			●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.29	8-97252-666-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.35	8-97252-667-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.41	8-97252-668-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.47	8-97252-669-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.53	8-97252-670-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.59	8-97252-671-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.65	8-97252-672-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.71	8-97252-673-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.77	8-97252-674-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.83	8-97252-675-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.89	8-97257-622-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.11	8-97306-188-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.17	8-97306-189-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.23	8-97306-190-0	01	1	0803-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-			●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0803-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0804-0804	●			●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0805-0809				●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0810-1210	●			●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-	●			●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-107-0	02	1	0803-		●	●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	0803-		●	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	0803-		●	●

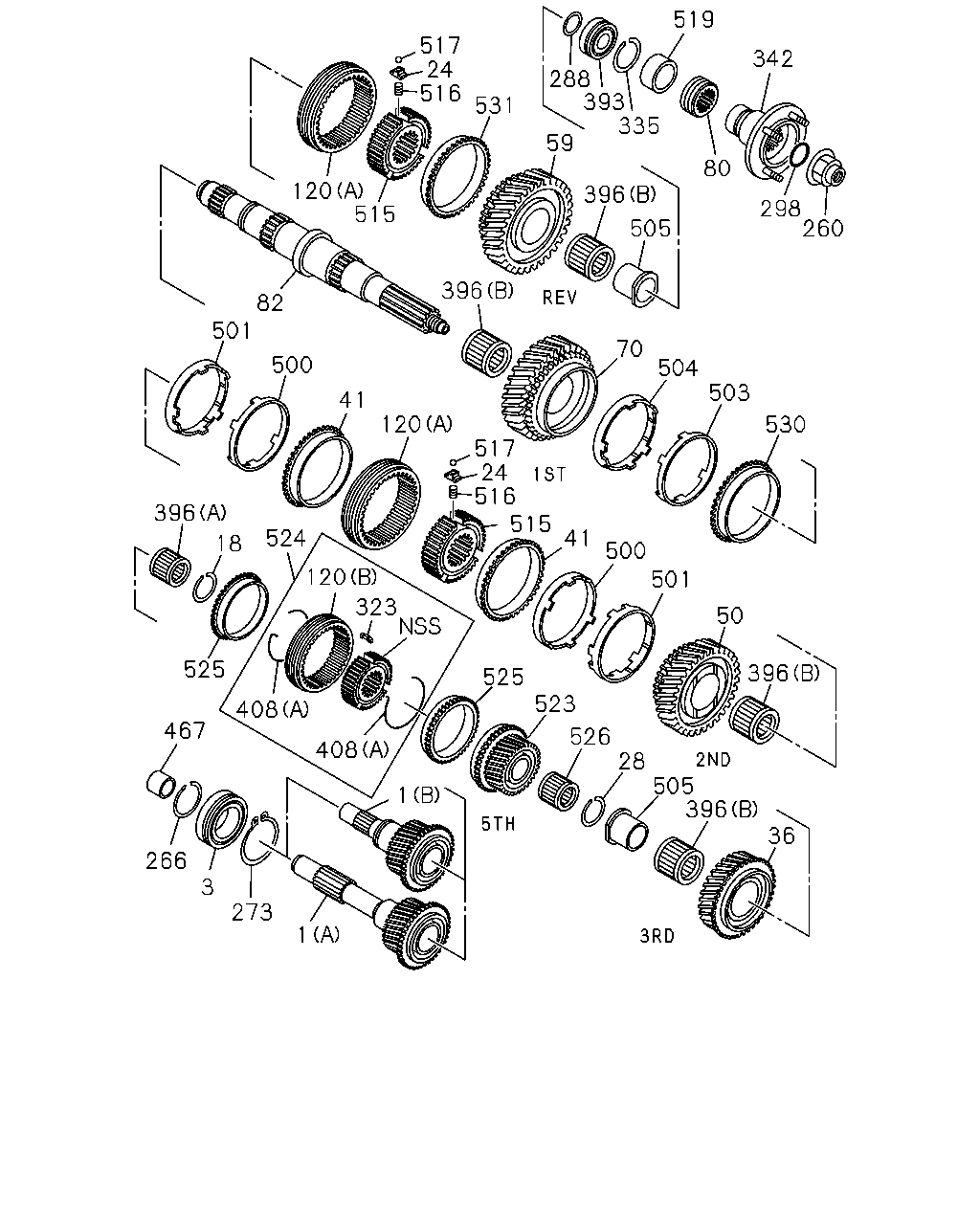

77 169 342 517 24 516 288 393 335 531 59 80 120 515 396 298 260 505 396 82 501 500 70 504 41 503 120 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 467 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-97177-683-0	01	1	0810-1010	●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-98179-968-1	01	1	1011-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0803-			●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0803-			●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-97177-683-0	01	1	0804-0804	●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=30	8-97177-684-0	01	1	0804-1010				●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=30	8-98179-969-1	01	1	1011-				●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) NSK	8-97253-098-1	01	1	0803-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	0804-0804	●			●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-1	01	1	0805-0809				●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-2	01	1	0810-1210	●			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1211-	●			●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0804-0804	●			●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0805-0809				●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0810-1210	●			●
18	04.384 RING; SNAP,CLU HUB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0803-		●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0803-		●	●
28	04.416 RING; SNAP,3RD GEAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=46.5 T=1.8	8-97254-743-0	01	1	0803-		●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	0803-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97174-923-0	01	1	0810-1010	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=34	8-97241-234-0	01	1	0803-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97174-923-0	01	1	0804-0804	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-97372-905-0	01	1	0804-1010				●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=45	8-97241-306-1	02	1	0803-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	0810-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=38	8-97241-237-1	01	1	0803-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	0804-0804	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	0804-				●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=41	8-97241-244-0	01	1	0803-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0804-0804	●			●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0805-0809				●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0810-1210	●			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1211-	●			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0803-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0803-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97204-109-0	01	1	0804-0804	●			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0805-0809				●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97204-109-0	01	1	0810-1010	●			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1011-	●			●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	0803-			●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=4	8-97253-556-0	01	1	0803-		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0804-0804	●			●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0805-0809				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0810-1210	●			●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1211-	●			●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0803-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0803-			●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	0804-0804	●			●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0805-0809				●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	0810-	●			●
120	04.383 SLEEVE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.535 (B) Z=45	8-94421-871-1	01	1	0803-		●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0803-1311		●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0803-1311		●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-		●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-		●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	0803-			●
260	04.412 NUT; MAINSHAFT END 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.525 M27 H=25	8-97360-410-0	01	1	0803-		●	●
266	04.525 RING; SNAP,BRG INNER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97286-916-0	01	1	0803-		●	●
273	04.525 RING; SNAP,BRG OUTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97254-610-0	01	1	0803-		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97252-942-0	01	1	0803-		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.6 T=5.7	8-98028-226-0	01	1	0803-		●	●
323	04.384 INSERT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-94448-202-2	03	1	0803-		●	●
335	04.383 RING; SNAP,BEARING 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97254-722-0	01	1	0803-		●	●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98031-640-0	01	1	0803-		●	●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-105-1	01	1	0803-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-0	01	1	0804-0804	●			●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-0	01	1	0805-0809				●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-1	01	1	0810-1210	●			●
393	04.352 BEARING; MAINSHAFT END	8-98189-743-0	01	1	1211-	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97253-102-1	01	1	0803-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-97253-110-0	04	1	0803-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	0804-0804	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-97161-658-0	01	1	0805-0809				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	0810-1210	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-98189-970-0	01	1	1211-	●			●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-			●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0803-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0804-0804	●			●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0805-0809				●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0810-1210	●			●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-	●			●
467	04.317 COLLAR; SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0803-		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-309-1	02	1	0803-		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97241-312-1	02	1	0803-		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0803-		●	●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0803-		●	●
505	04.419 COLLAR; 3RD & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-119-2	02	1	0803-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0803-		●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0803-		●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0803-		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97366-526-0	01	1	0803-		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=45	8-97309-532-0	02	1	0803-		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-112-0	01	1	0803-		●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0803-		●	●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0803-		●	●

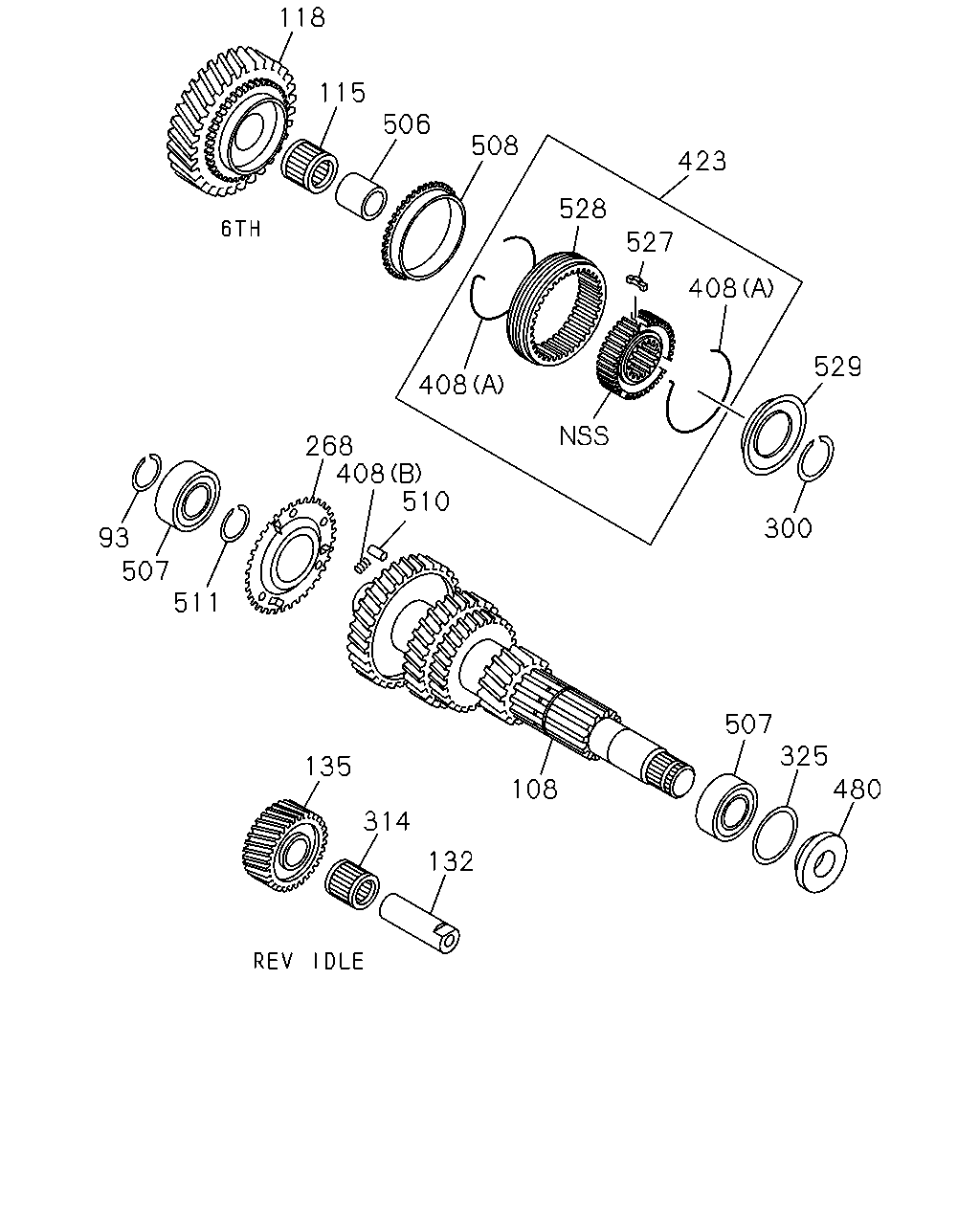

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=2.1	8-97254-740-0	01	1	0803-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=30.7 T=2.3	8-97254-742-0	01	1	0803-		●	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0803-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0803-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0803-			●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0803-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0803-			●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	0803-			●
132	04.433 SHAFT; REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97252-655-0	01	1	0803-		●	●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0804-0804	●			●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0805-0809				●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0810-1210	●			●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1211-	●			●
135	04.430 GEAR; REV IDLER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=25	8-98031-869-1	01	1	0803-		●	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	0804-0804	●			●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0805-0809				●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	0810-	●			●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0803-		●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0803-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	0803-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0803-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	0803-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	0803-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) NSK	8-97253-114-0	01	1	0803-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0804-0804	●			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0805-0809				●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0810-1210	●			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1211-	●			●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.29	8-97252-666-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.35	8-97252-667-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.41	8-97252-668-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.47	8-97252-669-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.53	8-97252-670-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.59	8-97252-671-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.65	8-97252-672-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.71	8-97252-673-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.77	8-97252-674-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.83	8-97252-675-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.89	8-97257-622-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.11	8-97306-188-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.17	8-97306-189-0	01	1	0803-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) ID=62.7 T=2.23	8-97306-190-0	01	1	0803-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-			●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0803-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0804-0804	●			●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0805-0809				●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0810-1210	●			●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-	●			●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	0803-			●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	0803-			●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	0803-			●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-107-0	02	1	0803-		●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	0803-			●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	0803-		●	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	0803-		●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	0803-			●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	0803-			●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	0803-			●

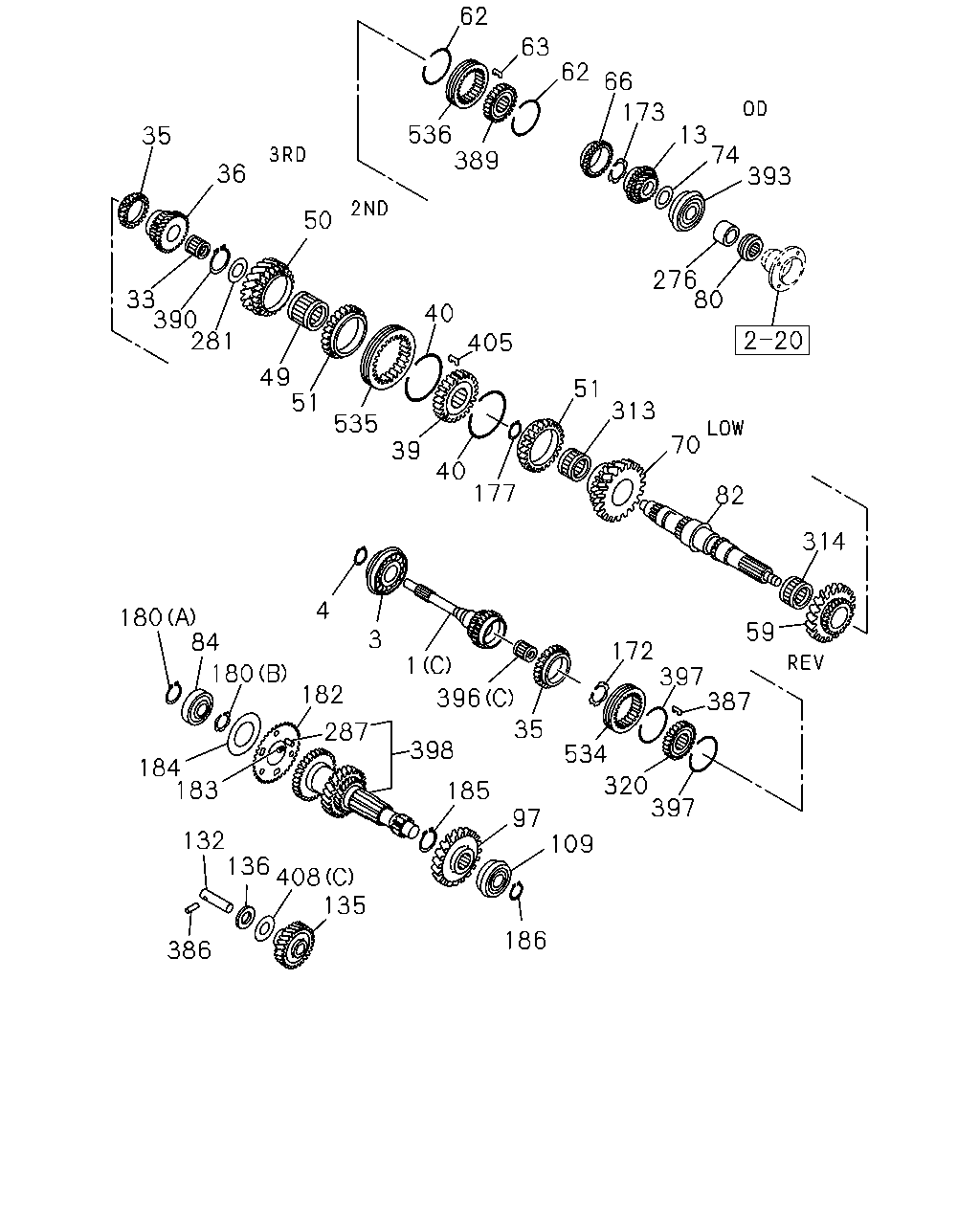

62 63 62 66 173 536 389 13 74 393 35 36 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 1 180 182 396 35 287 398 534 184 183 320 397 185 97 132 136 408 135 109 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-97177-683-0	01	1	0810-1010	●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-98179-968-1	01	1	1011-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0803-			●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0803-			●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=28	8-97177-683-0	01	1	0804-0804	●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=30	8-97177-684-0	01	1	0804-1010				●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=30	8-98179-969-1	01	1	1011-				●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) NSK	8-97253-098-1	01	1	0803-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	0804-0804	●			●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-1	01	1	0805-0809				●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-2	01	1	0810-1210	●			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1211-	●			●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0804-0804	●			●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0805-0809				●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0810-1210	●			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0804-0804	●			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JB1-TC ENG(RDT) 08.934 ID=37.0	9-09180-040-0	01	1	0805-0809				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0810-	●			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97373-008-0	01	1	0810-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97373-008-0	01	1	0804-0804	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97373-011-0	01	1	0804-				●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0804-0804	●			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG(RDT)	8-94317-158-0	01	1	0805-0809				●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0810-1210	●			●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98189-746-0	01	1	1211-	●			●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0804-0804	●			●
35	04.383 RING; BLOCK,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-94128-775-2	02	1	0805-0809				●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0810-1210	●			●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-98190-426-0	02	1	1211-	●			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97174-923-0	01	1	0810-1010	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=34	8-97241-234-0	01	1	0803-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97174-923-0	01	1	0804-0804	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-97372-905-0	01	1	0804-1010				●
39	04.384 HUB; CLU,LOW & 2ND Z=42	8-97177-689-0	01	1	0804-0804	●			●
39	04.384 HUB; CLU,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-97177-689-0	01	1	0805-0809				●
39	04.384 HUB; CLU,LOW & 2ND Z=42	8-97177-689-0	01	1	0810-	●			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0804-0804	●			●
40	04.384 SPRING; INSERT,LOW & 2ND 4JB1-TC ENG(RDT)	8-97023-708-0	02	1	0805-0809				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0810-1210	●			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-98189-960-0	02	1	1211-	●			●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	0804-0804	●			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG(RDT) 04.419 NSK	5-09811-014-0	01	1	0805-0809				●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	0810-1210	●			●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	8-98189-747-0	01	1	1211-	●			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	0810-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=38	8-97241-237-1	01	1	0803-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	0804-0804	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	0804-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0804-0804	●			●
51	04.383 RING; BLOCK,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-97074-619-3	02	1	0805-0809				●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0810-1210	●			●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-98190-428-0	02	1	1211-	●			●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=41	8-97241-244-0	01	1	0803-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0804-0804	●			●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0805-0809				●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0810-1210	●			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1211-	●			●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0804-0804	●			●
62	04.384 SPRING; INSERT,REV & 5TH 4JB1-TC ENG(RDT)	8-97023-710-0	02	1	0805-0809				●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0810-1210	●			●
62	04.384 SPRING; INSERT,REV & 5TH	8-98189-962-0	02	1	1211-	●			●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0804-0804	●			●
63	04.384 INSERT; SYN,REV & 5TH 4JB1-TC ENG(RDT)	9-33263-613-0	03	1	0805-0809				●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0810-1210	●			●
63	04.384 INSERT; SYN,REV & 5TH	8-98190-418-0	03	1	1211-	●			●
66	04.383 RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0804-0804	●			●
66	04.383 RING; BLOCK,SYN 4JB1-TC ENG(RDT) Z=36	8-94128-775-2	01	1	0805-0809				●
66	04.383 RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0810-1210	●			●
66	04.383 RING; BLOCK,SYN Z=36	8-98190-426-0	01	1	1211-	●			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0803-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0803-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97204-109-0	01	1	0804-0804	●			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0805-0809				●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97204-109-0	01	1	0810-1010	●			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1011-	●			●
74	04.419 WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	0804-0804	●			●
74	04.419 WASHER; THRUST,REV GEAR 4JB1-TC ENG(RDT)	8-97207-176-0	01	1	0805-0809				●
74	04.419 WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	0810-1210	●			●
74	04.419 WASHER; THRUST,REV GEAR	8-98188-569-0	01	1	1211-	●			●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=4	8-97253-556-0	01	1	0803-		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0804-0804	●			●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0805-0809				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0810-1210	●			●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1211-	●			●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0803-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0803-			●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	0804-0804	●			●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0805-0809				●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	0810-	●			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	0804-0804	●			●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG(RDT) NSK	5-09800-062-1	01	1	0805-0809				●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	0810-1210	●			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-98189-745-0	01	1	1211-	●			●
97	04.415 GEAR; 5TH,COUNTER Z=55	8-97372-900-0	01	1	0810-	●
97	04.415 GEAR; 5TH,COUNTER Z=55	8-97372-900-0	01	1	0804-0804	●
97	04.415 GEAR; 5TH,COUNTER Z=53	8-97169-511-0	01	1	0804-				●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	0804-0804	●			●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1-TC ENG(RDT)	8-97095-913-0	01	1	0805-0809				●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	0810-1210	●			●
109	04.422 BEARING; COUNTER SHAFT,RR	8-98189-744-0	01	1	1211-	●			●
132	04.433 SHAFT; REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97252-655-0	01	1	0803-		●	●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0804-0804	●			●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0805-0809				●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0810-1210	●			●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1211-	●			●
135	04.430 GEAR; REV IDLER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) Z=25	8-98031-869-1	01	1	0803-		●	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	0804-0804	●			●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0805-0809				●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	0810-	●			●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	0804-0804	●			●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG(RDT)	8-97081-579-2	01	1	0805-0809				●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	0810-1210	●			●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-98188-533-0	01	1	1211-	●			●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	0804-0804	●			●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.75	8-94402-405-0	01	1	0805-0809				●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	0810-	●			●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	0804-0804	●			●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.80	8-94402-406-0	01	1	0805-0809				●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	0810-	●			●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	0804-0804	●			●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.85	8-94402-407-0	01	1	0805-0809				●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	0810-	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0804-0804	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.85	8-94151-522-0	01	1	0805-0809				●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0810-	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0804-0804	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.90	8-94151-523-0	01	1	0805-0809				●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0810-	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0804-0804	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.95	8-94151-524-0	01	1	0805-0809				●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0810-	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0804-0804	●			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=2.00	8-94157-747-0	01	1	0805-0809				●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0810-	●			●
177	04.384 RING; SNAP,CLU HUB 04.422 ID=44.5	5-09589-010-0	01	1	0804-0804	●			●
177	04.384 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.422 ID=44.5	5-09589-010-0	01	1	0805-0809				●
177	04.384 RING; SNAP,CLU HUB 04.422 ID=44.5	5-09589-010-0	01	1	0810-1210	●			●
177	04.384 RING; SNAP,CLU HUB ID=44.5	8-98189-990-0	01	1	1211-	●			●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0804-0804	●			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) (B) ID=38.5	8-94146-483-0	01	1	0805-0809				●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0810-1210	●			●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-98189-991-0	01	1	1211-	●			●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	0804-0804	●			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) 08.934 (A) ID=32.2	9-09180-035-0	01	1	0805-0809				●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	0810-	●			●
182	04.422 PLATE; CLUSTER GEAR	8-94129-632-1	01	1	0810-1210	●
182	04.422 PLATE; CLUSTER GEAR	8-98188-586-0	01	1	1211-	●
182	04.422 PLATE; CLUSTER GEAR	8-94129-632-1	01	1	0804-0804	●
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	0804-1210				●
182	04.422 PLATE; CLUSTER GEAR	8-98188-585-0	01	1	1211-				●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0804-0804	●			●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94132-168-0	03	1	0805-0809				●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0810-1210	●			●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-98189-380-0	03	1	1211-	●			●
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0804-0804	●			●
184	04.422 SPRING; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94128-790-1	01	1	0805-0809				●
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0810-1210	●			●
184	04.422 SPRING; CLUSTER GEAR	8-98189-350-0	01	1	1211-	●			●
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	0804-0804	●			●
185	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) ID=41.5	9-09180-045-0	01	1	0805-0809				●
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	0810-	●			●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0804-0804	●			●
186	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) ID=29.6	9-09180-032-0	01	1	0805-0809				●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0810-	●			●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0804-0804	●			●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG(RDT)	8-97207-175-0	01	1	0805-0809				●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0810-1210	●			●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-98188-906-0	01	1	1211-	●			●
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	0804-0804	●			●
281	04.419 WASHER; THRUST,MAINSHAFT 4JB1-TC ENG(RDT)	5-33271-007-0	01	1	0805-0809				●
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	0810-1210	●			●
281	04.419 WASHER; THRUST,MAINSHAFT	8-98188-466-0	01	1	1211-	●			●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	0804-0804	●			●
287	04.422 PIN; COUNTER GEAR 4JB1-TC ENG(RDT)	8-94402-462-0	01	1	0805-0809				●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	0810-1405	●			●
287	04.422 PIN; COUNTER GEAR	8-98190-445-0	03	1	1406-	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0804-0804	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) NSK	8-94317-161-0	01	1	0805-0809				●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0810-1210	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR	8-98189-748-0	01	1	1211-	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	0804-0804	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) JTEKT	8-97010-547-0	01	1	0805-0809				●
313	04.419 BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	0810-1210	●			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) NSK	8-97253-114-0	01	1	0803-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0804-0804	●			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0805-0809				●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0810-1210	●			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1211-	●			●
320	04.384 HUB; CLU,4TH & 3RD Z=36	8-97177-690-0	01	1	0804-0804	●			●
320	04.384 HUB; CLU,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-97177-690-0	01	1	0805-0809				●
320	04.384 HUB; CLU,4TH & 3RD Z=36	8-97177-690-0	01	1	0810-	●			●
386	04.435 PIN; REV SHAFT	8-94128-794-0	01	1	0804-0804	●			●
386	04.435 PIN; REV SHAFT 4JB1-TC ENG(RDT)	8-94128-794-0	01	1	0805-0809				●
386	04.435 PIN; REV SHAFT	8-94128-794-0	01	1	0810-1210	●			●
386	04.435 PIN; REV SHAFT	8-98190-093-0	01	1	1211-	●			●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0804-0804	●			●
387	04.384 INSERT; SYN,4TH & 3RD 4JB1-TC ENG(RDT)	5-33263-001-0	03	1	0805-0809				●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0810-1210	●			●
387	04.384 INSERT; SYN,4TH & 3RD	8-98189-965-0	03	1	1211-	●			●
389	04.384 HUB; CLU,REV & 5TH Z=36	8-97373-144-0	01	1	0804-0804	●			●
389	04.384 HUB; CLU,REV & 5TH 4JB1-TC ENG(RDT) Z=36	8-97373-144-0	01	1	0805-0809				●
389	04.384 HUB; CLU,REV & 5TH Z=36	8-97373-144-0	01	1	0810-	●			●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	0804-0804	●			●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.75	8-94151-520-0	01	1	0805-0809				●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	0810-	●			●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	0804-0804	●			●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.80	8-94151-521-0	01	1	0805-0809				●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	0810-	●			●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	0804-0804	●			●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.416 T=1.85	8-94151-522-0	01	1	0805-0809				●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	0810-	●			●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	0804-0804	●			●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.416 T=1.90	8-94151-523-0	01	1	0805-0809				●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	0810-	●			●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97253-105-1	01	1	0803-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-0	01	1	0804-0804	●			●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-0	01	1	0805-0809				●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-1	01	1	0810-1210	●			●
393	04.352 BEARING; MAINSHAFT END	8-98189-743-0	01	1	1211-	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97253-102-1	01	1	0803-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-97253-110-0	04	1	0803-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	0804-0804	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-97161-658-0	01	1	0805-0809				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	0810-1210	●			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-98189-970-0	01	1	1211-	●			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0804-0804	●			●
397	04.384 SPRING; INSERT,4TH & 3RD 4JB1-TC ENG(RDT)	8-97023-710-0	02	1	0805-0809				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0810-1210	●			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-98189-962-0	02	1	1211-	●			●
398	04.421 GEAR; COUNTER Z=51-34-22-14	8-97204-104-0	01	1	0810-	●
398	04.421 GEAR; COUNTER Z=51-34-22-14	8-97204-104-0	01	1	0804-0804	●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97381-658-0	01	1	0804-				●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0804-0804	●			●
405	04.384 INSERT; SYN,LOW & 2ND 4JB1-TC ENG(RDT)	5-33263-001-0	03	1	0805-0809				●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0810-1210	●			●
405	04.384 INSERT; SYN,LOW & 2ND	8-98189-965-0	03	1	1211-	●			●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0803-			●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0803-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0804-0804	●			●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0805-0809				●
408	04.384 SPRING (C)	8-97081-577-0	01	1	0810-1210	●			●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-	●			●
534	04.395 SLEEVE; HUB,4TH-3RD Z=36	8-97177-134-0	01	1	0804-0804	●			●
534	04.395 SLEEVE; HUB,4TH-3RD 4JB1-TC ENG(RDT) Z=36	8-97177-134-0	01	1	0805-0809				●
534	04.395 SLEEVE; HUB,4TH-3RD Z=36	8-97177-134-0	01	1	0810-	●			●
535	04.395 SLEEVE; HUB,LOW-2ND Z=42	8-97177-133-0	01	1	0804-0804	●			●
535	04.395 SLEEVE; HUB,LOW-2ND 4JB1-TC ENG(RDT) Z=42	8-97177-133-0	01	1	0805-0809				●
535	04.395 SLEEVE; HUB,LOW-2ND Z=42	8-97177-133-0	01	1	0810-	●			●
536	04.395 SLEEVE; HUB,REV-5TH Z=36	8-97177-135-0	01	1	0804-0804	●			●
536	04.395 SLEEVE; HUB,REV-5TH 4JB1-TC ENG(RDT) Z=36	8-97177-135-0	01	1	0805-0809				●
536	04.395 SLEEVE; HUB,REV-5TH Z=36	8-97177-135-0	01	1	0810-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
